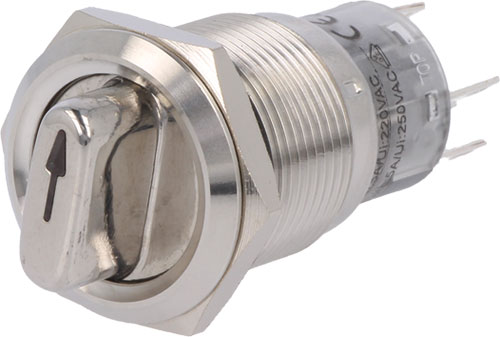

Switch: rotary; ONPOW
| Manufacturer | ONPOW |
| Type of switch | rotary |
| Body material | stainless steel |
| Body colour | silver |
| Contact material | silver alloy |
| Mechanical durability | 1000000 cycles |
| Max. contact resistance: | 50mΩ |
| Operating Force | 4N |
| Electrical life | 50000 cycles |
| Mounting hole diameter | Ø19mm |
| Operating temperature | -20...55°C |
| IP rating | IP40 |
| Leads | for soldering |

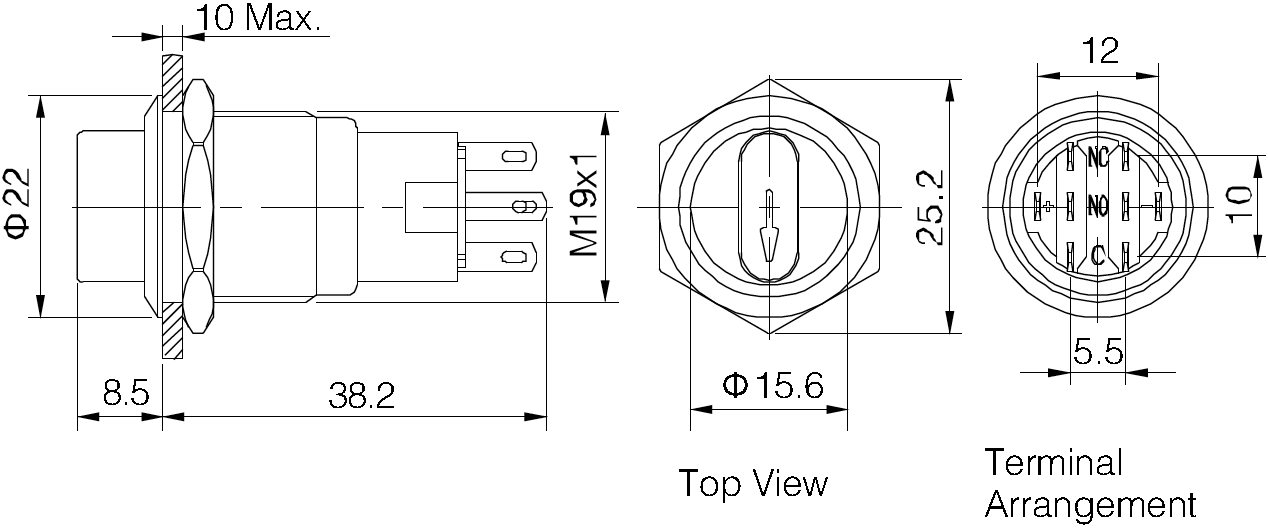

| Dimensions | Fig. 1-1. |
| Ring shape | rounded |
| AC contacts rating @R* | 0.5A / 220V AC |
| DC contacts rating @R* | 1A / 24V DC |
| Illumination | LED |
* at resistive load
Shape:
- round (V19-11X-2xxx-S, V19-22X-31-24R-S, V19-22X-31-24G-S)
- ring (V19-22X-31-12R-S)
- rounded (V19-22X-31-12G-S)
Backlight colour:
- red (V19-xxxR-S)
- green (V19-xxxG-S)
Positions:
- 2 (V19-11X-2xxx-S)
- 3 (V19-22X-31-xxx-S)
Contacts layout:
- Fig. 2-1. (V19-22X-31-xxx-S)
| Symbol | Contacts layout | Switch. method* |
|---|---|---|
| V19-11X-21-12R-S | SPDT | ON-OFF |
| V19-11X-21-12G-S | SPDT | ON-OFF |
| V19-11X-21-24R-S | SPDT | ON-OFF |
| V19-11X-21-24G-S | SPDT | ON-OFF |
| V19-11X-23-12R-S | SPDT | ON-(OFF) |
| V19-11X-23-12G-S | SPDT | ON-(OFF) |
| V19-11X-23-24G-S | SPDT | ON-(OFF) |
| V19-22X-31-12R-S | DP4T | OFF-ON-ON - line 1, ON-ON-OFF - line 2 |
| V19-22X-31-12G-S | DP4T | OFF-ON-ON - line 1, ON-ON-OFF - line 2 |
| V19-22X-31-24R-S | DP4T | OFF-ON-ON - line 1, ON-ON-OFF - line 2 |
| V19-22X-31-24G-S | DP4T | OFF-ON-ON - line 1, ON-ON-OFF - line 2 |
* the position in bracket indicates momentary position.
| Symbol | Test voltage | Illumination voltage |
|---|---|---|
| [kV] | [V] | |
| V19-11X-21-12R-S | 1.5 | 12 |
| V19-11X-21-12G-S | 1.5 | 12 |
| V19-11X-21-24R-S | 1.5 | 24 |
| V19-11X-21-24G-S | 1.5 | 24 |
| V19-11X-23-12R-S | 1.5 | 12 |
| V19-11X-23-12G-S | 1.5 | 12 |
| V19-11X-23-24G-S | 2 | 24 |
| V19-22X-31-12R-S | 1.5 | 12 |
| V19-22X-31-12G-S | 1.5 | 12 |
| V19-22X-31-24R-S | 1.5 | 24 |
| V19-22X-31-24G-S | 1.5 | 24 |
