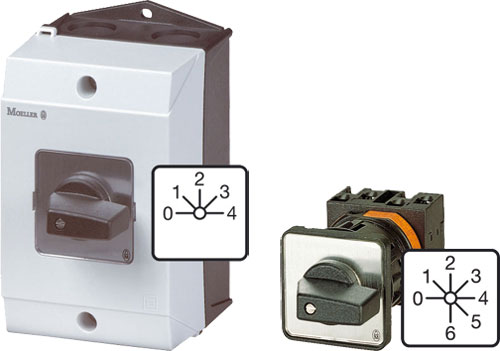

Switch: step cam switch; EATON ELECTRIC
| Manufacturer | EATON ELECTRIC |
| Type of switch | step cam switch |
| Symbol | Stable positions description | Inom | Pmax | Mounting | Schematic diagram | Positions | Mechanical rotation angle | Body dimensions | Colour | Body col. |
|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [kW] | [°] | [mm] | |||||||
| T0-1-8240/E | 0-1-2 | 20 | 6.5 | for building in | Fig. 1. | 3 | 45 | 48x48x76 | black | - |
| T0-1-8240/EZ | 0-1-2 | 20 | 6.5 | for building in | - | 3 | 45 | 48x48x96 | black | - |
| T0-1-8240/IVS | 0-1-2 | 20 | 6.5 | for building in | - | 3 | 45 | 54x55x82 | black | - |
| T0-1-8240/I1 | 0-1-2 | 20 | 6.5 | in housing | Fig. 1. | 3 | 45 | 137x80x102 | - | black-white |
| T0-1-8240/Z | 0-1-2 | 20 | 6.5 | for building in | - | 3 | 45 | 48x48x118 | black | - |
| T0-2-8241/E | 0-1-2-3 | 20 | 6.5 | for building in | Fig. 2. | 4 | 45 | 48x48x86 | black | - |
| T0-2-8241/EZ | 0-1-2-3 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x106 | black | - |
| T0-2-8241/IVS | 0-1-2-3 | 20 | 6.5 | for building in | - | 4 | 45 | 54x55x92 | black | - |
| T0-2-8241/I1 | 0-1-2-3 | 20 | 6.5 | in housing | Fig. 2. | 4 | 45 | 137x80x102 | - | black-white |
| T0-2-8241/Z | 0-1-2-3 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x128 | black | - |
| T0-2-8242/E | 0-1-2-3-4 | 20 | 6.5 | for building in | Fig. 3. | 5 | 45 | 48x48x86 | black | - |
| T0-2-8242/EZ | 0-1-2-3-4 | 20 | 6.5 | for building in | - | 5 | 45 | 48x48x106 | black | - |
| T0-2-8242/IVS | 0-1-2-3-4 | 20 | 6.5 | for building in | - | 5 | 45 | 54x55x92 | black | - |
| T0-2-8242/I1 | 0-1-2-3-4 | 20 | 6.5 | in housing | Fig. 3. | 5 | 45 | 138x83x115 | - | black-white |
| T0-2-8242/Z | 0-1-2-3-4 | 20 | 6.5 | for building in | - | 5 | 45 | 48x48x128 | black | - |
| T0-3-8243/E | 0-1-2-3-4-5 | 20 | 6.5 | for building in | Fig. 4. | 6 | 45 | 76x68x115 | black | - |
| T0-3-8243/EZ | 0-1-2-3-4-5 | 20 | 6.5 | for building in | - | 6 | 45 | 48x48x115 | black | - |
| T0-3-8243/IVS | 0-1-2-3-4-5 | 20 | 6.5 | for building in | - | 6 | 45 | 54x55x101 | black | - |
| T0-3-8243/I1 | 0-1-2-3-4-5 | 20 | 6.5 | in housing | Fig. 4. | 6 | 45 | 137x80x122 | - | black-white |
| T0-3-8243/Z | 0-1-2-3-4-5 | 20 | 6.5 | for building in | - | 6 | 45 | 48x48x137 | black | - |

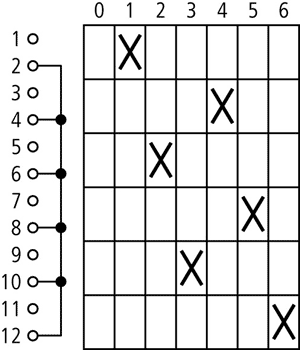

| T0-3-8244/E | 0-1-2-3-4-5-6 | 20 | 6.5 | for building in | Fig. 5. | 7 | 45 | 48x48x95 | black | - |
| T0-3-8244/EZ | 0-1-2-3-4-5-6 | 20 | 6.5 | for building in | - | 7 | 45 | 48x48x115 | black | - |
| T0-3-8244/IVS | 0-1-2-3-4-5-6 | 20 | 6.5 | for building in | - | 7 | 45 | 54x55x101 | black | - |
| T0-3-8244/I1 | 0-1-2-3-4-5-6 | 20 | 6.5 | in housing | Fig. 5. | 7 | 45 | 137x80x122 | - | black-white |
| T0-3-8244/Z | 0-1-2-3-4-5-6 | 20 | 6.5 | for building in | - | 7 | 45 | 48x48x137 | black | - |

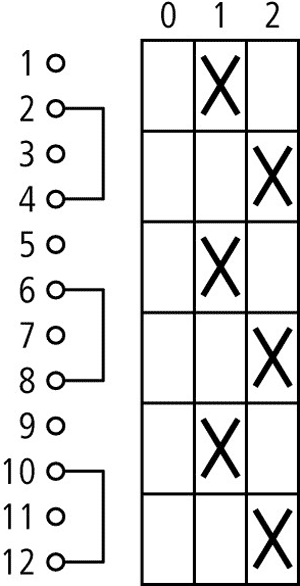

| T0-3-8280/E | 0-1-2 | 20 | 6.5 | for building in | Fig. 6. | 3 | 45 | 48x48x95 | black | - |
| T0-3-8280/EZ | 0-1-2 | 20 | 6.5 | for building in | - | 3 | 45 | 48x48x115 | black | - |
| T0-3-8280/IVS | 0-1-2 | 20 | 6.5 | for building in | - | 3 | 45 | 54x55x101 | black | - |
| T0-3-8280/I1 | 0-1-2 | 20 | 6.5 | in housing | Fig. 6. | 3 | 45 | 137x80x122 | - | black-white |
| T0-3-8280/Z | 0-1-2 | 20 | 6.5 | for building in | - | 3 | 45 | 48x48x137 | black | - |

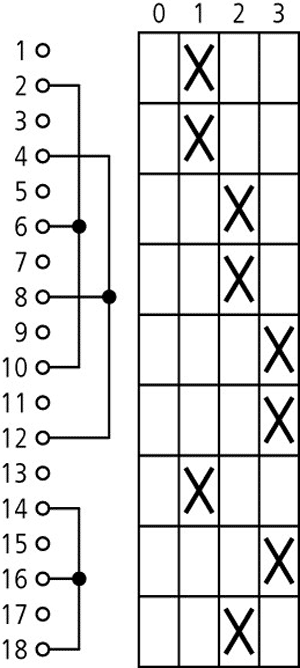

| T0-5-8281/E | 0-1-2-3 | 20 | 6.5 | for building in | Fig. 7. | 4 | 45 | 48x48x114 | black | - |
| T0-5-8281/EZ | 0-1-2-3 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x134 | black | - |
| T0-5-8281/IVS | 0-1-2-3 | 20 | 6.5 | for building in | - | 4 | 45 | 54x55x120 | black | - |
| T0-5-8281/Z | 0-1-2-3 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x156 | black | - |

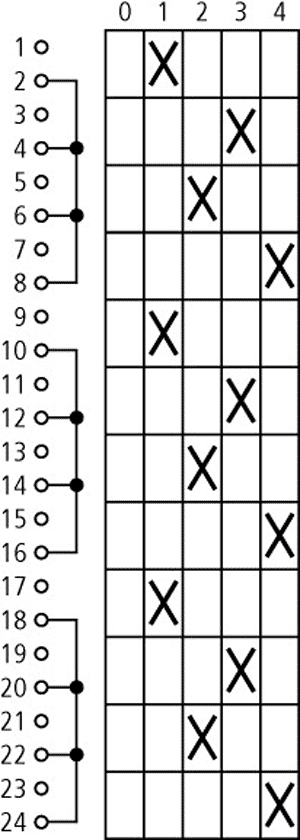

| T0-6-8282/E | 0-1-2-3-4 | 20 | 6.5 | for building in | Fig. 8. | 5 | 45 | 48x48x124 | black | - |
| T0-6-8282/EZ | 0-1-2-3-4 | 20 | 6.5 | for building in | - | 5 | 45 | 48x48x144 | black | - |
| T0-6-8282/IVS | 0-1-2-3-4 | 20 | 6.5 | for building in | - | 5 | 45 | 54x55x130 | black | - |
| T0-6-8282/Z | 0-1-2-3-4 | 20 | 6.5 | for building in | - | 5 | 45 | 48x48x166 | black | - |
| T0-6-8271/E | 1-2-3-4 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x124 | black | - |
| T0-6-8271/EZ | 1-2-3-4 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x144 | black | - |
| T0-6-8271/IVS | 1-2-3-4 | 20 | 6.5 | for building in | - | 4 | 45 | 54x55x130 | black | - |
| T0-6-8271/Z | 1-2-3-4 | 20 | 6.5 | for building in | - | 4 | 45 | 48x48x166 | black | - |
| T0-6-8370/E | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 48x48x124 | black | - |
| T0-6-8370/EZ | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 48x48x144 | black | - |
| T0-6-8370/IVS | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 54x55x130 | black | - |
| T0-6-8370/Z | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 48x48x166 | black | - |
| T0-8-8372/E | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 48x48x143 | black | - |
| T0-8-8372/EZ | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 48x48x163 | black | - |
| T0-8-8372/IVS | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 54x55x149 | black | - |
| T0-8-8372/Z | 1-2 | 20 | 6.5 | for building in | - | 2 | 90 | 48x48x185 | black | - |
