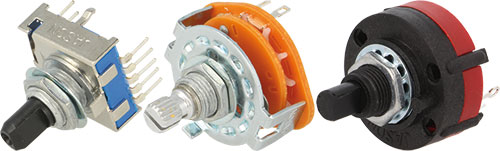

Switch; Switch accessories; NINIGI
| Manufacturer | NINIGI |
Shaft d.:
- 3.7mm (SR091x8SNG)
- 6mm (SR1xxx, SR2511xxx, SR2611xx15FN)
- 6.35mm (SR2412519.2F)
Indexed positions:
- 45° (SR091x8SNG)
- 30° (SR1xxx, SR2511xxx, SR2611xx15FN)
- 36° (SR2412519.2F)
Poles number:
- 1 (SR091x8SNG, SR17xxx9N, SR2511xxx, SR2611xx15FN)
- 2 (SR102320KAG, SR2412519.2F)
Switch. method*:
- BBM (non-shorting) (SR091x8SNG, SR17xxx9N, SR2511xxx, SR2611xx15FN)
- MBB (shorting) (SR102320KAG)
AC contacts rating @R**:
- 0.3A / 125V AC (SR2511xxx, SR2611xx15FN)
- 1A / 250V AC (SR2412519.2F)
DC contacts rating @R**:
- 0.5A / 24V DC (SR091x8SNG)
- 0.1A / 16V DC (SR102320KAG)
- 0.3A / 16V DC (SR17xxx9N)
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
| Symbol | Body material | Shaft len. | Positions | Fastening thread | Switch accessories | Related items | Switching torque | Mechanical durability | Leads | Operating temperature | Shaft surface | Max. contact resistance: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [Ncm] | [°C] | [mΩ] | |||||||||
| SR09138SNG | PBT | 8 | 3 | - | - | - | 3.4 | 2000 cycles | for PCB | -20...70 | smooth | 100 |
| SR09148SNG | PBT | 8 | 4 | - | - | - | 3.4 | 2000 cycles | for PCB | -20...70 | smooth | 100 |
| SR09168SNG | PBT | 8 | 7 | - | - | - | 3.4 | 2000 cycles | for PCB | -20...70 | smooth | 100 |
| SR102320KAG | PBT | 20 | 3 | M7x0,75 | - | - | 2.9 | 10000 cycles | for PCB | -30...80 | knurled | 100 |
| SR17A1320F39N | steel | 12 | 3 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, straight | -20...70 | smooth | 50 |
| SR17A1415F49N | steel | 7 | 4 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, straight | -20...70 | smooth | 50 |
| SR17A1620F69N | steel | 12 | 6 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, straight | -20...70 | smooth | 50 |
| SR17A1815F89N | steel | 7 | 8 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, straight | -20...70 | smooth | 50 |
| SR17B1320F39N | steel | 12 | 3 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, angled | -20...70 | smooth | 50 |
| SR17B1415F49N | steel | 7 | 4 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, angled | -20...70 | smooth | 50 |
| SR17B1815F89N | steel | 7 | 8 | M9x0,75 | - | - | 2.9 | 10000 cycles | for PCB, angled | -20...70 | smooth | 50 |
| SR2511315K9S | - | 15 | 3 | M9x0,75 | - | - | 9.8 | 10000 cycles | for soldering | -20...70 | knurled | 30 |
| SR2511415K9N | - | 15 | 4 | M9x0,75 | - | - | 9.8 | 10000 cycles | for soldering | -20...70 | knurled | 30 |
| SR2511615K9S | - | 15 | 6 | M9x0,75 | - | - | 9.8 | 10000 cycles | for soldering | -20...70 | knurled | 30 |
| SR2412519.2F | polyamide 66 | 19.2 | 5 | 3/8"-32NEF | - | - | 6.86 | 10000 cycles | for soldering | -20...70 | D spring | 50 |
| SR26111015FN | - | 15 | 10 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR26111215FN | - | 15 | 12 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR2611315FN | - | 15 | 3 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR2611415FN | - | 15 | 4 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR2611515FN | - | 15 | 5 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR2611615FN | - | 15 | 6 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR2611815FN | - | 15 | 8 | 3/8"-32NEF | - | - | 4.9 | 6000 cycles | for soldering | -20...70 | smooth | 30 |
| SR2630 | - | - | - | plug socket | SR2412519.2F, SR26111015FN, SR26111215FN, SR2611315FN, SR2611415FN, SR2611515FN, SR2611615FN, SR2611815FN | - | - | - | - | - | - | |
| SR2634 | - | - | - | - | washer | SR2412519.2F, SR26111015FN, SR26111215FN, SR2611315FN, SR2611415FN, SR2611515FN, SR2611615FN, SR2611815FN | - | - | - | - | - | - |
| WN/3/8 | - | - | - | 3/8"-32NEF | nut | SR2412519.2F, SR26111015FN, SR26111215FN, SR2611315FN, SR2611415FN, SR2611515FN, SR2611615FN, SR2611815FN | - | - | - | - | - | - |
| Symbol | Type of switch | Min. insulation resistance | Contact material | Spanner size | Height | Outside diameter | Internal diameter |
|---|---|---|---|---|---|---|---|
| [MΩ] | [mm] | [mm] | [mm] | [mm] | |||
| SR09138SNG | rotary | 100 | brass | - | - | - | - |
| SR09148SNG | rotary | 100 | brass | - | - | - | - |
| SR09168SNG | rotary | 100 | brass | - | - | - | - |
| SR102320KAG | rotary | 100 | brass | - | - | - | - |
| SR17A1320F39N | rotary | 100 | brass | - | - | - | - |
| SR17A1415F49N | rotary | 100 | brass | - | - | - | - |
| SR17A1620F69N | rotary | 100 | brass | - | - | - | - |
| SR17A1815F89N | rotary | 100 | brass | - | - | - | - |
| SR17B1320F39N | rotary | 100 | brass | - | - | - | - |
| SR17B1415F49N | rotary | 100 | brass | - | - | - | - |
| SR17B1815F89N | rotary | 100 | brass | - | - | - | - |
| SR2511315K9S | rotary | 100 | brass | - | - | - | - |
| SR2511415K9N | rotary | 100 | brass | - | - | - | - |
| SR2511615K9S | rotary | 100 | brass | - | - | - | - |
| SR2412519.2F | rotary | 100 | brass | - | - | - | - |
| SR26111015FN | rotary | 100 | brass | - | - | - | - |
| SR26111215FN | rotary | 100 | brass | - | - | - | - |
| SR2611315FN | rotary | 100 | brass | - | - | - | - |
| SR2611415FN | rotary | 100 | brass | - | - | - | - |
| SR2611515FN | rotary | 100 | brass | - | - | - | - |
| SR2611615FN | rotary | 100 | brass | - | - | - | - |
| SR2611815FN | rotary | 100 | brass | - | - | - | - |
| SR2630 | - | - | - | - | 1 | 7.25 | 5.1 |
| SR2634 | - | - | - | 12.6 | 2.3 | - | - |
| WN/3/8 | - | - | - | - | 1.3 | 15 | 9.7 |
