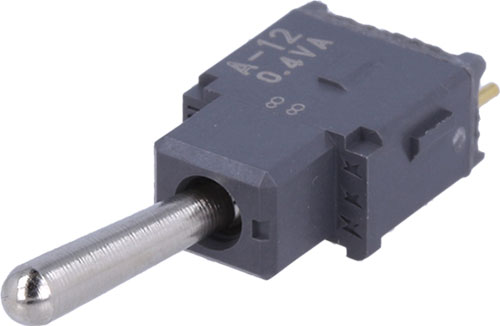

Switch: toggle; A; NKK SWITCHES
| Manufacturer | NKK SWITCHES |
| Type of switch | toggle |
| Min. insulation resistance | 500MΩ |
| Max. contact resistance: | 50mΩ |
| Operating temperature | -30...85°C |
| Elect. life | 50000 cycles |
| Manufacturer series | A |
| AC load rating @R* | 0.1A / 28V AC |
| DC load rating @R* | 0.1A / 28V DC |
* at resistive load
| Symbol | Contacts layout | Switch. method* | Mech. durability | Leads | Body dim. | Slider height | Positions | Stable positions number |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | |||||||
| A18AH | SPDT | (ON)-OFF-(ON) | 100000 cycles | for soldering | 13x10x5 | 10 | 3 | 1 |
| A18AV | SPDT | (ON)-OFF-(ON) | 100000 cycles | for soldering | 13x10x5 | 10 | 3 | 1 |
| A18JH | SPDT | (ON)-OFF-(ON) | 100000 cycles | for soldering | 13x10x5 | 6.3 | 3 | 1 |
| A18KH | SPDT | (ON)-OFF-(ON) | 100000 cycles | for soldering | 13x10x5 | - | 3 | 1 |
| A28AP | DP3T | (ON)-OFF-(ON) | 100000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 3 | 1 |
| A1SJH | SP3T | (ON)-OFF-ON | 100000 cycles | for soldering, angled | 9.8x13.88x5 | - | 3 | 2 |
| A1SJV | SP3T | (ON)-OFF-ON | 100000 cycles | for soldering, angled | 5x13.88x9.8 | - | 3 | 2 |
| A2SAH | DP3T | (ON)-OFF-ON | 100000 cycles | for soldering, angled | 9.8x13.88x10 | - | 3 | 2 |
| A2SHV | DP3T | (ON)-OFF-ON | 100000 cycles | for soldering, angled | 9.5x13.88x10.2 | - | 3 | 2 |
| A26AB | SP3T | (ON)-ON-(ON) | 100000 cycles | for soldering, straight | 9.5x9.8x13.1 | - | 3 | 1 |
| A26EH | SP3T | (ON)-ON-(ON) | 100000 cycles | for soldering, angled | 9.8x13.88x10 | - | 3 | 1 |
| A15AP | SPDT | ON-(ON) | 50000 cycles | for soldering, straight | 5.84x9.8x13.1 | - | 2 | 1 |
| A15JP | SPDT | ON-(ON) | 50000 cycles | for soldering, straight | 5.84x9.8x13.1 | - | 2 | 1 |
| A25AP | DPDT | ON-(ON) | 50000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 2 | 1 |
| A12AB | SPDT | ON-OFF | 50000 cycles | for soldering | 13x10x5 | 10 | 2 | 2 |
| A12AP | SPDT | ON-OFF | 50000 cycles | for soldering | 13x10x5 | 10 | 2 | 2 |
| A12HP | SPDT | ON-OFF | 50000 cycles | for soldering | 13x10x5 | 6.3 | 2 | 2 |
| A12JP | SPDT | ON-OFF | 50000 cycles | for soldering | 13x10x5 | 6.3 | 2 | 2 |
| A12JV | SPDT | ON-OFF | 50000 cycles | for soldering | 13x10x5 | 6.3 | 2 | 2 |
| A19AP | SP3T | ON-OFF-(ON) | 100000 cycles | for soldering, straight | 5.84x9.8x13.1 | - | 3 | 2 |
| A13AH | SP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 9.8x13.88x5 | - | 3 | 3 |
| A13AP | SP3T | ON-OFF-ON | 100000 cycles | for soldering, straight | 5.84x9.8x13.1 | - | 3 | 3 |
| A13AV | SP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 5x13.88x9.8 | - | 3 | 3 |
| A13JB | SPDT | ON-OFF-ON | 100000 cycles | for soldering | 13x10x5 | 6.3 | 3 | 3 |
| A13JH | SP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 9.8x13.88x5 | - | 3 | 3 |
| A13JP | SPDT | ON-OFF-ON | 100000 cycles | for soldering | 13x10x5 | 6.3 | 3 | 3 |
| A13JV | SP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 5x13.88x9.8 | - | 3 | 3 |
| A23AH | DP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 9.8x13.88x10 | - | 3 | 3 |
| A23AP | DP3T | ON-OFF-ON | 100000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 3 | 3 |
| A23EP | DP3T | ON-OFF-ON | 100000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 3 | 3 |
| A23EV | DP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 9.5x13.88x10.2 | - | 3 | 3 |
| A23JH | DP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 9.8x13.88x10 | - | 3 | 3 |
| A23JP | DP3T | ON-OFF-ON | 100000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 3 | 3 |
| A23JV | DP3T | ON-OFF-ON | 100000 cycles | for soldering, angled | 9.5x13.88x10.2 | - | 3 | 3 |
| A12AH | SPDT | ON-ON | 50000 cycles | for soldering, angled | 9.8x13.88x5 | - | 2 | 2 |
| A12AV | SPDT | ON-ON | 50000 cycles | for soldering, angled | 5x13.88x9.8 | - | 2 | 2 |
| A12HV | SPDT | ON-ON | 50000 cycles | for soldering, angled | 5x13.88x9.8 | - | 2 | 2 |
| A12JH | SPDT | ON-ON | 50000 cycles | for soldering, angled | 9.8x13.88x5 | - | 2 | 2 |
| A22AH | DPDT | ON-ON | 50000 cycles | for soldering, angled | 9.8x13.88x10 | - | 2 | 2 |
| A22AP | DPDT | ON-ON | 50000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 2 | 2 |
| A22AV | DPDT | ON-ON | 50000 cycles | for soldering, angled | 9.5x13.88x10.2 | - | 2 | 2 |
| A22HB | DPDT | ON-ON | 50000 cycles | for soldering, straight | 9.5x9.8x13.1 | - | 2 | 2 |
| A22JB | DPDT | ON-ON | 50000 cycles | for soldering, straight | 9.5x9.8x13.1 | - | 2 | 2 |
| A22JH | DPDT | ON-ON | 50000 cycles | for soldering, angled | 9.8x13.88x10 | - | 2 | 2 |
| A27HB | SP3T | ON-ON-(ON) | 100000 cycles | for soldering, straight | 9.5x9.8x13.1 | - | 3 | 2 |
| A24AB | SP3T | ON-ON-ON | 100000 cycles | for soldering, straight | 9.5x9.8x13.1 | - | 3 | 3 |
| A24EH | SP3T | ON-ON-ON | 100000 cycles | for soldering, angled | 9.8x13.88x10 | - | 3 | 3 |
| A24JB | SP3T | ON-ON-ON | 100000 cycles | for soldering, straight | 9.5x9.8x13.1 | - | 3 | 3 |
| A24JP | SP3T | ON-ON-ON | 100000 cycles | for soldering, straight | 9.2x9.8x13.1 | - | 3 | 3 |
* the position in bracket indicates momentary position.
