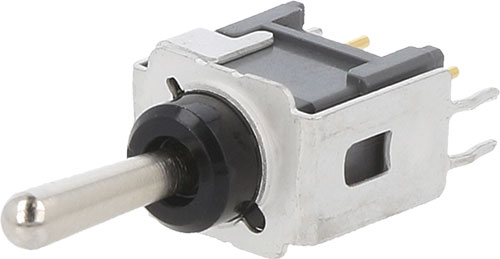

Switch: toggle; B; NKK SWITCHES
| Manufacturer | NKK SWITCHES |
| Type of switch | toggle |
| Min. insulation resistance | 500MΩ |
| Max. contact resistance: | 50mΩ |
| Electrical life | 50000 cycles |
| Manufacturer series | B |
Mech. durability:
Body dim.:
- 6.8x8.8x13.1mm (B12AB, B12JB, B12JP, B13AB, B13AP, B13JB, B13JP, B15AB, B15JB, B18AB, B18AP, B18JB, B18JP, B19AB, B19AP)
- 6.8x8.8x15.1mm (B12A1P, B13A1P)
- 8x8.8x15.1mm (B12LB, B13LB)
- 8x13.88x8.8mm (B12AV, B18JV)
- 8.8x8.8x13.1mm (B12JJPxx, B22xP, B23xxP, B28A1P, B29AP, B29HB)
- 8.8x8.8x15.5mm (B22LB)
- 8.8x13.88x7.3mm (B12EH, B12JH, B13AH, B13EH, B15AH, B15JH, B19AH, B1RAH)
- 8.8x13.88x8.8mm (B12JJHCF, B12JJHF, B12JJVCF, B12JJVF, B13JJVCF, B22AH, B22AV, B22EV, B22HH, B22JH, B22JV, B2RJH)
- 13x9x7mm (B12AH, B13JH)
- 13x9x9mm (B22LH)
| Symbol | Contacts layout | Switch. method* | Operating temperature | Leads | AC load rating @R** | DC load rating @R** | Slider height | Positions | Stable positions number |
|---|---|---|---|---|---|---|---|---|---|
| [°C] | [mm] | ||||||||
| B12A1P | SPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12AB | SPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12AH | SPDT | ON-ON | -30...85 | for soldering | 0.01A / 28V AC | 0.01A / 28V DC | 10 | 2 | 2 |
| B12AV | SPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12EH | SPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JB | SPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JH | SPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJHCF | SPDT | ON-ON | -25...55 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJHF | SPDT | ON-ON | -25...55 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJPC | SPDT | ON-ON | -25...55 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJPCF | SPDT | ON-ON | -25...55 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJPF | SPDT | ON-ON | -25...55 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJVCF | SPDT | ON-ON | -25...55 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JJVF | SPDT | ON-ON | -25...55 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12JP | SPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B12LB | SPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B13A1P | SP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13AB | SP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13AH | SP3T | ON-OFF-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13AP | SP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13EH | SP3T | ON-OFF-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13JB | SP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13JH | SPDT | ON-OFF-ON | -30...85 | for soldering | 0.01A / 28V AC | 0.01A / 28V DC | 6.3 | 3 | 3 |
| B13JJVCF | SP3T | ON-OFF-ON | -25...55 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13JP | SP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B13LB | SP3T | ON-OFF-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B15AB | SPDT | ON-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 1 |
| B15AH | SPDT | ON-(ON) | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 1 |
| B15JB | SPDT | ON-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 1 |
| B15JH | SPDT | ON-(ON) | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 1 |
| B18AB | SP3T | (ON)-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 1 |
| B18AP | SP3T | (ON)-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 1 |
| B18JB | SP3T | (ON)-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 1 |
| B18JP | SP3T | (ON)-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 1 |
| B18JV | SP3T | (ON)-OFF-(ON) | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 1 |
| B19AB | SP3T | ON-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 2 |
| B19AH | SP3T | ON-OFF-(ON) | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 2 |
| B19AP | SP3T | ON-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 2 |
| B1RAH | SPDT | (ON)-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 1 |
| B22AH | DPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22AP | DPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22AV | DPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22EV | DPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22HH | DPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22JH | DPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22JP | DPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22JV | DPDT | ON-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22LB | DPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B22LH | DPDT | ON-ON | -30...85 | for soldering | 0.01A / 28V AC | 0.01A / 28V DC | - | 2 | 2 |
| B22LP | DPDT | ON-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 2 |
| B23A1P | DP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B23AP | DP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B23AV | DP3T | ON-OFF-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B23JP | DP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B23LP | DP3T | ON-OFF-ON | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 3 |
| B28A1P | DP3T | (ON)-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 1 |
| B29AP | DP3T | ON-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 2 |
| B29HB | DP3T | ON-OFF-(ON) | -30...85 | for soldering, straight | 0.1A / 28V AC | 0.1A / 28V DC | - | 3 | 2 |
| B2RJH | DPDT | (ON)-ON | -30...85 | for soldering, angled | 0.1A / 28V AC | 0.1A / 28V DC | - | 2 | 1 |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
