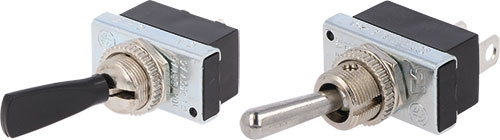

Switch: toggle; Manufacturer: SCI
| Manufacturer | SCI |
| Contacts layout | SPST |
| Terminals plating | nickel |
| Switch. method* | ON-OFF |
| Type of switch | toggle |
| Leads | connectors |
| Test voltage | 1kV |
| Max. contact resistance: | 50mΩ |
| Panel thickness | max. 6mm |
| Positions | 2 |
| Body dim. | 29x15x9.3mm |
| AC contacts rating @R** | 6A / 250V AC |
| Mounting hole diameter | Ø12.2mm |
| Panel cutout | Fig. 1-1. |
| Manufacturer series | R13-25 |
| Leads dimensions | 6.3x0.8mm |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
| Symbol | Actuator material | Kind of toggle | Dimensions | Slider height |
|---|---|---|---|---|
| [mm] | ||||

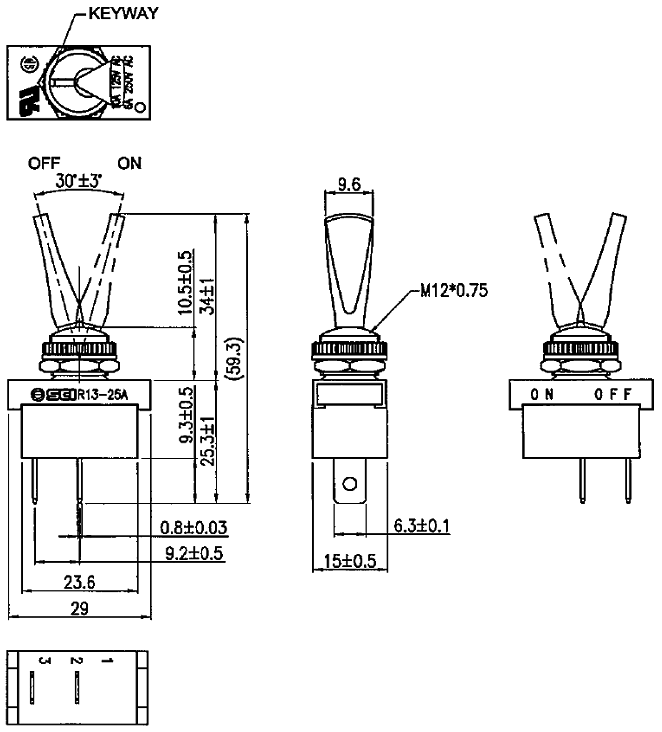

| R13-25A1-01 | plastic | flat | Fig. 2-1. | 24 |

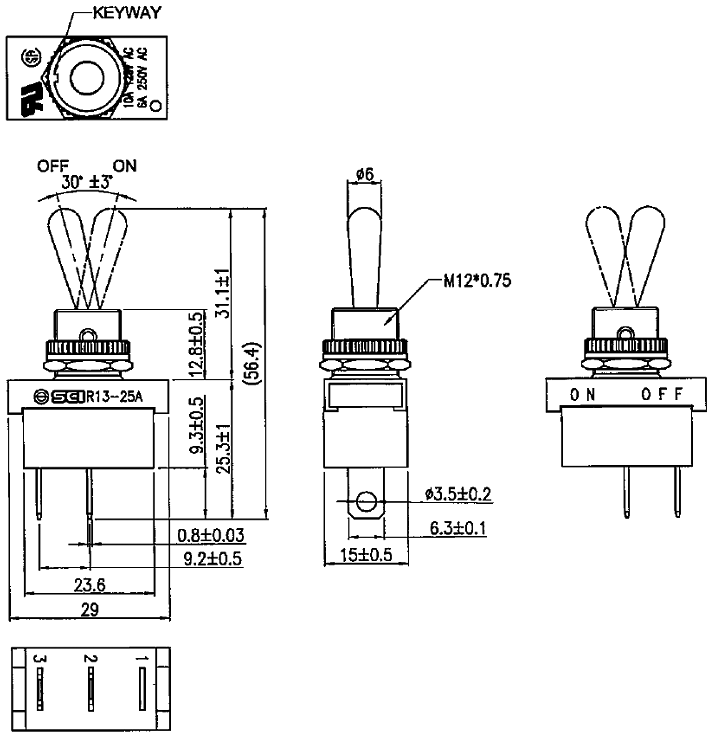

| R13-25A2-01 | metal | round | Fig. 2-2. | 18.3 |
