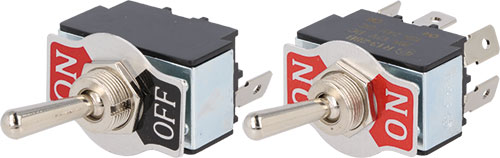

Switch: toggle; Manufacturer: SCI
| Manufacturer | SCI |
| Actuator material | metal |
| Terminals plating | nickel |
| Kind of toggle | round |
| Type of switch | toggle |
| Leads | connectors |
| Panel cutout | Fig. 1-1. |
| Test voltage | 1.5kV |
| Max. contact resistance: | 50mΩ |
| Slider height | 18.4mm |
| Panel thickness | max. 6mm |
| Operating temperature | 0...55°C |
| Body dim. | 33.2x19x19mm |
| Mounting hole diameter | Ø12.2mm |
| DC contacts rating @R* | 20A / 12V DC |
| Related items | R1710A |
| Manufacturer series | R13-28 |
| Leads dimensions | 6.3mm |
* at resistive load
| Symbol | Contacts layout | Switch. method* | Dimensions | Positions |
|---|---|---|---|---|
| R13-28A-01 | SPST | ON-OFF | Fig. 2-1. | 2 |

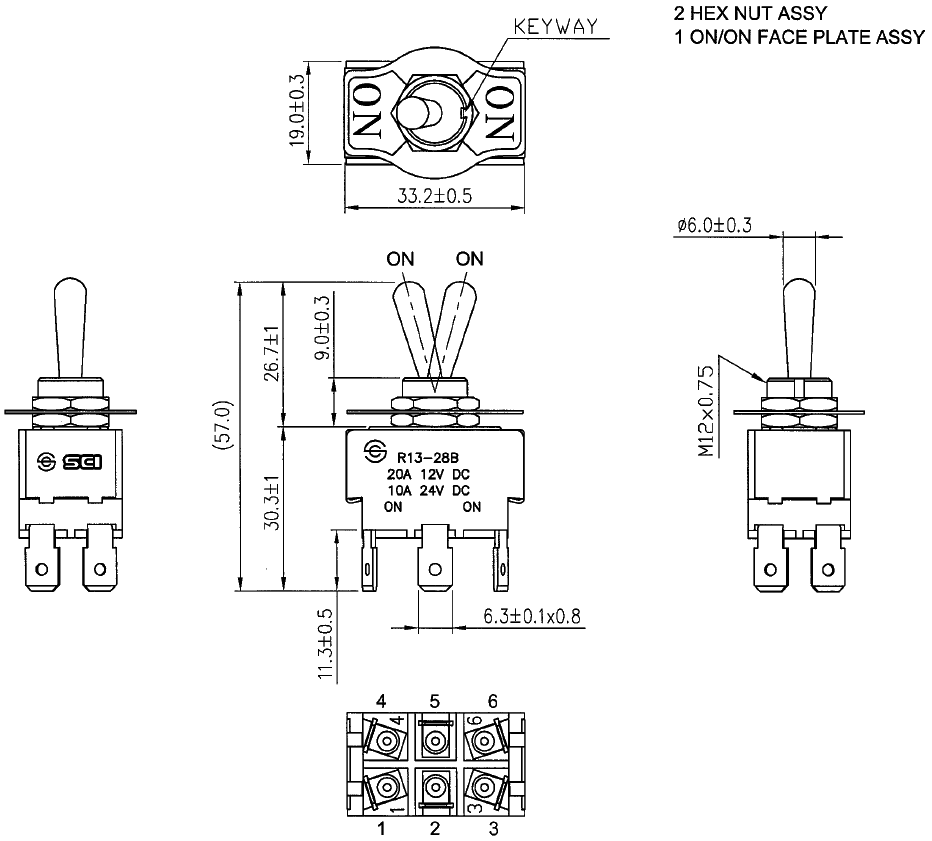

| R13-28B-01 | DPDT | ON-ON | Fig. 2-2. | 2 |

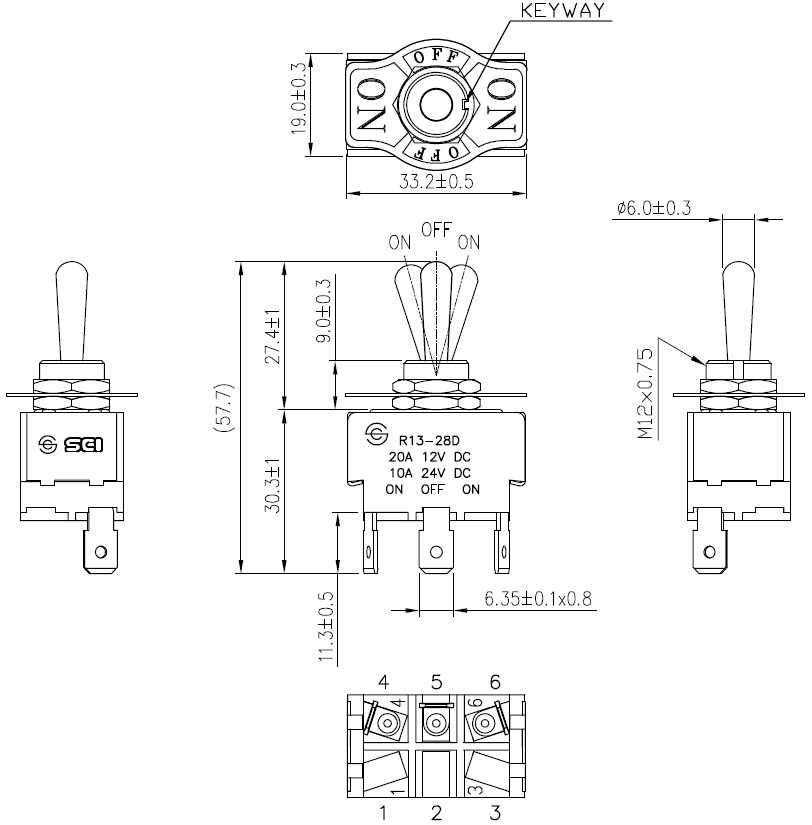

| R13-28D-01 | SP3T | ON-OFF-ON | Fig. 2-3. | 3 |

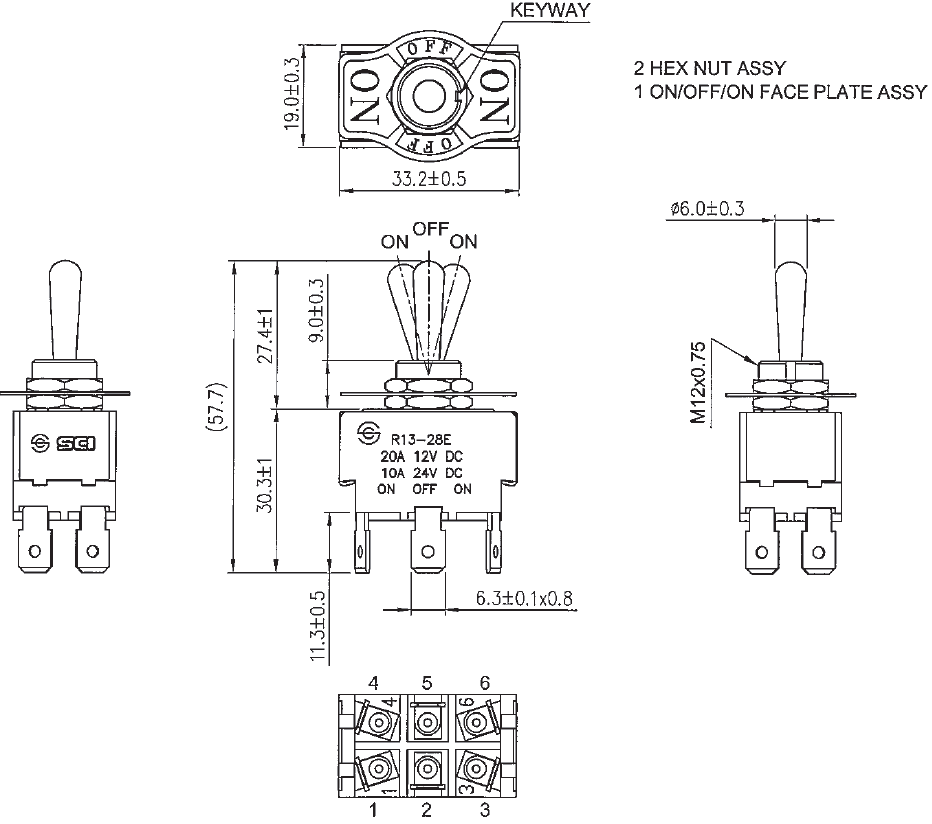

| R13-28E-01 | DP3T | ON-OFF-ON | Fig. 2-4. | 3 |
| R13-28F-01 | DPST | ON-OFF | - | 2 |
* the position in bracket indicates momentary position.
