Switch: toggle; SCI
| Manufacturer | SCI |
| Lever colour | black |
| Contacts layout | SPST |
| Actuator material | metal |
| Terminals plating | nickel |
| Kind of toggle | flat |
| Switch. method* | OFF-(ON) |
| Type of switch | toggle |
| Leads | connectors |
| Panel cutout | Fig. 1-1. |
| Test voltage | 1.5kV |
| Max. contact resistance: | 50mΩ |
| Slider height | 56.9mm |
| Panel thickness | max. 4mm |
| Positions | 2 |
| DC contacts rating @R** | 10A / 12V DC |
| Body dim. | 28.4x16x16.4mm |
| Mounting hole diameter | Ø12.2mm |
| Leads dimensions | 6.2x1mm |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
| Symbol | Dimensions | Manufacturer series |
|---|---|---|

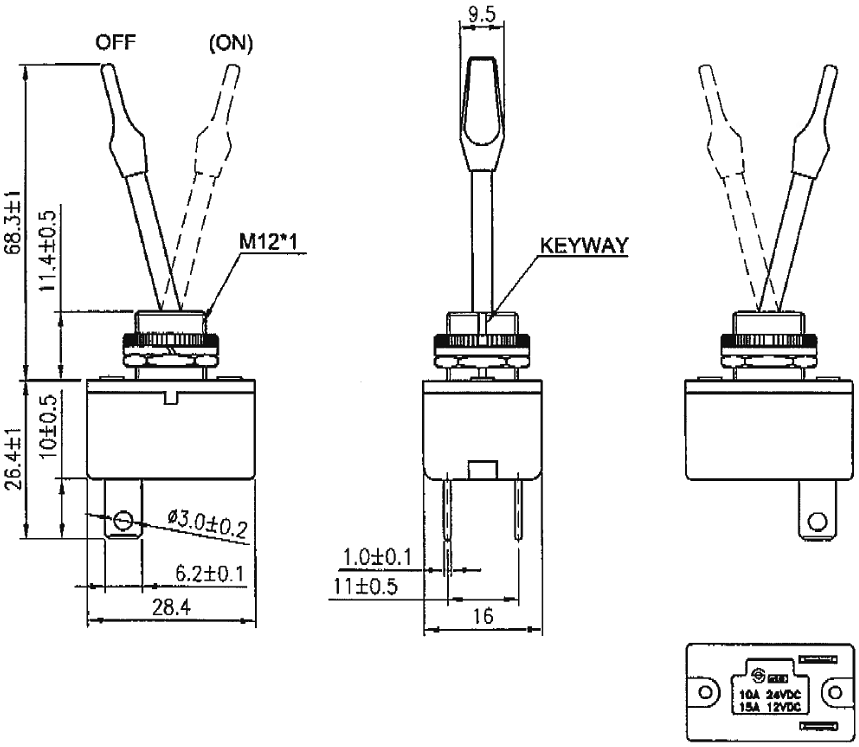

| R13-96G-01 | Fig. 2-1. | R13-96 |
