Switching power supplies for embedding, ECE series

ManufacturerXP POWER
Symbol Manufacturer series Type of power supply Type of converter Type of power supply accessories Number of outputs Mounting Electrical connection Power Usup Usup Iout Efficiency Features Protection Switch. freq. Insulation voltage Operating temperature Body dim. Dimensions Power consumption without load Output voltage Input voltage Kind of power supply Application - series/manufacturer
[W] [V AC] [V DC] [A] [%] [kHz] [kV] [°C] [mm] [W] [V DC]

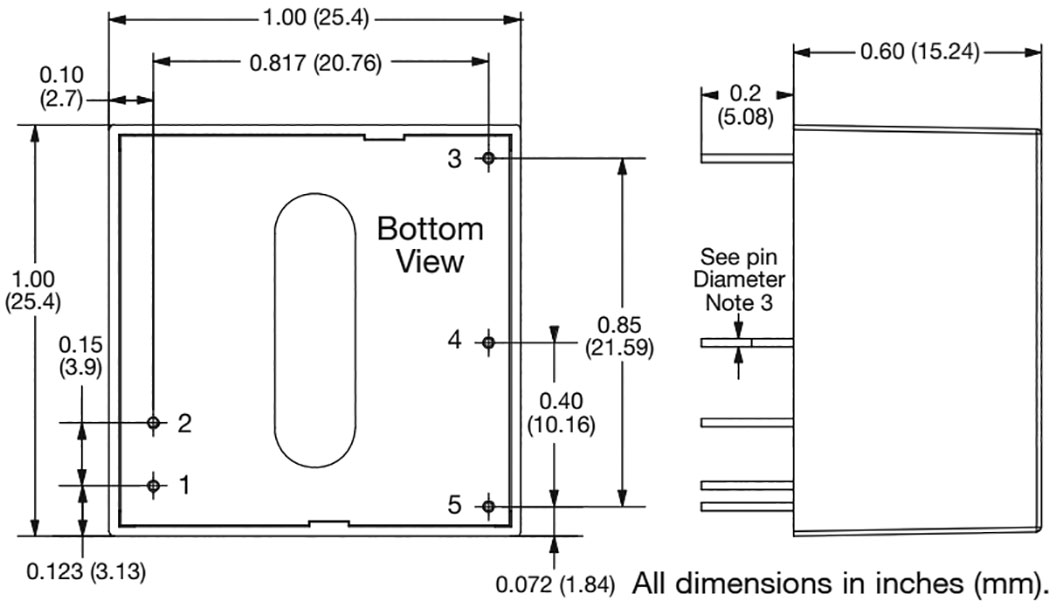

ECE05US03 ECE - AC/DC - 1 PCB THT 5 - - 1510m 74 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 3.3 85...264V AC, 120...370V DC - -
ECE05US05 ECE - AC/DC - 1 PCB THT 5 - - 1000m 80 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 5 85...264V AC, 120...370V DC - -
ECE05US09 ECE - AC/DC - 1 PCB THT 5 - - 550m 82 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 9 85...264V AC, 120...370V DC - -
ECE05US12 ECE - AC/DC - 1 PCB THT 5 - - 410m 82 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 12 85...264V AC, 120...370V DC - -
ECE05US15 ECE - AC/DC - 1 PCB THT 5 - - 330m 84 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 15 85...264V AC, 120...370V DC - -
ECE05US24 ECE - AC/DC - 1 PCB THT 5 - - 210m 83 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 24 85...264V AC, 120...370V DC - -
ECE05US48 ECE - AC/DC - 1 PCB THT 5 - - 100m 85 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 25.4x25.4x15.24 Fig. 1. <0.3 48 85...264V AC, 120...370V DC - -
ECE10US03 ECE - AC/DC - 1 PCB THT 10 - - 2600m 77 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 3.3 85...264V AC, 120...370V DC - -
ECE10US05 ECE - AC/DC - 1 PCB THT 10 - - 2000m 80 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 5 85...264V AC, 120...370V DC - -
ECE10US09 ECE - AC/DC - 1 PCB THT 10 - - 1110m 82 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 9 85...264V AC, 120...370V DC - -
ECE10US12 ECE - AC/DC - 1 PCB THT 10 - - 830m 83 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 12 85...264V AC, 120...370V DC - -
ECE10US15 ECE - AC/DC - 1 PCB THT 10 - - 660m 82 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 15 85...264V AC, 120...370V DC - -
ECE10US24 ECE - AC/DC - 1 PCB THT 10 - - 410m 83 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 24 85...264V AC, 120...370V DC - -
ECE10US48 ECE - AC/DC - 1 PCB THT 10 - - 210m 83 - anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 130 4 -25...70 38.1x25.4x15.24 Fig. 2. <0.3 48 85...264V AC, 120...370V DC - -
ECE20US05 ECE - AC/DC - 1 PCB THT 20 - - 4 77 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 52.4x27.2x23 Fig. 3. <0.3 5 85...264V AC, 120...370V DC - -
ECE20US09 ECE - AC/DC - 1 PCB THT 20 - - 2.22 83 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 52.4x27.2x23 Fig. 3. <0.3 9 85...264V AC, 120...370V DC - -
ECE20US12 ECE - AC/DC - 1 PCB THT 20 - - 1.67 82 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 52.4x27.2x23 Fig. 3. <0.3 12 85...264V AC, 120...370V DC - -
ECE20US15 ECE - AC/DC - 1 PCB THT 20 - - 1.33 83 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 52.4x27.2x23 Fig. 3. <0.3 15 85...264V AC, 120...370V DC - -
ECE20US24 ECE - AC/DC - 1 PCB THT 20 - - 830m 82 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 52.4x27.2x23 Fig. 3. <0.3 24 85...264V AC, 120...370V DC - -
ECE20US48 ECE - AC/DC - 1 PCB THT 20 - - 420m 86 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 52.4x27.2x23 Fig. 3. <0.3 48 85...264V AC, 120...370V DC - -
ECE40US03-S ECE switching - - 1 - screw terminals 40 85...264 120...370 10 73 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 3.3 - for building in -
ECE40US03-SD ECE switching - - 1 for DIN rail mounting screw terminals 40 85...264 120...370 10 73 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 3.3 - for building in -
ECE40US05 ECE - AC/DC - 1 PCB THT 40 - - 8 77 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 78.7x38.1x27.9 Fig. 5. <0.3 5 85...264V AC, 120...370V DC - -
ECE40US05-S ECE switching - - 1 - screw terminals 40 85...264 120...370 8 77 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 5 - for building in -
ECE40US09-S ECE switching - - 1 - screw terminals 40 85...264 120...370 4.44 80 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 9 - for building in -
ECE40US09-SD ECE switching - - 1 for DIN rail mounting screw terminals 40 85...264 120...370 4.44 80 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 9 - for building in -
ECE40US12 ECE - AC/DC - 1 PCB THT 40 - - 3.33 84 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 78.7x38.1x27.9 Fig. 5. <0.3 12 85...264V AC, 120...370V DC - -
ECE40US12-S ECE switching - - 1 - screw terminals 40 85...264 120...370 3.33 84 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 12 - for building in -
ECE40US15 ECE - AC/DC - 1 PCB THT 40 - - 2.67 84 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 78.7x38.1x27.9 Fig. 5. <0.3 15 85...264V AC, 120...370V DC - -
ECE40US15-S ECE switching - - 1 - screw terminals 40 85...264 120...370 2.67 84 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 15 - for building in -
ECE40US24 ECE - AC/DC - 1 PCB THT 40 - - 1.67 85 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 78.7x38.1x27.9 Fig. 5. <0.3 24 85...264V AC, 120...370V DC - -
ECE40US24-S ECE switching - - 1 - screw terminals 40 85...264 120...370 1.67 85 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 24 - for building in -
ECE40US24-SD ECE switching - - 1 for DIN rail mounting screw terminals 40 85...264 120...370 1.67 85 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 87x40x28.5 Fig. 4. <0.3 24 - for building in -
ECE40US48 ECE - AC/DC - 1 PCB THT 40 - - 830m 86 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -25...70 78.7x38.1x27.9 Fig. 5. <0.3 48 85...264V AC, 120...370V DC - -
ECE60US03-SD ECE switching - - 1 for DIN rail mounting screw terminals 60 85...264 120...370 10 79 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.5 3.3 - for building in -
ECE60US05-S ECE switching - - 1 - screw terminals 60 85...264 120...370 10 83 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.5 5 - for building in -
ECE60US09 ECE - AC/DC - 1 PCB THT 60 - - 6.67 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 91.4x38.1x28 Fig. 7. <0.5 9 85...264V AC, 120...370V DC - -
ECE60US09-S ECE switching - - 1 - screw terminals 60 85...264 120...370 6.67 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.5 9 - for building in -
ECE60US09-SD ECE switching - - 1 for DIN rail mounting screw terminals 60 85...264 120...370 6.67 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.5 9 - for building in -
ECE60US12 ECE - AC/DC - 1 PCB THT 60 - - 5 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 91.4x38.1x28 Fig. 7. <0.3 12 85...264V AC, 120...370V DC - -
ECE60US12-S ECE switching - - 1 - screw terminals 60 85...264 120...370 5 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 12 - for building in -
ECE60US12-SD ECE switching - - 1 for DIN rail mounting screw terminals 60 85...264 120...370 5 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 12 - for building in -
ECE60US15 ECE - AC/DC - 1 PCB THT 60 - - 4 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 91.4x38.1x28 Fig. 7. <0.3 15 85...264V AC, 120...370V DC - -
ECE60US15-S ECE switching - - 1 - screw terminals 60 85...264 120...370 4 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 15 - for building in -
ECE60US24 ECE - AC/DC - 1 PCB THT 60 - - 2.5 89 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 91.4x38.1x28 Fig. 7. <0.3 24 85...264V AC, 120...370V DC - -
ECE60US24-S ECE switching - - 1 - screw terminals 60 85...264 120...370 2.5 89 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 24 - for building in -
ECE60US24-SD ECE switching - - 1 for DIN rail mounting screw terminals 60 85...264 120...370 2.5 89 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 24 - for building in -
ECE60US36 ECE - AC/DC - 1 PCB THT 60 - - 1.67 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 91.4x38.1x28 Fig. 7. <0.3 36 85...264V AC, 120...370V DC - -
ECE60US36-S ECE switching - - 1 - screw terminals 60 85...264 120...370 1.67 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 36 - for building in -
ECE60US36-SD ECE switching - - 1 for DIN rail mounting screw terminals 60 85...264 120...370 1.67 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.3 36 - for building in -
ECE60US48 ECE - AC/DC - 1 PCB THT 60 - - 1.25 86 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 91.4x38.1x28 Fig. 7. <0.5 48 85...264V AC, 120...370V DC - -
ECE60US48-S ECE switching - - 1 - screw terminals 60 85...264 120...370 1.25 86 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 100 3 -40...70 104x40x28.5 Fig. 6. <0.5 48 - for building in -

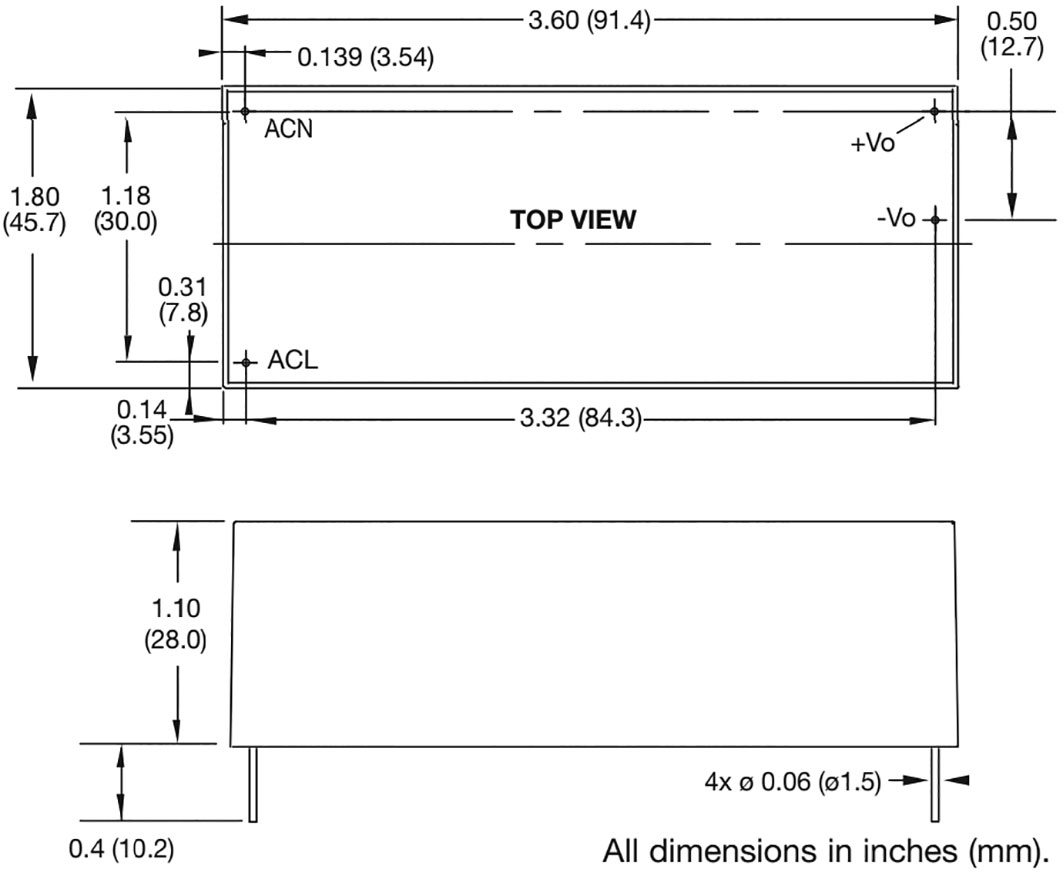

ECE80US12 ECE - AC/DC - 1 PCB THT 80 - - 6.67 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 91.4x45.7x28 Fig. 8. <0.3 12 85...264V AC - -
ECE80US12-S ECE switching - - 1 - screw terminals 80 85...264 - 6.67 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 12 - for building in -
ECE80US12-SD ECE switching - - 1 for DIN rail mounting screw terminals 80 85...264 - 6.67 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 12 - for building in -
ECE80US15-S ECE switching - - 1 - screw terminals 80 85...264 - 5.33 88 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 15 - for building in -
ECE80US24 ECE - AC/DC - 1 PCB THT 80 - - 3.33 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 91.4x45.7x28 Fig. 8. <0.3 24 85...264V AC - -
ECE80US24-S ECE switching - - 1 - screw terminals 80 85...264 - 3.33 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 24 - for building in -
ECE80US24-SD ECE switching - - 1 for DIN rail mounting screw terminals 80 85...264 - 3.33 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 24 - for building in -
ECE80US36 ECE - AC/DC - 1 PCB THT 80 - - 2.22 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 91.4x45.7x28 Fig. 8. <0.3 36 85...264V AC - -
ECE80US36-S ECE switching - - 1 - screw terminals 80 85...264 - 2.22 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 36 - for building in -
ECE80US36-SD ECE switching - - 1 for DIN rail mounting screw terminals 80 85...264 - 2.22 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.3 36 - for building in -
ECE80US48 ECE - AC/DC - 1 PCB THT 80 - - 1.67 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 91.4x45.7x28 Fig. 8. <0.5 48 85...264V AC - -
ECE80US48-S ECE switching - - 1 - screw terminals 80 85...264 - 1.67 87 cooling passive anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP 65 3 -40...70 104x47.5x28.5 Fig. 9. <0.5 48 - for building in -
ECE60-DIN-CLIP - - - mounting holder - for DIN rail mounting - - - - - - - - - - - - - - - - - ECE
ECE80-DIN-CLIP - - - mounting holder - for DIN rail mounting - - - - - - - - - - - - - - - - - ECE
