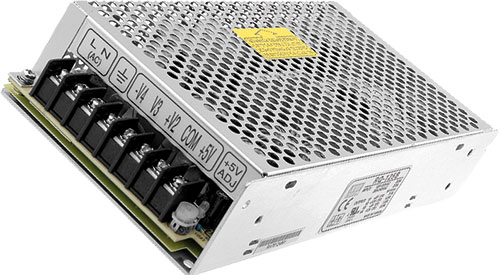

Switching power supplies for embedding, RQ series
| Manufacturer | MEAN WELL |
| Type of power supply | switching |
| Kind of power supply | for building in, modular |
| Number of outputs | 4 |
| Electrical connection | terminal block |
| Protection | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP |
| Operating temperature | -20...70°C |
| Output voltage | 5V DC |
| Caution! | multi output power supply - for operating properly, each channel must be loaded within specified range |
| Symbol | Related items | Manufacturer series | Kind of case |
|---|---|---|---|
| RQ-50B | DRL-01, DRP-03 | RQ-50 | 905B |
| RQ-50C | DRL-01, DRP-03 | RQ-50 | 905B |
| RQ-50D | DRL-01, DRP-03 | RQ-50 | 905B |
| RQ-65B | DRL-01, DRP-03 | RQ-65 | 903 |
| RQ-65C | DRL-01, DRP-03 | RQ-65 | 903 |
| RQ-65D | DRL-01, DRP-03 | RQ-65 | 903 |
| RQ-85B | DRL-02, DRP-03 | RQ-85 | 901 |
| RQ-85C | DRL-02, DRP-03 | RQ-85 | 901 |
| RQ-85D | DRL-02, DRP-03 | RQ-85 | 901 |
| RQ-125B | DRL-02, DRP-03 | RQ-125 | 902 |
| RQ-125C | DRL-02, DRP-03 | RQ-125 | 902 |
| RQ-125D | DRL-02, DRP-03 | RQ-125 | 902 |
| Symbol | Power | Iout | Uout2 | Iout2 | Uout3 | Iout3 | Uout4 | Iout4 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|
| [W] | [A] | [V DC] | [A] | [V DC] | [A] | [V DC] | [A] | [%] | |
| RQ-50B | 45.5 | 5 (0.5...6) | 12 | 1 (0.2...1.5) | -5 | 0.5 (0...1) | -12 | 0.5 (0...1) | 74 |
| RQ-50C | 50 | 5 (0.5...6) | 15 | 5 (0.2...1.5) | -5 | 0.5 (0...1) | -15 | 0.5 (0...1) | 75 |
| RQ-50D | 53.4 | 3 (0.5...6) | 12 | 0.9 (0.2...1.5) | 24 | 0.9 (0...1) | -12 | 0.5 (0...1) | 79 |
| RQ-65B | 62.5 | 6 (0.5...8) | 12 | 2 (0.2...3) | -5 | 0.5 (0...1) | -12 | 0.5 (0...1) | 76 |
| RQ-65C | 65 | 5 (0.5...8) | 15 | 2 (0.2...3) | -5 | 0.5 (0...1) | -15 | 0.5 (0...1) | 76 |
| RQ-65D | 68 | 4 (0.5...8) | 12 | 1.5 (0.2...3) | 24 | 1 (0.1...1.5) | -12 | 0.5 (0...1) | 78 |
| RQ-85B | 80.7 | 7 (2...10) | 12 | 3.1 (0.3...4) | -5 | 0.5 (0...1) | -12 | 0.5 (0...1) | 76 |
| RQ-85C | 82.5 | 7 (2...10) | 15 | 2.5 (0.3...4) | -5 | 0.5 (0...1) | -15 | 0.5 (0...1) | 77 |
| RQ-85D | 84 | 6 (2...10) | 12 | 2 (0.3...4) | 24 | 1 (0.1...1.5) | -12 | 0.5 (0...1) | 78 |
| RQ-125B | 120 | 11 (2...12) | 12 | 4.5 (0.5...4.5) | -5 | 1 (0.1...1) | -12 | 0.5 (0...1) | 79 |
| RQ-125C | 123 | 10 (2...12) | 15 | 4 (0.5...4) | -5 | 1 (0.1...1) | -15 | 0.5 (0...1) | 80 |
| RQ-125D | 124 | 8 (2...12) | 12 | 2.5 (0.5...4) | 24 | 2 (0.1...2.5) | -12 | 0.5 (0...1) | 82 |
Supply voltage:
- 88...132V AC (RQ-125x)
- 88...264V AC (RQ-50x, RQ-65x, RQ-85x)
- 176...264V AC (RQ-125x)
Supply voltage:
- 125...373V DC (RQ-50x, RQ-65x, RQ-85x)
- 248...373V DC (RQ-125x)
Body dim.:

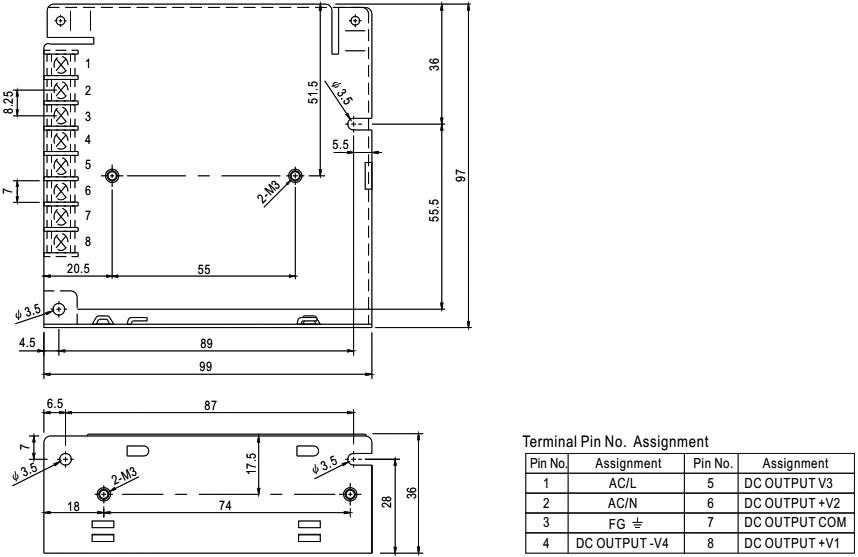

- 99x97x36mm (RQ-50x)

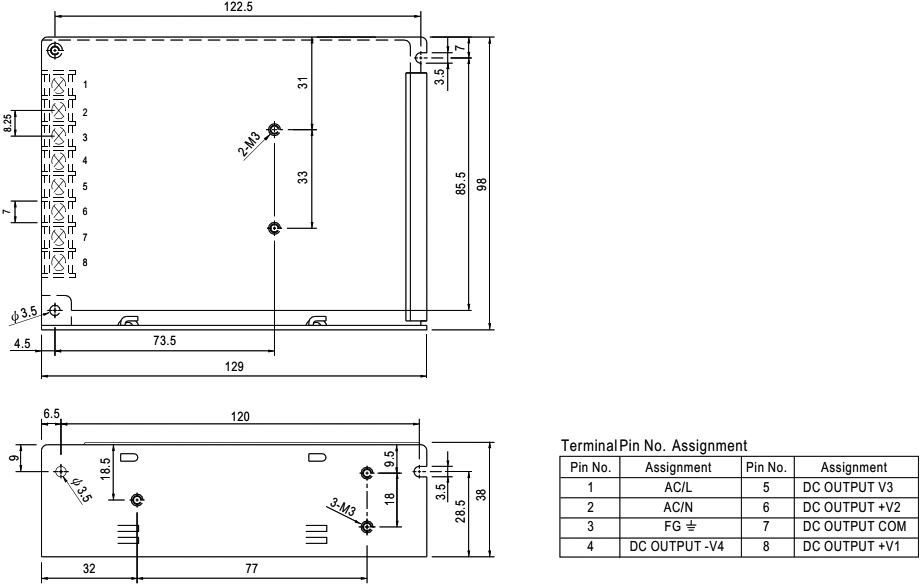

- 129x98x38mm (RQ-65x)

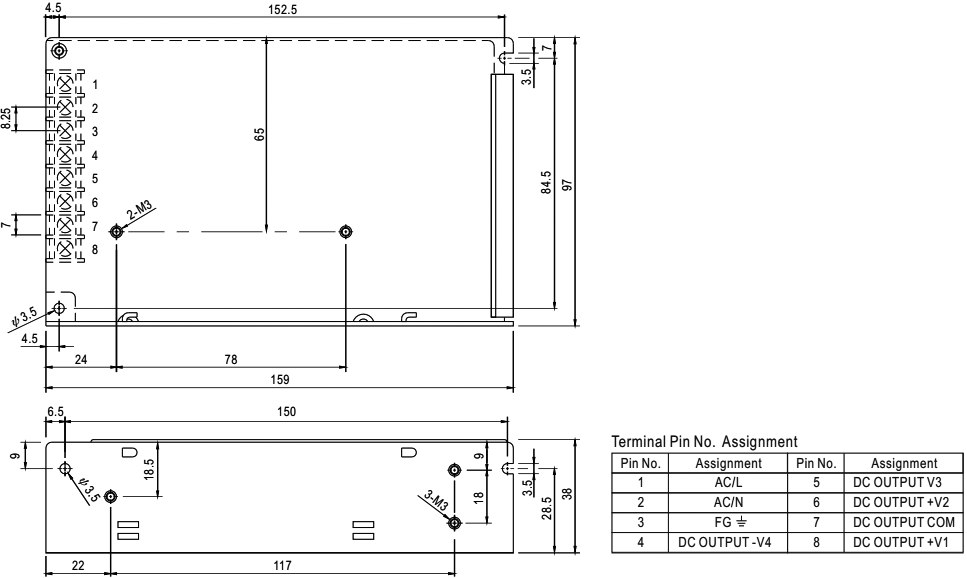

- 159x97x38mm (RQ-85x)

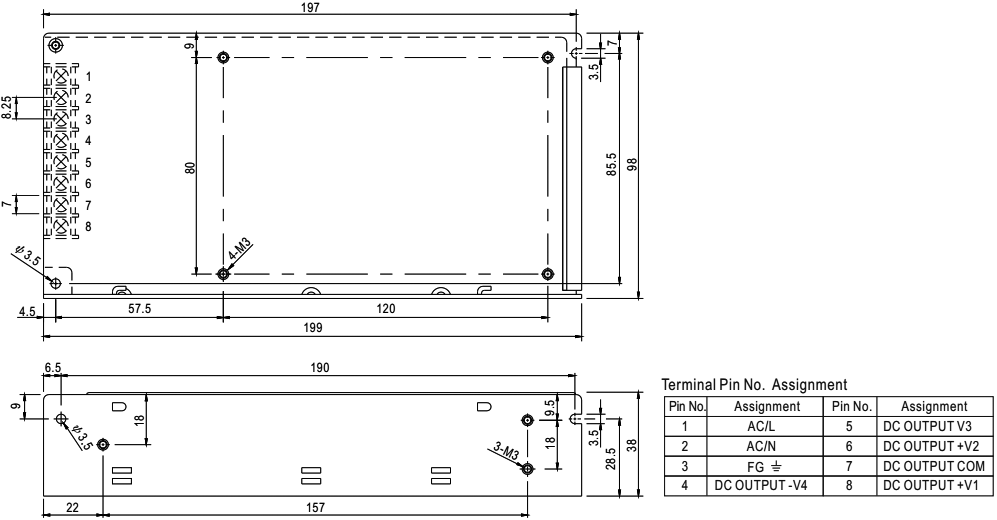

- 199x98x38mm (RQ-125x)
