TE Connectivity PCB mount RJ-type sockets
| Manufacturer | TE Connectivity |
| Connector | socket |
| Symbol | Mounting | Type | Dimensions | Connector | Number of pins | Layout | Profile height | Cat. | Locking system |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | |||||||||
| RJ45G-AMP | THT | with panel stop blockade | Fig. 1. | RJ45 | 8 | 8p8c | - | Cat 3 | - |

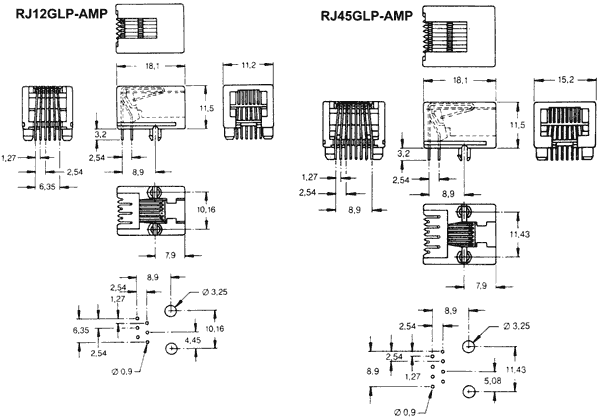

| RJ12GLP-AMP | THT | low profile | Fig. 2. | RJ12 | 6 | 6p6c | 11.5 | - | - |
| RJ45GLP-AMP | THT | low profile | Fig. 2. | RJ45 | 8 | 8p8c | 11.5 | Cat 3 | - |
| 5558343-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 13.39 | Cat 5e | - |
| 5555162-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| RJ45GE-AMP | THT | shielded; low profile; with panel stop blockade | - | RJ45 | 8 | 8p8c | - | Cat 3 | - |
| 1-406541-1 | THT | shielded | - | RJ45 | 8 | 8p8c | - | Cat 5 | top latch |
| 2-406549-4 | THT | shielded; with LED | - | RJ45 | 8 | 8p8c | - | Cat 5 | top latch |
| 1116062-2 | THT | shielded; low profile | - | RJ45 | 8 | 8p8c | - | Cat 5 | - |
| 5569381-1 | THT | shielded; double | - | RJ45 | 8 | 8p8c | - | Cat 5 | - |
| 5569255-1 | THT | shielded; quadruple | - | RJ45 | 8 | 8p8c | - | Cat 5 | - |
| 5558342-1 | THT | shielded | - | RJ45 | 8 | 8p8c | - | Cat 5e | - |
| 5520241-2 | THT | - | - | RJ9 | 4 | 4p4c | 17.4 | Cat 3 | - |
| 5555980-1 | THT | - | - | RJ9 | 4 | 4p4c | 16.2 | Cat 3 | - |
| 5406545-1 | SMT | shielded; low profile; with panel stop blockade | - | RJ11 | 4 | 6p4c | 12.4 | Cat 3 | - |
| 5520250-2 | THT | shielded; with panel stop blockade | - | RJ11 | 4 | 6p4c | 16.2 | Cat 3 | - |
| 5555140-1 | THT | shielded; low profile; with panel stop blockade | - | RJ12 | 6 | 6p6c | 12.57 | Cat 3 | - |
| 5555140-2 | THT | shielded; low profile; with panel stop blockade | - | RJ11 | 4 | 6p4c | 12.7 | Cat 3 | - |
| 5555154-2 | THT | shielded; low profile; with panel stop blockade | - | RJ11 | 4 | 6p4c | 12.7 | Cat 3 | - |
| 5555163-2 | THT | shielded; low profile; with panel stop blockade | - | RJ11 | 4 | 6p4c | 12.7 | Cat 3 | - |
| 5555979-1 | THT | - | - | RJ11 | 4 | 6p4c | 16.2 | Cat 3 | - |
| 5555003-1 | THT | - | - | RJ12 | 6 | 6p6c | 16.13 | Cat 3 | - |
| 5555154-1 | THT | shielded; with panel stop blockade | - | RJ12 | 6 | 6p6c | 12.7 | Cat 3 | - |
| 5555163-1 | THT | - | - | RJ12 | 6 | 6p6c | 12.7 | Cat 3 | - |
| 5558065-1 | THT | - | - | RJ50 | 10 | 10p10c | 13.19 | Cat 3 | - |
| 5558066-1 | THT | polarized | - | RJ50 | 10 | 10p10c | 13.34 | Cat 3 | - |
| 5558067-1 | THT | shielded | - | RJ50 | 10 | 10p10c | 13.64 | Cat 3 | - |
| 5558070-1 | THT | shielded | - | RJ50 | 10 | 10p10c | 13.64 | Cat 3 | - |
| 1-406525-1 | THT | unshielded | - | RJ45 | 8 | 8p8c | 12.83 | Cat 5 | - |
| 1-406541-5 | THT | shielded | - | RJ45 | 8 | 8p8c | 13.34 | Cat 5 | - |
| 1116503-2 | THT | low profile | - | RJ45 | 8 | 8p8c | 9.58 | Cat 5 | - |
| 1888250-2 | Press-Fit | low profile | - | RJ45 | 8 | 8p8c | 4.2 | Cat 5 | - |
| 2-5338556-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.1 | Cat 3 | - |
| 3-5338556-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.1 | Cat 3 | - |
| 5406299-1 | THT | shielded | - | RJ45 | 8 | 8p8c | 13.72 | Cat 5e | - |
| 5406533-1 | THT | shielded | - | RJ45 | 8 | 8p8c | 12.83 | Cat 5 | - |
| 5520252-4 | THT | unshielded | - | RJ45 | 8 | 8p8c | 16.13 | Cat 3 | - |
| 5520426-4 | THT | unshielded | - | RJ45 | 8 | 8p8c | 16.2 | Cat 3 | - |
| 5554517-1 | THT | unshielded | - | RJ45 | 8 | 8p8c | 16.2 | Cat 3 | - |
| 5555078-1 | SMT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| 5555164-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| 5555166-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| 5555167-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| 5555764-1 | SMT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| 5556591-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 12.7 | Cat 3 | - |
| 5557786-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 13.64 | Cat 3 | - |
| 5558178-1 | SMT | low profile | - | RJ45 | 8 | 8p8c | 12.57 | Cat 3 | - |
| 5558341-1 | THT | unshielded | - | RJ45 | 8 | 8p8c | 13.39 | Cat 5 | - |
| 5558344-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 13.76 | Cat 5 | - |
| 5569564-1 | THT | low profile | - | RJ45 | 8 | 8p8c | 13.64 | Cat 3 | - |
| 1-1705951-1 | THT | unshielded | - | RJ45 | 8 | 8p8c | 11.5 | Cat 3 | bottom latch |
| 5520250-3 | THT | - | - | RJ25 | 6 | 6p6c | 16.13 | - | bottom latch |
| 1734795-1 | THT | - | - | RJ45 | 8 | 8p8c | 11.3 | - | top latch |
| Symbol: (RJ45Gxx-AMP, 5558343-1, 5558342-1, 5555162-1, 5569381-1, 5569255-1, 1-406541-1, 2-406549-4, 1116062-2) | |
|---|---|
| Mechanical mounting | on PCBs |
| Spatial orientation | angled |
| Symbol: (RJ12GLP-AMP, 5520241-2, 5520250-2, 5555980-1, 5555979-1, 5555140-1, 5555140-2, 5555154-2, 5555154-1, 5555163-2, 5555163-1, 5555003-1, 55580xx-1, 5406545-1, 1734795-1) | |
| Mechanical mounting | on PCBs |
| Symbol: (1-406525-1, 5406533-1) | |
| Mechanical mounting | on PCBs |
| Contact plating | gold-plated |
| Body material | thermoplastic |
| Spatial orientation | angled |
| Symbol: (1-406541-5, 1888250-2) | |
| Mechanical mounting | for panel mounting, on PCBs |
| Contact plating | gold-plated |
| Body material | thermoplastic |
| Spatial orientation | angled |
| Symbol: (1116503-2, 5406299-1, 5555078-1, 5555764-1, 5558178-1, 5558341-1, 5558344-1, 5569564-1) | |
| Mechanical mounting | for panel mounting, on PCBs |
| Contact plating | gold-plated |
| Body material | polyamide |
| Spatial orientation | angled |
| Symbol: (2-5338556-1, 3-5338556-1) | |
| Mechanical mounting | on PCBs |
| Contact plating | nickel plated |
| Body material | PBT |
| Spatial orientation | angled |
| Symbol: (5520252-4, 5520426-4, 5554517-1, 5555164-1, 5555166-1, 5556591-1) | |
| Mechanical mounting | for panel mounting, on PCBs |
| Contact plating | gold-plated |
| Body material | PBT |
| Spatial orientation | angled |
| Symbol: (5555167-1, 1-1705951-1) | |
| Mechanical mounting | on PCBs |
| Contact plating | gold-plated |
| Body material | PBT |
| Spatial orientation | angled |
| Symbol: (5557786-1) | |
| Mechanical mounting | for panel mounting, on PCBs |
| Contact plating | gold-plated |
| Spatial orientation | angled |
| Symbol: (5520250-3) | |
| Mechanical mounting | for panel mounting, on PCBs |
| Contact plating | gold-plated |
| Body material | PBT |
