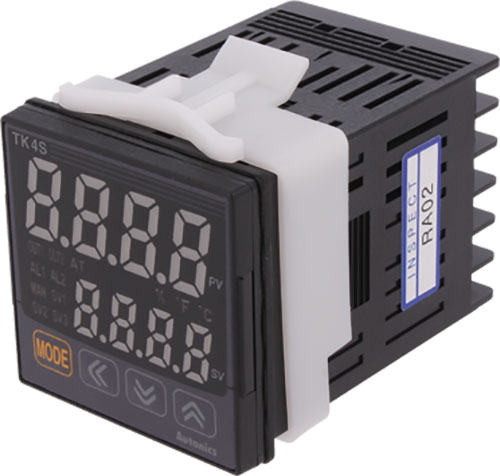

Temperature; TK4S; AUTONICS
| Manufacturer | AUTONICS |
| IP rating | IP65 |
| Operating temperature | -10...50°C |
| The programming method | foil keypad |
| Controlled parameter | temperature |
| Regulation for output 1 | ON-OFF, P, PD, PI, PID |
| Kind of temperature sensor | Cu100, Cu50, JPt100, Ni120, Pt100, Pt50, thermocouple B, thermocouple C, thermocouple E, thermocouple G, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U |
| Input properties | analogue voltage; current analog; RTD; thermocouple |
| Kind of input 1 | 0...100mV, 0...10V, 0...20mA, 0...5V, 4...20mA, universal |
| Display height 1 | 14mm |
| Display 2 height | 10mm |
| Mounting hole | 45x45mm |
| Body dimensions | 48x48x70.5mm |
| Display | LED x2 |
| Controlled parameter range | -1999...9999 |
| Manufacturer series | TK4S |
| Type of automation module | regulator |
| Symbol | Mounting | Usup | Usup | Kind of OUT1 | Kind of OUT2 | Kind of OUT3 | Related items |
|---|---|---|---|---|---|---|---|
| [V AC] | [V DC] | ||||||
| TK4S-12CC | on panel | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm, SPST-NO | - |
| TK4S-12CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm, SPST-NO | - |
| TK4S-12CR | on panel | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4S-12RC | on panel | 24 | 24...48 | SPST-NO | transfer, SSR | alarm, SPST-NO | - |
| TK4S-12RN | on panel | 24 | 24...48 | SPST-NO | - | alarm, SPST-NO | - |
| TK4S-12RR | on panel | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4S-14CC | on panel | 100...240 | - | analogue, SSR | transfer, SSR | alarm, SPST-NO | - |
| TK4S-14CN | on panel | 100...240 | - | analogue, SSR | - | alarm, SPST-NO | - |
| TK4S-14CR | on panel | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4S-14RC | on panel | 100...240 | - | SPST-NO | transfer, SSR | alarm, SPST-NO | - |
| TK4S-14RN | on panel | 100...240 | - | SPST-NO | - | alarm, SPST-NO | - |
| TK4S-14RR | on panel | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4S-14SC | on panel | 100...240 | - | SSR | transfer, SSR | alarm, SPST-NO | - |
| TK4S-14SN | on panel | 100...240 | - | SSR | - | alarm, SPST-NO | - |
| TK4S-14SR | on panel | 100...240 | - | SSR | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4S-22CC | on panel | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm x2, SPST-NO | - |
| TK4S-22CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm x2, SPST-NO | - |
| TK4S-22CR | on panel | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm x2, SPST-NO | - |
| TK4S-22RC | on panel | 24 | 24...48 | SPST-NO | transfer, SSR | alarm x2, SPST-NO | - |
| TK4S-22RN | on panel | 24 | 24...48 | SPST-NO | - | alarm x2, SPST-NO | - |
| TK4S-22RR | on panel | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm x2, SPST-NO | - |
| TK4S-24CC | on panel | 100...240 | - | analogue, SSR | transfer, SSR | alarm x2, SPST-NO | - |
| TK4S-24CN | on panel | 100...240 | - | analogue, SSR | - | alarm x2, SPST-NO | - |
| TK4S-24CR | on panel | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm x2, SPST-NO | - |
| TK4S-24RC | on panel | 100...240 | - | SPST-NO | transfer, SSR | alarm x2, SPST-NO | - |
| TK4S-24RN | on panel | 100...240 | - | SPST-NO | - | alarm x2, SPST-NO | - |
| TK4S-24RR | on panel | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm x2, SPST-NO | - |
| TK4S-24SC | on panel | 100...240 | - | SSR | transfer, SSR | alarm x2, SPST-NO | - |
| TK4S-24SN | on panel | 100...240 | - | SSR | - | alarm x2, SPST-NO | - |
| TK4S-24SR | on panel | 100...240 | - | SSR | alarm, SPST-NO | alarm x2, SPST-NO | - |
| TK4S-A2CC | on panel | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm x2, transfer, SPST-NO | - |
| TK4S-A2CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm x2, transfer, SPST-NO | - |
| TK4S-A2CR | on panel | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm x2, transfer, SPST-NO | - |
| TK4S-A2RC | on panel | 24 | 24...48 | SPST-NO | transfer, SSR | alarm x2, transfer, SPST-NO | - |
| TK4S-A2RN | on panel | 24 | 24...48 | SPST-NO | - | alarm x2, transfer, SPST-NO | - |
| TK4S-A2RR | on panel | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm x2, transfer, SPST-NO | - |
| TK4S-A4CC | on panel | 100...240 | - | analogue, SSR | transfer, SSR | alarm x2, transfer, SPST-NO | - |
| TK4S-A4CN | on panel | 100...240 | - | analogue, SSR | - | alarm x2, transfer, SPST-NO | - |
| TK4S-A4CR | on panel | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm x2, transfer, SPST-NO | - |
| TK4S-A4RC | on panel | 100...240 | - | SPST-NO | transfer, SSR | alarm x2, transfer, SPST-NO | - |
| TK4S-A4RR | on panel | 100...240 | - | SPST-NO | - | alarm x2, transfer, SPST-NO | - |
| TK4S-A4SC | on panel | 100...240 | - | SSR | transfer, SSR | alarm x2, transfer, SPST-NO | - |
| TK4S-A4SN | on panel | 100...240 | - | SSR | - | alarm x2, transfer, SPST-NO | - |
| TK4S-A4SR | on panel | 100...240 | - | SSR | alarm, SPST-NO | alarm x2, transfer, SPST-NO | - |
| TK4S-B2CC | on panel | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B2CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B2CR | on panel | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B2RC | on panel | 24 | 24...48 | SPST-NO | transfer, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B2RN | on panel | 24 | 24...48 | SPST-NO | - | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B2RR | on panel | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4CC | on panel | 100...240 | - | analogue, SSR | transfer, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4CN | on panel | 100...240 | - | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - | |
| TK4S-B4CR | on panel | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4RC | on panel | 100...240 | - | SPST-NO | transfer, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4RN | on panel | 100...240 | - | SPST-NO | - | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4RR | on panel | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4SC | on panel | 100...240 | - | SSR | transfer, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4SN | on panel | 100...240 | - | SSR | - | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-B4SR | on panel | 100...240 | - | SSR | alarm, SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - |
| TK4S-D2CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm, SPST-NO, digital input | - |
| TK4S-D2RN | on panel | 24 | 24...48 | SPST-NO | - | alarm, SPST-NO, digital input | - |
| TK4S-D4CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm, SPST-NO, digital input | - |
| TK4S-D4RN | on panel | 24 | 24...48 | SPST-NO | - | alarm, SPST-NO, digital input | - |
| TK4S-D4SN | on panel | 24 | 24...48 | SSR | - | alarm, SPST-NO, digital input | - |
| TK4SP-12CC | on panel, socket | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm, SPST-NO | - |
| TK4SP-12CN | on panel, socket | 24 | 24...48 | analogue, SSR | - | alarm, SPST-NO | - |
| TK4SP-12CR | on panel, socket | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4SP-12RC | on panel, socket | 24 | 24...48 | SPST-NO | transfer, SSR | alarm, SPST-NO | - |
| TK4SP-12RN | on panel, socket | 24 | 24...48 | SPST-NO | - | alarm, SPST-NO | - |
| TK4SP-12RR | on panel, socket | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4SP-14CC | on panel, socket | 100...240 | - | analogue, SSR | transfer, SSR | alarm, SPST-NO | - |
| TK4SP-14CN | on panel, socket | 100...240 | - | analogue, SSR | - | alarm, SPST-NO | - |
| TK4SP-14CR | on panel, socket | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4SP-14RC | on panel, socket | 100...240 | - | SPST-NO | transfer, SSR | alarm, SPST-NO | - |
| TK4SP-14RN | on panel, socket | 100...240 | - | SPST-NO | - | alarm, SPST-NO | A-11/DIN |
| TK4SP-14RR | on panel, socket | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4SP-14SC | on panel, socket | 100...240 | - | SSR | transfer, SSR | alarm, SPST-NO | - |
| TK4SP-14SN | on panel, socket | 100...240 | - | SSR | - | alarm, SPST-NO | - |
| TK4SP-14SR | on panel, socket | 100...240 | - | SSR | alarm, SPST-NO | alarm, SPST-NO | - |
| TK4S-R2CC | on panel | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm, transfer, SPST-NO | - |
| TK4S-R2CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm, transfer, SPST-NO | - |
| TK4S-R2CR | on panel | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm, transfer, SPST-NO | - |
| TK4S-R2RC | on panel | 24 | 24...48 | SPST-NO | transfer, SSR | alarm, transfer, SPST-NO | - |
| TK4S-R2RN | on panel | 24 | 24...48 | SPST-NO | - | alarm, transfer, SPST-NO | - |
| TK4S-R2RR | on panel | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm, transfer, SPST-NO | - |
| TK4S-R4CC | on panel | 100...240 | - | analogue, SSR | transfer, SSR | alarm, transfer, SPST-NO | - |
| TK4S-R4CN | on panel | 100...240 | - | analogue, SSR | - | alarm, transfer, SPST-NO | - |
| TK4S-R4CR | on panel | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm, transfer, SPST-NO | - |
| TK4S-R4RC | on panel | 100...240 | - | SPST-NO | transfer, SSR | alarm, transfer, SPST-NO | - |
| TK4S-R4RN | on panel | 100...240 | - | SPST-NO | - | alarm, transfer, SPST-NO | - |
| TK4S-R4RR | on panel | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm, transfer, SPST-NO | - |
| TK4S-R4SC | on panel | 100...240 | - | SSR | transfer, SSR | alarm, transfer, SPST-NO | - |
| TK4S-R4SN | on panel | 100...240 | - | SSR | - | alarm, transfer, SPST-NO | - |
| TK4S-R4SR | on panel | 100...240 | - | SSR | alarm, SPST-NO | alarm, transfer, SPST-NO | - |
| TK4S-T2CC | on panel | 24 | 24...48 | analogue, SSR | transfer, SSR | alarm, RS485 Modbus RTU | - |
| TK4S-T2CN | on panel | 24 | 24...48 | analogue, SSR | - | alarm, RS485 Modbus RTU | - |
| TK4S-T2CR | on panel | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm, RS485 Modbus RTU | - |
| TK4S-T2RC | on panel | 24 | 24...48 | SPST-NO | transfer, SSR | alarm, RS485 Modbus RTU | - |
| TK4S-T2RN | on panel | 24 | 24...48 | SPST-NO | - | alarm, RS485 Modbus RTU | - |
| TK4S-T2RR | on panel | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm, RS485 Modbus RTU | - |
| TK4S-T4CC | on panel | 100...240 | - | analogue, SSR | transfer, SSR | alarm, RS485 Modbus RTU | - |
| TK4S-T4CN | on panel | 100...240 | - | analogue, SSR | - | alarm, RS485 Modbus RTU | - |
| TK4S-T4CR | on panel | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm, RS485 Modbus RTU | - |
| TK4S-T4RC | on panel | 100...240 | - | SPST-NO | transfer, SSR | alarm, RS485 Modbus RTU | - |
| TK4S-T4RN | on panel | 100...240 | - | SPST-NO | - | alarm, RS485 Modbus RTU | - |
| TK4S-T4RR | on panel | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm, RS485 Modbus RTU | - |
| TK4S-T4SC | on panel | 100...240 | - | SSR | transfer, SSR | alarm, RS485 Modbus RTU | - |
| TK4S-T4SN | on panel | 100...240 | - | SSR | - | alarm, RS485 Modbus RTU | - |
| TK4S-T4SR | on panel | 100...240 | - | SSR | alarm, SPST-NO | alarm, RS485 Modbus RTU | - |
