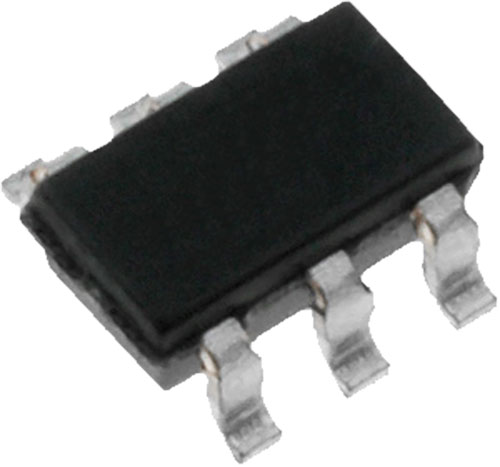

TEXAS INSTRUMENTS diode arrays
| Version | ESD |
| Symbol | Manufacturer | Type of diode | Structure | Usup | Urmax | Ubr | Ifsm | Channels | Case | Mounting | Cap. | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [V] | [A] | [pF] | ||||||||
| SN65220DBVR | TEXAS INSTRUMENTS | TVS array | unidirectional | - | 6 | 7 | 3 | 2 | SOT23-6 | SMD | 35 | HDMI, USB |
| SN65220DBVT | TEXAS INSTRUMENTS | TVS array | unidirectional | - | 6 | 7 | 3 | 2 | SOT23-6 | SMD | 35 | HDMI, USB |
| SN65240PW | TEXAS INSTRUMENTS | TVS array | unidirectional | - | 6 | 7 | 3 | 4 | TSSOP8 | SMD | 35 | HDMI, USB |
| SN65240PWR | TEXAS INSTRUMENTS | TVS array | unidirectional | - | 6 | 7 | 3 | 4 | TSSOP8 | SMD | 35 | HDMI, USB |
| SN75240PW | TEXAS INSTRUMENTS | TVS array | unidirectional | - | 6 | 7 | 3 | 4 | TSSOP8 | SMD | 35 | HDMI, USB |
| TPD1E05U06DPYR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0...5.5 | - | 6.5 | - | 1 | X1SON2 | SMD | 0.42 | HDMI, USB |
| TPD1E05U06DPYT | TEXAS INSTRUMENTS | TVS array | unidirectional | 0...5.5 | - | 6.5 | - | 1 | X1SON2 | SMD | 0.42 | HDMI, USB |
| TPD1E10B06DPYR | TEXAS INSTRUMENTS | TVS | bidirectional | - | 5.5 | 6 | 6 | 1 | X1SON2 | SMD | 12 | HDMI, USB |
| TPD1E10B06DPYT | TEXAS INSTRUMENTS | TVS | bidirectional | - | 5.5 | 6 | 6 | 1 | X1SON2 | SMD | 12 | HDMI, USB |
| TPD1E10B09DPYR | TEXAS INSTRUMENTS | TVS | bidirectional | - | 9 | 9.5 | 4.5 | 1 | X1SON2 | SMD | 10 | HDMI, USB |
| TPD2E001DRLR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | - | 11 | - | 2 | SOT553 | SMD | 1.5 | HDMI, USB |
| TPD2E001DZDR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | - | 11 | - | 2 | SOT23-4 | SMD | 1.5 | HDMI, USB |
| TPD2E007DCKR | TEXAS INSTRUMENTS | TVS array | unidirectional | - | - | 14 | - | 2 | SC70 | SMD | 15 | HDMI, USB |
| TPD2E009DBZR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0...5.5 | - | 7 | - | 2 | SOT23 | SMD | 0.9 | HDMI, USB |
| TPD2EUSB30ADRTR | TEXAS INSTRUMENTS | TVS array | - | 0...3.6 | - | 4.5 | - | 2 | SOT-9X3-3 | SMD | 0.7 | HDMI, USB |
| TPD2EUSB30DRTR | TEXAS INSTRUMENTS | TVS array | - | 0...5.5 | - | 7 | - | 2 | SOT-9X3-3 | SMD | 0.7 | HDMI, USB |
| TPD2S017DBVR | TEXAS INSTRUMENTS | TVS array | bidirectional | 0...5.5 | - | 11 | - | 2 | SOT23-6 | SMD | 1 | USB |
| TPD3E001DRLR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | - | 11 | 5.5 | 3 | SOT5X3 | SMD | 1.5 | HDMI, USB |
| TPD4E001DRLR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | - | 11 | 5.5 | 4 | SOT5X3 | SMD | 1.5 | HDMI, USB |
| TPD4E004DRYR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | - | 6 | - | 4 | SON6 | SMD | 1.6 | HDMI, USB |
| TPD4E05U06DQAR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0...5.5 | - | 6.5 | - | 4 | USON10 | SMD | 0.5 | HDMI, USB |
| TPD4E1U06DBVR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0...5.5 | 5.5 | 6.5 | 3 | 4 | SOT23-6 | SMD | 0.8 | HDMI, USB |
| TPD4S009DBVR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | - | 9 | - | 4 | SOT23-6 | SMD | 0.8 | HDMI, USB |
| TPD4S012DRYR | TEXAS INSTRUMENTS | TVS array | - | 0...5.5 | - | 9 | - | 4 | SON6 | SMD | 0.8 | USB |
| TPD6E001RSER | TEXAS INSTRUMENTS | TVS array | unidirectional | 0.9...5.5 | 5.5 | 11 | - | 6 | UQFN10 | SMD | - | HDMI, USB |
| TPD6E05U06RVZR | TEXAS INSTRUMENTS | TVS array | unidirectional | 0...5.5 | - | 6.5 | - | 6 | USON14 | SMD | 0.47 | HDMI, USB |
