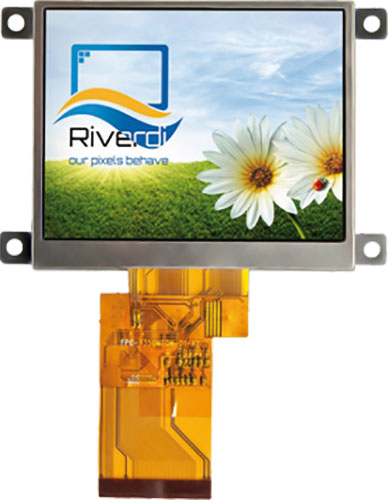

TFT graphical displays, RIVERDI

Manufacturer	Riverdi
Type of display	TFT
Illumination	LED
Operating temperature	-20...70°C
Tape pitch	0.5mm

Symbol	Screen size	Resolution	Contrast	Controller
	["]
RVT3.5ACFWN36	3.5	320x240	350:1	SSD1963
RVT3.5ACFWR36	3.5	320x240	350:1	SSD1963
RVT3.5ACNWC36	3.5	320x240	350:1	SSD1963
RVT3.5ACNWR36	3.5	320x240	350:1	SSD1963
RVT3.5ATFWC00	3.5	320x240	350:1	-
RVT3.5ATFWN00	3.5	320x240	350:1	-
RVT3.5ATFWR00	3.5	320x240	350:1	-
RVT3.5ATNWC00	3.5	320x240	350:1	-
RVT3.5ATNWN00	3.5	320x240	350:1	-
RVT4.3ACFWN36	4.3	480x272	500:1	SSD1963
RVT4.3ACFWR36	4.3	480x272	500:1	SSD1963
RVT4.3ACNWC36	4.3	480x272	500:1	SSD1963
RVT4.3ACNWR36	4.3	480x272	500:1	SSD1963
RVT4.3ATFWC00	4.3	480x272	500:1	-
RVT4.3ATFWN00	4.3	480x272	500:1	-
RVT4.3ATFWR00	4.3	480x272	500:1	-
RVT4.3ATNWC00	4.3	480x272	500:1	-
RVT4.3ATNWN00	4.3	480x272	500:1	-
RVT4.3ATNWR00	4.3	480x272	500:1	-
RVT43HLTFWN00	4.3	480x272	800:1	SC7283
RVT43HLTNWC00	4.3	480x272	800:1	ILI2132A, SC7283
RVT43HLTNWC00-B	4.3	480x272	800:1	ILI2132A, SC7283
RVT43HLTNWN00	4.3	480x272	800:1	SC7283
RVT50AQTFWC00	5	800x480	500:1	FT5306
RVT50AQTFWN00	5	800x480	500:1	-
RVT50AQTFWR00	5	800x480	500:1	-
RVT50AQTNWC00	5	800x480	500:1	-
RVT50AQTNWN00	5	800x480	500:1	-
RVT50AQTNWR00	5	800x480	500:1	-
RVT50HQTFWN00	5	800x480	1000:1	ST7262
RVT50HQTNWC00	5	800x480	1000:1	ILI2132A, ST7262
RVT50HQTNWC00-B	5	800x480	1000:1	ILI2132A, ST7262
RVT50HQTNWN00	5	800x480	1000:1	ST7262
RVT7.0ATFWC00	7	800x480	500:1	FT5406
RVT7.0ATFWN00	7	800x480	500:1	-
RVT7.0ATFWR00	7	800x480	500:1	-
RVT7.0ATNWC00	7	800x480	500:1	-
RVT7.0ATNWN00	7	800x480	500:1	-
RVT7.0ATNWR00	7	800x480	500:1	-
RVT70AQSFWC36	7	800x480	500:1	SSD1963
RVT70AQSFWN36	7	800x480	500:1	SSD1963
RVT70AQSFWR36	7	800x480	500:1	SSD1963
RVT70AQSNWC36	7	800x480	500:1	SSD1963
RVT70AQSNWN36	7	800x480	500:1	SSD1963
RVT70AQSNWR36	7	800x480	500:1	SSD1963
RVT70HSLNWC00	7	1024x600	800:1	EK79001HE + EK73215BCGA
RVT70HSLNWC00-B	7	1024x600	800:1	EK79001HE + EK73215BCGA
RVT70HSTFWN00	7	1024x600	800:1	EK79001HE + EK73215BCGA
RVT70HSTNWC00	7	1024x600	800:1	EK79001HE + EK73215BCGA, ILI2132A
RVT70HSTNWC00-B	7	1024x600	800:1	EK79001HE + EK73215BCGA, ILI2132A

Symbol	Dimensions	Window dimensions
	[mm]	[mm]
RVT3.5ACFWN36	77.7x64.7x7.05	70.78x53.26
RVT3.5ACFWR36	77.7x64.7x8.15	70.78x53.26
RVT3.5ACNWC36	76.9x63.9x7.65	70.78x53.26
RVT3.5ACNWR36	76.9x63.9x7.65	70.78x53.26
RVT3.5ATFWC00	77.7x64.7x4.75	70.78x53.26
RVT3.5ATFWN00	77.7x64.7x3.65	70.78x53.26
RVT3.5ATFWR00	77.7x64.7x4.75	70.78x53.26
RVT3.5ATNWC00	76.9x63.9x4.25	70.78x53.26
RVT3.5ATNWN00	76.9x63.9x3.15	70.78x53.26
RVT4.3ACFWN36	106.3x68x6.8	98.04x56.56
RVT4.3ACFWR36	106.3x68x7.95	98.04x56.56
RVT4.3ACNWC36	105.5x67.2x7.45	98.04x56.56
RVT4.3ACNWR36	105.5x67.2x7.45	98.04x56.56
RVT4.3ATFWC00	106.3x68x4.55	98.04x56.56
RVT4.3ATFWN00	106.3x68x3.4	98.04x56.56
RVT4.3ATFWR00	106.3x68x4.55	98.04x56.56
RVT4.3ATNWC00	105.5x67.2x4.05	98.04x56.56
RVT4.3ATNWN00	105.5x67.2x2.9	98.04x56.56
RVT4.3ATNWR00	105.5x67.2x4.05	98.04x56.56
RVT43HLTFWN00	106.3x83.98x3.48	95.04x53.86
RVT43HLTNWC00	120.38x79.2x5.1	95.04x53.86
RVT43HLTNWC00-B	120.38x79.2x5.1	95.04x53.86
RVT43HLTNWN00	105.5x67.2x2.95	97.24x56.32
RVT50AQTFWC00	120.3x75.4x1.9	109x65.8
RVT50AQTFWN00	121.5x76.6x3.4	108x64.8
RVT50AQTFWR00	121.5x76.6x4.8	108x64.8
RVT50AQTNWC00	120.7x75.8x5	108x64.8
RVT50AQTNWN00	120.7x75.8x2.9	108x64.8
RVT50AQTNWR00	120.7x75.8x4.8	108x64.8
RVT50HQTFWN00	137.5x76.6x3.48	108x64.8
RVT50HQTNWC00	136x92.8x5.4	108x64.8
RVT50HQTNWC00-B	136x92.8x5.4	108x64.8
RVT50HQTNWN00	120.7x75.8x2.95	108x64.8
RVT7.0ATFWC00	165.6x100.6x7.69	156.08x87.92
RVT7.0ATFWN00	165.6x100.6x7.69	156.7x89.1
RVT7.0ATFWR00	165.6x100.6x7.69	156.7x89.5
RVT7.0ATNWC00	164.4x99.8x7.16	156.68x88.52
RVT7.0ATNWN00	164.8x99.8x5.5	156.7x89.1
RVT7.0ATNWR00	164.8x99.8x5.5	156.7x89.1
RVT70AQSFWC36	165.6x100.6x12	164.8x99.8
RVT70AQSFWN36	165.6x100.6x12	164.8x99.8
RVT70AQSFWR36	165.6x100.6x12	164.8x99.8
RVT70AQSNWC36	164.8x99.8x11.45	154.08x85.92
RVT70AQSNWN36	164.8x99.8x11.45	154.08x85.92
RVT70AQSNWR36	164.8x99.8x11.45	154.08x85.92
RVT70HSLNWC00	179.96x119x8.15	154.21x85.92
RVT70HSLNWC00-B	179.96x119x8.15	154.21x85.92
RVT70HSTFWN00	181.6x100.6x6.23	154.21x85.92
RVT70HSTNWC00	179.96x119x8.15	154.21x85.92
RVT70HSTNWC00-B	179.96x119x8.15	154.21x85.92

Interface:

LVDS (RVT70HSLNWC00, RVT70HSLNWC00-B)
parallel (RVT3.5ACxxx36, RVT4.3ACxxx36)
parallel 16bit (RVT70AQSxxx36)
parallel 24bit RGB (RVT3.5ATxxx00, RVT4.3ATxxx00, RVT50AQTxxx00, RVT7.0ATxxx00)
parallel 8bit (RVT70AQSxxx36)
RGB (RVT43HLTxxx, RVT50HQTxxx, RVT70HSTxxx)

No. of pins:

36 (RVTxxx36)
40 (RVT4.3ATxxx00, RVT43HLTxxx, RVT50xxx, RVT70HSLNWC00, RVT70HSLNWC00-B)
50 (RVT7.0ATxxx00, RVT70HSTxxx)
54 (RVT3.5ATxxx00)

Symbol	Layout	U_sup	Version
		[V DC]
RVT3.5ACFWN36	1x36	3...3.6	-
RVT3.5ACFWR36	1x36	3...3.6	-
RVT3.5ACNWC36	1x36	3...3.6	air bonding, aTouch
RVT3.5ACNWR36	1x36	3...3.6	-
RVT3.5ATFWC00	1x54	3...3.6	air bonding, aTouch
RVT3.5ATFWN00	1x54	3...3.6	-
RVT3.5ATFWR00	1x54	3...3.6	-
RVT3.5ATNWC00	1x54	3...3.6	air bonding, aTouch
RVT3.5ATNWN00	1x54	3...3.6	-
RVT4.3ACFWN36	1x36	3...3.6	-
RVT4.3ACFWR36	1x36	3...3.6	-
RVT4.3ACNWC36	1x36	3...3.6	air bonding, aTouch
RVT4.3ACNWR36	1x36	3...3.6	-
RVT4.3ATFWC00	1x40	3...3.6	air bonding, aTouch
RVT4.3ATFWN00	1x40	3...3.6	-
RVT4.3ATFWR00	1x40	3...3.6	-
RVT4.3ATNWC00	1x40	3...3.6	air bonding, aTouch
RVT4.3ATNWN00	1x40	3...3.6	-
RVT4.3ATNWR00	1x40	3...3.6	-
RVT43HLTFWN00	1x40	3...3.6	-
RVT43HLTNWC00	1x40	3...3.6	air bonding, uxTouch
RVT43HLTNWC00-B	1x40	3...3.6	optical bonding, uxTouch
RVT43HLTNWN00	1x40	3...3.6	-
RVT50AQTFWC00	1x40	3...3.6	air bonding, aTouch
RVT50AQTFWN00	1x40	3...3.6	-
RVT50AQTFWR00	1x40	2.5...3.3	-
RVT50AQTNWC00	1x40	3...3.6	air bonding, aTouch
RVT50AQTNWN00	1x40	3...3.6	-
RVT50AQTNWR00	1x40	3...3.6	-
RVT50HQTFWN00	1x40	3...3.6	-
RVT50HQTNWC00	1x40	3...3.6	air bonding, uxTouch
RVT50HQTNWC00-B	1x40	3...3.6	optical bonding, uxTouch
RVT50HQTNWN00	1x40	3...3.6	-
RVT7.0ATFWC00	1x50	3...3.6	air bonding, aTouch
RVT7.0ATFWN00	1x50	3...3.6	-
RVT7.0ATFWR00	1x50	3...3.6	-
RVT7.0ATNWC00	1x50	3...3.6	air bonding, aTouch
RVT7.0ATNWN00	1x50	3...3.6	-
RVT7.0ATNWR00	1x50	3...3.6	-
RVT70AQSFWC36	1x36	3...3.6	air bonding, aTouch
RVT70AQSFWN36	1x36	3...3.6	-
RVT70AQSFWR36	1x36	3...3.6	-
RVT70AQSNWC36	1x36	3...3.6	air bonding, aTouch
RVT70AQSNWN36	1x36	3...3.6	-
RVT70AQSNWR36	1x36	3...3.6	-
RVT70HSLNWC00	1x40	-	air bonding, uxTouch
RVT70HSLNWC00-B	1x40	-	optical bonding, uxTouch
RVT70HSTFWN00	1x50	-	-
RVT70HSTNWC00	1x50	-	air bonding, uxTouch
RVT70HSTNWC00-B	1x50	-	optical bonding, uxTouch

Kind of display:

graphical
matrix IPS (RVT43HLTxxx, RVT50HQTxxx, RVT70HSxxx)

Storage temp.:

-30...80°C (RVT3.5Axxx, RVT4.3Axxx, RVT50AQTxxx00, RVT7.0ATxxx00, RVT70AQSxxx36)

Features:

anti-glare glass (RVT43HLTFWN00, RVT43HLTNWN00, RVT50HQTFWN00, RVT50HQTNWN00, RVT70HSTFWN00)
smart (RVT70AQSFWN36)
multi-touch (RVT43HLTNWC00, RVT43HLTNWC00-B, RVT50HQTNWC00, RVT50HQTNWC00-B, RVT70HSLNWC00, RVT70HSLNWC00-B, RVT70HSTNWC00, RVT70HSTNWC00-B)
mounting frame (RVT70AQSFWx36)
external frame (RVT3.5ACFWN36, RVT3.5ACFWR36, RVT3.5ATFWx00, RVT4.3ACFWN36, RVT4.3ACFWR36, RVT4.3ATFWx00, RVT43HLTFWN00, RVT50HQTFWN00, RVT7.0ATFWx00, RVT70HSTFWN00)
wide viewing angle (RVT43HLTxxx, RVT50HQTxxx, RVT70HSxxx)

Luminosity:

540cd/m² (RVT3.5ACFWN36, RVT3.5ATFWN00, RVT3.5ATNWN00)
450cd/m² (RVT3.5ACFWR36, RVT3.5ACNWR36, RVT3.5ATFWR00)
480cd/m² (RVT3.5ACNWC36, RVT3.5ATFWC00, RVT3.5ATNWC00, RVT50AQTFWR00, RVT50AQTNWR00)
550cd/m² (RVT4.3ACFWN36, RVT4.3ATFWN00, RVT4.3ATNWN00)
440cd/m² (RVT4.3ACFWR36, RVT4.3ACNWR36, RVT4.3ATFWR00, RVT4.3ATNWR00)
500cd/m² (RVT4.3ACNWC36, RVT4.3ATFWC00, RVT4.3ATNWC00)
1000cd/m² (RVT43HLTFWN00, RVT43HLTNWN00, RVT50HQTFWN00, RVT50HQTNWN00, RVT70HSTFWN00)
800cd/m² (RVT43HLTNWC00, RVT50HQTNWC00, RVT70HSLNWC00, RVT70HSTNWC00)
850cd/m² (RVTxxxNWC00-B)
510cd/m² (RVT50AQTFWC00, RVT50AQTNWC00)
600cd/m² (RVT50AQTFWN00, RVT50AQTNWN00)
350cd/m² (RVT7.0ATFWC00, RVT7.0ATNWC00, RVT70AQSFWC36, RVT70AQSNWC36)
400cd/m² (RVT7.0ATFWN00, RVT7.0ATNWN00, RVT70AQSFWN36, RVT70AQSNWN36)
320cd/m² (RVT7.0ATFWR00, RVT7.0ATNWR00, RVT70AQSFWR36, RVT70AQSNWR36)

Touchpad:

none (RVT3.5ACFWN36, RVT3.5ATFWC00, RVT3.5ATFWN00, RVT3.5ATNWN00, RVT4.3ACFWN36, RVT4.3ATFWN00, RVT4.3ATFWR00, RVT4.3ATNWN00, RVT43HLTFWN00, RVT43HLTNWN00, RVT50xxxWN00, RVT7.0ATFWN00, RVT7.0ATNWN00, RVT70AQSFWN36, RVT70AQSNWx36, RVT70HSTFWN00)
capacitive (RVT3.5ACNWC36, RVT3.5ATNWC00, RVT4.3ACNWC36, RVT4.3ATFWC00, RVT4.3ATNWC00, RVT43HLTNWC00, RVT43HLTNWC00-B, RVT50AQTFWC00, RVT50AQTNWC00, RVT50HQTNWC00, RVT50HQTNWC00-B, RVT7.0ATFWC00, RVT7.0ATNWC00, RVT70AQSFWC36, RVT70HSLNWC00, RVT70HSLNWC00-B, RVT70HSTNWC00, RVT70HSTNWC00-B)
resistance (RVT3.5ACFWR36, RVT3.5ACNWR36, RVT3.5ATFWR00, RVT4.3ACFWR36, RVT4.3ACNWR36, RVT4.3ATNWR00, RVT50AQTFWR00, RVT50AQTNWR00, RVT7.0ATFWR00, RVT7.0ATNWR00, RVT70AQSFWR36)
