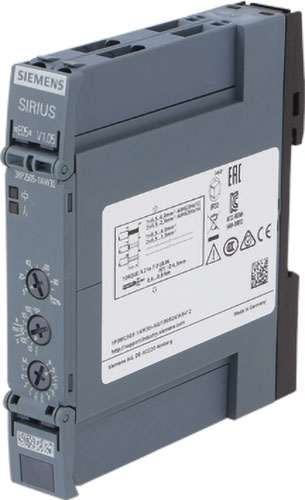

Timers, 3RP25 series
| Manufacturer | SIEMENS |
| Type of automation module | timer |
| Mounting | for DIN rail mounting |
| IP rating | IP20 |
| Operating temperature | -25...60°C |
| Symbol | Usup | Usup | Range | Output | Number of operation modes | No. of pins | Operation modes | Electrical connection |
|---|---|---|---|---|---|---|---|---|
| [V DC] | [V AC] | |||||||
| 3RP2560-1SW30 | 12...240 | 12...240 | 1...20s | 3PST-NO | 1 | 2 | star delta | screw terminals |
| 3RP2574-1NW30 | 12...240 | 12...240 | 1...20s | DPST - NO | 1 | 1 | star delta | screw terminals |
| 3RP2505-1AB30 | 24 | 24 | 0,05s...100h | SPDT | 13 | 1 | delayed switch-off controlled by contact S, delayed switching on | screw terminals |
| 3RP2505-1AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 13 | 1 | delayed switch-off controlled by contact S, delayed switching on | screw terminals |
| 3RP2505-1BB30 | 24 | 24 | 0,05s...100h | DPDT | 27 | 2 | star delta, delayed switch-off controlled by contact S, delayed switching on and off controlled by contact S | screw terminals |
| 3RP2505-1BW30 | 12...240 | 12...240 | 0,05s...100h | DPDT | 27 | 2 | star delta, delayed switch-off controlled by contact S, delayed switching on and off controlled by contact S | screw terminals |
| 3RP2511-1AW30 | 12...240 | 12...240 | 0,5s...10s | SPDT | 1 | 1 | delayed switching on | screw terminals |
| 3RP2512-1AW30 | 12...240 | 12...240 | 1...30s | SPDT | 1 | 1 | delayed switching on | screw terminals |
| 3RP2513-1AW30 | 12...240 | 12...240 | 5...100s | SPDT | 1 | 1 | delayed switching on | screw terminals |
| 3RP2525-1AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 1 | 1 | delayed switching on | screw terminals |
| 3RP2525-1BB30 | 24 | 24 | 0,05s...100h | DPDT | 1 | 2 | delayed switching on | screw terminals |
| 3RP2525-1BW30 | 12...240 | 12...240 | 0,05s...100h | DPDT | 1 | 2 | delayed switching on | screw terminals |
| 3RP2535-1AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 1 | 1 | delayed switch-off controlled by contact S | screw terminals |
| 3RP2540-1AB30 | 24 | 24 | 0,05...600s | SPDT | 1 | 1 | delayed switching off | screw terminals |
| 3RP2540-1AW30 | 12...240 | 12...240 | 0,05...600s | SPDT | 1 | 1 | delayed switching off | screw terminals |
| 3RP2540-1BB30 | 24 | 24 | 0,05...600s | DPDT | 1 | 2 | delayed switching off | screw terminals |
| 3RP2540-1BW30 | 12...240 | 12...240 | 0,05...600s | DPDT | 1 | 2 | delayed switching off | screw terminals |
| 3RP2555-1AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 1 | 1 | - | screw terminals |
| 3RP2574-1NM20 | - | 200...240/380...440 | 1...20s | DPST - NO | 1 | 2 | star delta | screw terminals |
| 3RP2576-1NM20 | - | 200...240/380...440 | 3s...60s | DPST - NO | 1 | 2 | star delta | screw terminals |
| 3RP2576-1NW30 | 12...240 | 12...240 | 3s...60s | DPST - NO | 1 | 1 | star delta | screw terminals |
| 3RP2505-2AB30 | 24 | 24 | 0,05s...100h | SPDT | 13 | - | - | screw terminals |
| 3RP2505-2AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 13 | - | - | push-in terminals |
| 3RP2505-2BW30 | 12...240 | 12...240 | 0,05s...100h | DPDT | 27 | - | - | push-in terminals |
| 3RP2505-2CW30 | 12...240 | 12...240 | 0,05s...100h | NPN | 13 | - | - | push-in terminals |
| 3RP2505-2RW30 | 24...240 | 24...240 | 0,05s...100h | DPDT | 27 | - | - | push-in terminals |
| 3RP2511-2AW30 | 12...240 | 12...240 | 0,5...10s | SPDT | 1 | - | delayed switching on | push-in terminals |
| 3RP2512-2AW30 | 12...240 | 12...240 | 1...3s | SPDT | 1 | - | delayed switching on | push-in terminals |
| 3RP2513-2AW30 | 12...240 | 12...240 | 5...100s | SPDT | 1 | - | delayed switching on | push-in terminals |
| 3RP2525-2AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 1 | - | delayed switching on | push-in terminals |
| 3RP2525-2BW30 | 12...240 | 12...240 | 0,05s...100h | DPDT | 1 | - | delayed switching on | push-in terminals |
| 3RP2527-2EW30 | 12...240 | 12...240 | 0,05...240s | thyristor | 1 | - | delayed switching on | push-in terminals |
| 3RP2535-2AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 1 | - | delayed switch-off controlled by contact S | push-in terminals |
| 3RP2540-2AW30 | 12...240 | 12...240 | 0,05...600s | SPDT | 1 | - | delayed switching off | push-in terminals |
| 3RP2540-2BW30 | 12...240 | 12...240 | 0,05...600s | DPDT | 1 | - | delayed switching off | push-in terminals |
| 3RP2555-2AW30 | 12...240 | 12...240 | 0,05s...100h | SPDT | 1 | - | - | push-in terminals |
| 3RP2560-2SW30 | 12...240 | 12...240 | 1...20s | - | 1 | - | star delta | push-in terminals |
| 3RP2574-2NW30 | 12...240 | 12...240 | 1...20s | - | 1 | - | star delta | push-in terminals |
| 3RP2576-2NW30 | 12...240 | 12...240 | 3s...60s | - | 1 | - | star delta | push-in terminals |
