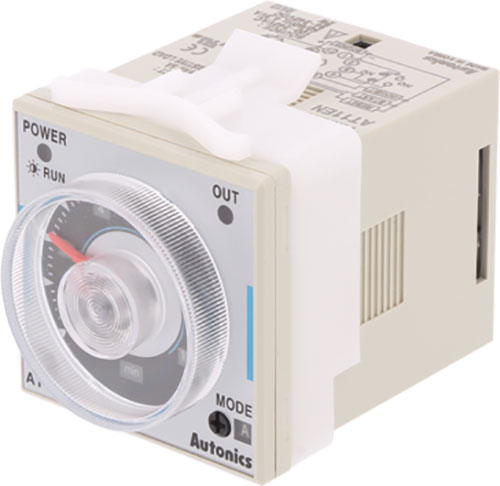

Timers, ATN series
| Manufacturer | AUTONICS |
| Mounting | on panel, socket |
| Mounting hole | 45x45mm |
| Electrical connection | round socket |
| Body dimensions | 48x48x79.5mm |
| Operating temperature | -10...55°C |
| IP rating | IP20 |
| Type of automation module | timer |
| Symbol | Output | No. of pins | The additional control inputs | Related items |
|---|---|---|---|---|
| AT8N | DPDT/ SPDT + SPDT | 8 | - | A-08, A-08/DIN |
| AT8N-1 | DPDT/ SPDT + SPDT | 8 | - | A-08, A-08/DIN |
| AT8N-2 | DPDT/ SPDT + SPDT | 8 | - | A-08, A-08/DIN |
| AT8SDN | SPDT | 8 | - | A-08, A-08/DIN |
| AT11DN | DPDT | 11 | INHIBIT, RESET, START | A-11/DIN |
| AT11DN-2 | DPDT | 11 | INHIBIT, RESET, START | A-11/DIN |
| AT11EN | SPDT + SPDT | 11 | INHIBIT, RESET, START | A-11/DIN |
| Symbol: (AT8N) | |
|---|---|
| Range | 0,05s...100h |
| Number of operation modes | 6 |
| Supply voltage | 24...240V DC |
| Supply voltage | 100...240V AC |
| Operation modes | pulse after a specified time, delayed switching on, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first |
| Symbol: (AT8N-1) | |
| Range | 0,05s...100h |
| Number of operation modes | 6 |
| Supply voltage | 12V DC |
| Operation modes | pulse after a specified time, delayed switching on, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first |
| Symbol: (AT8N-2) | |
| Range | 0,05s...100h |
| Number of operation modes | 6 |
| Supply voltage | 24V DC |
| Supply voltage | 24V AC |
| Operation modes | pulse after a specified time, delayed switching on, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first |
| Symbol: (AT8SDN) | |
| Range | 0,5...100s |
| Number of operation modes | 1 |
| Supply voltage | 24...240V DC |
| Supply voltage | 100...240V AC |
| Operation modes | star delta |
| Symbol: (AT11DN, AT11EN) | |
| Range | 0,05s...100h |
| Number of operation modes | 6 |
| Supply voltage | 24...240V DC |
| Supply voltage | 100...240V AC |
| Operation modes | delayed switching off, delayed switching on, ON and OFF delay, with the control contact S |
| Symbol: (AT11DN-2) | |
| Range | 0,05s...100h |
| Number of operation modes | 6 |
| Supply voltage | 24V DC |
| Supply voltage | 24V AC |
| Operation modes | delayed switching off, delayed switching on, ON and OFF delay, with the control contact S |
