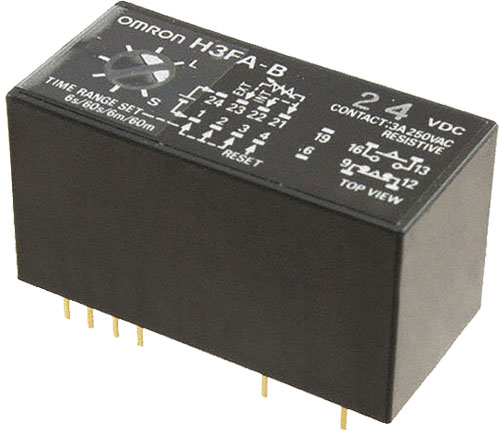

Timers, H3FA series
| Manufacturer | OMRON |
| Mounting | PCB |
| Body dimensions | 17.5x36.9x19.5mm |
| Operating temperature | -10...55°C |
| Type of automation module | timer |
| Symbol | Supply voltage | Output | Range | No. of pins | Output configuration |
|---|---|---|---|---|---|
| [V DC] | |||||
| H3FA-AU-5DC | 5 | SPST-NO + SPST-NC | 0,1s...10min | 13 | - |
| H3FA-AU-6DC | 6 | SPST-NO + SPST-NC | 0,1s...10min | 13 | - |
| H3FA-AU-12DC | 12 | SPST-NO + SPST-NC | 0,1s...10min | 13 | - |

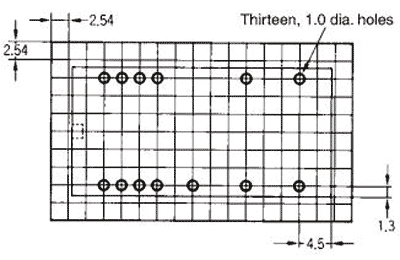

| H3FA-AU-24DC | 24 | SPST-NO + SPST-NC | 0,1s...10min | 13 | Fig. 1-1. |
| H3FA-B-6DC | 6 | SPST-NO + SPST-NC | 0,6s...60min | 12 | - |
| H3FA-B-12DC | 12 | SPST-NO + SPST-NC | 0,6s...60min | 12 | - |

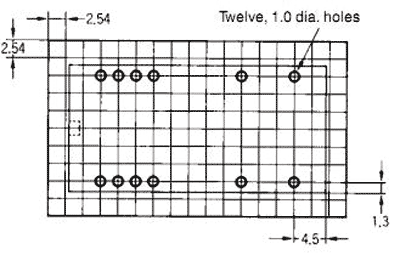

| H3FA-B-24VDC | 24 | SPST-NO + SPST-NC | 0,6s...60min | 12 | Fig. 1-2. |
| H3FA-A-12DC | 12 | SPST-NO + SPST-NC | 0,1s...10min | 12 | - |
| H3FA-A-24DC | 24 | SPST-NO + SPST-NC | 0,1s...10min | 12 | - |
| H3FA-A-5DC | 5 | SPST-NO + SPST-NC | 0,1s...10min | 12 | - |
| H3FA-A-6DC | 6 | SPST-NO + SPST-NC | 0,1s...10min | 12 | - |
| H3FA-BU-12DC | 12 | SPST-NO + SPST-NC | 0,6s...60min | 13 | - |
| H3FA-BU-24DC | 24 | SPST-NO + SPST-NC | 0,6s...60min | 13 | - |
| H3FA-SA-12/24DC | 12...24 | SSR | 0,1s...10min | 12 | - |
| H3FA-SA-5/6DC | 5...6 | SSR | 0,1s...10min | 12 | - |
| H3FA-SAU-12/24DC | 12...24 | SSR | 0,1s...10min | 13 | - |
| H3FA-SB-12/24DC | 12...24 | SSR | 0,6s...60min | 12 | - |
| H3FA-SB-5/6DC | 5...6 | SSR | 0,6s...60min | 12 | - |
| H3FA-SBU-12/24DC | 12...24 | SSR | 0,6s...60min | 13 | - |
| H3FA-SBU-DC5/6 | 5...6 | SSR | 0,6s...60min | 13 | - |
| Symbol: (H3FA-AU-5DC, H3FA-AU-6DC, H3FA-AU-12DC, H3FA-BU-12DC, H3FA-BU-24DC, H3FA-SAU-12/24DC, H3FA-SBU-12/24DC, H3FA-SBU-DC5/6) | |
|---|---|
| Number of operation modes | 1 |
| Operation modes | delayed switching on |
| The additional control inputs | RESET, START |
| Symbol: (H3FA-AU-24DC) | |

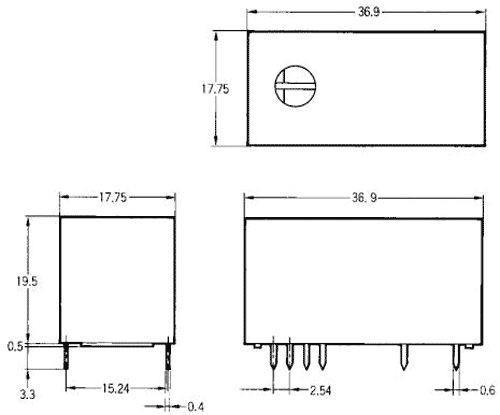

| Dimensions | Fig. 2-1. |
| Number of operation modes | 1 |
| Operation modes | delayed switching on |
| The additional control inputs | RESET, START |
| Symbol: (H3FA-B-6DC, H3FA-B-12DC, H3FA-A-xxDC, H3FA-SA-12/24DC, H3FA-SA-5/6DC, H3FA-SB-12/24DC, H3FA-SB-5/6DC) | |
| Number of operation modes | 1 |
| Operation modes | delayed switching on, with the control contact S |
| The additional control inputs | RESET |
| Symbol: (H3FA-B-24VDC) | |
| Dimensions | Fig. 2-1. |
| Number of operation modes | 1 |
| Operation modes | delayed switching on, with the control contact S |
| The additional control inputs | RESET |
