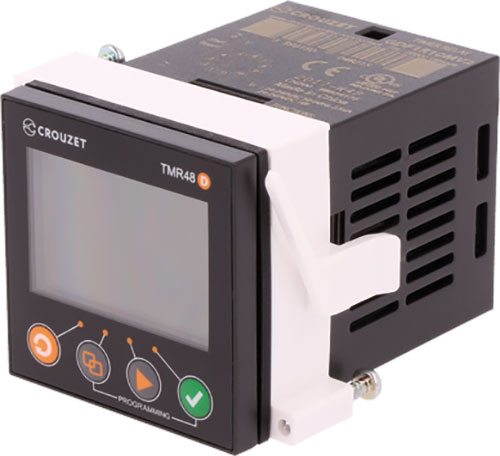

Timers, TMR48D series
| Manufacturer | CROUZET |
| Range | 0,05s...9999h |
| Display | LED |
| Mounting hole | 45x45mm |
| Operating temperature | -10...60°C |
| IP rating | IP20 at terminal side, IP66 (from the front) |
| Features | EEPROM; fitted with function for up and down time counting; LED display |
| Mounting | on panel, socket |
| No. of pins | 11 |
| Usup | 24...240V DC |
| Usup | 24...240V AC |
| Electrical connection | round socket |
| The additional control inputs | RESET, START |
| Manufacturer series | TMR48D |
| Type of automation module | timer |
| Symbol | Number of operation modes | Output | Operation modes |
|---|---|---|---|
| GDF1R10MV2 | 10 | SPDT | delayed switching off, delayed switching on, ON and OFF delay, cyclical operation with two independent times T1 and T2, pause first, cyclical operation with two independent times T1 and T2, pulse first, cyclic operation with delayed switching off, symmetrical cyclical operation pause first with two independent times T1 and T2, symmetrical cyclical operation swithing on first with two independent times T1 and T2, ON for the set interval, with the control contact S |
| GDS2R10MV2 | 16 | SPDT x2 | cumulative, measuring a single duty cycle and breaks, delayed switching off, delayed switching on, ON and OFF delay, delayed switching on, sum of times T1, T2 and T3, cyclical operation with two independently preset times, cumulative cyclic work T1 and T2, cyclic operation with delayed switching off, symmetrical cyclical operation pause first, symmetrical cyclical operation pause first with two independent times T1 and T2, symmetrical cyclical operation pulse first, symmetrical cyclical operation swithing on first with two independent times T1 and T2, switching on the set time after pulse of contact S, ON for the set interval, with the control contact S |
