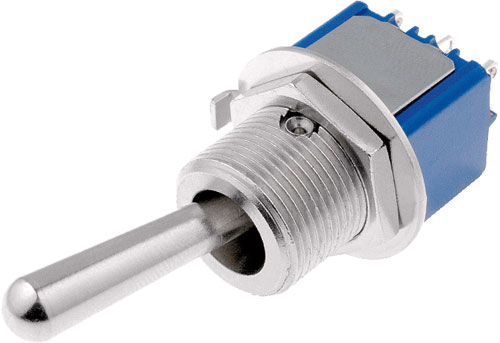

Toggle switches, 5000 series
| Manufacturer | APEM |
| Mounting hole diameter | Ø6.5mm |
| Type of switch | toggle |
| Min. insulation resistance | 1000MΩ |
| Max. contact resistance: | 10mΩ |
| Manufacturer series | 5000 |
| Panel thickness | 2.5...4mm |
| Electrical life | 50000 cycles |
| Operating temperature | -40...85°C |
| Mounting | on panel |
| Symbol | Contact material | Contact plating | AC contacts rating @R* | DC contacts rating @R* | Contacts layout | Switch. method** | Positions | Kind of toggle | Slider height | Leads | Body dim. | Mounting | Switches features | IP rating | Related items |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | ||||||||||||||
| 5236ADB | silver | gold-plated | - | 0.1A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for PCB | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5236ADGB-2VX408 | silver | gold-plated | - | 0.1A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for PCB | 13.2x7x13.3 | PCB | position lock; sealed terminals; front panel sealing | - | - |
| 5236AKB | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for PCB | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5236WADB | silver | gold-plated | - | 0.1A / 30V DC | SPDT | ON-ON | 2 | round | 13.5 | for PCB, angled | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5236WCD | brass | gold-plated | 0.02A / 20V AC | 0.02A / 20V DC | SPDT | ON-ON | 2 | round | 13.5 | for PCB, angled | 13.2x7x13.3 | PCB | - | - | - |
| 5236WWADB | silver | gold-plated | - | 0.1A / 30V DC | SPDT | ON-ON | 2 | round | 13.5 | for PCB, angled | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5236WWCD | brass | gold-plated | 0.02A / 20V AC | 0.02A / 20V DC | SPDT | ON-ON | 2 | round | 13.5 | for PCB, angled | 13.2x7x13.3 | PCB | - | - | - |
| 5236YAB | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | round | 13.5 | for PCB | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5236YADB | silver | gold-plated | - | 0.1A / 30V DC | SPDT | ON-ON | 2 | round | 13.5 | for PCB | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5239AB | silver | - | 3A / 250V AC | 4A / 30V DC | SP3T | ON-OFF-ON | 3 | round | 10.5 | for PCB | 13.2x7x13.3 | PCB | sealed terminals | - | - |
| 5244YTHADB | silver | gold-plated | - | 0.1A / 30V DC | DP3T | ON-ON-ON | 3 | round | 10.5 | for PCB | 15.75x12x13 | PCB | sealed terminals | - | - |
| 5246AB | silver | - | 3A / 250V AC | 4A / 30V DC | DPDT | ON-ON | 2 | round | 10.5 | for PCB | 13.2x12x13.3 | PCB | sealed terminals | - | - |
| 5246WWCD | brass | gold-plated | - | 0.1A / 30V DC | DPDT | ON-ON | 2 | round | 13.5 | for PCB, angled | 13.2x12x13.3 | PCB | - | - | - |
| 5247AB-4NX515 | silver | - | 3A / 250V AC | 4A / 30V DC | DP3T | (ON)-OFF-(ON) | 3 | round | 9 | for PCB | 13.2x12x12.7 | PCB | - | - | - |
| 5632AB | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-(ON) | 2 | round | 10.5 | for soldering | 13.2x7x12 | sealed terminals | - | - | |
| 5636A | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x7x12 | - | - | - | |
| 5636A-9 | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | flat | 11.4 | for soldering | 13.2x7x12 | - | - | - | |
| 5636AB | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x7x12 | sealed terminals | - | - | |
| 5636AB-2V | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x7x12 | position lock; sealed terminals | - | - | |
| 5636AKB | silver | - | 3A / 250V AC | 4A / 30V DC | SPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x7x12 | sealed terminals; front panel sealing | - | - | |
| 5636CD | brass | gold-plated | 0.02A / 20V AC | 0.02A / 20V DC | SPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x7x12 | - | - | - | |
| 5637A | silver | - | 3A / 250V AC | 4A / 30V DC | SP3T | (ON)-OFF-(ON) | 3 | round | 10.5 | for soldering | 13.2x7x12 | - | - | - | |
| 5637AB | silver | - | 3A / 250V AC | 4A / 30V DC | SP3T | (ON)-OFF-(ON) | 3 | round | 10.5 | for soldering | 13.2x7x12 | sealed terminals | - | - | |
| 5638AB | silver | - | 3A / 250V AC | 4A / 30V DC | SP3T | ON-OFF-(ON) | 3 | round | 10.5 | for soldering | 13.2x7x12 | sealed terminals | - | - | |
| 5639A | silver | - | 3A / 250V AC | 4A / 30V DC | SP3T | ON-OFF-ON | 3 | round | 10.5 | for soldering | 13.2x7x12 | - | - | - | |
| 5639AB | silver | - | 3A / 250V AC | 4A / 30V DC | SP3T | ON-OFF-ON | 3 | round | 10.5 | for soldering | 13.2x7x12 | sealed terminals | - | - | |
| 5644THAB | silver | - | 3A / 250V AC | 4A / 30V DC | DP3T | ON-ON-ON | 3 | round | 10.5 | for soldering | 13.2x12x12 | sealed terminals | - | - | |
| 5646A | silver | - | 3A / 250V AC | 4A / 30V DC | DPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x12x12 | - | - | - | |
| 5646A-2V | silver | - | 3A / 250V AC | 4A / 30V DC | DPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x12x12 | position lock | - | - | |
| 5646AB | silver | - | 3A / 250V AC | 4A / 30V DC | DPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x12x12 | sealed terminals | - | - | |
| 5646AB-2V | silver | - | 3A / 250V AC | 4A / 30V DC | DPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x12x12 | position lock; sealed terminals | - | - | |
| 5646AGB-038-2VX408 | silver | - | 3A / 250V AC | 4A / 30V DC | DPDT | ON-ON | 2 | round | 10.5 | for soldering | 13.2x12x12 | sealed terminals; front panel sealing | - | - | |
| 5647AB | silver | - | 3A / 250V AC | 4A / 30V DC | DP3T | (ON)-OFF-(ON) | 3 | round | 10.5 | for soldering | 13.2x12x12 | sealed terminals | - | - | |
| 5648A | silver | - | 3A / 250V AC | 4A / 30V DC | DP3T | ON-OFF-(ON) | 3 | round | 10.5 | for soldering | 13.2x12x12 | - | IP40 | U1229, U1231, U1331, U1333, U5149 | |
| 5649AB | silver | - | 3A / 250V AC | 4A / 30V DC | DP3T | ON-OFF-ON | 3 | round | 10.5 | for soldering | 13.2x12x12 | sealed terminals | - | - |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
