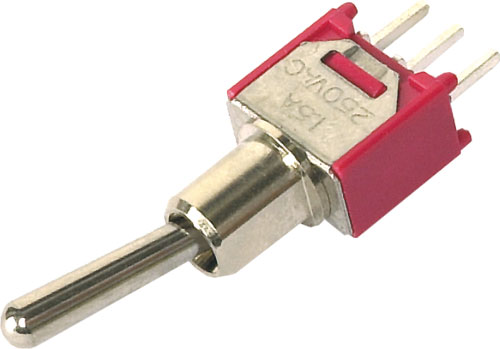

Toggle switches, SKS series
| Manufacturer | SALECOM ELECTRONICS |
| Type of switch | toggle |
| Kind of toggle | round |
| Electrical life | 30000 cycles |
| Contact plating | silver plated |
| Mounting hole dimensions | Ø5mm |
| Max. contact resistance: | 20mΩ |
| Operating temperature | -30...85°C |
| Symbol | SKS04SP | SKS07SP | SKS06LP | SKS08LP |
|---|---|---|---|---|
| Leads | ||||
| - for PCB | x | x | x | x |
| - angled | x | x | ||
| - straight | x | x | ||
| Slider height [mm] | 9.4 | 9.4 | 5.33 | 5.33 |
| Symbol | DC contacts rating @R* | Contacts layout | Switch. method** | Positions | Dimensions |
|---|---|---|---|---|---|
| SKS04SP | 3A / 28V DC | SPDT | ON-ON | 2 | Fig. 1. |
| SKS07SP | 3A / 28V DC | SP3T | ON-OFF-ON | 3 | Fig. 1. |
| SKS06LP | 0.4A / 28V DC | SPDT | ON-ON | 2 | Fig. 2. |
| SKS08LP | 3A / 28V DC | SP3T | ON-OFF-ON | 3 | Fig. 2. |
* at resistive load
** the position in bracket indicates momentary position.
