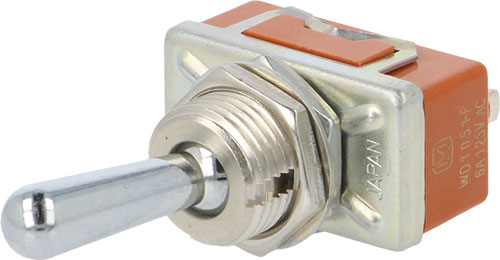

Toggle swiTches, T series
| Manufacturer | PANASONIC |
| Symbol | Mechanical durability | Electrical life | Type of switch | Switch. method* | Contacts layout | AC contacts rating @R** | Operating temperature | Positions | Kind of toggle | Slider height | Contact material | DC contacts rating @R** | Leads | Body dim. | Colour | Related items |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [°C] | [mm] | [mm] | ||||||||||||||
| T106AFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF | SPST | 6A / 125V AC | -25...70 | 2 | round | 17.5 | - | 6A / 30V DC | for soldering | 25x18.6x14.8 | - | - |
| T106DFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | SPDT | 6A / 125V AC | -25...70 | 2 | round | 17.5 | - | 6A / 30V DC | for soldering | 25x18.6x14.8 | - | - |
| T110AAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF | SPST-NO + SPST-NC | 10A / 250V AC | -25...70 | 2 | round | 17.5 | - | 8A / 30V DC | connectors | 29x23.7x15.8 | - | - |
| T110DULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | SPDT | 10A / 250V AC | -25...70 | 2 | round | 17.5 | - | 8A / 30V DC | for soldering | 29x23.7x15.8 | - | - |
| T115AAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF | SPST | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T115DAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | SPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T115DSULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | SPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T115DULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | SPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T115EAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T115ESULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T115EULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T115FAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-(ON) | SPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T115FSULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-(ON) | SPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T115GAULCSAFJ | 50000 cycles | 30000 cycles | toggle | (ON)-OFF-(ON) | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T115GSULCSAFJ | 50000 cycles | 30000 cycles | toggle | (ON)-OFF-(ON) | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T115GULCSAFJ | 50000 cycles | 30000 cycles | toggle | (ON)-OFF-(ON) | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T115HAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-(ON) | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T115HULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-(ON) | SP3T | 15A / 250V AC | -25...85 | 3 | round | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - | |
| T210NAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | DPDT | - | - | 2 | round | 17.5 | - | - | connectors | 29x23.7x15.8 | - | - |
| T210NULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | DPDT | - | - | 2 | round | 17.5 | - | - | for soldering | 29x23.7x15.8 | - | - |
| T215KAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF | DPST | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T215KULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF | DPST | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T215NAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | DPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T215NSULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | DPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T215PSULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | DP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T215PULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | DP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T215RAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-(ON) | DPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T215RSULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-(ON) | DPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T215RULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-(ON) | DPDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | for soldering | 29x15.8x47.2 | - | - |
| T215SSULCSAFJ | 50000 cycles | 30000 cycles | toggle | (ON)-OFF-(ON) | DP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | screw | 29x15.8x47.2 | - | - |
| T215TAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-(ON) | DP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T315KAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF | 3PST | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T315NAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | 3PDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T315PAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | SP3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T415NAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-ON | 4PDT | 15A / 250V AC | -25...85 | 2 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| T415PAULCSAFJ | 50000 cycles | 30000 cycles | toggle | ON-OFF-ON | 4P3T | 15A / 250V AC | -25...85 | 3 | round | - | silver alloy | 15A / 30V DC | connectors | 29x15.8x47.2 | - | - |
| WD1811BJ | - | - | - | - | - | - | - | - | - | - | - | - | - | - | black | T11, T21, T31, T41 |
| WD1811GJ | - | - | - | - | - | - | - | - | - | - | - | - | - | - | green | T11, T21, T31, T41 |
| WD1811RJ | - | - | - | - | - | - | - | - | - | - | - | - | - | - | red | T11, T21, T31, T41 |
| WD1811Z | - | - | - | - | - | - | - | - | - | - | - | - | - | - | grey | T11, T21, T31, T41 |
| WD1911J | - | - | - | - | - | - | - | - | - | - | - | - | - | - | black | T11, T21, T31, T41 |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
