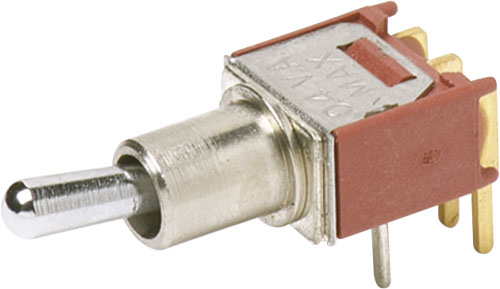

Toggle switches, T series
| Manufacturer | C&K |
| Leads | for PCB, angled |
| Type of switch | toggle |
| Kind of toggle | round |
| Electrical life | 60000 cycles |
| Contact plating | gold-plated |
| AC contacts rating @R* | 0.02A / 20V AC |
| DC contacts rating @R* | 0.02A / 20V DC |
| Body dimensions | 8.13x5.08x8.64mm |
| Operating temperature | -30...85°C |
* at resistive load
| Symbol | Contacts layout | Switch. method* | Positions | Slider height |
|---|---|---|---|---|
| [mm] | ||||
| T101SHCQE | SPDT | ON-ON | 2 | 9.4 |
* the position in bracket indicates momentary position.
| Symbol | Mounting |
|---|---|
| T101SHCQE | on panel |
