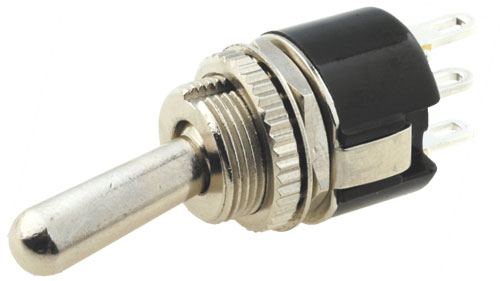

Toggle switches, TSR-01 series
| Manufacturer | SCI |
| Type of switch | toggle |
| Kind of toggle | round |
| Electrical life | 6000 cycles |
| AC contacts rating @R* | 3A / 250V AC |
| Max. contact resistance: | 50mΩ |
| Dimensions | Fig. 1. |
| Body dimensions | Ø16mm |
| Mounting hole dimensions | Ø12.2mm |
| Panel thickness | max. 4mm |
| Slider height | 16.8mm |
| Operating temperature | -25...70°C |
| Leads | for soldering |
| Contacts layout | SPDT |
| Switch. method** | ON-ON |
| Manufacturer series | R13-37 |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Positions |
|---|---|
| TSR-01 | 2 |
