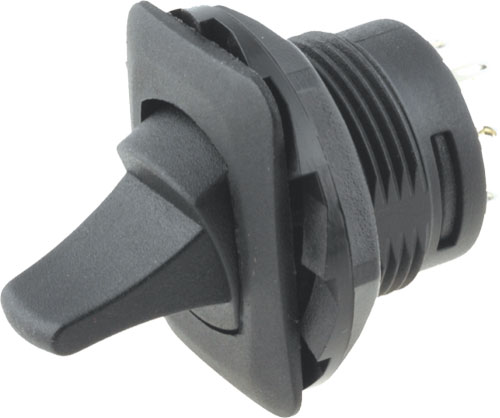

Toggle switches, TSR-02 series
| Manufacturer | SCI |
| Type of switch | toggle |
| Kind of toggle | flat |
| AC contacts rating @R* | 6A / 250V AC |
| Electrical life | 6000 cycles |
| Flammability rating | UL94V-0 |
| Max. contact resistance: | 50mΩ |
| Body material | polyamide |
| Panel thickness | max. 5mm |
| Mounting hole dimensions | Ø18mm |
| Operating temperature | -25...70°C |
| Leads | for soldering |
| Dimensions | Fig. 1. |
| Slider height | 13mm |
| Manufacturer series | R13-405 |
* at resistive load
| Symbol | Contacts layout | Switch. method* | Positions |
|---|---|---|---|
| TSR-02C | DPDT | ON-ON | 2 |
* the position in bracket indicates momentary position.
