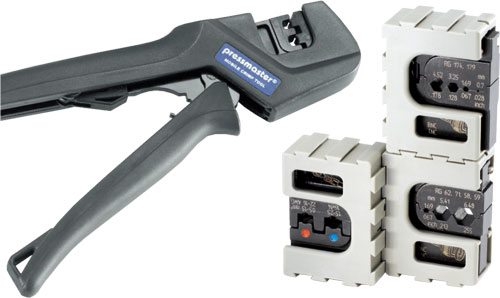

Tool; PRESSMASTER

Tool; PRESSMASTER, PR.MCT3149, PR.MCT3140, PR.MCT3144, PR.MCT3146, PR.MCT3150, PR.MCT3151 |EN|

Manufacturer

Symbol: (PR.MCT3149)
Type of tool	for crimping
Length	234mm

Features:

ergonomic pads on handles (PR.MCT3149)
tool without dies (PR.MCT3149)
easy and quick die replacement without additional tools (PR.MCT3149)
parallel guidance of dies which enhances crimping quality (PR.MCT3149)

Type of crimping tool accessories:

crimping jaws (PR.MCT3140, PR.MCT3144, PR.MCT3146, PR.MCT3150, PR.MCT3151, PR.MCT3706, PR.MCT3425, PR.MCT3428)

Symbol	Jaws shape	Application	Wire cross-section	Wire size
			[mm²]
PR.MCT3140	Fig. 1.	BNC connectors; TNC connectors	-	-

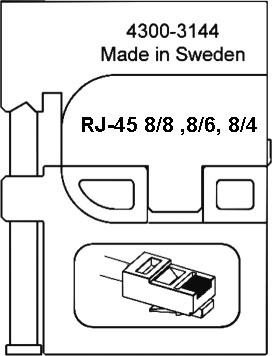

PR.MCT3144	Fig. 2.	RJ45 (8p4c) connectors; RJ45 (8p6c) connectors; RJ45 (8p8c) connectors	-	-
PR.MCT3146	Fig. 3.	non-insulated terminals 6,3mm	0.5...1.5/1.5...2.5/4...6	12AWG...10AWG/16AWG...14AWG/22AWG...16AWG
PR.MCT3150	Fig. 4.	non-insulated terminals 2,8mm	0.1...0.25/0.25...0.5/0.5...1	22AWG...18AWG/24AWG...22AWG/26AWG...24AWG
PR.MCT3151	Fig. 5.	non-insulated terminals 4,8mm	0.5...1.5/1.5...2.5	16AWG...14AWG/22AWG...16AWG

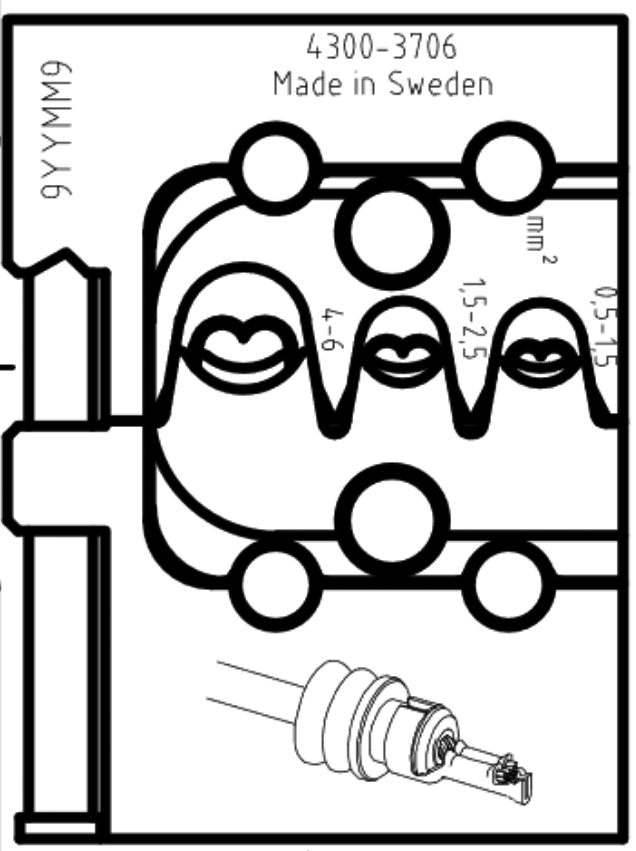

PR.MCT3706	Fig. 6.	-	0.5...1.5/1.5...2.5/4...6	-

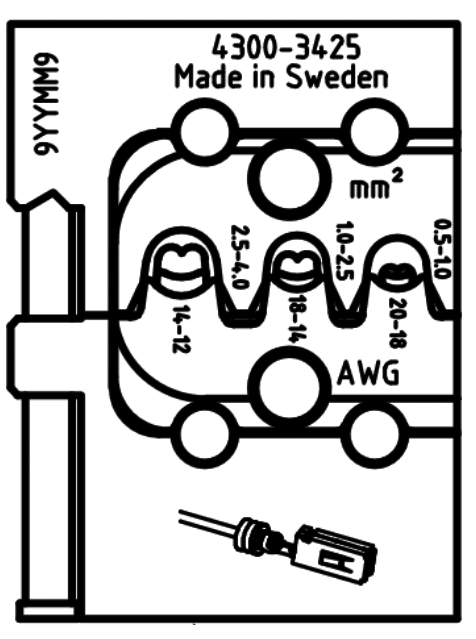

PR.MCT3425	Fig. 7.	-	0.5...1/1...2.5/2.5...4	14AWG...12AWG/18AWG...14AWG/20AWG...18AWG

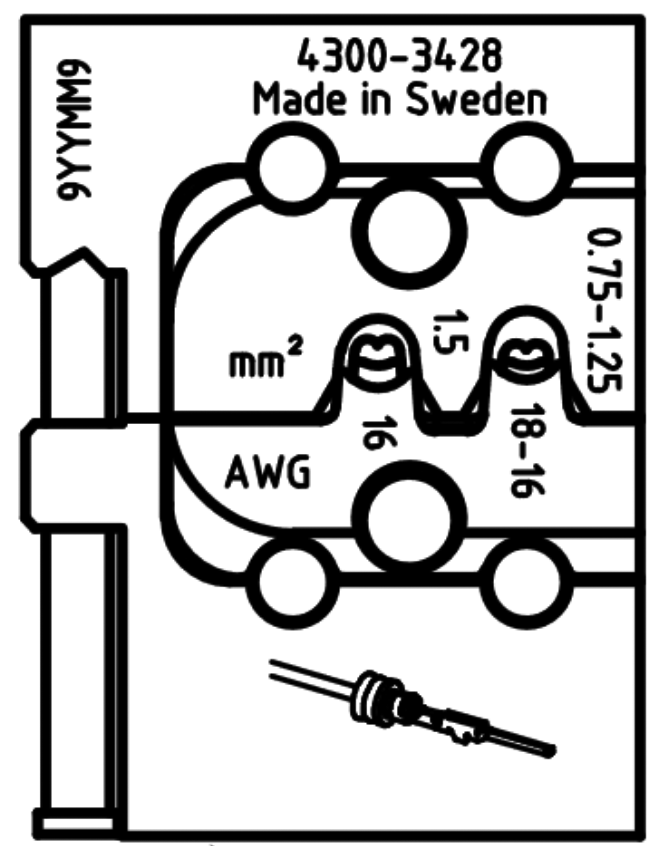

PR.MCT3428	Fig. 8.	-	0.75...1.25/1.5	16AWG/18AWG...16AWG
