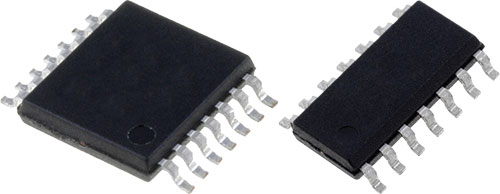

TOSHIBA logic devices
| Symbol | Manufacturer's part number | Integrated circuit | Manufacturer | Kind of ciruit | Channels | Inputs | Kind of input | Kind of output | Usup | Operating temp. | Case | Mounting | Package | Technology | Manufacturer series | Delay time | Trigger | f | Term. pitch | Family |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [°C] | [ns] | [Hz] | [mm] | ||||||||||||||||
| 74VHC139FTBJ | 74VHC139FT(BJ) | digital | TOSHIBA | 2 to 4 line, decoder | 2 | 2 | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | 5 | - | - | 0.65 | VHC |
| 74HC138DBJ | 74HC138D(BJ) | digital | TOSHIBA | 3 to 8 line, decoder | - | 3 | - | - | 2...6 | -40...125 | SO16 | SMD | reel, tape | C2MOS | HC | 16 | - | - | 1.27 | HC |
| 74LCX138FTAJ | 74LCX138FT(AJ) | digital | TOSHIBA | 3 to 8 line, decoder | - | 3 | - | - | 1.65...3.6 | -40...125 | TSSOP16 | SMD | reel, tape | - | LCX | 7 | - | - | 0.65 | LCX |
| 74VHC138FTBJ | 74VHC138FT(BJ) | digital | TOSHIBA | 3 to 8 line, decoder | - | - | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | 5.7 | - | - | 0.65 | VHC |
| 74VHC238FTBJ | 74VHC238FT(BJ) | digital | TOSHIBA | 3 to 8 line, decoder | - | 3 | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | 5.5 | - | - | 0.65 | VHC |
| 74VHCT138AFTBJ | 74VHCT138AFT(BJ) | digital | TOSHIBA | 3 to 8 line, decoder | - | 3 | - | - | 4.5...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHCT | 7.6 | - | - | 0.65 | VHCT |
| 74VHC163FTBJ | 74VHC163FT(BJ) | digital | TOSHIBA | 4bit, binary counter, resettable, synchronous | - | - | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | 4.9 | - | - | 0.65 | VHC |
| 74VHC165FTBJ | 74VHC165FT(BJ) | digital | TOSHIBA | 8bit, shift register, parallel in, serial output | - | - | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | - | - | 150 | 0.65 | VHC |
| 74HC164DBJ | 74HC164D(BJ) | digital | TOSHIBA | 8bit, shift register, serial input, parallel out | - | - | - | - | 2...6 | -40...125 | SO14 | SMD | reel, tape | - | HC | - | - | - | - | HC |
| 74VHC164FTBE | 74VHC164FT(BE) | digital | TOSHIBA | 8bit, shift register, serial input, parallel out | - | - | - | - | 2...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | C2MOS | VHC | - | - | 175M | 0.65 | VHC |
| 74HC4053DBJ | 74HC4053D(BJ) | digital | TOSHIBA | analog, demultiplexer, multiplexer | 3 | 3 | - | - | - | SO16 | SMD | reel, tape | - | HC | - | - | - | - | HC | |
| 74VHC4066AFTBJ | 74VHC4066AFT(BJ) | digital | TOSHIBA | bilateral, switch | 4 | 4 | - | - | 2...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | C2MOS | VHC | - | - | 290M | 0.65 | - |
| 74HC125DBJ | 74HC125D(BJ) | digital | TOSHIBA | buffer, non-inverting | 4 | - | - | 3-state | 2...6 | -40...125 | SO14 | SMD | reel, tape | C2MOS | HC | 10 | - | - | 1.27 | - |
| 74HC126DBJ | 74HC126D(BJ) | digital | TOSHIBA | buffer, non-inverting | 4 | - | - | 3-state | 2...6 | -40...125 | SO14 | SMD | reel, tape | C2MOS | HC | 10 | - | - | 1.27 | - |
| 74HC4050DBJ | 74HC4050D(BJ) | digital | TOSHIBA | buffer, non-inverting | 6 | - | - | - | 2...6 | -40...85 | SO16 | SMD | reel, tape | CMOS | HC | - | - | - | - | - |
| 74LCX07FTAE | 74LCX07FT(AE) | digital | TOSHIBA | buffer, non-inverting | 6 | - | - | open drain | 1.65...3.6 | -40...125 | TSSOP14 | SMD | reel, tape | - | LCX | 4.5 | - | - | 0.65 | - |
| 74LCX125FTAE | 74LCX125FT(AE) | digital | TOSHIBA | buffer, non-inverting | 4 | - | - | 3-state | 1.65...3.6 | -40...125 | TSSOP14 | SMD | reel, tape | - | LCX | 7 | - | - | 0.65 | - |
| 74LCX126FTAE | 74LCX126FT(AE) | digital | TOSHIBA | buffer, non-inverting | 4 | - | - | 3-state | 1.65...3.6 | -40...125 | TSSOP14 | SMD | reel, tape | - | LCX | 7 | - | - | 0.65 | - |
| 74VHCT125AFTBJ | 74VHCT125AFT(BJ) | digital | TOSHIBA | buffer, non-inverting | 4 | - | - | 3-state | 4.5...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | C2MOS | VHCT | 3.8 | - | - | 0.65 | - |
| 74VHCT126AFTBE | 74VHCT126AFT(BE) | digital | TOSHIBA | buffer, non-inverting | 4 | - | - | 3-state | 4.5...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | C2MOS | VHCT | 3.8 | - | - | 0.65 | - |
| 74HC541DBJ | 74HC541D(BJ) | digital | TOSHIBA | buffer, non-inverting, line driver | 8 | - | - | 3-state | 2...6 | -40...85 | SO20 | SMD | reel, tape | CMOS | HC | - | - | - | - | - |
| 74LCX244FTAJ | 74LCX244FT(AJ) | digital | TOSHIBA | buffer, non-inverting, line driver | 8 | - | - | 3-state | 1.65...3.6 | -40...85 | TSSOP20 | SMD | reel, tape | - | LCX | 6.5 | - | - | 0.65 | - |
| 74LCX541FTAJ | 74LCX541FT(AJ) | digital | TOSHIBA | buffer, non-inverting, line driver | 8 | - | - | 3-state | 1.65...3.6 | -40...85 | TSSOP20 | SMD | reel, tape | CMOS | LCX | 6.5 | - | - | 0.65 | - |
| 74VHC125FTBE | 74VHC125FT(BE) | digital | TOSHIBA | buffer, non-inverting, line driver | 4 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | CMOS | VHC | 3.8 | - | - | 0.65 | - |
| 74VHC125FTBJ | 74VHC125FT(BJ) | digital | TOSHIBA | buffer, non-inverting, line driver | 4 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | CMOS | VHC | 3.8 | - | - | 0.65 | - |
| 74VHC126FTBE | 74VHC126FT(BE) | digital | TOSHIBA | buffer, non-inverting, line driver | 4 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | CMOS | VHC | 3.8 | - | - | 0.65 | - |
| 74VHC244FTBJ | 74VHC244FTBJ | digital | TOSHIBA | buffer, non-inverting, line driver | 8 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | 3.9 | - | - | 0.65 | - |
| 74VHCT244AFTBJ | 74VHCT244AFT(BJ) | digital | TOSHIBA | buffer, non-inverting, line driver | 8 | - | - | 3-state | 4.5...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHCT | 6.1 | - | - | 0.65 | - |
| 74VHCV541FTBJ | 74VHCV541FT(BJ) | digital | TOSHIBA | buffer, non-inverting, line driver | 8 | - | - | 3-state | 1.8...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | CMOS | VHCV | 4.1 | - | - | 0.65 | - |
| 74HC4049DBJ | 74HC4049D(BJ) | digital | TOSHIBA | buffer, inverting | 6 | - | - | - | 2...6 | -40...85 | SO16 | SMD | reel, tape | CMOS | HC | - | - | - | - | - |
| 74HC240DBJ | 74HC240D(BJ) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | 3-state | 2...6 | -40...85 | SO20 | SMD | reel, tape | CMOS | HC | - | - | - | - | - |
| 74HC540DBJ | 74HC540D(BJ) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | 3-state | 2...6 | -40...85 | SO20 | SMD | reel, tape | CMOS | HC | - | - | - | - | - |
| 74LCX240FTAE | 74LCX240FT(AE) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | - | 1.65...3.6 | -40...125 | TSSOP20 | SMD | reel, tape | - | LCX | 6.5 | - | - | 0.65 | - |
| 74LCX540FTAE | 74LCX540FT(AE) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | - | 1.65...3.6 | -40...85 | TSSOP20 | SMD | reel, tape | CMOS | LCX | 6.5 | - | - | 0.65 | - |
| 74VHC240FTBE | 74VHC240FT(BE) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | - | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | 3.9 | - | - | 0.65 | - |
| 74VHC540FTBJ | 74VHC540FT(BJ) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | - | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | 3.7 | - | - | 0.65 | - |
| 74VHCT240AFTBJ | 74VHCT240AFT(BJ) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | 3-state | 4.5...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHCT | 6.1 | - | - | 0.65 | - |
| 74VHCT540AFTBE | 74VHCT540AFT(BE) | digital | TOSHIBA | buffer, inverting, line driver | 8 | - | - | - | 4.5...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHCT | 5.4 | - | - | 0.65 | - |
| 74HC245DBJ | 74HC245D(BJ) | digital | TOSHIBA | bus transceiver | 8 | - | - | - | 2...6 | -40...125 | SO20 | SMD | reel, tape | C2MOS | HC | 10 | - | - | 1.27 | - |
| 74VHC245FTBE | 74VHC245FT(BE) | digital | TOSHIBA | bus transceiver | 8 | - | - | - | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | 4 | - | - | 0.65 | - |
| 74VHCT245AFTBJ | 74VHCT245AFT(BJ) | digital | TOSHIBA | bus transceiver | 8 | - | - | - | 4.5...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHCT | 4.9 | - | - | 0.65 | - |
| 74HC4051DBJ | 74HC4051D(BJ) | digital | TOSHIBA | demultiplexer, multiplexer | 1 | 3 | - | - | 2...6 | -40...85 | SO16 | SMD | reel, tape | C2MOS | HC | 15 | - | - | 1.27 | HC |
| 74HC4052DBJ | 74HC4052D(BJ) | digital | TOSHIBA | demultiplexer, multiplexer | 2 | 8 | - | - | 2...6 | -40...85 | SO16 | SMD | reel, tape | C2MOS | HC | 15 | - | - | 1.27 | HC |
| 74VHC4020FTBJ | 74VHC4020FT(BJ) | digital | TOSHIBA | binary counter | - | - | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | - | - | 210M | 0.65 | VHC |
| 74VHC221AFTBE | 74VHC221AFT(BE) | digital | TOSHIBA | monostable, multivibrator | 2 | - | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | 8.1 | - | - | 0.65 | - |
| 74LCX157FTAJ | 74LCX157FT(AJ) | digital | TOSHIBA | multiplexer | 4 | 8 | - | - | 1.65...3.6 | -40...125 | TSSOP16 | SMD | reel, tape | - | LCX | 6.5 | - | - | 0.65 | LCX |
| 74LCX257FTAJ | 74LCX257FT(AJ) | digital | TOSHIBA | multiplexer | 2 | 8 | - | 3-state | 1.65...3.6 | -40...125 | TSSOP16 | SMD | reel, tape | - | LCX | 7 | - | - | 0.65 | LCX |
| 74VHC153FTBJ | 74VHC153FT(BJ) | digital | TOSHIBA | multiplexer | 2 | 4 | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | - | VHC | 5 | - | - | 0.65 | VHC |
| 74VHC157FTBJ | 74VHC157FT(BJ) | digital | TOSHIBA | multiplexer | 4 | 2 | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | - | VHC | 4.1 | - | - | 0.65 | VHC |
| 74VHC123AFTBJ | 74VHC123AFT(BJ) | digital | TOSHIBA | multivibrator | - | - | with Schmitt trigger | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | - | VHC | 8.1 | - | - | 0.65 | - |
| 74HC574DBJ | 74HC574D(BJ) | digital | TOSHIBA | D flip-flop | 8 | - | - | 3-state | 2...6 | - | SO20 | SMD | reel, tape | CMOS | HC | - | rising-edge | - | - | - |
| 74HC74DBJ | 74HC74D(BJ) | digital | TOSHIBA | D flip-flop | 2 | - | - | - | 2...6 | - | SO14 | SMD | reel, tape | CMOS | HC | - | rising-edge | - | - | - |
| 74LCX273FTAJ | 74LCX273FT(AJ) | digital | TOSHIBA | D flip-flop | 8 | - | - | - | 1.65...3.6 | -40...125 | TSSOP20 | SMD | reel, tape | CMOS | LCX | 9.5 | rising-edge | - | 0.65 | - |
| 74LCX374FTAE | 74LCX374FT(AE) | digital | TOSHIBA | D flip-flop | 8 | - | - | - | 1.65...3.6 | -40...85 | TSSOP20 | SMD | reel, tape | CMOS | LCX | 8.5 | rising-edge | - | 0.65 | - |
| 74LCX574FTAJ | 74LCX574FT(AJ) | digital | TOSHIBA | D flip-flop | 8 | - | - | - | 1.65...3.6 | -40...85 | TSSOP20 | SMD | reel, tape | CMOS | LCX | 8.5 | rising-edge | - | 0.65 | - |
| 74LCX74FTAJ | 74LCX74FT(AJ) | digital | TOSHIBA | D flip-flop | 2 | - | - | - | 1.65...3.6 | -40...125 | TSSOP14 | SMD | reel, tape | CMOS | LCX | 8 | rising-edge | - | 0.65 | - |
| 74VHC174FTBJ | 74VHC174FT(BJ) | digital | TOSHIBA | D flip-flop | - | - | - | - | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | - | rising-edge | 175M | 0.65 | - |
| 74VHC273FTBJ | 74VHC273FT(BJ) | digital | TOSHIBA | D flip-flop | - | - | - | - | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | - | rising-edge | 165M | 0.65 | - |
| 74VHC374FTBJ | 74VHC374FT(BJ) | digital | TOSHIBA | D flip-flop | 8 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | - | rising-edge | 185M | 0.65 | - |
| 74VHC74FTBJ | 74VHC74FT(BJ) | digital | TOSHIBA | D flip-flop | 2 | - | - | - | 2...5.5 | -40...125 | TSSOP14 | SMD | reel, tape | C2MOS | VHC | - | rising-edge | 170M | 0.65 | - |
| 74VHCT574AFTBJ | 74VHCT574AFT(BJ) | digital | TOSHIBA | D flip-flop | - | - | - | 3-state | 4.5...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHCT | - | rising-edge | 140M | 0.65 | - |
| 74HC595DBJ | 74HC595D(BJ) | digital | TOSHIBA | shift register, latch | - | - | - | 3-state | 2...6 | -40...125 | SO16 | SMD | reel, tape | C2MOS | HC | 12 | - | - | 1.27 | HC |
| 74VHC595FTBJ | 74VHC595FT(BJ) | digital | TOSHIBA | shift register, latch | 8 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP16 | SMD | reel, tape | C2MOS | VHC | - | - | 185M | 0.65 | VHC |
| 74HC259DBJ | 74HC259D(BJ) | digital | TOSHIBA | latch | 8 | - | - | - | 2...6 | -40...125 | SO16 | SMD | tube | - | HC | - | - | - | - | HC |
| 74HC573DBJ | 74HC573D(BJ) | digital | TOSHIBA | D latch | 8 | - | - | 3-state | 2...6 | - | SO20 | SMD | reel, tape | - | HC | - | - | - | - | HC |
| 74LCX373FTAE | 74LCX373FT(AE) | digital | TOSHIBA | D latch | 8 | - | - | - | 1.65...3.6 | -40...85 | TSSOP20 | SMD | reel, tape | - | LCX | 8 | - | - | 0.65 | LCX |
| 74VHC373FTBJ | 74VHC373FT(BJ) | digital | TOSHIBA | D latch | 8 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | 5 | - | - | 0.65 | VHC |
| 74VHC573FTBJ | 74VHC573FT(BJ) | digital | TOSHIBA | D latch | 8 | - | - | 3-state | 2...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHC | 4.5 | - | - | 0.65 | VHC |
| 74VHCT573AFTBJ | 74VHCT573AFT(BJ) | digital | TOSHIBA | D latch | 8 | - | - | 3-state | 4.5...5.5 | -40...125 | TSSOP20 | SMD | reel, tape | C2MOS | VHCT | 7.7 | - | - | 0.65 | VHCT |
