Type of test accessories: test needle; Manufacturer: FIXTEST
| Manufacturer | FIXTEST |
| Manufacturer series | series 100 |
| Contact plating | gold-plated |
| Max. contact resistance: | 20mΩ |
| Maksimum spring compression | 6.4mm |
| Length | 33.4mm |
| Operating temperature | -55...120°C |

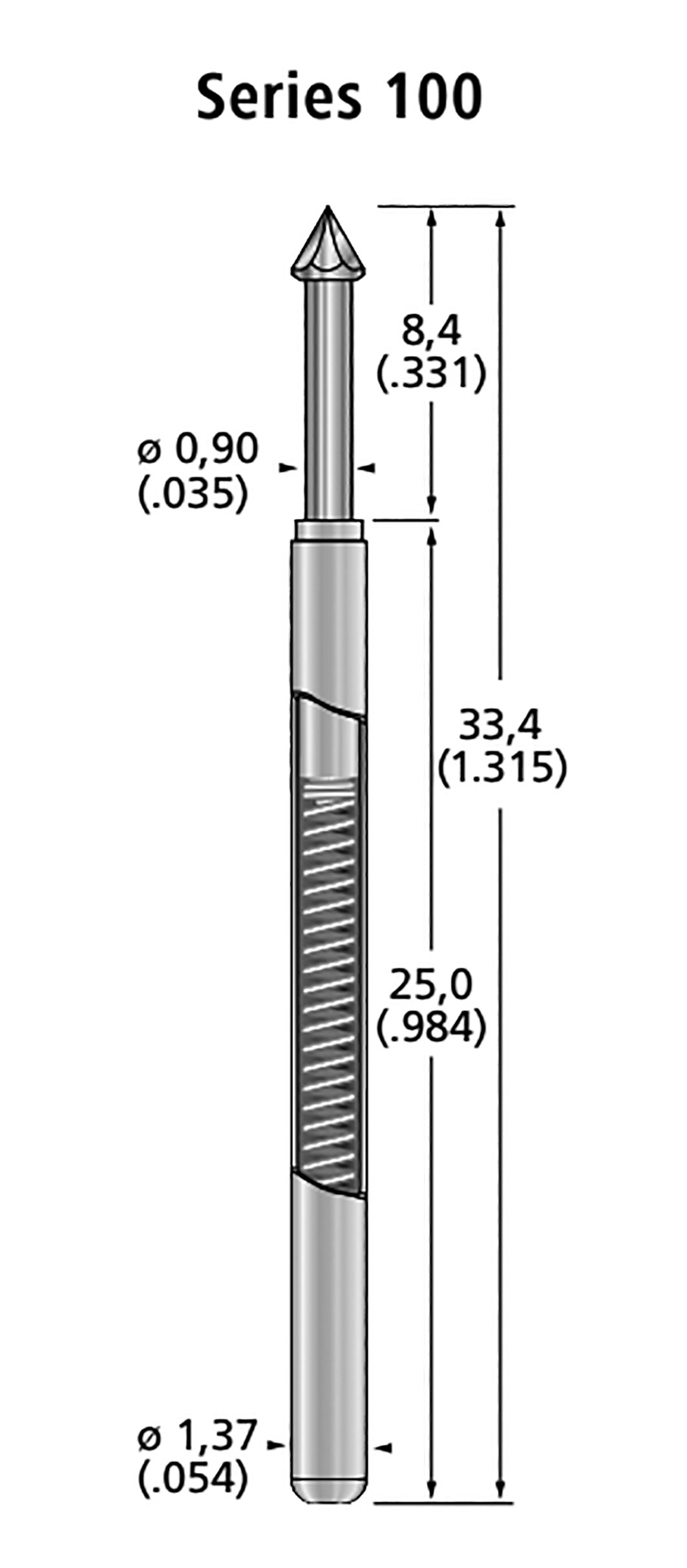

| Dimensions | Fig. 1-1. |

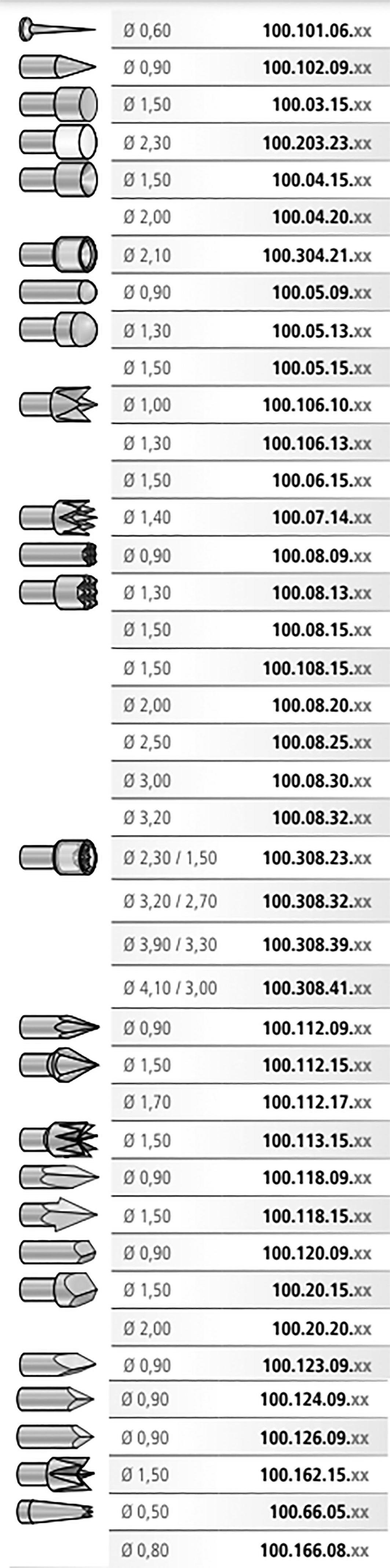

| TIP | Fig. 2-1. |
| Cur. rat. | 3A/4A |
| Operational spring compression | 4.2mm |
| Test accessories | test needle |
| Symbol | Contact material | Tip diameter | Spring compression force | Blade tip shape |
|---|---|---|---|---|
| [mm] | [N] | |||
| 100.123.09.30 | steel | 0.9 | 3 | chisel, elongated |
| 100.123.09.25 | steel | 0.9 | 2.5 | chisel, elongated |
| 100.123.09.20 | steel | 0.9 | 2 | chisel, elongated |
| 100.123.09.15 | steel | 0.9 | 1.5 | chisel, elongated |
| 100.123.09.10 | steel | 0.9 | 1 | chisel, elongated |
| 100.120.09.30 | steel | 0.9 | 3 | chisel |
| 100.120.09.25 | steel | 0.9 | 2.5 | chisel |
| 100.120.09.20 | steel | 0.9 | 2 | chisel |
| 100.120.09.15 | steel | 0.9 | 1.5 | chisel |
| 100.120.09.10 | steel | 0.9 | 1 | chisel |
| 100.118.15.30 | steel | 1.5 | 3 | dagger |
| 100.118.15.25 | steel | 1.5 | 2.5 | dagger |
| 100.118.15.20 | steel | 1.5 | 2 | dagger |
| 100.118.15.15 | steel | 1.5 | 1.5 | dagger |
| 100.118.15.10 | steel | 1.5 | 1 | dagger |
| 100.118.09.30 | steel | 0.9 | 3 | dagger |
| 100.118.09.25 | steel | 0.9 | 2.5 | dagger |
| 100.113.15.30 | steel | 1.5 | 3 | 8-point, corona |
| 100.113.15.25 | steel | 1.5 | 2.5 | 8-point, corona |
| 100.113.15.20 | steel | 1.5 | 2 | 8-point, corona |
| 100.113.15.15 | steel | 1.5 | 1.5 | 8-point, corona |
| 100.113.15.10 | steel | 1.5 | 1 | 8-point, corona |
| 100.112.17.30 | steel | 1.7 | 3 | 6-point, sharp |
| 100.112.17.25 | steel | 1.7 | 2.5 | 6-point, sharp |
| 100.112.17.20 | steel | 1.7 | 2 | 6-point, sharp |
| 100.112.17.15 | steel | 1.7 | 1.5 | 6-point, sharp |
| 100.112.17.10 | steel | 1.7 | 1 | 6-point, sharp |
| 100.112.15.30 | steel | 1.5 | 3 | 6-point, sharp |
| 100.112.15.25 | steel | 1.5 | 2.5 | 6-point, sharp |
| 100.112.15.20 | steel | 1.5 | 2 | 6-point, sharp |
| 100.112.15.15 | steel | 1.5 | 1.5 | 6-point, sharp |
| 100.112.15.10 | steel | 1.5 | 1 | 6-point, sharp |
| 100.112.09.30 | steel | 0.9 | 3 | 6-point, sharp |
| 100.112.09.25 | steel | 0.9 | 2.5 | 6-point, sharp |
| 100.112.09.20 | steel | 0.9 | 2 | 6-point, sharp |
| 100.112.09.15 | steel | 0.9 | 1.5 | 6-point, sharp |
| 100.112.09.10 | steel | 0.9 | 1 | 6-point, sharp |
| 100.108.15.30 | steel | 1.5 | 3 | serrated |
| 100.108.15.25 | steel | 1.5 | 2.5 | serrated |
| 100.108.15.20 | steel | 1.5 | 2 | serrated |
| 100.108.15.10 | steel | 1.5 | 1 | serrated |
| 100.106.13.30 | steel | 1.3 | 3 | 4-point, corona |
| 100.106.13.25 | steel | 1.3 | 2.5 | 4-point, corona |
| 100.106.13.20 | steel | 1.3 | 2 | 4-point, corona |
| 100.106.13.15 | steel | 1.3 | 1.5 | 4-point, corona |
| 100.106.13.10 | steel | 1.3 | 1 | 4-point, corona |
| 100.106.10.30 | steel | 1 | 3 | 4-point, corona |
| 100.106.10.25 | steel | 1 | 2.5 | 4-point, corona |
| 100.106.10.20 | steel | 1 | 2 | 4-point, corona |
| 100.106.10.15 | steel | 1 | 1.5 | 4-point, corona |
| 100.106.10.10 | steel | 1 | 1 | 4-point, corona |
| 100.102.09.20 | steel | 0.9 | 2 | sharp, cone |
| 100.102.09.10 | steel | 0.9 | 1 | sharp, cone |
| 100.101.06.30 | steel | 0.6 | 3 | needle |
| 100.101.06.25 | steel | 0.6 | 2.5 | needle |
| 100.101.06.20 | steel | 0.6 | 2 | needle |
| 100.101.06.15 | steel | 0.6 | 1.5 | needle |
| 100.101.06.10 | steel | 0.6 | 1 | needle |
| 100.08.32.30 | CuBe | 3.2 | 3 | serrated |
| 100.08.32.25 | CuBe | 3.2 | 2.5 | serrated |
| 100.08.32.20 | CuBe | 3.2 | 2 | serrated |
| 100.08.32.15 | CuBe | 3.2 | 1.5 | serrated |
| 100.08.32.10 | CuBe | 3.2 | 1 | serrated |
| 100.08.30.30 | CuBe | 3 | 3 | serrated |
| 100.08.30.25 | CuBe | 3 | 2.5 | serrated |
| 100.08.30.20 | CuBe | 3 | 2 | serrated |
| 100.08.30.15 | CuBe | 3 | 1.5 | serrated |
| 100.08.30.10 | CuBe | 3 | 1 | serrated |
| 100.08.25.30 | CuBe | 2.5 | 3 | serrated |
| 100.08.25.25 | CuBe | 2.5 | 2.5 | serrated |
| 100.08.25.20 | CuBe | 2.5 | 2 | serrated |
| 100.08.25.15 | CuBe | 2.5 | 1.5 | serrated |
| 100.08.25.10 | CuBe | 2.5 | 1 | serrated |
| 100.08.20.30 | CuBe | 2 | 3 | serrated |
| 100.08.20.25 | CuBe | 2 | 2.5 | serrated |
| 100.08.20.20 | CuBe | 2 | 2 | serrated |
| 100.08.20.15 | CuBe | 2 | 1.5 | serrated |
| 100.08.20.10 | CuBe | 2 | 1 | serrated |
| 100.08.15.30 | CuBe | 1.5 | 3 | serrated |
| 100.08.15.25 | CuBe | 1.5 | 2.5 | serrated |
| 100.08.15.20 | CuBe | 1.5 | 2 | serrated |
| 100.08.15.15 | CuBe | 1.5 | 1.5 | serrated |
| 100.08.15.10 | CuBe | 1.5 | 1 | serrated |
| 100.08.13.25 | CuBe | 1.3 | 2.5 | serrated |
| 100.08.13.20 | CuBe | 1.3 | 2 | serrated |
| 100.08.13.10 | CuBe | 1.3 | 1 | serrated |
| 100.08.09.25 | CuBe | 0.9 | 2.5 | serrated |
| 100.08.09.20 | CuBe | 0.9 | 2 | serrated |
| 100.08.09.15 | CuBe | 0.9 | 1.5 | serrated |
| 100.08.09.10 | CuBe | 0.9 | 1 | serrated |
| 100.07.14.30 | CuBe | 1.4 | 3 | corona, with middle point |
| 100.07.14.25 | CuBe | 1.4 | 2.5 | corona, with middle point |
| 100.07.14.20 | CuBe | 1.4 | 2 | corona, with middle point |
| 100.07.14.15 | CuBe | 1.4 | 1.5 | corona, with middle point |
| 100.07.14.10 | CuBe | 1.4 | 1 | corona, with middle point |
| 100.06.15.30 | CuBe | 1.5 | 3 | 4-point, corona |
| 100.06.15.25 | CuBe | 1.5 | 2.5 | 4-point, corona |
| 100.06.15.20 | CuBe | 1.5 | 2 | 4-point, corona |
| 100.06.15.15 | CuBe | 1.5 | 1.5 | 4-point, corona |
| 100.06.15.10 | CuBe | 1.5 | 1 | 4-point, corona |
| 100.05.15.30 | CuBe | 1.5 | 3 | rounded |
| 100.05.15.25 | CuBe | 1.5 | 2.5 | rounded |
| 100.05.15.20 | CuBe | 1.5 | 2 | rounded |
| 100.05.15.15 | CuBe | 1.5 | 1.5 | rounded |
| 100.05.15.10 | CuBe | 1.5 | 1 | rounded |
| 100.05.13.25 | CuBe | 1.3 | 2.5 | rounded |
| 100.05.13.20 | CuBe | 1.3 | 2 | rounded |
| 100.05.13.15 | CuBe | 1.3 | 1.5 | rounded |
| 100.05.13.10 | CuBe | 1.3 | 1 | rounded |
| 100.05.09.25 | CuBe | 0.9 | 2.5 | rounded |
| 100.05.09.20 | CuBe | 0.9 | 2 | rounded |
| 100.05.09.15 | CuBe | 0.9 | 1.5 | rounded |
| 100.05.09.10 | CuBe | 0.9 | 1 | rounded |
| 100.04.20.30 | CuBe | 2 | 3 | inverted, cone |
| 100.04.20.25 | CuBe | 2 | 2.5 | inverted, cone |
| 100.04.20.20 | CuBe | 2 | 2 | inverted, cone |
| 100.04.20.15 | CuBe | 2 | 1.5 | inverted, cone |
| 100.04.20.10 | CuBe | 2 | 1 | inverted, cone |
| 100.04.15.30 | CuBe | 1.5 | 3 | inverted, cone |
| 100.04.15.25 | CuBe | 1.5 | 2.5 | inverted, cone |
| 100.04.15.20 | CuBe | 1.5 | 2 | inverted, cone |
| 100.04.15.15 | CuBe | 1.5 | 1.5 | inverted, cone |
| 100.04.15.10 | CuBe | 1.5 | 1 | inverted, cone |
| 100.03.15.30 | CuBe | 1.5 | 3 | flat |
| 100.03.15.25 | CuBe | 1.5 | 2.5 | flat |
| 100.03.15.20 | CuBe | 1.5 | 2 | flat |
| 100.03.15.15 | CuBe | 1.5 | 1.5 | flat |
| 100.03.15.10 | CuBe | 1.5 | 1 | flat |
