Universal plates by Rademacher

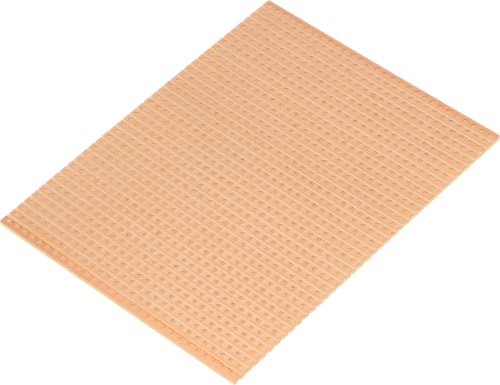

Universal plates by Rademacher, RAD-711-1, RAD-711-2, RAD-711-4, RAD-711-5, RAD-711-7 |EN|
ManufacturerRADEMACHER
Type of boarduniversal
Thickness1.6mm
Symbol Length Width Copper plating thickness Board clad Soldering pads pitch Term. pitch Leads Number of rows Number of mounting holes Hole diameter Material
[mm] [mm] [µm] [mm] [mm] [mm]
RAD-711-1 50 100 35 copper 5.08 - - 20 - 1 FR1, hard paper, phenolic resin
RAD-711-2 75 100 35 copper 5.08 - - 20 - 1 FR1, hard paper, phenolic resin
RAD-711-4 150 100 35 copper 5.08 - - 20 - 1 FR1, hard paper, phenolic resin
RAD-711-5 160 100 35 copper 5.08 - - 20 - 1 FR1, hard paper, phenolic resin
RAD-712-1 50 100 - without copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-712-2 75 100 - without copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-712-3 100 100 - without copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-712-5 160 100 - without copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-712-6 200 100 - without copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-712-7 500 100 - without copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-715-5 160 100 35 copper 2.5 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-720 100 160 35 copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-721 100 160 35 copper 5.08 - - 20 - 1.1 FR1, hard paper, phenolic resin
RAD-810-2 75 100 35 copper 5.08 - - 19 - 1.1 FR1, hard paper, phenolic resin
RAD-810-3 100 100 35 copper 5.08 - - 19 - 1.1 FR1, hard paper, phenolic resin
RAD-810-5 160 100 35 copper 5.08 - - 19 - 1.1 FR1, hard paper, phenolic resin
RAD-810-7 500 100 35 copper 5.08 - - 19 - 1.1 FR1, hard paper, phenolic resin
RAD-815-4 150 100 35 copper 2.5 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-815-5 160 100 35 copper 2.5 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-820 100 160 35 copper 2.54 - - 39 - 1.1 FR1, hard paper, phenolic resin
RAD-821 100 160 35 copper 5.08 - - 19 - 1.1 FR1, hard paper, phenolic resin
RAD-911-HP 50 110 35 copper 2.54 - - 10 - - FR1, hard paper, phenolic resin
RAD-912-HP 100 160 35 copper 2.54 2.5 from bottom 37 4 1.1 FR1, hard paper, phenolic resin
RAD-913-HP 100 160 35 copper 2.54 5.08 from bottom 37 2 1.1 FR1, hard paper, phenolic resin
RAD-914-HP 100 160 35 copper 2.54 5.08 from bottom 37 2 1.1 FR1, hard paper, phenolic resin
RAD-915-HP 100 160 35 copper 2.54 2.5 from bottom 37 4 1.1 FR1, hard paper, phenolic resin
RAD-916-HP 100 160 35 copper 2.5 2.5 from bottom 37 4 1.1 FR1, hard paper, phenolic resin
RAD-917-HP 100 160 35 copper 2.54 5.08 from bottom, from top 36 2 1.1 FR1, hard paper, phenolic resin
RAD-918-HP 100 160 35 copper 2.54 5.08 from bottom, from top 37 2 1.1 FR1, hard paper, phenolic resin
RAD-922-HP 100 160 35 copper 2.54 2.5 from bottom 37 4 1.1 FR1, hard paper, phenolic resin
RAD-930-1-HP 60 160 35 copper 2.54 - - 22 - 1.1 FR1, hard paper, phenolic resin
RAD-930-2-HP 60 250 35 copper 2.54 - - 22 - 1.1 FR1, hard paper, phenolic resin
RAD-931-HP 100 160 35 copper 2.54 - - 37 2 1.1 FR1, hard paper, phenolic resin
RAD-932-HP 100 160 35 copper 2.54 2.5 from bottom, from top 33 2 1.1 FR1, hard paper, phenolic resin
RAD-933-HP 100 160 35 copper 2.54 - from bottom 37 4 1.1 FR1, hard paper, phenolic resin
RAD-934-HP 100 160 35 copper 2.54 2.54 from bottom 38 2 1.1 FR1, hard paper, phenolic resin
RAD-946-HP 100 160 35 copper 2.54 2.54 from bottom 38 - 1.1 FR1, hard paper, phenolic resin
RAD-730-EP 100 160 35 copper 2.54 - - 37 - 1.1 FR4, fiberglass, epoxy resin
RAD-732-EP 100 160 35 copper 2.54 - - 37 - 1.1 FR4, fiberglass, epoxy resin
RAD-830-EP 100 160 35 copper 2.54 - - 37 - 1.1 FR4, fiberglass, epoxy resin
RAD-832-EP 100 160 35 copper 2.54 - - 37 - 1.1 FR4, fiberglass, epoxy resin
RAD-912-EP 100 160 35 copper 2.54 2.5 from bottom 37 4 1.1 FR4, fiberglass, epoxy resin
RAD-913-EP 100 160 35 copper 2.54 5.08 from bottom 37 2 1.1 FR4, fiberglass, epoxy resin
RAD-914-EP 100 160 35 copper 2.54 5.08 from bottom 37 2 1.1 FR4, fiberglass, epoxy resin
RAD-915-EP 100 160 35 copper 2.54 2.5 from bottom 37 4 1.1 FR4, fiberglass, epoxy resin
RAD-918-EP 100 160 35 copper 2.54 5.08 from bottom, from top 37 2 1.1 FR4, fiberglass, epoxy resin
RAD-922-EP 100 160 35 copper 2.54 2.5 from bottom 37 4 1.1 FR4, fiberglass, epoxy resin
RAD-931-EP 100 160 35 copper 2.54 - - 37 2 1.1 FR4, fiberglass, epoxy resin
RAD-932-EP 100 160 35 copper 2.54 2.5 from bottom, from top 33 2 1.1 FR4, fiberglass, epoxy resin
RAD-941-EP 100 160 35 copper 2.54 2.54 from bottom 37 2 1.1 FR4, fiberglass, epoxy resin
RAD-944-EP 100 160 35 copper 2.54 2.54 from bottom, from top 39 2 1.1 FR4, fiberglass, epoxy resin
RAD-946-EP 100 160 35 copper 2.54 2.54 from bottom 38 - 1.1 FR4, fiberglass, epoxy resin
