USB modules

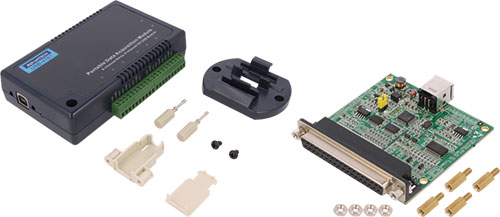

USB modules, USB-4604B-BE, USB-4620-AE, USB-4622-CE, USB-4630-AE, USB-4671-A, USB-4702-AE |EN|

Manufacturer

Symbol	Kind of module	Operating temperature	Dimensions	Current consumption
		[°C]	[mm]	[mA]
USB-4604B-BE	RS232/USB	-40...75	132x80x32	-
USB-4630-AE	-	0...60	132x80x32	700
USB-4671-A	GPIB/USB	-20...70	107x66x26	-
USB-4702-AE	-	0...55	70x70	500
USB-4704-AE	-	0...55	132x80x32	500
USB-4711A-AE	-	0...60	132x80x32	450
USB-4716-AE	-	0...60	132x80x32	450
USB-4750-CE	-	0...60	132x80x32	300
USB-4751-AE	-	0...60	132x80x32	500
USB-4751L-AE	-	0...60	132x80x32	500
USB-4761-BE	-	0...60	132x80x32	400

Symbol	Number of analog inputs	Number of analog outputs	Digit. in.	Number of digital outputs
USB-4702-AE	8	2	8	8
USB-4704-AE	8	2	8	8
USB-4711A-AE	16	2	8	8
USB-4716-AE	16	2	8	8
USB-4750-CE	-	-	16	16
USB-4751-AE	-	-	48	48
USB-4751L-AE	-	-	24	24
USB-4761-BE	-	8	8	8

Sampling speed:

10ksps (USB-4702-AE)
48ksps (USB-4704-AE)
150ksps (USB-4711A-AE)
200ksps (USB-4716-AE)

Symbol	U_sup	Kit contents	Enclosure material	Connection
	[V DC]
USB-4604B-BE	12...48	-	-	-
USB-4630-AE	10...30	USB cable	ABS, polycarbonate	USB 3.0 x4
USB-4702-AE	-	-	-	D-Sub 37pin, USB 2.0 x1
USB-4704-AE	-	-	-	USB 2.0 x1
USB-4711A-AE	-	-	-	USB 2.0 x1
USB-4716-AE	-	-	-	USB 2.0 x1
USB-4751-AE	-	-	-	USB 2.0 x1
USB-4751L-AE	-	-	-	USB 2.0 x1

Features:

32 bit counter (time base: 1kHz) (USB-4716-AE)
32 bit counter (time base: 1MHz) (USB-4750-CE)
32 bit counter (time base: 20MHz) (USB-4751-AE, USB-4751L-AE)
32 bit counter (time base: 5MHz) (USB-4702-AE, USB-4704-AE)
FIFO 1k sample memory (USB-4711A-AE)
FIFO 512 sample memory (USB-4702-AE, USB-4704-AE)
input voltage range, bipolar: 10, 5, 2.5, 1.25, 0.625 V (USB-4711A-AE, USB-4716-AE)
output voltage range: -5...5, -10...10V (USB-4711A-AE, USB-4716-AE)

Data transfer rate:

5Gbps (USB-4630-AE)

Type of automation module:

converter (USB-4604B-BE, USB-4671-A)
HUB (USB-4630-AE)
analog I/O (USB-4702-AE, USB-4704-AE, USB-4711A-AE, USB-4716-AE)
digital I/O (USB-475xxxE, USB-4761-BE)
