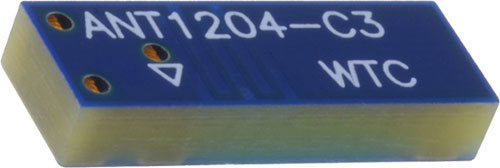

Walsin chip antennas
| Manufacturer | WALSIN |
| Acces. for communic. modules | antenna |
| Polarisation | linear |
| Impedance | 50Ω |
| Mounting | SMD |
| Operating temperature | -40...85°C |
| Symbol | Antenna | Gain | Dimensions |
|---|---|---|---|
| [dBi] | [mm] | ||
| RFANT3216120A1T | Bluetooth, WiFi | 2 | 3.2x1.6x1.2 |
| RFANT5220110A0T | Bluetooth, WiFi | 2 | 5.2x2x1.15 |
| RFECA3216060A1T | Bluetooth, WiFi | 2 | 3.1x1.6x0.6 |
| RFECA3216060K1T | WiFi | 2.8 | 3.2x1.6x0.6 |
| RGFRA1204021A1T | Bluetooth, WiFi | 2 | 12x4x2 |
| RGFRA9937380A3T | Bluetooth, WiFi | 2 | 9.9x3.7x3.8 |
| Symbol | Frequency | Case |
|---|---|---|
| [GHz] | ||
| RFANT3216120A1T | 2.4...2.5 | 1206 |
| RFANT5220110A0T | 2.4...2.5 | - |
| RFECA3216060A1T | 2.4...2.5 | 1206 |
| RFECA3216060K1T | 4.9...5.85 | 1206 |
| RGFRA1204021A1T | 2.4...2.5 | - |
| RGFRA9937380A3T | 2.4...2.55 | - |
