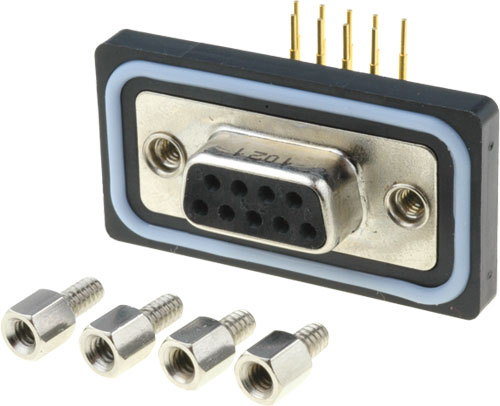

Waterproof D-Sub sockets. IP67
| Connector | socket |
| IP rating | IP67 |
| Locking system | screws |
| Contact plating | nickel plated, gold-plated |
| Thread | UNC 4-40 |
| Mechanical mounting | for panel mounting, screw |
| Symbol |
No. of pins |
Kind |
Connector |
Electr. mounting |
Spatial orientation |
| L17EHD15S30 |
15 |
female |
D-Sub HD |
THT |
angled 90° |
| 6STD09SAM99B30X |
9 |
female |
D-Sub |
soldering |
straight |
| L17ED09P00 |
9 |
male |
D-Sub |
soldering |
straight |
| L17ED09S00 |
9 |
female |
D-Sub |
soldering |
straight |
| L17ED15P00 |
15 |
male |
D-Sub |
soldering |
straight |
| L17ED15S00 |
15 |
female |
D-Sub |
soldering |
straight |
| L17EHD15S00 |
15 |
female |
D-Sub HD |
soldering |
straight |
| Symbol: (L17EHD15S30, L17EHD15S00) |
|---|
| Operating temperature | -55...85°C |
| Panel thickness | max. 2mm |
| Kit contents | socket, 4x screw with threaded head (2x short, 2x long) |
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
| Manufacturer series | ED-EHD |
| Symbol: (6STD09SAM99B30X) |
|---|
| Manufacturer | Amphenol CONEC |
| Symbol: (L17EDxxx00) |
|---|
| Operating temperature | -55...85°C |
| Panel thickness | max. 2mm |
| Kit contents | socket, 4x screw with threaded head (2x short, 2x long) |
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
| Enclosure material | steel |
| Manufacturer series | ED-EHD |
