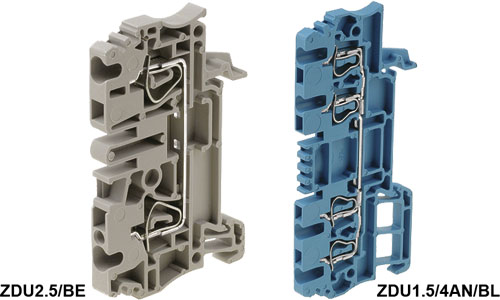

Weidmuller spring loaded terminal blocks
| Manufacturer | WEIDMÜLLER |
| Symbol | Type of splice terminal | No. of ways | No. of terminals | Cond. cross sec. | Urated | Mounting rail size | Colour | Inom | Body mat. | Flamm. rating | Electrical mounting | Ht. | Connector accessories | Related items | Operating temp. | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm2] | [V AC] | [A] | [mm] | [°C] | [mm] | |||||||||||
| ZAP/TW1.5/3/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU1.5/3AN | max. 125 | - |
| ZAP/TW1.5/3/BL | - | - | - | - | - | - | blue | - | wemid | UL94V-0 | - | - | end piece | ZDU1.5/3AN | max. 125 | - |
| ZAP/TW1.5/4/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU1.5/4AN | max. 125 | - |
| ZAP/TW1.5/4/BL | - | - | - | - | - | - | blue | - | wemid | UL94V-0 | - | - | end piece | ZDU1.5/4AN | max. 125 | - |
| ZAP/TW1.5/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU1.5 | max. 125 | - |
| ZAP/TW1.5/BL | - | - | - | - | - | - | blue | - | wemid | UL94V-0 | - | - | end piece | ZDU1.5 | max. 125 | - |
| ZAP/TW1/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU2.5 | max. 125 | - |
| ZAP/TW1/BL | - | - | - | - | - | - | blue | - | wemid | UL94V-0 | - | - | end piece | ZDU2.5 | max. 125 | - |
| ZAP/TW2/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU2.5/3AN | max. 125 | - |
| ZAP/TW3/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU2.5/4AN | max. 125 | - |
| ZAP/TW4/3AN/BE | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDU3/4AN | max. 125 | - |
| ZAP/TW-ZDK2.5 | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | ZDK2.5 | max. 120 | 1.5 |
| ZAP/TWZDLD2.5-2N | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | - | max. 120 | 1.5 |
| ZAP/TWZDUA | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | end piece | - | max. 120 | 1.5 |
| ZAP/TWZIA1.5/3L | - | - | - | - | - | - | beige | - | wemid | UL94V-0 | - | - | separating plate | - | max. 120 | 5.08 |
| ZDK1.5 | rail | 2 | 4 | 1.5 | 500 | TS35 | beige | 17.5 | wemid | UL94V-0 | spring clamp | 75.5 | - | - | max. 120 | 3.5 |
| ZDLD2.5-2N/PE/L/N | rail | 3 | 6 | 2.5 | 500 | TS35 | beige | 20 | wemid | UL94V-0 | spring clamp | 110.5 | - | - | max. 120 | 5.1 |
| ZDU1.5/3AN/BE | rail | 1 | 3 | 1.5 | 500 | TS35 | beige | 17.5 | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZDU1.5/3AN/BL | rail | 1 | 3 | 1.5 | 500 | TS35 | blue | 17.5 | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZDU1.5/4AN/BE | rail | 1 | 4 | 1.5 | 500 | TS35 | beige | 17.5 | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZDU1.5/4AN/BL | rail | 1 | 4 | 1.5 | 500 | TS35 | blue | 17.5 | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZDU1.5/BE | rail | 1 | 2 | 1.5 | 500 | TS35 | beige | 17.5 | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZDU1.5/BL | rail | 1 | 2 | 1.5 | 500 | TS35 | blue | 17.5 | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZDU10/BE | rail | 1 | 2 | 10 | 1k | TS35 | beige | 57 | wemid | UL94V-0 | spring clamp | 49.5 | - | - | max. 125 | 10.1 |
| ZDU2.5/3AN/BE | rail | 1 | 3 | 2.5 | 800 | TS35 | beige | 24 | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZDU2.5/3AN/BL | rail | 1 | 3 | 2.5 | 800 | TS35 | blue | 24 | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZDU2.5/4AN/BE | rail | 1 | 4 | 2.5 | 800 | TS35 | beige | 24 | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZDU2.5/4AN/BL | rail | 1 | 4 | 2.5 | 800 | TS35 | blue | 24 | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZDU2.5/BE | rail | 1 | 2 | 2.5 | 800 | TS35 | beige | 24 | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZDU2.5/BL | rail | 1 | 2 | 2.5 | 800 | TS35 | blue | 24 | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZDU4/3AN/BE | rail | 1 | 3 | 4 | 800 | TS35 | beige | 32 | wemid | UL94V-0 | spring clamp | - | - | - | max. 125 | - |
| ZDU4/BE | rail | 1 | 2 | 4 | 800 | TS35 | beige | 32 | wemid | UL94V-0 | spring clamp | 43.5 | - | - | max. 125 | 6 |
| ZDU6/BE | rail | 1 | 2 | 6 | 800 | TS35 | beige | 41 | wemid | UL94V-0 | spring clamp | 45.6 | - | - | max. 125 | 8 |
| ZPE1.5 | rail | 1 | 2 | 1.5 | 500 | TS35 | yellow-green | - | wemid | UL94V-0 | spring clamp | 37 | - | - | max. 125 | 3.5 |
| ZPE2.5 | rail | 1 | 2 | 2.5 | 800 | TS35 | yellow-green | - | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 125 | 5.1 |
| ZPE2.5/3AN | rail | 1 | 3 | 2.5 | - | TS35 | yellow-green | - | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 120 | 5.1 |
| ZPE2.5/4AN | rail | 1 | 4 | 2.5 | - | TS35 | yellow-green | - | wemid | UL94V-0 | spring clamp | 39.5 | - | - | max. 120 | 5.1 |
| ZQV1.5/10 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU1.5 | - | - |
| ZQV1.5/2 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU1.5 | - | - |
| ZQV1.5/3 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU1.5 | - | - |
| ZQV1.5/4 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU1.5 | - | - |
| ZQV2.5/10 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU2.5 | - | - |
| ZQV2.5/2 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU2.5 | - | - |
| ZQV2.5/3 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU2.5 | - | - |
| ZQV2.5/4 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU2.5 | - | - |
| ZQV2.5/50 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU2.5 | - | - |
| ZQV4/2 | - | 2 | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU4 | - | - |
| ZQV6/3 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU6 | - | - |
| ZQV6/32GE | - | - | - | - | - | - | - | - | - | - | - | - | comb bridge | ZDU6 | - | - |
| ZQV6/4 | - | - | - | - | - | - | yellow | - | - | - | - | - | comb bridge | ZDU6 | - | - |
