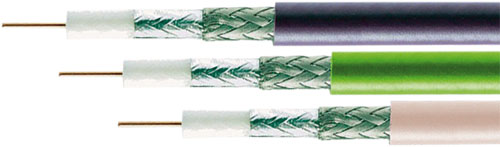

Wire: coaxial; BELDEN
| Manufacturer | BELDEN |
| Type of wire | coaxial |
| Kind of cable | RG6 |
| Kind of core | Cu |
| Wave impedance | 75Ω |
| Symbol | Shield structure | Core | Øext. cable | Core diam. | Application | Operating temperature | CPR standard | Wire insulation material | Insulation colour | Kind of material | Conform to the norm | Information | Package contents - ft | Number of cores | Resistance to |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [AWG] | [°C] | [ft] | ||||||||||||
| 1694A.0011000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | brown | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.0021000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | red | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.00305 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...75 | Eca | PVC | black | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | UV rays |
| 1694A.0031000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | orange | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.0041000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | yellow | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.00500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | black | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1640 | 1 | UV rays |
| 1694A.0061000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | light blue | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.0081000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | grey | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.0091000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | white | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.0101000 | shielded twofold, Al-PET foil, tinned copper braid | wire | 6.9 | 18 | HD-SDI; HDTV; digital video broadcasting; indoor; outdoor | -30...75 | Eca | PVC | black | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.010500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...75 | Eca | PVC | black | - | UL 1666 | The UL Label and Mark on full factory packaging only | 500 | 1 | UV rays |
| 1694A.02305 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | violet | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.06305 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | green | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.07305 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | white | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694A.N3U1000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor | -30...75 | Eca | PVC | green | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694ANH.00305 | shielded twofold, Al-PET foil, tinned copper braid | wire | 6.9 | 18 | HD-SDI; HDTV; digital video broadcasting; indoor; outdoor | -30...70 | Dca | LSZH | black | no flame propagation | - | - | 328 | 1 | - |
| 1694ANH.00500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Dca | LSZH | black | - | IEC 60332-1-2 IEC 60332-3-24 | - | 1640 | 1 | flame |
| 1694ANH.01100 | shielded twofold, Al-PET foil, tinned copper braid | wire | 6.9 | 18 | HD-SDI; HDTV; digital video broadcasting; indoor; outdoor | -30...70 | Dca | LSZH | green | halogen free, no flame propagation | - | - | 328 | 1 | - |
| 1694ANH.01305 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Dca | LSZH | green | - | IEC 60332-1-2 IEC 60332-3-24 | - | 1000 | 1 | flame |
| 1694ANH.01500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Dca | LSZH | green | - | IEC 60332-1-2 IEC 60332-3-24 | - | 1640 | 1 | flame |
| 1694ANH.02500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Dca | LSZH | turquoise | - | IEC 60332-1-2 IEC 60332-3-24 | - | 1640 | 1 | flame |
| 1694ANH.04 | shielded twofold, Al-PET foil, tinned copper braid | wire | 6.9 | 18 | HD-SDI; HDTV; digital video broadcasting; indoor; outdoor | -30...70 | Dca | LSZH | black | no flame propagation | - | - | 328 | 1 | - |
| 1694ANH.05500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Dca | LSZH | violet | - | IEC 60332-1-2 IEC 60332-3-24 | - | 1640 | 1 | flame |
| 1694D.0101000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 15.7 | 18 | indoor; outdoor | -40...75 | no classification | PVC | black | - | UL 1666 | The UL Label and Mark on full factory packaging only | 1000 | 2 | - |
| 1694D.010500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 15.7 | 18 | indoor; outdoor | -40...75 | no classification | PVC | black | - | UL 1666 | The UL Label and Mark on full factory packaging only | 500 | 2 | - |
| 1694DNH.00500 | shielded threefold, Al-PET foil, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Dca | LSZH | violet | - | IEC 60332-1-2 IEC 60332-3-24 | - | 1640 | 1 | flame |
| 1694ELV.05500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | B2ca | LSZH | violet | - | IEC 60332-1-2 | - | 1640 | 1 | flame |
| 1694ELW.00305 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Cca | LSZH | black | - | IEC 60332-1-2 | - | 1000 | 1 | flame |
| 1694ELW.01500 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...70 | Cca | LSZH | green | - | IEC 60332-1-2 | - | 1640 | 1 | flame |
| 1694F.B591000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | HD-SDI; digital video broadcasting; UHDTV; indoor | -35...75 | no classification | PVC | black | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.G7V1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | red | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.G7W1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | green | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.G7X1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | blue | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.G7Y1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | white | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.G8L1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | orange | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.G8M1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | yellow | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694F.Z4B1000 | shielded twofold, tinned copper braid | stranded | 7.01 | 19 | indoor | -35...75 | no classification | PVC | violet | - | UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | - |
| 1694SB.0101000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | indoor; outdoor | -30...75 | Dca | LSZH | black | - | FT4 IEC 60332-1-2 IEC 60332-3-22 UL 1685 | The UL Label and Mark on full factory packaging only | 1000 | 1 | flame |
| 1694WB.0061000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | for direct burial; outdoor | -55...80 | no classification | PE | light blue | - | - | - | 1000 | 1 | UV rays, water |
| 1694WB.0101000 | shielded twofold, Al-PET-Al foil, tinned copper braid | wire | 6.96 | 18 | for direct burial; outdoor | -55...80 | no classification | PE | black | - | - | - | 1000 | 1 | UV rays, water |
