Wire: ribbon; 3M
| Manufacturer | 3M |
| Type of wire | ribbon |
| Shield structure | shielded twofold, Al-PET foil, tinned copper braid |
| Rated volt. | 50V |
| Kind of core | Cu, tinned |
| Core | stranded |
| Operating temperature | -20...80°C |
| Insulation colour | black |
| Core diameter | 28AWG |
| Conform to the norm | CSA AWM I A/B FT1 UL 20267 VW-1 |
| Shape | round |
| Tape pitch | 1.27mm |

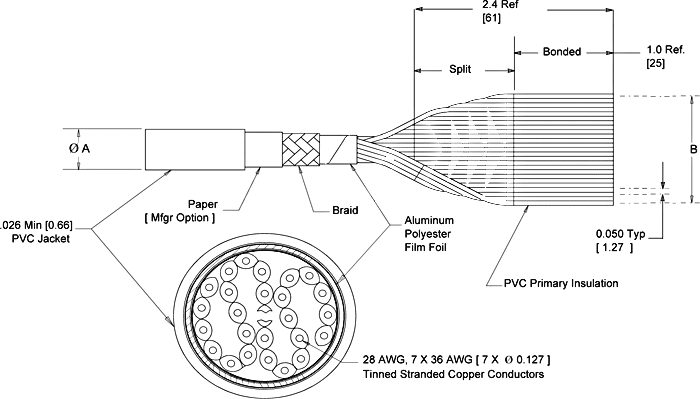

| Dimensions | Fig. 1. |
| Wire insulation material | PVC |
| Symbol | Package contents | Ver. | Number of cores | A | B |
|---|---|---|---|---|---|
| [m] | [mm] | [mm] | |||
| 3659-09 | 30.5 | Splice Free | 9 | 6.9 | 10.2 |
| 3659-10 | 30.5 | Splice Free | 10 | 6.9 | 11.4 |
| 3659-100-09 | 30.5 | - | 9 | 6.9 | 10.2 |
| 3659-100-10 | 30.5 | - | 10 | 6.9 | 11.4 |
| 3659-100-14 | 30.5 | - | 14 | 7.9 | 16.5 |
| 3659-100-15 | 30.5 | - | 15 | 7.9 | 17.8 |
| 3659-100-16 | 30.5 | - | 16 | 7.9 | 19.1 |
| 3659-100-20 | 30.5 | - | 20 | 8.6 | 24.1 |
| 3659-100-24 | 30.5 | - | 24 | 9.4 | 29.2 |
| 3659-100-25 | 30.5 | - | 25 | 9.4 | 30.5 |
| 3659-100-26 | 30.5 | - | 26 | 9.4 | 31.8 |
| 3659-100-34 | 30.5 | - | 34 | 10.4 | 41.9 |
| 3659-100-37 | 30.5 | - | 37 | 10.9 | 45.7 |
| 3659-100-40 | 30.5 | - | 40 | 10.9 | 49.5 |
| 3659-100-50 | 30.5 | - | 50 | 12.2 | 62.2 |
| 3659-14 | 30.5 | Splice Free | 14 | 7.9 | 16.5 |
| 3659-15 | 30.5 | Splice Free | 15 | 7.9 | 17.8 |
| 3659-16 | 30.5 | Splice Free | 16 | 7.9 | 19.1 |
| 3659-20 | 30.5 | Splice Free | 20 | 8.6 | 24.1 |
| 3659-24 | 30.5 | Splice Free | 24 | 9.4 | 29.2 |
| 3659-25 | 30.5 | Splice Free | 25 | 9.4 | 30.5 |
| 3659-26 | 30.5 | Splice Free | 26 | 6.9 | 31.8 |
| 3659-300-09 | 91.5 | Splice Free | 9 | 6.9 | 10.2 |
| 3659-300-10 | 91.5 | Splice Free | 10 | 6.9 | 11.4 |
| 3659-300-14 | 91.5 | Splice Free | 14 | 7.9 | 16.5 |
| 3659-300-15 | 91.5 | Splice Free | 15 | 7.9 | 17.8 |
| 3659-300-16 | 91.5 | Splice Free | 16 | 7.9 | 19.1 |
| 3659-300-20 | 91.5 | Splice Free | 20 | 8.6 | 24.1 |
| 3659-300-25 | 91.5 | Splice Free | 25 | 9.4 | 30.5 |
| 3659-300-26 | 91.5 | Splice Free | 26 | 9.4 | 31.8 |
| 3659-300-34 | 91.5 | Splice Free | 34 | 10.4 | 41.9 |
| 3659-300-37 | 91.5 | Splice Free | 37 | 10.9 | 45.7 |
| 3659-300-40 | 91.5 | Splice Free | 40 | 10.9 | 49.5 |
| 3659-300-64 | 91.5 | Splice Free | 64 | 13.7 | 80 |
| 3659-34 | 30.5 | Splice Free | 34 | 10.4 | 41.9 |
| 3659-36 | 30.5 | Splice Free | 36 | 10.9 | 44.5 |
| 3659-37 | 30.5 | Splice Free | 37 | 10.9 | 45.7 |
| 3659-40 | 30.5 | Splice Free | 40 | 10.9 | 49.5 |
| 3659-50 | 30.5 | Splice Free | 50 | 12.2 | 62.2 |
| 3659-60 | 30.5 | Splice Free | 60 | 13 | 74.9 |
| 3659-64 | 30.5 | Splice Free | 64 | 13.7 | 80 |
