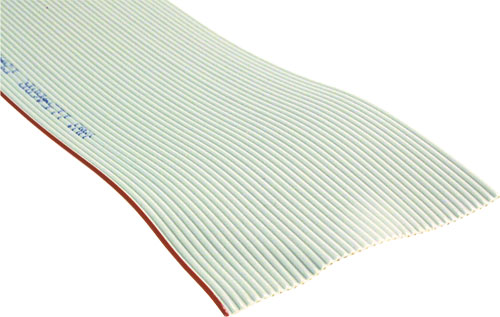

Wire: ribbon; 3M
| Manufacturer | 3M |
| Type of wire | ribbon |
| Shield structure | unshielded |
| Rated volt. | 50V |
| Wire insulation material | PVC |
| Insulation colour | grey |
| Kind of core | Cu, tinned |
| Core | stranded |
| Operating temperature | -20...105°C |
| Core diameter | 28AWG |
| Tape pitch | 1mm |
| Conform to the norm | CSA AWM I A/B FT1 UL 2651 VW-1 |
| Dimensions | Fig. 1. |
| Symbol | Package contents | Number of cores | A | B |
|---|---|---|---|---|
| [m] | [mm] | [mm] | ||
| 3625-06 | 30 | 6 | 6 | 5 |
| 3625-100M-06 | 100 | 6 | 6 | 5 |
| 3625-08 | 30 | 8 | 8 | 7 |
| 3625-100M-08 | 100 | 8 | 8 | 7 |
| 3625-10 | 30 | 10 | 10 | 9 |
| 3625-100M-10 | 100 | 10 | 10 | 9 |
| 3625-100M-12 | 100 | 12 | 12 | 11 |
| 3625-12 | 30 | 12 | 12 | 11 |
| 3625-100M-14 | 100 | 14 | 14 | 13 |
| 3625-14 | 30 | 14 | 14 | 13 |
| 3625-100M-16 | 100 | 16 | 16 | 15 |
| 3625-16 | 30 | 16 | 16 | 15 |
| 3625-100M-18 | 100 | 18 | 18 | 17 |
| 3625-100M-20 | 100 | 20 | 20 | 19 |
| 3625-20 | 30 | 20 | 20 | 19 |
| 3625-100M-22 | 100 | 22 | 22 | 21 |
| 3625-100M-24 | 100 | 24 | 24 | 23 |
| 3625-24 | 30 | 24 | 24 | 23 |
| 3625-100M-26 | 100 | 26 | 26 | 25 |
| 3625-26 | 30 | 26 | 36 | 25 |
| 3625-28 | 30 | 28 | 28 | 27 |
| 3625-100M-30 | 100 | 30 | 30 | 29 |
| 3625-30 | 30 | 30 | 30 | 29 |
| 3625-100M-34 | 100 | 34 | 34 | 33 |
| 3625-34 | 30 | 34 | 34 | 33 |
| 3625-100M-40 | 100 | 40 | 40 | 39 |
| 3625-40 | 30 | 40 | 40 | 39 |
| 3625-100M-44 | 100 | 44 | 44 | 43 |
| 3625-44 | 30 | 44 | 44 | 43 |
| 3625-100M-50 | 100 | 50 | 50 | 49 |
| 3625-50 | 30 | 50 | 50 | 49 |
| 3625-100M-60 | 100 | 60 | - | - |
| 3625-68 | 30 | 68 | - | - |
