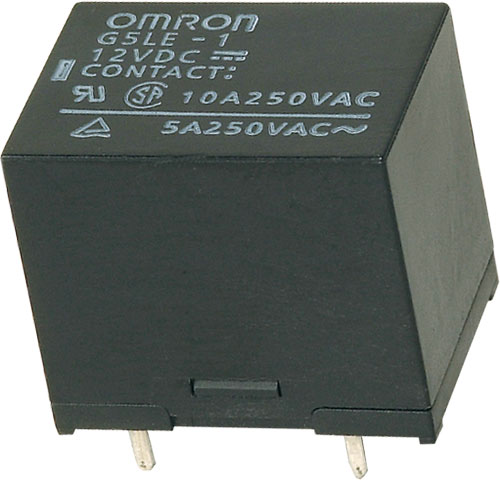

Relé: electromagnético; miniatura; OMRON Electronic Components
| Fabricante | OMRON Electronic Components |
| Tipo de relé | electromagnético |
| Versión | miniatura |
| Montaje | PCB |
| Tensión conectada | max. 250V AC |
| Resistencia de contactos | 100mΩ |
| Ráster de term. | 2mm |
| Tiempo de funcionamiento | 10ms |
| Tiempo de apagado | 5ms |
| Medidas interiores | 22,5x16,5x19mm |
| Temperatura de trabajo | -40...85°C |
| Carga DC @R* | 8A / 30V CC |
| Serie de fabricante | G5LE |
* a carga resistiva
| Símbolo | Conf. contactos | Uinductor | Rinductor | Iinductor | Pinductor |
|---|---|---|---|---|---|
| [V DC] | [Ω] | [mA] | [mW] | ||
| G5LE-1-5 | SPDT | 5 | 63 | 79,4 | 400 |
| G5LE-1-6 | SPDT | 6 | 89 | 67 | 400 |
| G5LE-1-12 | SPDT | 12 | 360 | 33,3 | 400 |
| G5LE-1-24 | SPDT | 24 | 1,44k | 16,7 | 400 |
| G5LE-1-36-5 | SPDT | 5 | 70 | 72 | 360 |
| G5LE-1-36-12 | SPDT | 12 | 400 | 30 | 360 |
| G5LE-1-36-24 | SPDT | 24 | 1,6k | 15 | 360 |
| G5LE-1A-5 | SPST-NO | 5 | 63 | 79,4 | 400 |
| G5LE-1A-12DC | SPST-NO | 12 | 360 | 33,3 | 400 |
| G5LE-1A-24DC | SPST-NO | 24 | 1,44k | 16,7 | 400 |
| G5LE-1A-48 | SPST-NO | 48 | 5,76k | 8,33 | 400 |
| G5LE-1A4-12 | SPST-NO | 12 | 360 | 33,3 | 400 |
| G5LE-1A4-24 | SPST-NO | 24 | 1,44k | 16,7 | 400 |
| G5LE-14-5 | SPDT | 5 | 63 | 79,4 | 400 |
| G5LE-14-9 | SPDT | 9 | 200 | 45 | 400 |
| G5LE-14-12 | SPDT | 12 | 360 | 33,3 | 400 |
| G5LE-14-24 | SPDT | 24 | 1,44k | 16,7 | 400 |
| G5LE-14-48DC | SPDT | 48 | - | - | 400 |
| G5LE-1A-E-12DC | SPST-NO | 12 | 360 | 33,3 | 400 |
| G5LE-1A-E-24DC | SPST-NO | 24 | 1,44k | 16,7 | 400 |
Corriente máx. de contactos:
- 10A (G5LE-1-xxx, G5LE-1A-5, G5LE-1A-12DC, G5LE-1A-24DC, G5LE-1A-48, G5LE-1A4-12, G5LE-1A4-24, G5LE-14-xxx)
- 16A (G5LE-1A-E-12DC, G5LE-1A-E-24DC)
Tensión conectada:
- max. 125V DC (G5LE-1-xxx, G5LE-1A-5, G5LE-1A-12DC, G5LE-1A-24DC, G5LE-1A-48, G5LE-1A4-12, G5LE-1A4-24, G5LE-14-xxx)
Carga AC @R*:
- 10A / 240V AC (G5LE-1-xxx, G5LE-1A-5, G5LE-1A-12DC, G5LE-1A-24DC, G5LE-1A-48, G5LE-1A4-12, G5LE-1A4-24, G5LE-14-xxx)
- 16A / 250V AC (G5LE-1A-E-12DC, G5LE-1A-E-24DC)
Descripción:
- sellado hermético (G5LE-1A4-12, G5LE-1A4-24, G5LE-14-xxx)
- sellado estándar (G5LE-1-xxx, G5LE-1A-xxx)
Sistema de salidas:
- Fig.1-1. (G5LE-1-5, G5LE-1-12, G5LE-1-24, G5LE-1-36-xx, G5LE-1A-5, G5LE-1A-12DC, G5LE-1A-24DC, G5LE-1A-E-12DC, G5LE-1A-E-24DC, G5LE-14-5, G5LE-14-12, G5LE-14-24, G5LE-14-48DC)
Medidas:
- Fig.2-1. (G5LE-1-5, G5LE-1-12, G5LE-1-24, G5LE-1-36-xx, G5LE-1A-5, G5LE-1A-12DC, G5LE-1A-24DC, G5LE-1A-E-12DC, G5LE-1A-E-24DC, G5LE-14-5, G5LE-14-12, G5LE-14-24, G5LE-14-48DC)
* a carga resistiva
