Alimentations à impulsion ouvertes de série ECP
| Fabricant | XP POWER |
| Type alimentation | impulsions |
| Montage | trous de fixation |
| Connexion électrique | prise avec mécanisme à loquet |
| Ualim. | 85...264V AC |
| Tension d'isolement | 4kV |
| Série du fabricant | ECP |
| Genre de alimentation | ouvert |
| Référence | Nombre de sorties | Puissance | Usortie2 | Usortie3 | Ibase | Isortie2 | Isortie3 | Performance | Protection | Fréq. de commut. | Température de travail | Dim. extérieures | Dimension | Utilisation | Consommation d'énergie sans charge | Tension de sortie |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [A] | [A] | [mA] | [%] | [kHz] | [°C] | [mm] | [W] | [V DC] | |||||

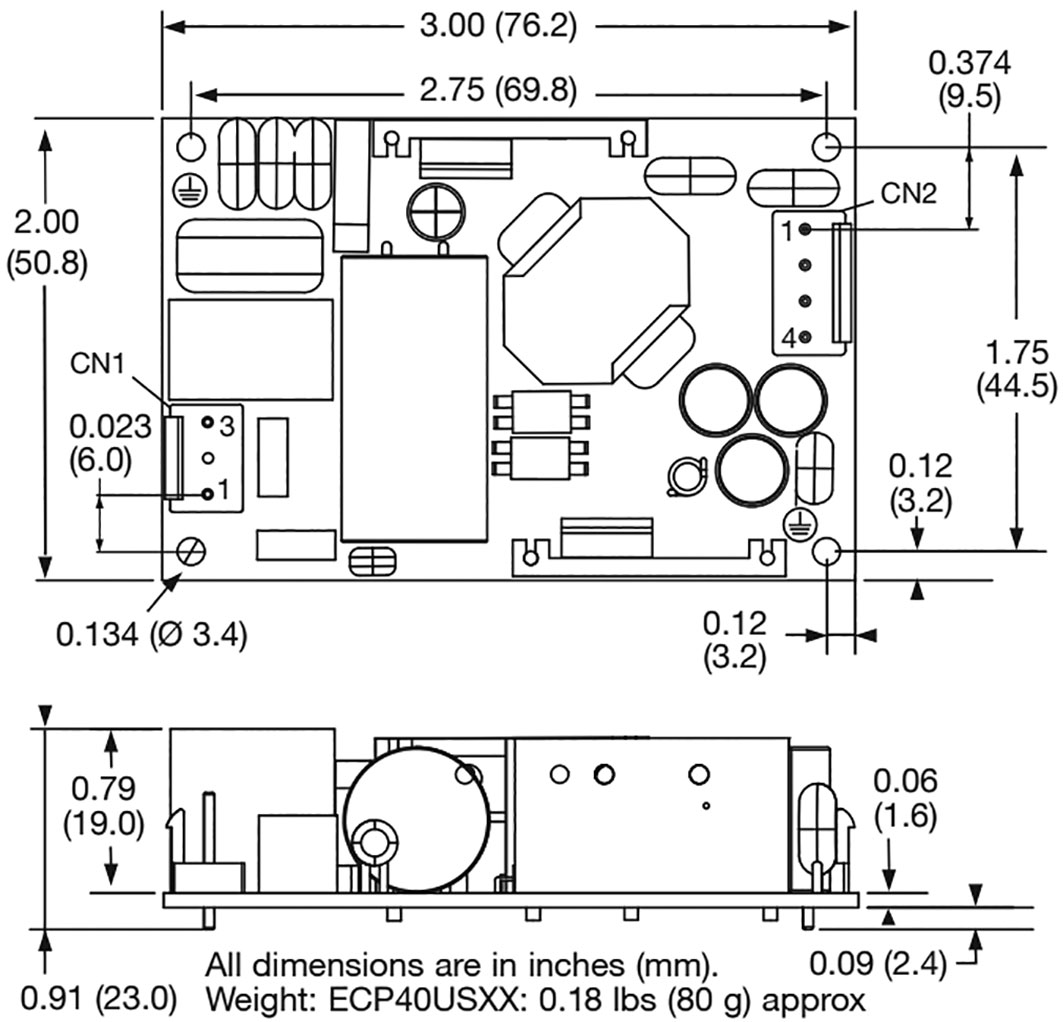

| ECP40US24 | 1 | 40 | - | - | 1,67 | - | - | 90 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -10...70 | 76,2x50,8x19 | Graph.1. | - | <0,3 | 24 |

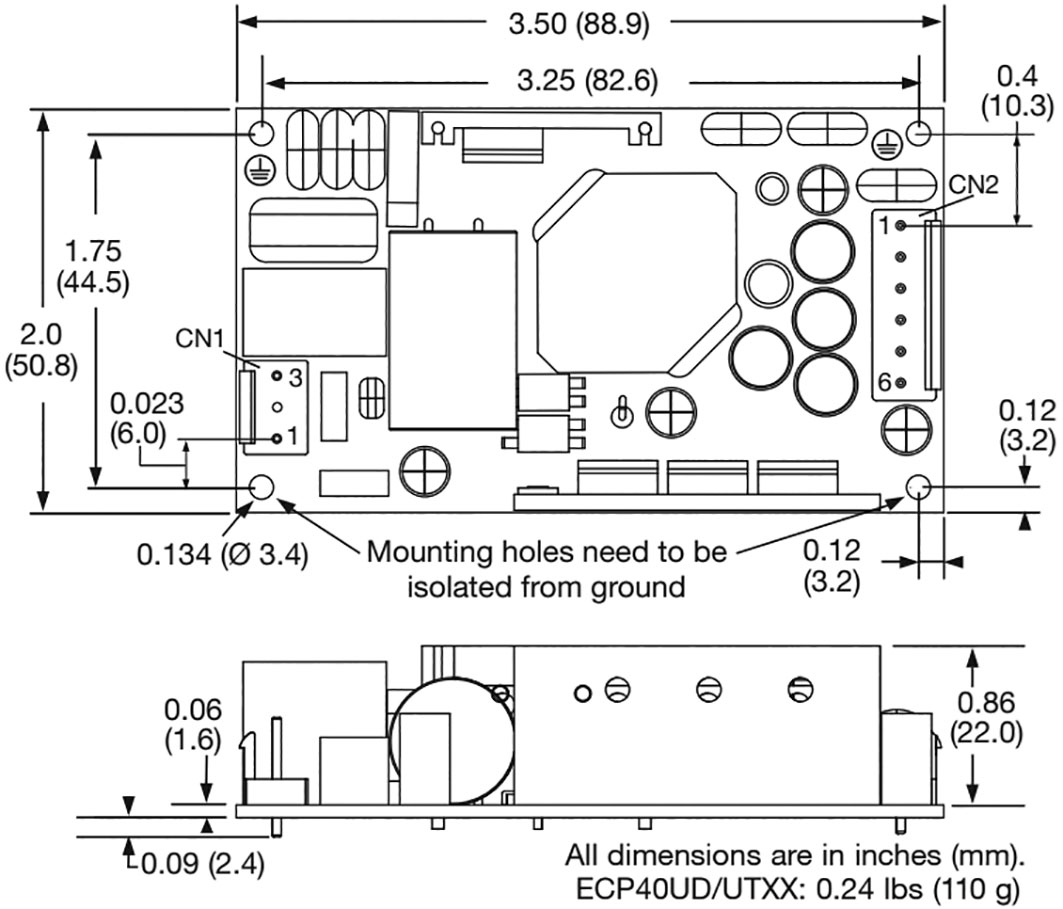

| ECP40UT01 | 3 | 40 | 12 | -12 | 7,8 | 2 | 500 | 90 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -10...70 | 88,9x50,8x22 | Graph.2. | - | <0,3 | 5 |

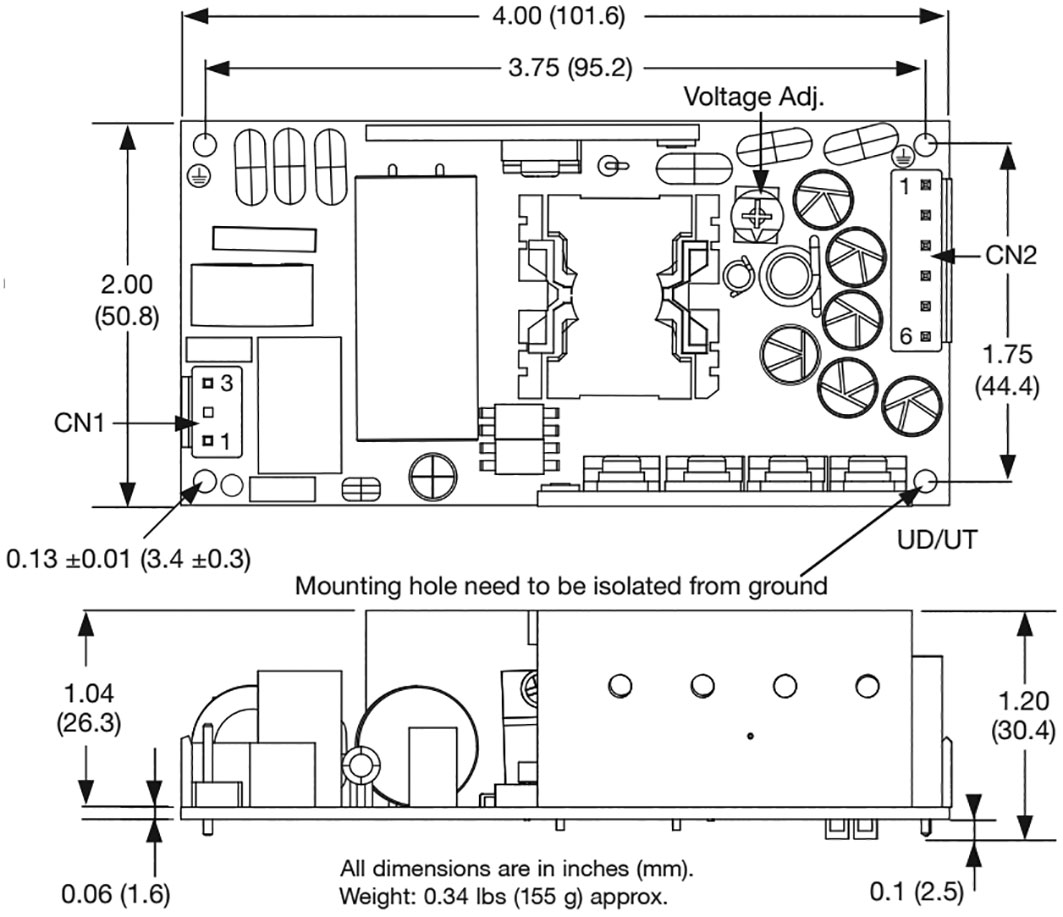

| ECP60UT03 | 3 | 60 | 24 | 12 | 9,1 | 1,95 | 300 | 88 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -20...70 | 101,6x50,8x30,4 | Graph.3. | - | <0,5 | 5 |

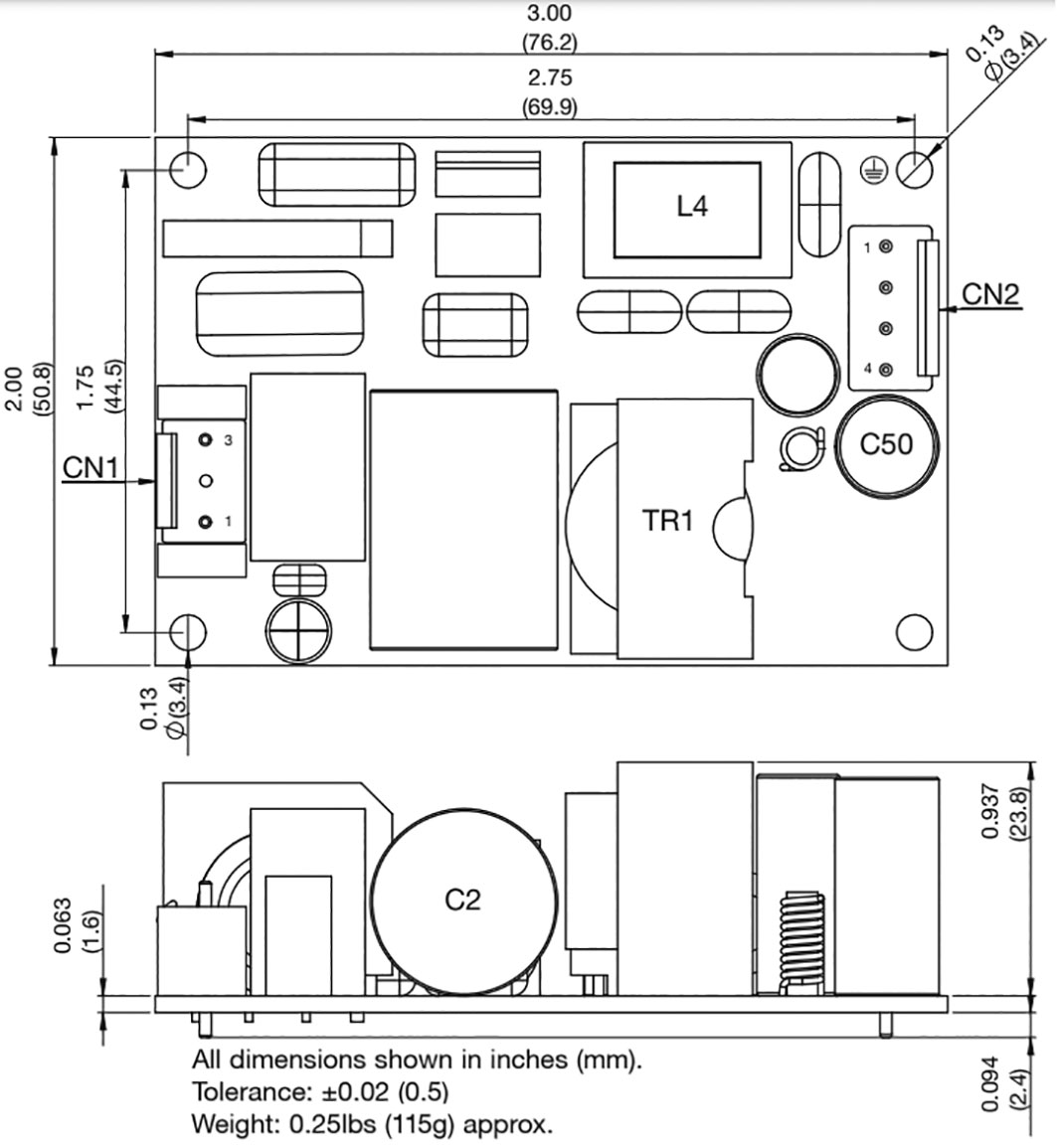

| ECP130PS12 | 1 | 130 | - | - | 8,33 | - | - | 93 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -30...70 | 76,2x50,8x23,8 | Graph.4. | - | <0,5 | 12 |
| ECP130PS24 | 1 | 130 | - | - | 4,16 | - | - | 93 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -30...70 | 76,2x50,8x23,8 | Graph.4. | - | <0,5 | 24 |
| ECP130PS36 | 1 | 130 | - | - | 3,61 | - | - | 93 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -30...70 | 76,2x50,8x23,8 | Graph.4. | - | <0,5 | 36 |
| ECP130PS48 | 1 | 130 | - | - | 2,08 | - | - | 93 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -30...70 | 76,2x50,8x23,8 | Graph.4. | - | <0,5 | 48 |

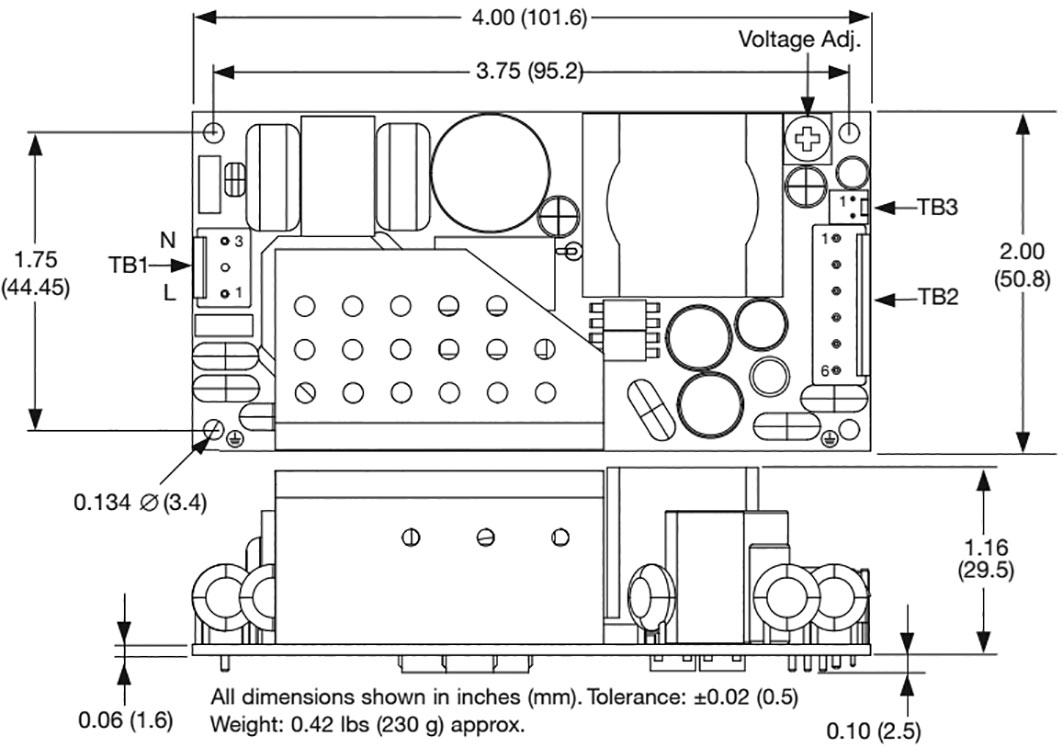

| ECP150PS12 | 1 | 150 | - | - | 12,5 | - | - | 91 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 60 | -20...70 | 101,6x44,45x29,5 | Graph.5. | applications médicales, télécommunication | <0,5 | 12 |
| ECP150PS15 | 1 | 150 | - | - | 10 | - | - | 91 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 60 | -20...70 | 101,6x44,45x29,5 | Graph.5. | applications médicales, télécommunication | <0,5 | 15 |
| ECP150PS24 | 1 | 150 | - | - | 6,25 | - | - | 91 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 60 | -20...70 | 101,6x44,45x29,5 | Graph.5. | applications médicales, télécommunication | <0,5 | 24 |
| ECP150PS28 | 1 | 150 | - | - | 5,4 | - | - | 92 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 60 | -20...70 | 101,6x44,45x29,5 | Graph.5. | applications médicales, télécommunication | <0,5 | 28 |
| ECP150PS48 | 1 | 150 | - | - | 3,1 | - | - | 92 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 60 | -20...70 | 101,6x44,45x29,5 | Graph.5. | applications médicales, télécommunication | <0,5 | 48 |

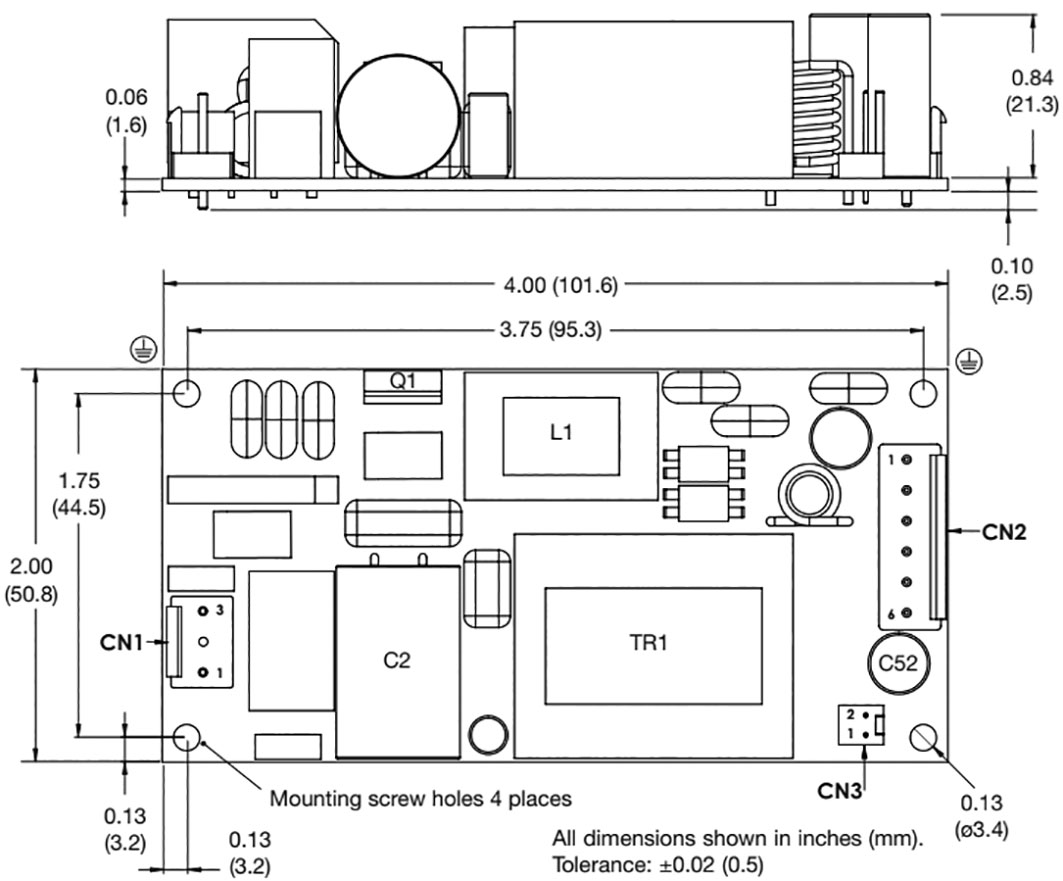

| ECP180PS12 | 1 | 180 | - | - | 15 | - | - | 92 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -20...70 | 101,6x44,45x21,3 | Graph.6. | applications médicales | <0,5 | 12 |
| ECP180PS24 | 1 | 180 | - | - | 7,5 | - | - | 92 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -20...70 | 101,6x44,45x21,3 | Graph.6. | applications médicales | <0,5 | 24 |
| ECP180PS28 | 1 | 180 | - | - | 6,43 | - | - | 93 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -20...70 | 101,6x44,45x21,3 | Graph.6. | applications médicales | <0,5 | 28 |
| ECP180PS36 | 1 | 180 | - | - | 5 | - | - | 94 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -20...70 | 101,6x44,45x21,3 | Graph.6. | applications médicales | <0,5 | 36 |
| ECP180PS48 | 1 | 180 | - | - | 3,75 | - | - | 94 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 130 | -20...70 | 101,6x44,45x21,3 | Graph.6. | applications médicales | <0,5 | 48 |

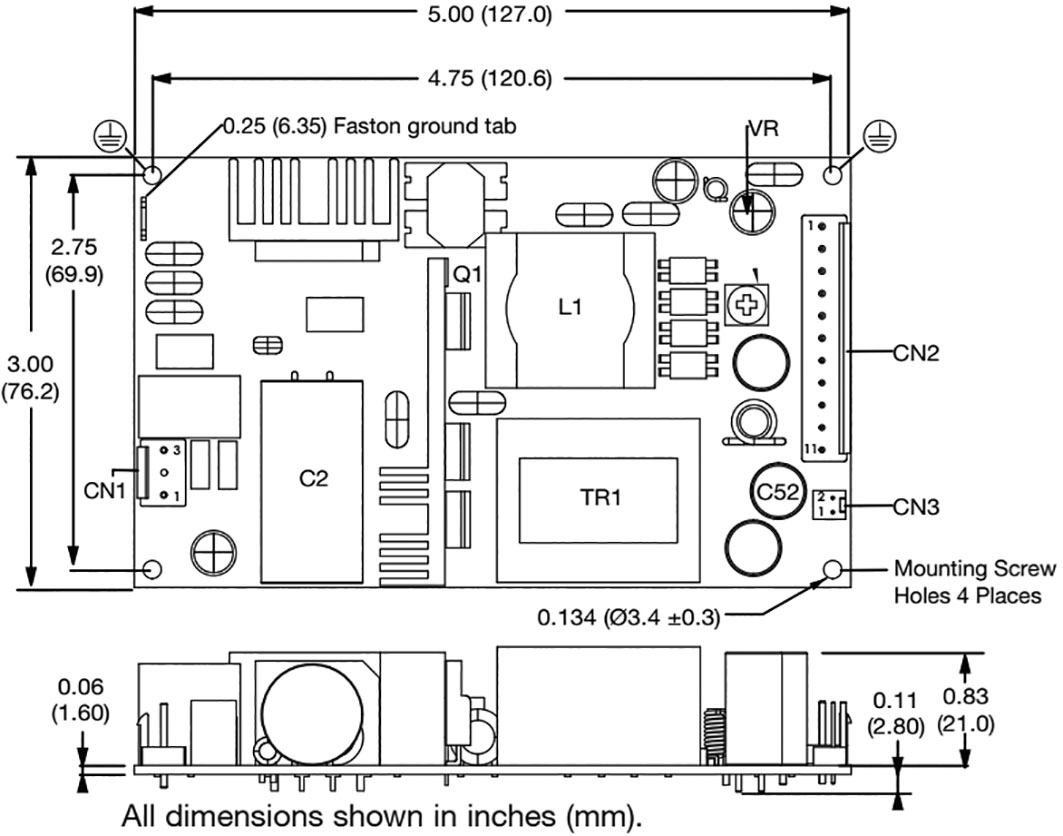

| ECP225PS12-A | 1 | 225 | - | - | 18,75 | - | - | 92 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP, surchauffe OTP | 130 | -20...70 | 127x76,2x21 | Graph.7. | applications médicales | <0,5 | 12 |
| ECP225PS24-A | 1 | 225 | - | - | 9,38 | - | - | 92 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP, surchauffe OTP | 130 | -20...70 | 127x76,2x21 | Graph.7. | applications médicales | <0,5 | 24 |
