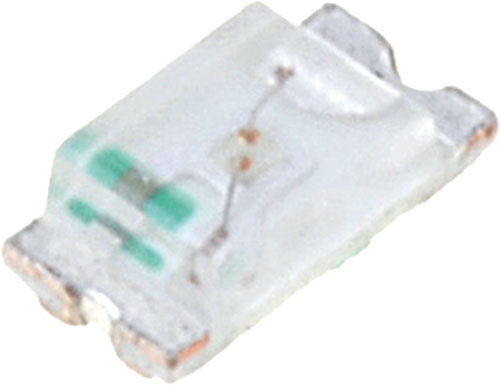

Diodes SMD multicolores, OPTOSUPPLY
Caractéristiques des diodes LED:
- front noir (OSTBPCS2C2B)
- résistance intégrée limitant le courant (OSx50603C1E-VV)
| Référence | Version | Couleur | Dimensions | Boîtier | Tension de travail |
|---|---|---|---|---|---|
| [mm] | [V DC] | ||||
| OSB50603C1E-VV | - | bleu | 1,6x0,8x0,6 | - | 9 |
| OSG50603C1E-VV | - | vert | 1,6x0,8x0,6 | - | 9 |
| OSO50603C1E-VV | - | orange | 1,6x0,8x0,6 | - | 9 |
| OSR50603C1E-VV | - | rouge | 1,6x0,8x0,6 | - | 9 |
| OSY50603C1E-VV | - | jaune | 1,6x0,8x0,6 | - | 9 |
| OSTCXBTHC1E | tri-colore | RGB | - | - | 2...3/3...4 |
| OSRB1608C1C | bicolore | rouge/bleu | 1,6x0,8x0,6 | - | 1,7...2,3/2,7...3,3 |
| OSRG1608C1C | bicolore | rouge/jaune | 1,6x0,8x0,6 | - | 1,7...2,3/1,7...2,3 |
| OSRP1608C1C | bicolore | rouge/vert | 1,6x0,8x0,6 | - | 1,7...2,3/2,7...3,3 |
| OSRW1608C1C | bicolore | rouge/blanc | 1,6x0,8x0,6 | - | 1,7...2,3/2,7...3,3 |
| OSRY1608C1C | bicolore | rouge/jaune | 1,6x0,8x0,6 | - | 1,7...2,3/1,7...2,3 |
| OSTB1608C1C-A | tri-colore | RGB | 1,6x0,8x0,6 | - | 1,7...2,3/2,7...3,3/2,7...3,3 |
| OSTB0603C1C-C | tri-colore | RGB | 1,6x1,5x0,5 | - | 2,6...3,4/2,4...3,4/1,6...2,4 |
| OSRW1615C1C | bicolore | rouge/blanc froid | 1,6x1,5x0,6 | - | 1,8...2,4/2,8...3,4 |
| OSRB0603C1C | bicolore | rouge/bleu | 1,6x1,5x0,65 | - | 1,8...2,6/2,9...3,6 |
| OSRG0603C1C | bicolore | rouge/vert | 1,6x1,5x0,65 | - | 1,8...2,6/1,8...2,6 |
| OSRP0603C1C | bicolore | rouge/vert | 1,6x1,5x0,65 | - | 1,6...2,4/2,6...3,4 |
| OSTF1616C1C | tri-colore | RGB | 1,6x1,6x0,5 | - | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OSRB0805C1E-0.8T | bicolore | rouge/bleu | 2x1,25x0,8 | - | 1,8...2,6/2,6...3,6 |
| OSRG0805C1E-0.8T | bicolore | rouge/jaune-vert | 2x1,25x0,8 | - | 1,8...2,6/1,8...2,6 |
| OSRP0805C1E-0.8T | bicolore | rouge/vert | 2x1,25x0,8 | - | 1,8...2,6/2,8...3,6 |
| OSTB0805C1E-A-0.8T | tri-colore | RGB | 2x1,25x0,8 | - | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OSTB0805C1C-A | tri-colore | RGB | 2x1,25x1,1 | - | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OST10807C1C-C | clignotant, tri-colore | RGB | 2x1,8x0,8 | - | 3,3...5 |
| OSTB1206C1E-A | tri-colore | RGB | 3x1,5x0,7 | - | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OSRB1204C1E | bicolore | rouge/bleu | 3,2x1x1,5 | - | 1,7...2,3/1,7...3,3 |
| OSRP1204C1E | bicolore | rouge/vert | 3,2x1x1,5 | - | 1,7...2,3 |
| OSRB1205C1N | bicolore | rouge/bleu | 3,2x1,25x1,1 | - | 1,7...2,3/2,7...3,3 |
| OSRG1205C1N | bicolore | rouge/jaune-vert | 3,2x1,25x1,1 | - | 1,7...2,3/1,7...2,3 |
| OSRP1205C1N | bicolore | rouge/vert | 3,2x1,25x1,1 | - | 1,7...2,3/2,7...3,3 |
| OSTB1205C1N-A | tri-colore | RGB | 3,2x1,25x1,1 | - | 2,7...3,3/2,7...3,3/1,7...2,3 |
| OSYG1205C1N | bicolore | jaune/jaune-vert | 3,2x1,25x1,1 | - | 1,7...2,3/1,7...2,3 |
| OSTB1204C1E | angulaire, tri-colore | RGB | 3,2x1,5x1 | - | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OSRB1206C1F | bicolore | rouge/bleu | 3,2x1,6x0,9 | - | 1,7...2,3/1,7...3,3 |
| OSRG1206C1F | bicolore | rouge/jaune-vert | 3,2x1,6x0,9 | - | 1,7...2,3 |
| OSRP1206C1F | bicolore | rouge/vert | 3,2x1,6x0,9 | - | 1,8...2,6/2,6...3,6 |
| OSRP1206C1N | de montage inverse | rouge/vert | 3,2x1,6x0,95 | - | 1,7...2,3/2,7...3,3 |
| OSTB1209C1N-A | tri-colore | RGB | 3,2x2,7x0,8 | - | 2,8...3,6/2,8...3,6/1,8...2,6 |
| OSTB3227C1C-A | tri-colore | RGB | 3,2x2,7x0,8 | - | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OSRB1206C1C | bicolore | rouge/bleu | 3,2x2,7x1,1 | - | 1,8...2,6/2,6...3,6 |
| OSRG1206C1C | bicolore | rouge/vert | 3,2x2,7x1,1 | - | 1,8...2,6/1,8...2,6 |
| OSRP1206C1C | bicolore | rouge/vert | 3,2x2,7x1,1 | - | 1,8...2,6/2,6...3,6 |
| OSBWSDS5C1A | bicolore | blanc/bleu | 3,5x2,7x1,5 | PLCC4 | 2,8...3,6/2,8...3,6 |
| OSRWRDS5C1A | bicolore | rouge/blanc froid | 3,5x2,7x1,5 | PLCC4 | 1,8...2,6/2,8...3,6 |
| OSYWRDS5C1A | bicolore | jaune/blanc froid | 3,5x2,7x1,5 | PLCC4 | 1,8...2,6/2,8...3,6 |
| OSBPS4S2C1A | bicolore | vert/bleu | 3,5x2,8x1,9 | PLCC4 | 2,9...3,6/2,9...3,6 |
| OSRBA4S2C1A | bicolore | rouge/bleu | 3,5x2,8x1,9 | PLCC4 | 2,1...2,6/3,1...3,6 |
| OSRBS4S2C1A | bicolore | rouge/bleu | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/2,9...3,6 |
| OSRG51B1S | bicolore | rouge/vert | 3,5x2,8x1,9 | PLCC2 | 1,8...2,4 |
| OSRGH4S2C1A | bicolore | rouge/vert | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/1,8...2,6 |
| OSRMD4S2C1A | bicolore | rouge/blanc chaud | 3,5x2,8x1,9 | PLCC4 | 2,1...2/2,9...3,4 |
| OSRPA4S2C1A | bicolore | rouge/vert | 3,5x2,8x1,9 | PLCC4 | 2,1...2,6/3,1...3,6 |
| OSRPS4S2C1A | bicolore | rouge/vert | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/2,9...3,6 |
| OSRWD4S2C1A | bicolore | rouge/blanc froid | 3,5x2,8x1,9 | PLCC4 | 2,1...2,6/2,9...3,4 |
| OSRYA4S2C1A | bicolore | rouge/jaune | 3,5x2,8x1,9 | PLCC4 | 2,1...2,6/3,1...3,6 |
| OSTBMAS2C1A | tri-colore | RGB | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/2,9...3,6/2,9...3,6 |
| OSTBPCS2C2B | tri-colore | RGB | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/2,9...3,6/2,9...3,6 |
| OSTBWAS2C1A | tri-colore | RGB | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/2,7...3,4/2,7...3,4 |
| OSYBA4S2C1A | bicolore | bleu/jaune | 3,5x2,8x1,9 | PLCC4 | 2,1...2,6/3,1...3,6 |
| OSYBS4S2C1A | bicolore | bleu/jaune | 3,5x2,8x1,9 | PLCC4 | 2,9...3,6/1,8...2,6 |
| OSYGH4S2C1A | bicolore | jaune/vert | 3,5x2,8x1,9 | PLCC4 | 1,8...2,6/1,8...2,6 |
| OSTG3535C2B-B | tri-colore | RGB | 3,5x3,5x2,8 | PLCC6 | 1,8...2,6/2,8...3,6/2,8...3,6 |
| OSTB3806C1A-A | angulaire, tri-colore | RGB | 4,3x1,1x0,85 | PLCC4 | 2,1...2,6/3,1...3,4/3,1...3,4 |
| OSTCXBSEC1E | tri-colore | RGB | 5x5x1,1 | PLCC6 | 2...3/3...4/3...4 |
| OST1MAS4C1A | clignotant, tri-colore | RGB | 5x5x1,5 | PLCC6 | 3,8...5 |
| OSTCMBS4C1A | tri-colore | RGB | 5x5x1,5 | PLCC6 | 1,8...2,6/2,9...3,6/2,9...3,6 |
| OSTQMBS4C1A | tri-colore | rouge/vert/jaune | 5x5x1,5 | PLCC6 | 1,8...2,6/2,9...3,6/1,8...2,6 |
| OSFM4BS8C1A | de quatre couleurs | RGBW | 5x5x1,6 | PLCC8 | 1,8...2,6/2,8...3,6/2,8...3,6/2,8...3,6 |
| OSFW4BS8C1A | de quatre couleurs | RGBW | 5x5x1,6 | PLCC8 | 1,8...2,6/2,8...3,6/2,8...3,6/2,8...3,6 |
| OSSKCSF55 | tri-colore | RGB | 5,4x5x1,5 | - | 9,5...13,5 |
| OSRP322421E | bicolore | rouge/vert | 2,4x2,1x2,4 | - | 3...3,4/2,1...2,6 |
| Référence | Courant | Angle de vis. | Temp. couleur | Lumin. blanc |
|---|---|---|---|---|
| [mA] | [°] | [K] | [mcd] | |
| OSB50603C1E-VV | 7,5...13 | 120 | - | - |
| OSG50603C1E-VV | 7,5...13 | 120 | - | - |
| OSO50603C1E-VV | 8...13 | 120 | - | - |
| OSR50603C1E-VV | 8...13 | 120 | - | - |
| OSY50603C1E-VV | 8...13 | 120 | - | - |
| OSTCXBTHC1E | 200 | 120 | - | - |
| OSRB1608C1C | 5 | 120 | - | - |
| OSRG1608C1C | 5 | 120 | - | - |
| OSRP1608C1C | 5 | 120 | - | - |
| OSRW1608C1C | 5 | 120 | 10000-18000(typ)-25000 | 100...150 |
| OSRY1608C1C | 5 | 120 | - | - |
| OSTB1608C1C-A | 5 | 120 | - | - |
| OSTB0603C1C-C | 30 | 120 | - | - |
| OSRW1615C1C | 5 | 120 | 8000-12000(typ)-18000 | 100...150 |
| OSRB0603C1C | 20 | 120 | - | - |
| OSRG0603C1C | 5 | 120 | - | - |
| OSRP0603C1C | 5 | 120 | - | - |
| OSTF1616C1C | 20 | 120 | - | - |
| OSRB0805C1E-0.8T | 20 | 120 | - | - |
| OSRG0805C1E-0.8T | 20 | 120 | - | - |
| OSRP0805C1E-0.8T | 20 | 120 | - | - |
| OSTB0805C1E-A-0.8T | 20 | 120 | - | - |
| OSTB0805C1C-A | 20 | 120 | - | - |
| OST10807C1C-C | 20 | 120 | - | - |
| OSTB1206C1E-A | 20 | 120 | - | - |
| OSRB1204C1E | 5 | 120 | - | - |
| OSRP1204C1E | 5 | 120 | - | - |
| OSRB1205C1N | 5 | 120 | - | - |
| OSRG1205C1N | 5 | 120 | - | - |
| OSRP1205C1N | 5 | 120 | - | - |
| OSTB1205C1N-A | 5 | 120 | - | - |
| OSYG1205C1N | 5 | 120 | - | - |
| OSTB1204C1E | 20 | 120 | - | - |
| OSRB1206C1F | 5 | 120 | - | - |
| OSRG1206C1F | 5 | 120 | - | - |
| OSRP1206C1F | 20 | 120 | - | - |
| OSRP1206C1N | 5 | 120 | - | - |
| OSTB1209C1N-A | 20 | 120 | - | - |
| OSTB3227C1C-A | 30 | 120 | - | - |
| OSRB1206C1C | 20 | 120 | - | - |
| OSRG1206C1C | 5 | 120 | - | - |
| OSRP1206C1C | 20 | 120 | - | - |
| OSBWSDS5C1A | 20 | 120 | 10000 | 1120...1560 |
| OSRWRDS5C1A | 20 | 120 | 10000 | 1120...1560 |
| OSYWRDS5C1A | 20 | 120 | 10000 | 1120...1560 |
| OSBPS4S2C1A | 20 | 120 | - | - |
| OSRBA4S2C1A | 20 | 120 | - | - |
| OSRBS4S2C1A | 20 | 120 | - | - |
| OSRG51B1S | 20 | 120 | - | - |
| OSRGH4S2C1A | 20 | 120 | - | - |
| OSRMD4S2C1A | 20 | 120 | 2700-3000(typ)-3300 | 750...1120 |
| OSRPA4S2C1A | 20 | 120 | - | - |
| OSRPS4S2C1A | 20 | 120 | - | - |
| OSRWD4S2C1A | 20 | 120 | 8000-12000(typ)-18000 | 1120...1560 |
| OSRYA4S2C1A | 20 | 120 | - | - |
| OSTBMAS2C1A | 20 | 120 | - | - |
| OSTBPCS2C2B | 20 | 120 | - | - |
| OSTBWAS2C1A | 20 | 120 | - | - |
| OSYBA4S2C1A | 20 | 120 | - | - |
| OSYBS4S2C1A | 20 | 120 | - | - |
| OSYGH4S2C1A | 20 | 120 | - | - |
| OSTG3535C2B-B | 20 | 120 | - | - |
| OSTB3806C1A-A | 20 | 120 | - | - |
| OSTCXBSEC1E | 150 | 120 | - | - |
| OST1MAS4C1A | 20 | 120 | - | - |
| OSTCMBS4C1A | 20 | 120 | - | - |
| OSTQMBS4C1A | 20 | 120 | - | - |
| OSFM4BS8C1A | 20 | 140 | 2700-3300 | 2500...3000 |
| OSFW4BS8C1A | 20 | 140 | 5500-7500 | 2500...3000 |
| OSSKCSF55 | 12 | - | - | - |
| OSRP322421E | 20 | 20 | - | - |
| Référence | Luminosité | Luminosité rouge | Luminosité vert | Lum. bleu | Lum. jaune | Lumin. rouge | Lumin. vert | Luminosité bleu | Front | Longueur d'onde λd |
|---|---|---|---|---|---|---|---|---|---|---|
| [mcd] | [mcd] | [mcd] | [mcd] | [mcd] | [lm] | [lm] | [lm] | [nm] | ||
| OSB50603C1E-VV | 120...150 | - | - | - | - | - | - | - | - | 465...475 |
| OSG50603C1E-VV | 550...650 | - | - | - | - | - | - | - | - | 520...530 |
| OSO50603C1E-VV | 120...150 | - | - | - | - | - | - | - | - | 600...610 |
| OSR50603C1E-VV | 120...150 | - | - | - | - | - | - | - | - | 620...630 |
| OSY50603C1E-VV | 120...150 | - | - | - | - | - | - | - | - | 585...595 |
| OSTCXBTHC1E | - | - | - | - | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSRB1608C1C | - | 30...50 | - | 30...50 | - | - | - | - | - | 460...475, 620...630 |
| OSRG1608C1C | - | 30...50 | - | - | 10...15 | - | - | - | - | 565...575, 620...630 |
| OSRP1608C1C | - | 30...50 | 150...200 | - | - | - | - | - | - | 515...530, 620...630 |
| OSRW1608C1C | - | 30...50 | - | - | - | - | - | - | - | 620...630 |
| OSRY1608C1C | - | 30...50 | - | - | 30...50 | - | - | - | - | 585...595, 620...630 |
| OSTB1608C1C-A | - | 100...120 | 200...250 | 80...100 | - | - | - | - | - | 460...475, 515...530, 620...630 |
| OSTB0603C1C-C | - | 20...60 | 80...160 | 30...70 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSRW1615C1C | - | 20...30 | - | - | - | - | - | - | plates | 620...630 |
| OSRB0603C1C | - | 120 | - | 80 | - | - | - | - | - | 460...475, 620...640 |
| OSRG0603C1C | - | 30 | 20 | - | - | - | - | - | - | 565...575, 620...640 |
| OSRP0603C1C | - | 25...70 | 80...200 | - | - | - | - | - | - | 515...525, 620...635 |
| OSTF1616C1C | - | 180...250 | 450...600 | 50...80 | - | - | - | - | - | 465...475, 520...530, 617...630 |
| OSRB0805C1E-0.8T | - | 80...150 | - | 100...150 | - | - | - | - | - | 460...470, 617...630 |
| OSRG0805C1E-0.8T | - | 80...150 | 30...50 | - | - | - | - | - | - | 565...575, 617...630 |
| OSRP0805C1E-0.8T | - | 80...180 | 300...450 | - | - | - | - | - | - | 517...530, 617...630 |
| OSTB0805C1E-A-0.8T | - | 80...180 | 300...450 | 100...150 | - | - | - | - | - | 460...475, 520...530, 617...630 |
| OSTB0805C1C-A | - | 80...150 | 250...450 | 100...200 | - | - | - | - | - | 460...475, 520...530, 620...630 |
| OST10807C1C-C | - | 100...150 | 300...500 | 50...90 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSTB1206C1E-A | - | 100...200 | 400...600 | 100...200 | - | - | - | - | - | 460...475, 520...530, 620...630 |
| OSRB1204C1E | - | 30 | - | 50 | - | - | - | - | - | 460...475, 620...630 |
| OSRP1204C1E | - | 30 | 100 | - | - | - | - | - | - | 515...530, 620...630 |
| OSRB1205C1N | - | 50 | - | 50 | - | - | - | - | plates | 460...465, 620...630 |
| OSRG1205C1N | - | 50 | - | - | 15 | - | - | - | plates | 565...575, 620...630 |
| OSRP1205C1N | - | 50 | 200 | - | - | - | - | - | plates | 515...530, 620...630 |
| OSTB1205C1N-A | - | 50 | 200 | 50 | - | - | - | - | plates | 460...475, 515...530, 620...630 |
| OSYG1205C1N | - | - | 15 | - | 50 | - | - | - | plates | 565...575, 585...595 |
| OSTB1204C1E | - | 100...200 | 350...500 | 100...200 | - | - | - | - | - | 462...472, 515...524, 618...625 |
| OSRB1206C1F | - | 30 | - | 50 | - | - | - | - | - | 460...475, 620...630 |
| OSRG1206C1F | - | 30 | - | - | 15 | - | - | - | - | 565...575, 620...630 |
| OSRP1206C1F | - | 100 | - | - | - | - | - | - | - | 515...530, 620...630 |
| OSRP1206C1N | - | 40 | 120 | - | - | - | - | - | plates | 515...530, 620...630 |
| OSTB1209C1N-A | - | 250 | 500 | 150 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSTB3227C1C-A | - | 100 | 300 | 90 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSRB1206C1C | - | 100...200 | - | 80...150 | - | - | - | - | - | 465...475, 620...630 |
| OSRG1206C1C | - | 100 | 40 | - | - | - | - | - | - | 565...575, 620...630 |
| OSRP1206C1C | - | 100 | 350 | - | - | - | - | - | - | 515...530, 620...630 |
| OSBWSDS5C1A | - | - | - | 220...330 | - | - | - | - | - | 465...475 |
| OSRWRDS5C1A | - | 330...500 | - | - | - | - | - | - | - | 620...630 |
| OSYWRDS5C1A | - | - | - | - | 330...500 | - | - | - | - | 585...595 |
| OSBPS4S2C1A | - | - | 330...600 | 150...200 | - | - | - | - | - | 465...475, 520...530 |
| OSRBA4S2C1A | - | 1560...2180 | - | 750...1120 | - | - | - | - | - | 465...475, 620...630 |
| OSRBS4S2C1A | - | 100...150 | - | 100...130 | - | - | - | - | - | 465...475, 620...630 |
| OSRG51B1S | - | 150...250 | 100...220 | - | - | - | - | - | - | 565...575, 620...630 |
| OSRGH4S2C1A | - | 100...150 | 45...60 | - | - | - | - | - | - | 565...575, 620...630 |
| OSRMD4S2C1A | - | 220...330 | - | - | - | - | - | - | plates | 620...630 |
| OSRPA4S2C1A | - | 1560...2180 | 2180...3000 | - | - | - | - | - | - | 520...530, 620...630 |
| OSRPS4S2C1A | - | 220...300 | 330...600 | - | - | - | - | - | - | 520...530, 620...630 |
| OSRWD4S2C1A | - | 220...330 | - | - | - | - | - | - | - | 620...630 |
| OSRYA4S2C1A | - | 1560...2180 | - | - | 1560...2180 | - | - | - | - | 585...595, 620...630 |
| OSTBMAS2C1A | - | 750...1000 | 750...1120 | 220...400 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSTBPCS2C2B | - | 300...450 | 500...700 | 150...250 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSTBWAS2C1A | - | 400...500 | 750...1120 | 220...330 | - | - | - | - | plates | 465...475, 520...530, 620...630 |
| OSYBA4S2C1A | - | - | - | 750...1120 | 1560...2180 | - | - | - | - | 465...475, 585...595 |
| OSYGH4S2C1A | - | - | 30...50 | - | 100...171 | - | - | - | - | 565...575, 585...595 |
| OSTG3535C2B-B | - | 330...500 | 700...900 | 150...200 | - | - | - | - | - | 460...470, 515...525, 617...625 |
| OSTB3806C1A-A | - | 750...1120 | 1120...1560 | 330...500 | - | - | - | - | - | 465...475, 515...525, 620...630 |
| OSTCXBSEC1E | - | - | - | - | - | 15...20 | 20...30 | 5...10 | - | 460...475, 520...535, 620...630 |
| OST1MAS4C1A | - | 750...1120 | 1120...1560 | 330...500 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSTCMBS4C1A | - | 750...100 | 750...1120 | 220...400 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSTQMBS4C1A | - | 750...900 | 800...1120 | - | 750...900 | - | - | - | - | 520...530, 585...595, 620...630 |
| OSFM4BS8C1A | - | 500...750 | 900...1120 | 330...500 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSFW4BS8C1A | - | 500...750 | 900...1120 | 330...500 | - | - | - | - | - | 465...475, 520...530, 620...630 |
| OSSKCSF55 | - | 200...300(typ)-450 | 450...650(typ)-1000 | 100...170(typ)-250 | - | - | - | - | plates | 460...470, 520...530, 620...630 |
| OSRP322421E | - | 2000 | 1500 | - | - | - | - | - | - | 515...530, 625...635 |
