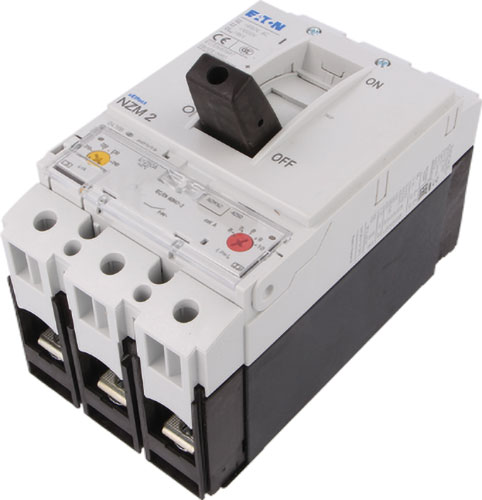

Interrupteurs de puissance de série NZM
| Fabricant | EATON ELECTRIC |
| Type de protection | interrupteur de puissance |
| Montage | à vis |
| Tension de travail maxi. | 690V AC |
| Classe d'étanchéité | IP20 |
| nom commercial | MCCB |
| Série du fabricant | NZM |
| Température de travail | -25...70°C |
| Résistance au court circuit | 50kA |
| Référence | Courant nom. | Déclencheur de surintensité | Déclancheur de court-circuit | Dimension | Produits associés |
|---|---|---|---|---|---|
| [A] | [A] | [A] | |||

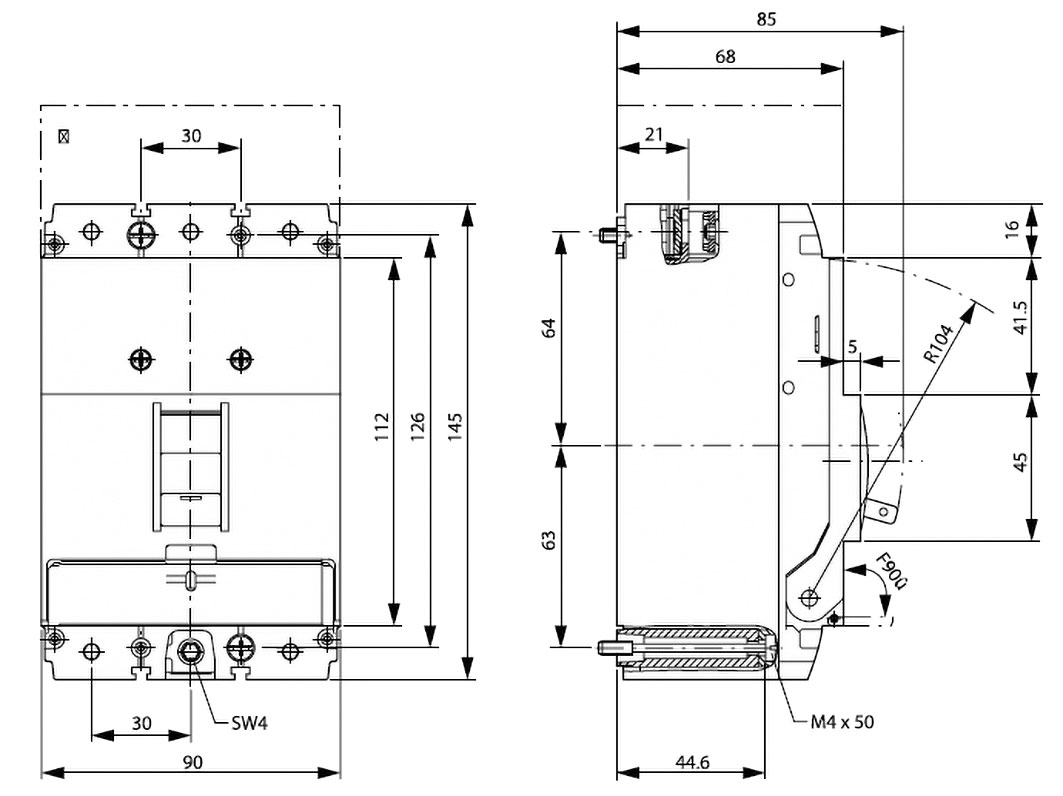

| NZMN1-A40 | 40 | 32...40 | 320...400 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN1-A50 | 50 | 40...50 | 300...500 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN1-A63 | 63 | 50...63 | 380...630 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN1-A80 | 80 | 63...80 | 480...800 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN1-A100 | 100 | 80...100 | 600...1000 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN1-A125 | 125 | 100...125 | 750...1250 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN1-A160 | 160 | 125...160 | 1280 | Graph.1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| NZMN2-A160 | 160 | 125...160 | 960...1600 | Graph.2. | NZM1/2-XV4, NZM1/2-XV6, NZM2-XDV, NZM2-XR208-240AC, NZM2-XTVD, NZM2-XTVDVR, NZM2/3-XA208-250, NZM2/3-XU208-240AC |
| NZMN2-A200 | 200 | 160...200 | 1200...2000 | Graph.2. | NZM1/2-XV4, NZM1/2-XV6, NZM2-XDV, NZM2-XR208-240AC, NZM2-XTVD, NZM2-XTVDVR, NZM2/3-XA208-250, NZM2/3-XU208-240AC |
| NZMN2-A250 | 250 | 200...250 | 1500...2500 | Graph.2. | NZM1/2-XV4, NZM1/2-XV6, NZM2-XDV, NZM2-XR208-240AC, NZM2-XTVD, NZM2-XTVDVR, NZM2/3-XA208-250, NZM2/3-XU208-240AC |

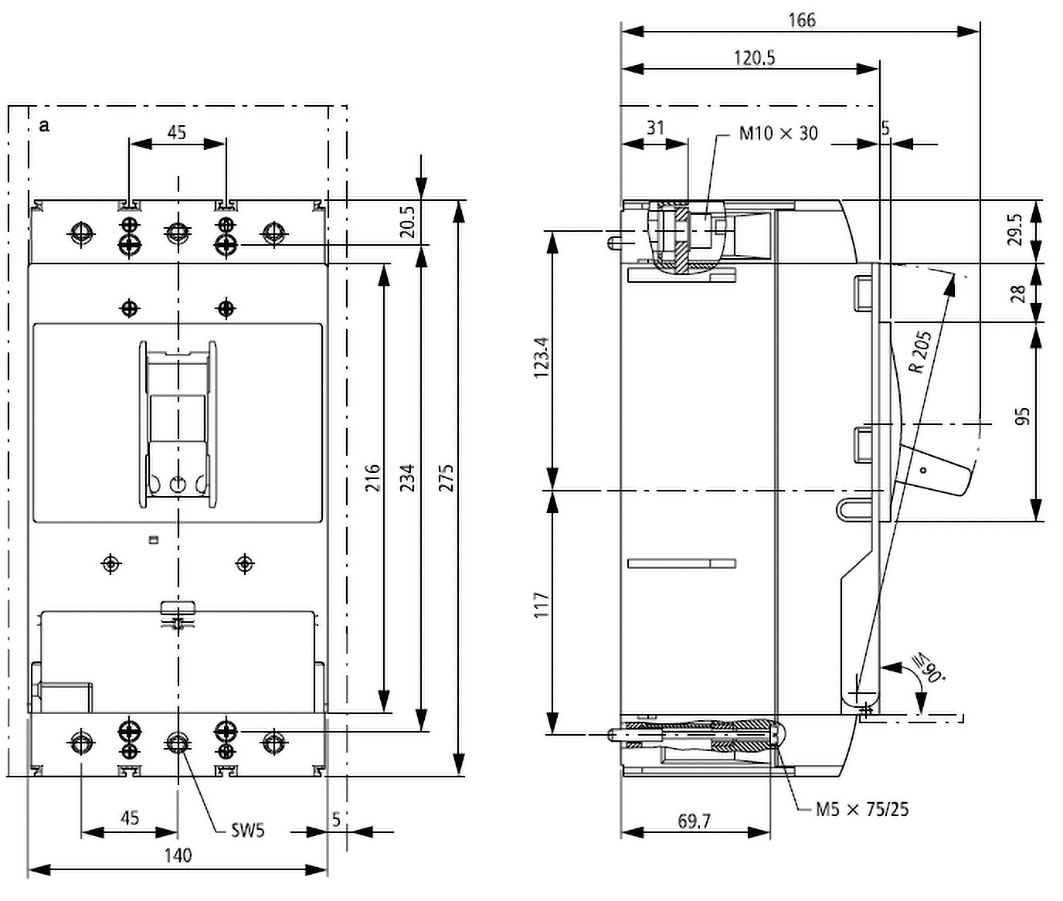

| NZMN3-AE250 | 250 | 125...250 | 500...2750 | Graph.3. | NZM2/3-XA208-250, NZM2/3-XU208-240AC, NZM3-XDV, NZM3-XR208-240AC, NZM3-XTVD, NZM3-XTVDVR, NZM3/4-XV4, NZM3/4-XV6 |
| NZMN3-AE400 | 400 | 200...400 | 800...4400 | Graph.3. | NZM2/3-XA208-250, NZM2/3-XU208-240AC, NZM3-XDV, NZM3-XR208-240AC, NZM3-XTVD, NZM3-XTVDVR, NZM3/4-XV4, NZM3/4-XV6 |
| NZMN3-AE630 | 630 | 315...630 | 1260...5040 | Graph.3. | NZM2/3-XA208-250, NZM2/3-XU208-240AC, NZM3-XDV, NZM3-XR208-240AC, NZM3-XTVD, NZM3-XTVDVR, NZM3/4-XV4, NZM3/4-XV6 |

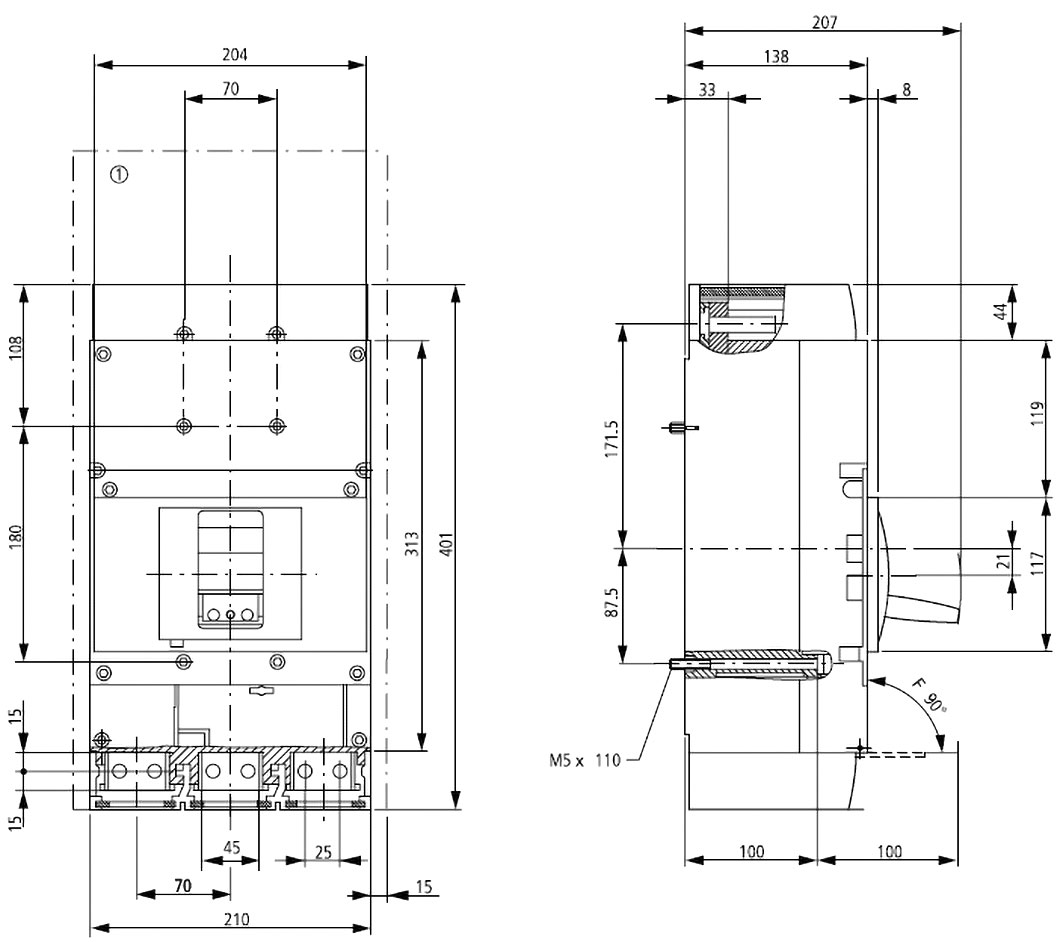

| NZMN4-AE630 | 630 | 315...630 | 1260...7560 | Graph.4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| NZMN4-AE800 | 800 | 400...800 | 1600...9600 | Graph.4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| NZMN4-AE1000 | 1000 | 500...1000 | 2000...12000 | Graph.4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| NZMN4-AE1250 | 1250 | 630...1250 | 2500...15000 | Graph.4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| NZMN4-AE1600 | 1600 | 800...1600 | 3200...19200 | Graph.4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| NZMN3-VE250 | 250 | 125...250 | 500...2750 | Graph.3. | - |
