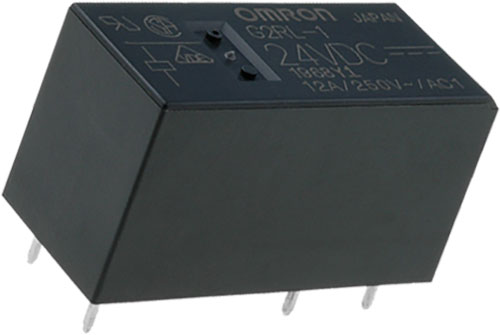

Relais miniatures, série G2RL
| Fabricant | OMRON Electronic Components |
| Type de relais | électromagnétique |
| Version | miniatures |
| Montage | PCB |
| Prises | pour PCB |
| Résistance de broches | 100mΩ |
| Température de travail | -40...85°C |
| Dimension extérieures | 29x12,7x15,7mm |
| Tension de commutation | max. 440V AC |
| Tension de commutation | max. 300V DC |
| Temps de réponse | 15ms |
| Temps de ralentissement | 5ms |
| Série du fabricant | G2RL |
| Référence | Config. contacts | Ude bobine | Rde bobine | Ide bobine | Icontacts maxi | Charge AC @R* | Charge DC @R* | Trame |
|---|---|---|---|---|---|---|---|---|
| [V DC] | [Ω] | [mA] | [A] | [mm] | ||||
| G2RL-1-5DC | SPDT | 5 | 62,5 | 80 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1-12DC | SPDT | 12 | 360 | 33,3 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1-24DC | SPDT | 24 | 1,44k | 16,7 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1-48DC | SPDT | 48 | 53,58 | 8,96 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-14-5DC | SPDT | 5 | 62,5 | 80 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-14-12DC | SPDT | 12 | 360 | 33,3 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-14-24DC | SPDT | 24 | 1,44k | 16,7 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-14-E-5DC | SPDT | 5 | 62,5 | 80 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-14-E-12DC | SPDT | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-14-E-24DC | SPDT | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-14-E-CF-12DC | SPDT | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-14-E-CF-24DC | SPDT | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A-12DC | SPST-NO | 12 | 360 | 33,3 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A-24DC | SPST-NO | 24 | 1,44k | 16,7 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A4-12DC | SPST-NO | 12 | 360 | 33,3 | 12 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A4-E-12DC | SPST-NO | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A4-E-24DC | SPST-NO | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A4-E-48DC | SPST-NO | 48 | 5358 | 8,96 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A-E-5DC | SPST-NO | 5 | 62,5 | 80 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A-E-12DC | SPST-NO | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A-E-24DC | SPST-NO | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A-E-CV-12DC | SPST-NO | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A-E-CV-24DC | SPST-NO | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL1AE2CVHA5DC | SPST-NO | 5 | 62,5 | 80 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL1AE2CVHA12DC | SPST-NO | 12 | 360 | 33,33 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL1AE2CVHA24DC | SPST-NO | 24 | 1,44k | 16,7 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1-E-5DC | SPDT | 5 | 62,5 | 80 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1-E-12DC | SPDT | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1-E-24DC | SPDT | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1-E-48DC | SPDT | 48 | 5358 | 8,96 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1-E-CF-5DC | SPDT | 5 | 62,5 | 80 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1-E-CF-12DC | SPDT | 12 | 360 | 33,3 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1-E-CF-24DC | SPDT | 24 | 1,44k | 16,7 | 16 | 16A / 250V AC | 16A / 24V DC | 5 |
| G2RL-1A-E-HA-5DC | SPST-NO | 5 | 62,5 | 80 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A-E-HA-12DC | SPST-NO | 12 | 360 | 33,33 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A-E-CF-12DC | SPST-NO | 12 | 360 | 33,33 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1A-E-ASI-12DC | SPST-NO | 12 | 360 | 33,33 | 16 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-1-H-12DC | SPDT | 12 | 576 | 20,8 | 10 | 10A / 250V AC | 10A / 24V DC | 3,5 |
| G2RL-1-H-24DC | SPDT | 24 | 2304 | 10,42 | 10 | 10A / 250V AC | 10A / 24V DC | 3,5 |
| G2RL-1A-H-5DC | SPST-NO | 5 | 100 | 50 | 10 | 10A / 250V AC | 10A / 24V DC | 3,5 |
| G2RL-1A-H-12DC | SPST-NO | 12 | 576 | 20,8 | 10 | 10A / 250V AC | 10A / 24V DC | 3,5 |
| G2RL-1A-H-24DC | SPST-NO | 24 | 2304 | 10,42 | 10 | 10A / 250V AC | 10A / 24V DC | 3,5 |
| G2RL-1-HA-12DC | SPDT | 12 | 360 | 33,33 | 10 | 12A / 250V AC | 12A / 24V DC | 3,5 |
| G2RL-2-5DC | DPDT | 5 | 62,5 | 80 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2-12DC | DPDT | 12 | 360 | 33,3 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2-24DC | DPDT | 24 | 1,44k | 16,7 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2-48DC | DPDT | 48 | 5358 | 8,96 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-CF-5DC | DPDT | 5 | 62,5 | 80 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-5DC | DPDT | 5 | 62,5 | 80 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-12DC | DPDT | 12 | 360 | 33,3 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-24DC | DPDT | 24 | 1,44k | 16,7 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-48DC | DPDT | 48 | 5358 | 8,96 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2A-12DC | DPST-NO | 12 | 360 | 33,3 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2-CF-12DC | DPDT | 12 | 360 | 33,3 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-CF-12DC | DPDT | 12 | 360 | 33,33 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-24-CF-24DC | DPDT | 24 | 1,44k | 16,7 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2A-24DC | DPST-NO | 24 | 1,44k | 16,7 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2A4-12DC | DPST-NO | 12 | 360 | 33,33 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2A4-24DC | DPST-NO | 24 | 1,44k | 16,7 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2A4-5DC | DPST-NO | 5 | 62,5 | 80 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2A-5DC | DPST-NO | 5 | 62,5 | 80 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
| G2RL-2-HA-5DC | DPDT | 5 | 62,5 | 80 | 8 | 8A / 250V AC | 8A / 24V DC | 5 |
* avec charge de résistance
Description:
- calfatage hermétique (G2RL-14-xxxDC, G2RL-1A4-xxxDC, G2RL-24-xxxDC, G2RL-2A4-xxDC)
- calfatage standard (G2RL-1-xxxDC, G2RL-1A-xxxDC, G2RL-2-xxxDC, G2RL-2A-xxDC, G2RL1AE2CVHAxxDC)
