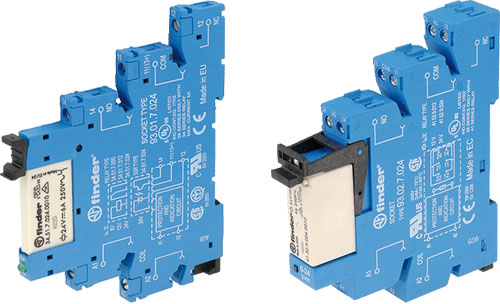

Relé: interfész; FINDER
| Gyártó | FINDER |
| Relé típusa | interfész |
| Verzió | relé készlet |
| Szerelés | DIN sínre |
| Jelzés | LED |
| Szigetelési osztály | IP20 |
| Jelölés | Érint. konf. | Utekercs | Iüzemi max | AC terhelés @R* | DC terhelés @R* | Kapcsolási rajz | Méretek |
|---|---|---|---|---|---|---|---|
| [A] | |||||||

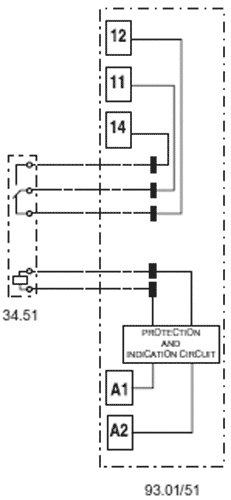

| 38.51.0.012.006 | SPDT | 12V AC, 12V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.0.024.006 | SPDT | 24V AC, 24V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.61.0.024.0060 | SPDT | 24V AC, 24V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-2. |
| 38.51.0.048.006 | SPDT | 48V AC, 48V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.0.060.006 | SPDT | 60V AC, 60V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.0.125.006 | SPDT | 125V AC, 125V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.0.240.006 | SPDT | 220V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.7.006.005 | SPDT | 6V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.7.012.005 | SPDT | 12V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.7.012.5050 | SPDT | 12V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.7.024.005 | SPDT | 24V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.7.048.005 | SPDT | 48V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |
| 38.51.7.060.005 | SPDT | 60V DC | 6 | 6A / 250V AC | 6A / 30V DC | Ábra 1-1. | Ábra 2-1. |

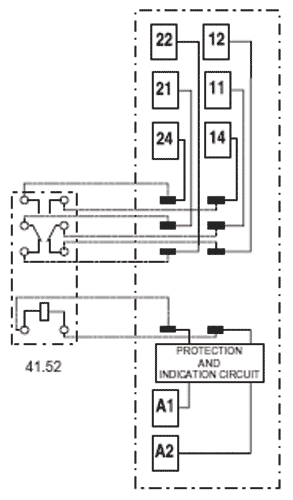

| 38.52.0.012.006 | DPDT | 12V AC, 12V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.0.024.006 | DPDT | 24V AC, 24V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.0.048.006 | DPDT | 48V AC, 48V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.0.060.006 | DPDT | 60V AC, 60V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.0.125.006 | DPDT | 125V AC, 125V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.0.240.006 | DPDT | 240V AC, 240V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.7.012.005 | DPDT | 12V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.7.024.005 | DPDT | 24V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.7.048.005 | DPDT | 48V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.52.7.060.005 | DPDT | 60V DC | 8 | 8A / 250V AC | 8A / 30V DC | Ábra 1-2. | Ábra 2-3. |
| 38.81.7.006.9024 | SPST-NO | 6V DC | 6 | - | 2A / 24V DC | Ábra 1-3. | Ábra 2-1. |
| 38.81.7.024.7048 | SPST-NO | 24V DC | 0,1 | - | 0,1A / 48V DC | Ábra 1-3. | Ábra 2-1. |
| 38.81.7.024.8240 | SPST-NO | 24V DC | 2 | 2A / 240V AC | - | Ábra 1-3. | Ábra 2-1. |
| 38.81.7.024.9024 | SPST-NO | 24V DC | 2 | - | 2A / 24V DC | Ábra 1-3. | Ábra 2-1. |
| 38.81.7.060.7048 | SPST-NO | 60V DC | 0,1 | - | 0,1A / 48V DC | Ábra 1-3. | Ábra 2-1. |
| 38.81.7.060.8240 | SPST-NO | 60V DC | 2 | 2A / 240V AC | - | Ábra 1-3. | Ábra 2-1. |
| 38.81.7.060.9024 | SPST-NO | 60V DC | 6 | - | 2A / 24V DC | Ábra 1-3. | Ábra 2-1. |
* rezisztív terhelés esetén
Kivezetések:
- csavaros szorító (38.61.0.024.0060)
- csavaros szorítók (38.5xxx, 38.81.7.0xxx)
Átkapcsolási feszültség:
- 12...240V AC (38.81.7.024.8240, 38.81.7.060.8240)
- max. 400V AC (38.5xxx, 38.61.0.024.0060)
Kapcsolási feszültség:
- max. 220V DC (38.5xxx, 38.61.0.024.0060)
- 1,5...24V DC (38.81.7.0xx.9024)
- 1,5...48V DC (38.81.7.024.7048, 38.81.7.060.7048)
Külső méretek:

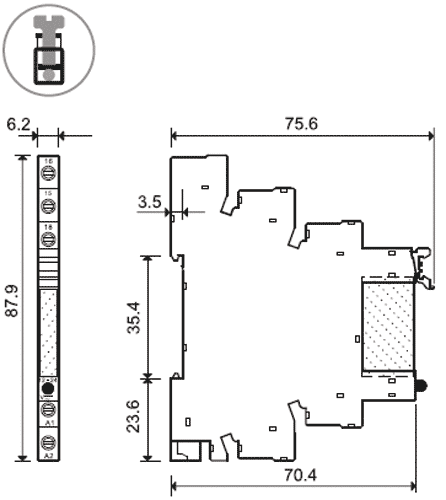

- 87,9x6,2x75,6mm (38.51.xxx, 38.81.7.0xxx)

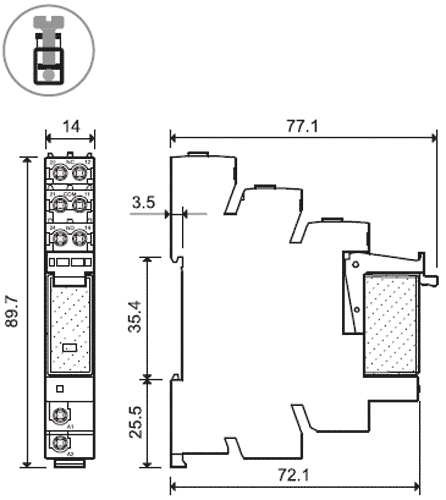

- 89,7x14x77,1mm (38.52.xxx)

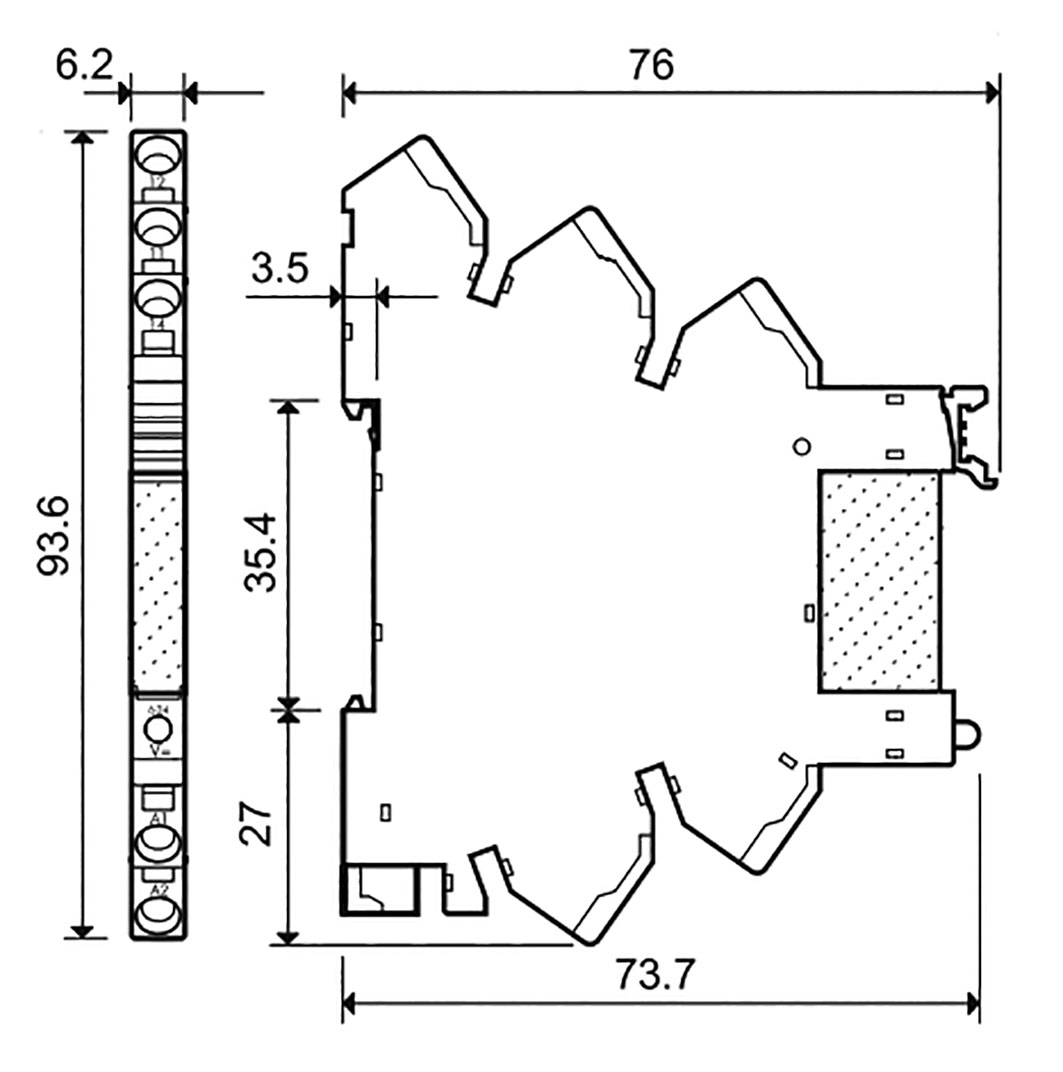

- 93,6x6,2x76mm (38.61.0.024.0060)
Üzemi hőm.:
- -40...70°C (38.5xxx, 38.61.0.024.0060)
- -20...55°C (38.81.7.0xxx)
A készlet tartalma:
- 34.51.7.005.0010 (38.51.7.006.005)
- 34.51.7.012.0010 (38.51.0.012.006, 38.51.7.012.005)
- 34.51.7.024.0010 (38.51.0.024.006, 38.51.7.024.005, 38.61.0.024.0060)
- 34.51.7.048.0010 (38.51.0.048.006, 38.51.7.048.005)
- 34.51.7.060.0010 (38.51.0.060.006, 38.51.0.125.006, 38.51.0.240.006, 38.51.7.060.005)
- 34.81.7.005.9024 (38.81.7.006.9024)
- 34.81.7.024.7048 (38.81.7.024.7048)
- 34.81.7.024.8240 (38.81.7.024.8240)
- 34.81.7.024.9024 (38.81.7.024.9024)
- 34.81.7.060.7048 (38.81.7.060.7048)
- 34.81.7.060.8240 (38.81.7.060.8240)
- 34.81.7.060.9024 (38.81.7.060.9024)
- 41.52.9.012.0010 (38.52.7.012.005)
- 41.52.9.024.0010 (38.52.0.012.006, 38.52.0.024.006, 38.52.7.024.005)
- 41.52.9.048.0010 (38.52.0.048.006, 38.52.7.048.005)
- 41.52.9.060.0010 (38.52.0.060.006, 38.52.7.060.005)
- 41.52.9.110.0010 (38.52.0.125.006, 38.52.0.240.006)
- 93.01.0.024 (38.51.0.012.006, 38.51.0.024.006)
- 93.01.0.060 (38.51.0.048.006, 38.51.0.060.006)
- 93.01.0.125 (38.51.0.125.006)
- 93.01.0.240 (38.51.0.240.006)
- 93.01.7.024 (38.51.7.006.005, 38.51.7.012.005, 38.51.7.024.005, 38.81.7.0xxx)
- 93.01.7.060 (38.51.7.048.005)
- 93.01.8.240 (38.51.7.060.005)
- 93.02.0.024 (38.52.0.012.006, 38.52.0.024.006)
- 93.02.0.060 (38.52.0.048.006, 38.52.0.060.006)
- 93.02.0.125 (38.52.0.125.006)
- 93.02.0.240 (38.52.0.240.006)
- 93.02.7.024 (38.52.7.012.005, 38.52.7.024.005)
- 93.02.7.060 (38.52.7.048.005, 38.52.7.060.005)
- 93.51.0.024 (38.61.0.024.0060)
Gyártói sorozat:
- 38.51 (38.51.xxx)
- 38.61 (38.61.0.024.0060)
- 38.52 (38.52.xxx)
- 38.81 (38.81.7.0xxx)
