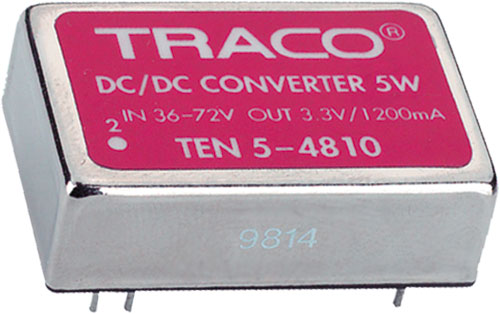

Convertitore: DC/DC; TEN; TRACO POWER
| Produttore | TRACO POWER |
| Tipo di convertitore | DC/DC |
| Serie del produttore | TEN |
| Simbolo | Cassa | Potenza | Numero uscite | Tensione d'ingresso | Tensione d'uscita | Corrente d'uscita | Tensione d'uscita 2 | Corrente di uscita 2 | Efficienza |
|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [mA] | [V DC] | [mA] | [%] | |||
| TEN3-0510 | DIP24 | 3 | 1 | 4,5...9 | 3,3 | 600 | - | - | 70 |
| TEN3-0511 | DIP24 | 3 | 1 | 4,5...9 | 5 | 500 | - | - | 73 |
| TEN3-0512 | DIP24 | 3 | 1 | 4,5...9 | 12 | 250 | - | - | 77 |
| TEN3-0513 | DIP24 | 3 | 1 | 4,5...9 | 15 | 200 | - | - | 77 |
| TEN3-0521 | DIP24 | 3 | 2 | 4,5...9 | 5 | 250 | -5 | 250 | 72 |
| TEN3-0522 | DIP24 | 3 | 2 | 4,5...9 | 12 | 125 | -12 | 125 | 75 |
| TEN3-0523 | DIP24 | 3 | 2 | 4,5...9 | 15 | 100 | -15 | 100 | 75 |
| TEN3-1210 | DIP24 | 3 | 1 | 9...18 | 3,3 | 600 | - | - | 74 |
| TEN3-1211 | DIP24 | 3 | 1 | 9...18 | 5 | 500 | - | - | 78 |
| TEN3-1212 | DIP24 | 3 | 1 | 9...18 | 12 | 250 | - | - | 82 |
| TEN3-1213 | DIP24 | 3 | 1 | 9...18 | 15 | 200 | - | - | 82 |
| TEN3-1221 | DIP24 | 3 | 2 | 9...18 | 5 | 250 | -5 | 250 | 77 |
| TEN3-1222 | DIP24 | 3 | 2 | 9...18 | 12 | 125 | -12 | 125 | 80 |
| TEN3-1223 | DIP24 | 3 | 2 | 9...18 | 15 | 100 | -15 | 100 | 80 |
| TEN3-2410 | DIP24 | 3 | 1 | 18...36 | 3,3 | 600 | - | - | 76 |
| TEN3-2411 | DIP24 | 3 | 1 | 18...36 | 5 | 500 | - | - | 79 |
| TEN3-2412 | DIP24 | 3 | 1 | 18...36 | 12 | 250 | - | - | 84 |
| TEN3-2413 | DIP24 | 3 | 1 | 18...36 | 15 | 200 | - | - | 84 |
| TEN3-2421 | DIP24 | 3 | 2 | 18...36 | 5 | 250 | -5 | 250 | 79 |
| TEN3-2422 | DIP24 | 3 | 2 | 18...36 | 12 | 125 | -12 | 125 | 82 |
| TEN3-2423 | DIP24 | 3 | 2 | 18...36 | 15 | 100 | -15 | 100 | 82 |
| TEN3-4810 | DIP24 | 3 | 1 | 36...72 | 3,3 | 600 | - | - | 76 |
| TEN3-4811 | DIP24 | 3 | 1 | 36...72 | 5 | 500 | - | - | 79 |
| TEN3-4813 | DIP24 | 3 | 1 | 36...72 | 15 | 200 | - | - | 84 |
| TEN3-4821 | DIP24 | 3 | 2 | 36...72 | 5 | 250 | -5 | 250 | 80 |
| TEN3-4822 | DIP24 | 3 | 2 | 36...72 | 12 | 125 | -12 | 125 | 84 |
| TEN3-4823 | DIP24 | 3 | 2 | 36...72 | 15 | 100 | -15 | 100 | 84 |
| TEN4-2411 | DIP24 | 4 | 1 | 9...36 | 5 | 660 | - | - | 81 |
| TEN5-0510 | DIP24 | 5 | 1 | 4,5...7 | 3,3 | 1200 | - | - | 75 |
| TEN5-0511 | DIP24 | 5 | 1 | 4,5...7 | 5 | 1000 | - | - | 79 |
| TEN5-0512 | DIP24 | 5 | 1 | 4,5...7 | 12 | 500 | - | - | 82 |
| TEN5-0513 | DIP24 | 5 | 1 | 4,5...7 | 15 | 400 | - | - | 82 |
| TEN5-0521 | DIP24 | 5 | 2 | 4,5...7 | 5 | 500 | -5 | -500 | 79 |
| TEN5-0522 | DIP24 | 5 | 2 | 4,5...7 | 12 | 250 | -12 | -250 | 82 |
| TEN5-0523 | DIP24 | 5 | 2 | 4,5...7 | 15 | 200 | -15 | -200 | 82 |
| TEN5-1210 | DIP24 | 5 | 1 | 9...18 | 3,3 | 1200 | - | - | 77 |
| TEN5-1211 | DIP24 | 5 | 1 | 9...18 | 5 | 1000 | - | - | 81 |
| TEN5-1212 | DIP24 | 5 | 1 | 9...18 | 12 | 500 | - | - | 84 |
| TEN5-1213 | DIP24 | 5 | 1 | 9...18 | 15 | 400 | - | - | 84 |
| TEN5-1222 | DIP24 | 5 | 2 | 9...18 | 12 | 250 | -12 | -250 | 84 |
| TEN5-1223 | DIP24 | 5 | 2 | 9...18 | 15 | 200 | -15 | -200 | 84 |
| TEN5-2410 | DIP24 | 5 | 1 | 18...36 | 3,3 | 1200 | - | - | 79 |
| TEN5-2411 | DIP24 | 5 | 1 | 18...36 | 5 | 1000 | - | - | 83 |
| TEN5-2412 | DIP24 | 5 | 1 | 18...36 | 12 | 500 | - | - | 86 |
| TEN5-2413 | DIP24 | 5 | 1 | 18...36 | 15 | 400 | - | - | 86 |
| TEN5-2421 | DIP24 | 5 | 2 | 18...36 | 5 | 500 | -5 | -500 | 83 |
| TEN5-2422 | DIP24 | 5 | 2 | 18...36 | 12 | 250 | -12 | -250 | 86 |
| TEN5-2423 | DIP24 | 5 | 2 | 18...36 | 15 | 200 | -15 | -200 | 86 |
| TEN5-4810 | DIP24 | 5 | 1 | 36...75 | 3,3 | 1200 | - | - | 79 |
| TEN5-4811 | DIP24 | 5 | 1 | 36...75 | 5 | 1000 | - | - | 83 |
| TEN5-4812 | DIP24 | 5 | 1 | 36...75 | 12 | 500 | - | - | 86 |
| TEN5-4813 | DIP24 | 5 | 1 | 36...75 | 15 | 400 | - | - | 86 |
| TEN5-4822 | DIP24 | 5 | 2 | 36...75 | 12 | 250 | -12 | -250 | 86 |
| TEN5-4823 | DIP24 | 5 | 2 | 36...75 | 15 | 200 | -15 | -200 | 86 |
| TEN8-1210 | DIP24 | 8 | 1 | 9...18 | 3,3 | 2000 | - | - | 80 |
| TEN8-1211 | DIP24 | 8 | 1 | 9...18 | 5 | 1500 | - | - | 83 |
| TEN8-1212 | DIP24 | 8 | 1 | 9...18 | 12 | 665 | - | - | 88 |
| TEN8-1213 | DIP24 | 8 | 1 | 9...18 | 15 | 535 | - | - | 87 |
| TEN8-1221 | DIP24 | 8 | 2 | 9...18 | 5 | 800 | -5 | 800 | 83 |
| TEN8-1222 | DIP24 | 8 | 2 | 9...18 | 12 | 335 | -12 | 335 | 87 |
| TEN8-1223 | DIP24 | 8 | 2 | 9...18 | 15 | 265 | -15 | 265 | 85 |
| TEN8-2410 | DIP24 | 8 | 1 | 18...36 | 3,3 | 2000 | - | - | 80 |
| TEN8-2411 | DIP24 | 8 | 1 | 18...36 | 5 | 1500 | - | - | 83 |
| TEN8-2412 | DIP24 | 8 | 1 | 18...36 | 12 | 665 | - | - | 86 |
| TEN8-2413 | DIP24 | 8 | 1 | 18...36 | 15 | 535 | - | - | 85 |
| TEN8-2421 | DIP24 | 8 | 2 | 18...36 | 5 | 800 | -5 | 800 | 82 |
| TEN8-2422 | DIP24 | 8 | 2 | 18...36 | 12 | 335 | -12 | 335 | 86 |
| TEN8-2423 | DIP24 | 8 | 2 | 18...36 | 15 | 265 | -15 | 265 | 85 |
| TEN8-4810 | DIP24 | 8 | 1 | 36...75 | 3,3 | 2000 | - | - | 80 |
| TEN8-4811 | DIP24 | 8 | 1 | 36...75 | 5 | 1500 | - | - | 83 |
| TEN8-4812 | DIP24 | 8 | 1 | 36...75 | 12 | 650 | - | - | 86 |
| TEN8-4813 | DIP24 | 8 | 1 | 36...75 | 15 | 535 | - | - | 86 |
| TEN8-4821 | DIP24 | 8 | 2 | 36...75 | 5 | 800 | -5 | 800 | 85 |
| TEN8-4822 | DIP24 | 8 | 2 | 36...75 | 12 | 335 | -12 | 335 | 87 |
| TEN8-4823 | DIP24 | 8 | 2 | 36...75 | 15 | 265 | -15 | 265 | 87 |
| TEN10-1210 | - | 10 | 1 | 9...18 | 3,3 | 2400 | - | - | 72 |
| TEN10-1211 | - | 10 | 1 | 9...18 | 5 | 2000 | - | - | 77 |
| TEN10-1212 | - | 10 | 1 | 9...18 | 12 | 830 | - | - | 80 |
| TEN10-1213 | - | 10 | 1 | 9...18 | 15 | 670 | - | - | 80 |
| TEN10-1215 | - | 10 | 1 | 9...18 | 24 | 415 | - | - | 81 |
| TEN10-1221 | - | 10 | 2 | 9...18 | 5 | 1000 | -5 | 1000 | 78 |
| TEN10-1222 | - | 10 | 2 | 9...18 | 12 | 415 | -12 | 415 | 81 |
| TEN10-1223 | - | 10 | 2 | 9...18 | 15 | 330 | -15 | 330 | 80 |
| TEN10-2410 | - | 10 | 1 | 18...36 | 3,3 | 2400 | - | - | 76 |
| TEN10-2411 | - | 10 | 1 | 18...36 | 5 | 2000 | - | - | 78 |
| TEN10-2412 | - | 10 | 1 | 18...36 | 12 | 830 | - | - | 82 |
| TEN10-2413 | - | 10 | 1 | 18...36 | 15 | 670 | - | - | 82 |
| TEN10-2415 | - | 10 | 1 | 18...36 | 24 | 415 | - | - | 83 |
| TEN10-2421 | - | 10 | 2 | 18...36 | 5 | 1000 | -5 | 1000 | 80 |
| TEN10-2422 | - | 10 | 2 | 18...36 | 12 | 415 | -12 | 415 | 82 |
| TEN10-2423 | - | 10 | 2 | 18...36 | 15 | 330 | -15 | 330 | 82 |
| TEN10-4810 | - | 10 | 1 | 36...75 | 3,3 | 2400 | - | - | 76 |
| TEN10-4811 | - | 10 | 1 | 36...75 | 5 | 2000 | - | - | 80 |
| TEN10-4812 | - | 10 | 1 | 36...75 | 12 | 830 | - | - | 82 |
| TEN10-4813 | - | 10 | 1 | 36...75 | 15 | 670 | - | - | 83 |
| TEN10-4815 | - | 10 | 1 | 36...75 | 24 | 415 | - | - | 83 |
| TEN10-4821 | - | 10 | 2 | 36...75 | 5 | 1000 | -5 | 1000 | 81 |
| TEN10-4822 | - | 10 | 2 | 36...75 | 12 | 415 | -12 | 415 | 83 |
| TEN10-4823 | - | 10 | 2 | 36...75 | 15 | 330 | -15 | 330 | 83 |
| TEN12-2411 | - | 12 | 1 | 9...36 | 5 | 2000 | - | - | 82 |
| TEN12-2412 | - | 12 | 1 | 9...36 | 12 | 1000 | - | - | 84 |
| TEN12-2413 | - | 12 | 1 | 9...36 | 15 | 800 | - | - | 84 |
| TEN12-2421 | - | 12 | 2 | 9...36 | 5 | 1000 | -5 | 1000 | 82 |
| TEN12-2422 | - | 12 | 2 | 9...36 | 12 | 500 | -12 | 500 | 84 |
| TEN12-2423 | - | 12 | 2 | 9...36 | 15 | 400 | -15 | 400 | 84 |
| TEN12-4810 | - | 12 | 1 | 18...75 | 3,3 | 2400 | - | - | 78 |
| TEN12-4811 | - | 12 | 1 | 18...75 | 5 | 2000 | - | - | 82 |
| TEN12-4812 | - | 12 | 1 | 18...75 | 12 | 1000 | - | - | 84 |
| TEN12-4813 | - | 12 | 1 | 18...75 | 15 | 800 | - | - | 84 |
| TEN12-4821 | - | 12 | 2 | 18...75 | 5 | 1000 | -5 | 1000 | 82 |
| TEN12-4822 | - | 12 | 2 | 18...75 | 12 | 500 | -12 | 500 | 84 |
| TEN12-4823 | - | 12 | 2 | 18...75 | 15 | 400 | -15 | 400 | 84 |
| TEN15-1210 | - | 15 | 1 | 9...18 | 3,3 | 4000 | - | - | 79 |
| TEN15-1211 | - | 15 | 1 | 9...18 | 5 | 3000 | - | - | 82 |
| TEN15-1212 | - | 15 | 1 | 9...18 | 12 | 1250 | - | - | 86 |
| TEN15-1213 | - | 15 | 1 | 9...18 | 15 | 1000 | - | - | 86 |
| TEN15-1221 | - | 15 | 2 | 9...18 | 5 | 1500 | -5 | 1500 | 83 |
| TEN15-1222 | - | 15 | 2 | 9...18 | 12 | 625 | -12 | 625 | 86 |
| TEN15-1223 | - | 15 | 2 | 9...18 | 15 | 500 | -15 | 500 | 84 |
| TEN15-2412 | - | 15 | 1 | 18...36 | 12 | 1250 | - | - | 85 |
| TEN15-2413 | - | 15 | 1 | 18...36 | 15 | 1000 | - | - | 85 |
| TEN15-2421 | - | 15 | 2 | 18...36 | 5 | 1500 | -5 | 1500 | 84 |
| TEN15-2422 | - | 15 | 2 | 18...36 | 12 | 625 | -12 | 625 | 86 |
| TEN15-2423 | - | 15 | 2 | 18...36 | 15 | 500 | -15 | 500 | 86 |
| TEN15-4810 | - | 15 | 1 | 36...75 | 3,3 | 4000 | - | - | 81 |
| TEN15-4811 | - | 15 | 1 | 36...75 | 5 | 3000 | - | - | 83 |
| TEN15-4812 | - | 15 | 1 | 36...75 | 12 | 1250 | - | - | 87 |
| TEN15-4813 | - | 15 | 1 | 36...75 | 15 | 1000 | - | - | 86 |
| TEN15-4821 | - | 15 | 2 | 36...75 | 5 | 1500 | -5 | 1500 | 85 |
| TEN15-4822 | - | 15 | 2 | 36...75 | 12 | 625 | -12 | 625 | 88 |
| TEN15-4823 | - | 15 | 2 | 36...75 | 15 | 500 | -15 | 500 | 87 |
| TEN20-1210 | - | 20 | 1 | 9...18 | 3,3 | 4000 | - | - | 81 |
| TEN20-1211 | - | 20 | 1 | 9...18 | 5 | 4000 | - | - | 84 |
| TEN20-1212 | - | 20 | 1 | 9...18 | 12 | 1670 | - | - | 88 |
| TEN20-1213 | - | 20 | 1 | 9...18 | 15 | 1340 | - | - | 88 |
| TEN20-1222 | - | 20 | 2 | 9...18 | 12 | 835 | -12 | 835 | 88 |
| TEN20-1223 | - | 20 | 2 | 9...18 | 15 | 670 | -15 | 670 | 88 |
| TEN20-2410 | - | 20 | 1 | 18...36 | 3,3 | 4000 | - | - | 82 |
| TEN20-2412 | - | 20 | 1 | 18...36 | 12 | 1670 | - | - | 89 |
| TEN20-2413 | - | 20 | 1 | 18...36 | 15 | 1340 | - | - | 89 |
| TEN20-2422 | - | 20 | 2 | 18...36 | 12 | 835 | -12 | 835 | 89 |
| TEN20-2423 | - | 20 | 2 | 18...36 | 15 | 670 | -15 | 670 | 89 |
| TEN20-4810 | - | 20 | 1 | 36...75 | 3,3 | 4000 | - | - | 82 |
| TEN20-4811 | - | 20 | 1 | 36...75 | 5 | 4000 | - | - | 85 |
| TEN20-4812 | - | 20 | 1 | 36...75 | 12 | 1670 | - | - | 89 |
| TEN20-4813 | - | 20 | 1 | 36...75 | 15 | 1340 | - | - | 89 |
| TEN20-4822 | - | 20 | 2 | 36...75 | 12 | 835 | -12 | 835 | 89 |
| TEN20-4823 | - | 20 | 2 | 36...75 | 15 | 670 | -15 | 670 | 89 |
| TEN25-1210 | - | 25 | 1 | 9...18 | 3,3 | 5500 | - | - | 81 |
| TEN25-1211 | - | 25 | 1 | 9...18 | 5 | 5000 | - | - | 84 |
| TEN25-1212 | - | 25 | 1 | 9...18 | 12 | 2500 | - | - | 88 |
| TEN25-1213 | - | 25 | 1 | 9...18 | 15 | 2000 | - | - | 88 |
| TEN25-1222 | - | 25 | 2 | 9...18 | 12 | 1250 | -12 | 1250 | 88 |
| TEN25-1223 | - | 25 | 2 | 9...18 | 15 | 1000 | -15 | 1000 | 88 |
| TEN25-2410 | - | 25 | 1 | 18...36 | 3,3 | 5500 | - | - | 82 |
| TEN25-2411 | - | 25 | 1 | 18...36 | 5 | 5000 | - | - | 85 |
| TEN25-2412 | - | 25 | 1 | 18...36 | 12 | 2500 | - | - | 89 |
| TEN25-2413 | - | 25 | 1 | 18...36 | 15 | 2000 | - | - | 89 |
| TEN25-2422 | - | 25 | 2 | 18...36 | 12 | 1250 | -12 | 1250 | 89 |
| TEN25-2423 | - | 25 | 2 | 18...36 | 15 | 1000 | -15 | 1000 | 89 |
| TEN25-4811 | - | 25 | 1 | 36...75 | 5 | 5000 | - | - | 85 |
| TEN25-4812 | - | 25 | 1 | 36...75 | 12 | 2500 | - | - | 89 |
| TEN25-4813 | - | 25 | 1 | 36...75 | 15 | 2000 | - | - | 89 |
| TEN25-4822 | - | 25 | 2 | 36...75 | 12 | 1250 | -12 | 1250 | 89 |
| TEN25-4823 | - | 25 | 2 | 36...75 | 15 | 1000 | -15 | 1000 | 89 |
| TEN30-1210 | - | 30 | 1 | 9...18 | 3,3 | 8000 | - | - | 85 |
| TEN30-1211 | - | 30 | 1 | 9...18 | 5,1 | 6000 | - | - | 87 |
| TEN30-1212 | - | 30 | 1 | 9...18 | 12 | 2500 | - | - | 89 |
| TEN30-1213 | - | 30 | 1 | 9...18 | 15 | 2000 | - | - | 89 |
| TEN30-1221 | - | 30 | 2 | 9...18 | 5 | 3000 | -5 | 3000 | 87 |
| TEN30-1222 | - | 30 | 2 | 9...18 | 12 | 1250 | -12 | 1250 | 87 |
| TEN30-1223 | - | 30 | 2 | 9...18 | 15 | 1000 | -15 | 1000 | 87 |
| TEN30-2410 | - | 30 | 1 | 18...36 | 3,3 | 8000 | - | - | 87 |
| TEN30-2411 | - | 30 | 1 | 18...36 | 5,1 | 6000 | - | - | 90 |
| TEN30-2412 | - | 30 | 1 | 18...36 | 12 | 2500 | - | - | 91 |
| TEN30-2413 | - | 30 | 1 | 18...36 | 15 | 2000 | - | - | 91 |
| TEN30-2421 | - | 30 | 2 | 18...36 | 5 | 3000 | -5 | 3000 | 90 |
| TEN30-2422 | - | 30 | 2 | 18...36 | 12 | 1250 | -12 | 1250 | 89 |
| TEN30-2423 | - | 30 | 2 | 18...36 | 15 | 1000 | -15 | 1000 | 90 |
| TEN30-4810 | - | 30 | 1 | 36...75 | 3,3 | 7500 | - | - | 87 |
| TEN30-4811 | - | 30 | 1 | 36...75 | 5,1 | 6000 | - | - | 89 |
| TEN30-4812 | - | 30 | 1 | 36...75 | 12 | 2500 | - | - | 91 |
| TEN30-4813 | - | 30 | 1 | 36...75 | 15 | 2000 | - | - | 91 |
| TEN30-4821 | - | 30 | 2 | 36...75 | 5 | 3000 | -5 | 3000 | 90 |
| TEN30-4822 | - | 30 | 2 | 36...75 | 12 | 1250 | -12 | 1250 | 88 |
| TEN30-4823 | - | 30 | 2 | 36...75 | 15 | 1000 | -15 | 1000 | 89 |
| TEN40-1210 | - | 40 | 1 | 9...18 | 3,3 | 8000 | - | - | 86 |
| TEN40-1211 | - | 40 | 1 | 9...18 | 5 | 8000 | - | - | 86 |
| TEN40-1212 | - | 40 | 1 | 9...18 | 12 | 3300 | - | - | 86 |
| TEN40-1222 | - | 40 | 2 | 9...18 | 12 | 1800 | -12 | 1800 | 85 |
| TEN40-1223 | - | 40 | 2 | 9...18 | 15 | 1400 | -15 | 1400 | 85 |
| TEN40-2410 | - | 40 | 1 | 18...36 | 3,3 | 8000 | - | - | 87 |
| TEN40-2411 | - | 40 | 1 | 18...36 | 5 | 8000 | - | - | 89 |
| TEN40-2412 | - | 40 | 1 | 18...36 | 12 | 3300 | - | - | 88 |
| TEN40-2422 | - | 40 | 2 | 18...36 | 12 | 1800 | -12 | 1800 | 87 |
| TEN40-2423 | - | 40 | 2 | 18...36 | 15 | 1400 | -15 | 1400 | 87 |
| TEN40-4810 | - | 40 | 1 | 36...75 | 3,3 | 8000 | - | - | 88 |
| TEN40-4811 | - | 40 | 1 | 36...75 | 5 | 8000 | - | - | 90 |
| TEN40-4812 | - | 40 | 1 | 36...75 | 12 | 3300 | - | - | 89 |
| TEN40-4822 | - | 40 | 2 | 36...75 | 12 | 1800 | -12 | 1800 | 87 |
| TEN40-4823 | - | 40 | 2 | 36...75 | 15 | 1400 | -15 | 1400 | 87 |
| TEN50-1210 | - | 50 | 1 | 9...18 | 3,3 | 10000 | - | - | 89 |
| TEN50-1211 | - | 50 | 1 | 9...18 | 5 | 10000 | - | - | 90 |
| TEN50-1212 | - | 50 | 1 | 9...18 | 12 | 4170 | - | - | 91 |
| TEN50-1213 | - | 50 | 1 | 9...18 | 15 | 3330 | - | - | 91 |
| TEN50-1215 | - | 50 | 1 | 9...18 | 24 | 2080 | - | - | 91 |
| TEN50-2410 | - | 50 | 1 | 18...36 | 3,3 | 10000 | - | - | 89 |
| TEN50-2411 | - | 50 | 1 | 18...36 | 5 | 10000 | - | - | 92 |
| TEN50-2412 | - | 50 | 1 | 18...36 | 12 | 4170 | - | - | 92 |
| TEN50-2413 | - | 50 | 1 | 18...36 | 15 | 3330 | - | - | 92 |
| TEN50-2415 | - | 50 | 1 | 18...36 | 24 | 2080 | - | - | 91 |
| TEN50-4810 | - | 50 | 1 | 36...75 | 3,3 | 10000 | - | - | 89 |
| TEN50-4811 | - | 50 | 1 | 36...75 | 5 | 10000 | - | - | 92 |
| TEN50-4812 | - | 50 | 1 | 36...75 | 12 | 4170 | - | - | 92 |
| TEN50-4813 | - | 50 | 1 | 36...75 | 15 | 3330 | - | - | 92 |
| TEN50-4815 | - | 50 | 1 | 36...75 | 24 | 2080 | - | - | 91 |
| TEN60-2410 | - | 60 | 1 | 18...36 | 3,3 | 14000 | - | - | 89 |
| TEN60-2411 | - | 60 | 1 | 18...36 | 5 | 12000 | - | - | 90 |
| TEN60-2412 | - | 60 | 1 | 18...36 | 12 | 5000 | - | - | 90 |
| TEN60-2413 | - | 60 | 1 | 18...36 | 15 | 4000 | - | - | 90 |
| TEN60-2415 | - | 60 | 1 | 18...36 | 24 | 2500 | - | - | 89 |
| TEN60-4810 | - | 60 | 1 | 36...75 | 3,3 | 14000 | - | - | 89 |
| TEN60-4811 | - | 60 | 1 | 36...75 | 5 | 12000 | - | - | 90 |
| TEN60-4812 | - | 60 | 1 | 36...75 | 12 | 5000 | - | - | 90 |
| TEN60-4813 | - | 60 | 1 | 36...75 | 15 | 4000 | - | - | 90 |
| TEN60-4815 | - | 60 | 1 | 36...75 | 24 | 2500 | - | - | 89 |
| TEN3-11010WIRH | DIP24 | 3 | 1 | 36...160 | 3,3 | 1000 | - | - | 80 |
| TEN3-11011WIRH | DIP24 | 3 | 1 | 36...160 | 5 | 600 | - | - | 82 |
| TEN3-11012WIRH | DIP24 | 3 | 1 | 36...160 | 12 | 250 | - | - | 85 |
| TEN3-11013WIRH | DIP24 | 3 | 1 | 36...160 | 15 | 200 | - | - | 84 |
| TEN3-11015WIRH | DIP24 | 3 | 1 | 36...160 | 24 | 125 | - | - | 85 |
| TEN3-11021WIRH | DIP24 | 3 | 2 | 36...160 | 5 | 300 | -5 | -300 | 81 |
| TEN3-11022WIRH | DIP24 | 3 | 2 | 36...160 | 12 | 125 | -12 | -125 | 84 |
| TEN3-11023WIRH | DIP24 | 3 | 2 | 36...160 | -15 | 100 | -15 | -100 | 85 |
| TEN6-11010WIRH | DIP24 | 6 | 1 | 36...160 | 3,3 | 1800 | - | - | 83 |
| TEN6-11011WIRH | DIP24 | 6 | 1 | 36...160 | 5 | 1200 | - | - | 86 |
| TEN6-11012WIRH | DIP24 | 6 | 1 | 36...160 | 12 | 500 | - | - | 87 |
| TEN6-11013WIRH | DIP24 | 6 | 1 | 36...160 | 15 | 400 | - | - | 86 |
| TEN6-11015WIRH | DIP24 | 6 | 1 | 36...160 | 24 | 250 | - | - | 86 |
| TEN6-11021WIRH | DIP24 | 6 | 2 | 36...160 | 5 | 600 | -5 | 600 | 83 |
| TEN6-11022WIRH | DIP24 | 6 | 2 | 36...160 | 12 | 250 | -12 | 250 | 86 |
| TEN6-11023WIRH | DIP24 | 6 | 2 | 36...160 | 15 | 200 | -15 | 200 | 86 |
| TEN10-11010WIRH | DIP24 | 10 | 1 | 36...160 | 3,3 | 2500 | - | - | 83 |
| TEN10-11011WIRH | DIP24 | 10 | 1 | 36...160 | 5,1 | 2000 | - | - | 87 |
| TEN10-11012WIRH | DIP24 | 10 | 1 | 36...160 | 12 | 830 | - | - | 88 |
| TEN10-11013WIRH | DIP24 | 10 | 1 | 36...160 | 15 | 670 | - | - | 88 |
| TEN10-11015WIRH | DIP24 | 10 | 1 | 36...160 | 24 | 416 | - | - | 88 |
| TEN10-11021WIRH | DIP24 | 10 | 2 | 36...160 | 5 | 1000 | -5 | 1000 | 84 |
| TEN10-11022WIRH | DIP24 | 10 | 2 | 36...160 | 12 | 416 | -12 | 416 | 87 |
| TEN10-11023WIRH | DIP24 | 10 | 2 | 36...160 | 15 | 333 | -15 | 333 | 87 |
| TEN20-11011WIRH | - | 20 | 1 | 36...160 | 5,1 | 4000 | - | - | 91 |
| TEN20-11012WIRH | - | 20 | 1 | 36...160 | 12 | 1670 | - | - | 89 |
| TEN20-11013WIRH | - | 20 | 1 | 36...160 | 15 | 1330 | - | - | 90 |
| TEN20-11015WIRH | - | 20 | 1 | 36...160 | 24 | 833 | - | - | 89 |
| TEN20-11021WIRH | - | 20 | 2 | 36...160 | 5 | 2000 | -5 | 2000 | 86 |
| TEN20-11022WIRH | - | 20 | 2 | 36...160 | 12 | 833 | -12 | 833 | 89 |
| TEN20-11023WIRH | - | 20 | 2 | 36...160 | 15 | 667 | -15 | 667 | 90 |
| TEN40-11011WIRH | - | 40 | 1 | 36...160 | 5,1 | 8000 | - | - | 88 |
| TEN40-11012WIRH | - | 40 | 1 | 36...160 | 12 | 3330 | - | - | 89 |
| TEN40-11013WIRH | - | 40 | 1 | 36...160 | 15 | 2666 | - | - | 90 |
| TEN40-11015WIRH | - | 40 | 1 | 36...160 | 24 | 1666 | - | - | 89 |
| TEN40-11022WIRH | - | 40 | 2 | 36...160 | 12 | 1666 | -12 | 1666 | 88 |
| TEN40-11023WIRH | - | 40 | 2 | 36...160 | 15 | 1333 | -15 | 1333 | 89 |
Protezione:
- protezione di sovraccarico OPP (TEN3-05xx, TEN3-12xx, TEN3-24xx, TEN3-48xx, TEN30-xxx, TEN4-2411, TEN40-12xx, TEN40-24xx, TEN40-48xx, TEN5-xxx, TEN8-xxx, TEN10-12xx, TEN10-24xx, TEN10-48xx, TEN12-xxx, TEN15-xxx, TEN60-xxx)
- protezione di sovracorrente OVP (TEN15-xxx, TEN10-110xxWIRH, TEN25-xxx, TEN20-110xxWIRH, TEN40-xxx, TEN6xxx, TEN3-110xxWIRH)
- anticortocircuito SCP
- surriscaldamento OTP (TEN40-xxx, TEN6xxx, TEN3-110xxWIRH, TEN10-110xxWIRH, TEN20-110xxWIRH)
- abbassamento di tensione BOP (TENxxxWIRH)
Temperatura di lavoro:
- -40...70°C (TEN40-110xxWIRH)
- -40...75°C (TEN4-2411, TEN40-12xx, TEN40-24xx, TEN40-48xx)
- -40...85°C (TEN3-05xx, TEN3-12xx, TEN3-24xx, TEN3-48xx, TEN30-xxx, TEN5xxx, TEN8-xxx, TEN1xxx, TEN2xxx, TEN6xxx)
- -40...95°C (TEN3-110xxWIRH)
Uisol:
- 1500V (TEN3-05xx, TEN3-12xx, TEN3-24xx, TEN3-48xx, TEN30-xxx, TEN4-2411, TEN40-12xx, TEN40-24xx, TEN40-48xx, TEN5xxx, TEN8-xxx, TEN10-12xx, TEN10-24xx, TEN10-48xx, TEN12-xxx, TEN15-xxx, TEN20-12xx, TEN20-24xx, TEN20-48xx, TEN25-xxx)
- 1600V (TEN60-xxx)
- 3000V (TENxxxWIRH)
Freq. com.:
- 300kHz (TEN3-05xx, TEN3-12xx, TEN3-24xx, TEN3-48xx, TEN5-xxx, TEN8-xxx, TEN10-xxx, TEN15-122x, TEN15-242x, TEN15-482x, TEN40-12xx, TEN40-24xx, TEN40-48xx, TEN6-11011WIRH, TEN6-11012WIRH, TEN6-11013WIRH, TEN6-11015WIRH, TEN6-1102xWIRH)
- 350kHz (TEN4-2411)
- 400kHz (TEN12-xxx)
- 500kHz (TEN15-121x, TEN15-2412, TEN15-2413, TEN15-481x)
- 330kHz (TEN20-12xx, TEN20-24xx, TEN20-48xx, TEN25-xxx)
- 430kHz (TEN30-xxx)
- 320kHz (TEN50-xxx)
- 300Hz (TEN60-xxx)
- 240kHz (TEN3-110xxWIRH, TEN6-11010WIRH)
- 270kHz (TEN20-110xxWIRH)
- 275kHz (TEN40-110xxWIRH)
Dim. est.:
- 31,8x20,3x10,2mm (TEN3-05xx, TEN3-12xx, TEN3-24xx, TEN3-48xx, TEN4-2411, TEN5-xxx, TEN8-xxx)
- 31,8x20,3x10,6mm (TEN3-110xxWIRH, TEN6-110xxWIRH, TEN10-110xxWIRH)
- 40,6x25,4x10,2mm (TEN20-110xxWIRH)
- 50,8x25,4x10,2mm (TEN10-12xx, TEN10-24xx, TEN10-48xx, TEN12-xxx, TEN15-xxx, TEN20-12xx, TEN20-24xx, TEN20-48xx, TEN30-xxx, TEN40-110xxWIRH)
- 50,8x25,4x11mm (TEN50-xxx)
- 50,8x40,6x9,5mm (TEN25-xxx)
- 50,8x50,8x10,2mm (TEN40-12xx, TEN40-24xx, TEN40-48xx, TEN60-xxx)

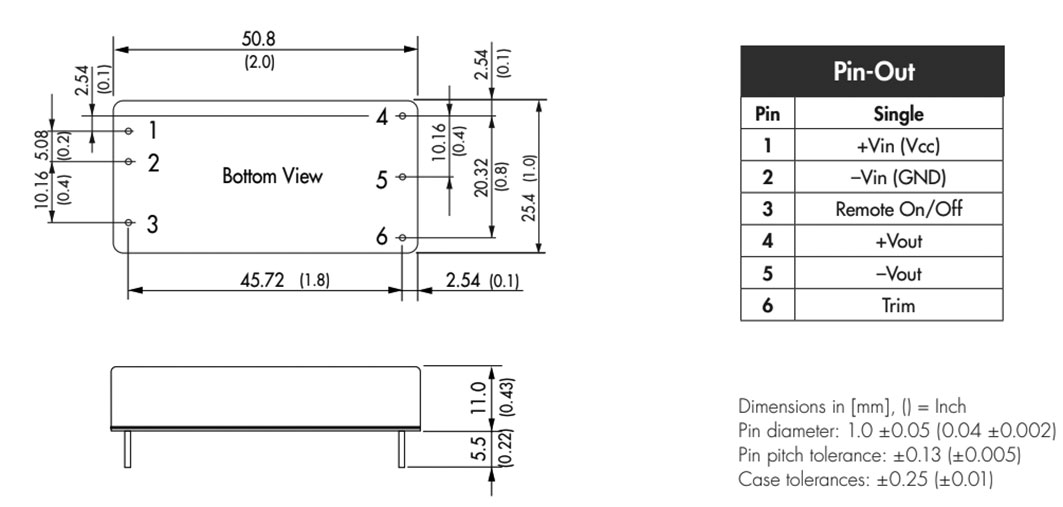

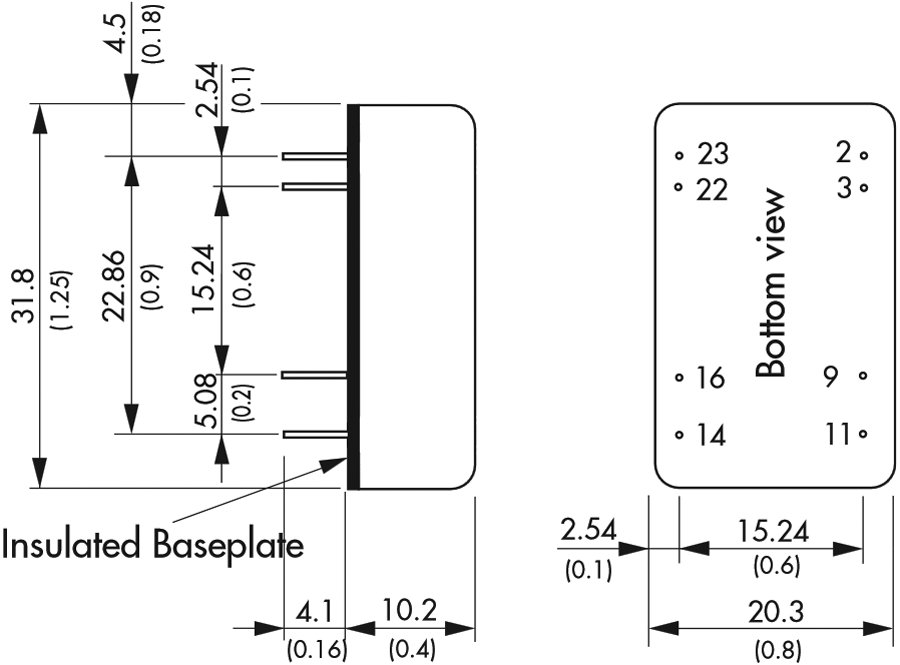

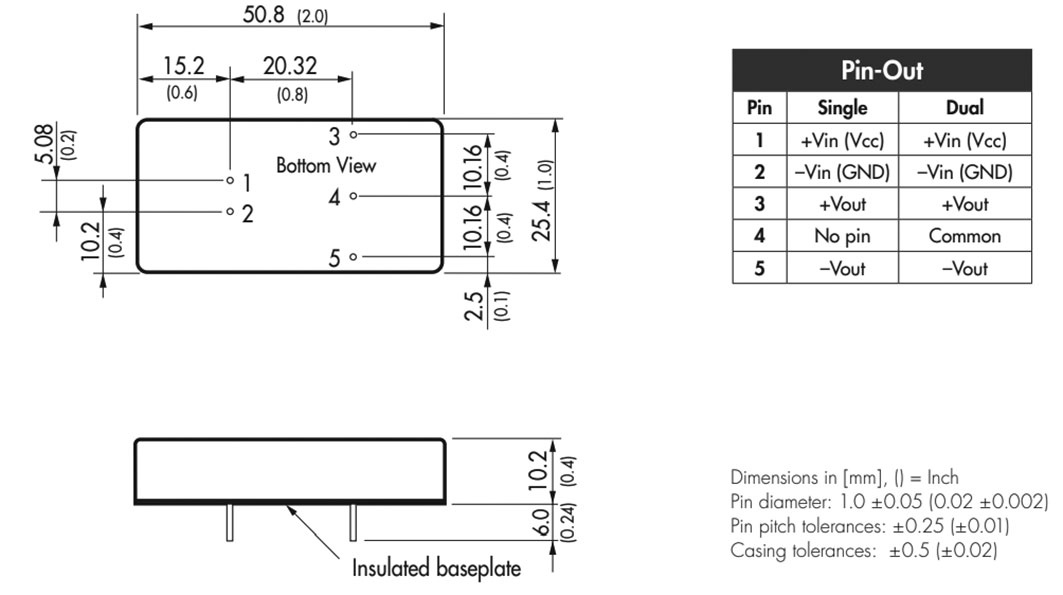

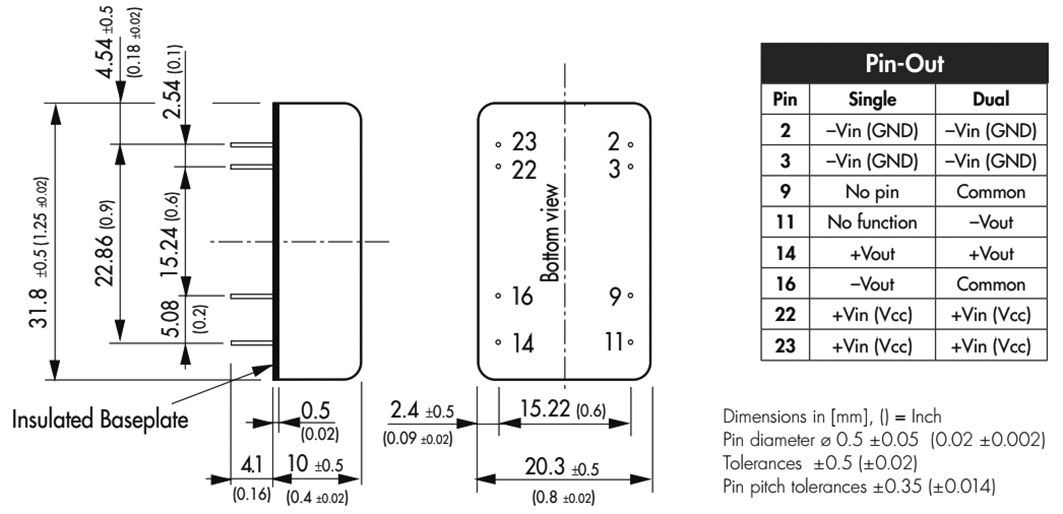

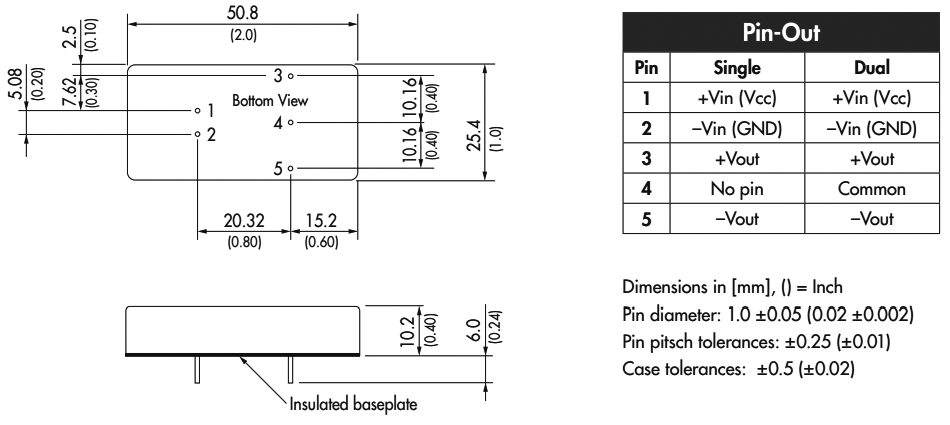

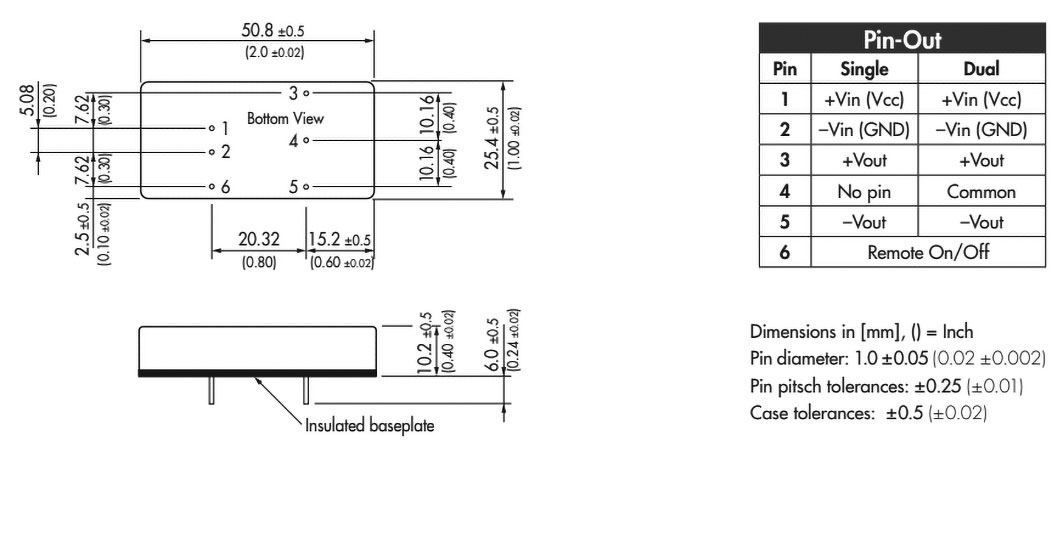

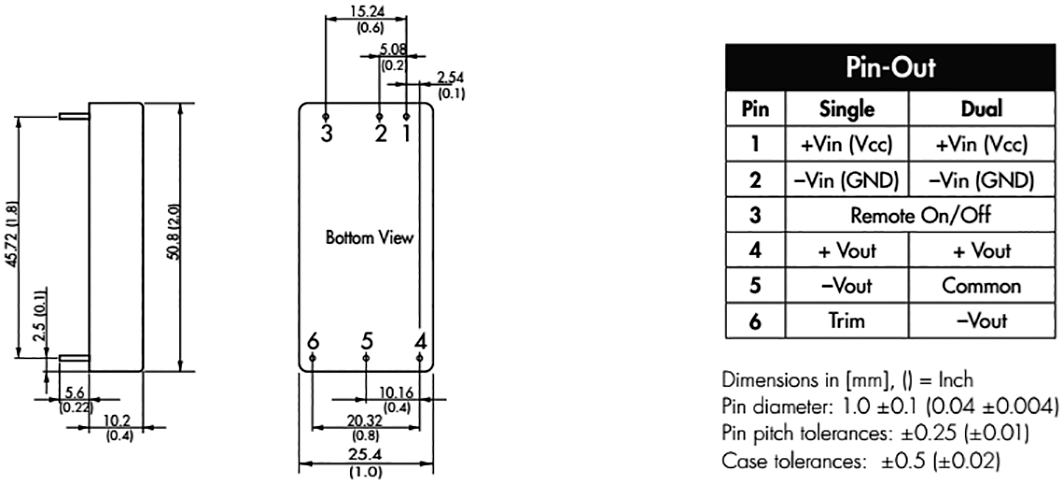

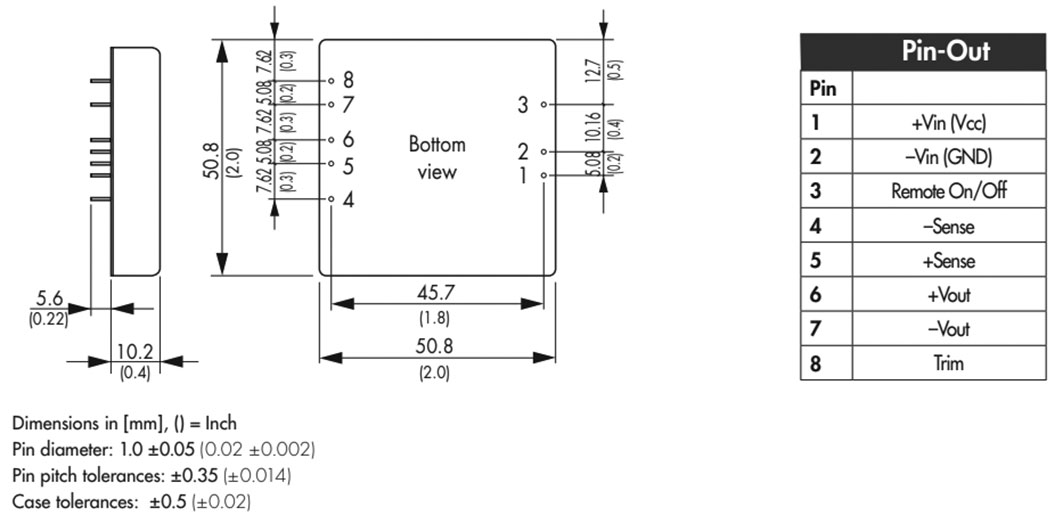

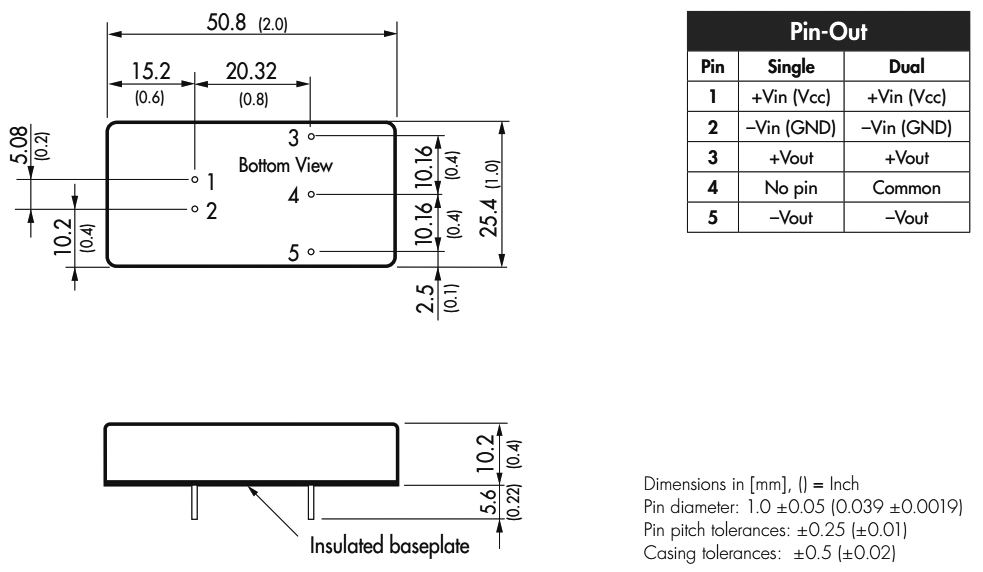

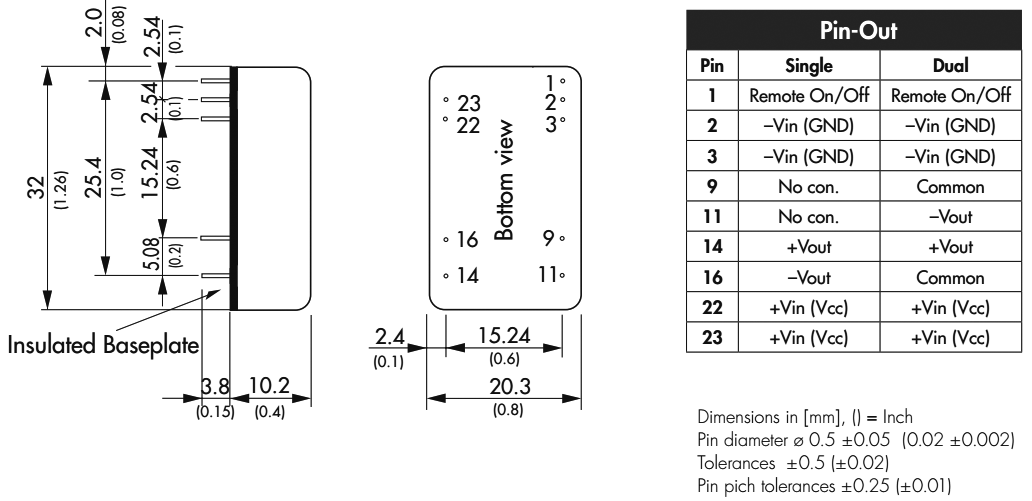

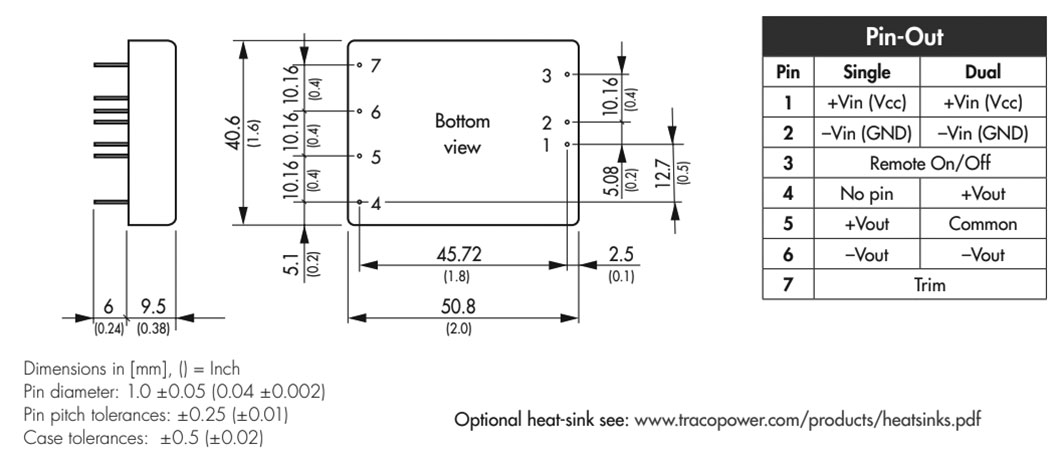

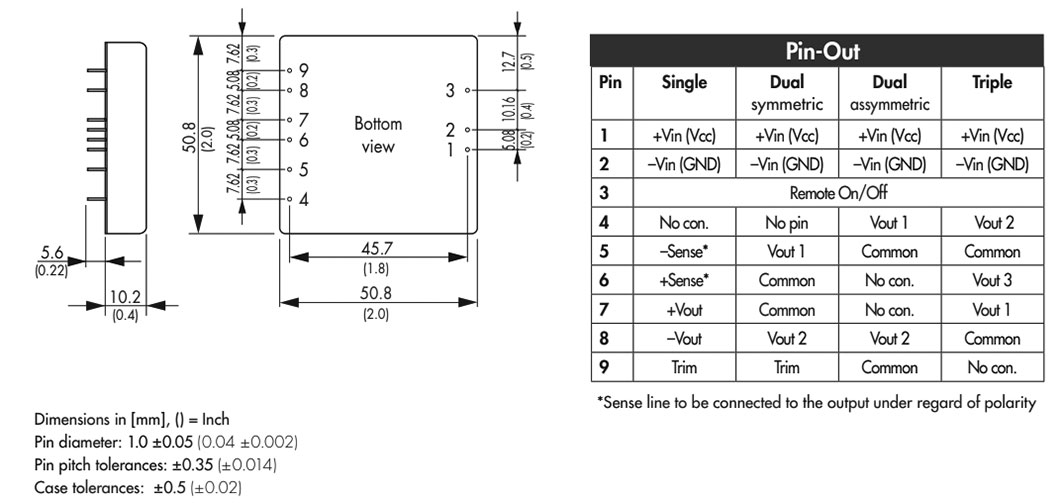

Dimensioni:
- Diseg.1. (TEN3-05xx, TEN3-12xx, TEN3-24xx, TEN3-48xx)
- Diseg.2. (TEN4-2411)
- Diseg.3. (TEN5-xxx)
- Diseg.4. (TEN8-xxx)
- Diseg.5. (TEN10-12xx, TEN10-24xx, TEN10-48xx)
- Diseg.6. (TEN12-xxx)
- Diseg.7. (TEN15-xxx)
- Diseg.8. (TEN20-12xx, TEN20-24xx, TEN20-48xx)
- Diseg.9. (TEN25-xxx)
- Diseg.10. (TEN30-xxx)
- Diseg.11. (TEN40-12xx, TEN40-24xx, TEN40-48xx)
- Diseg.12. (TEN50-xxx)
- Diseg.13. (TEN60-xxx)

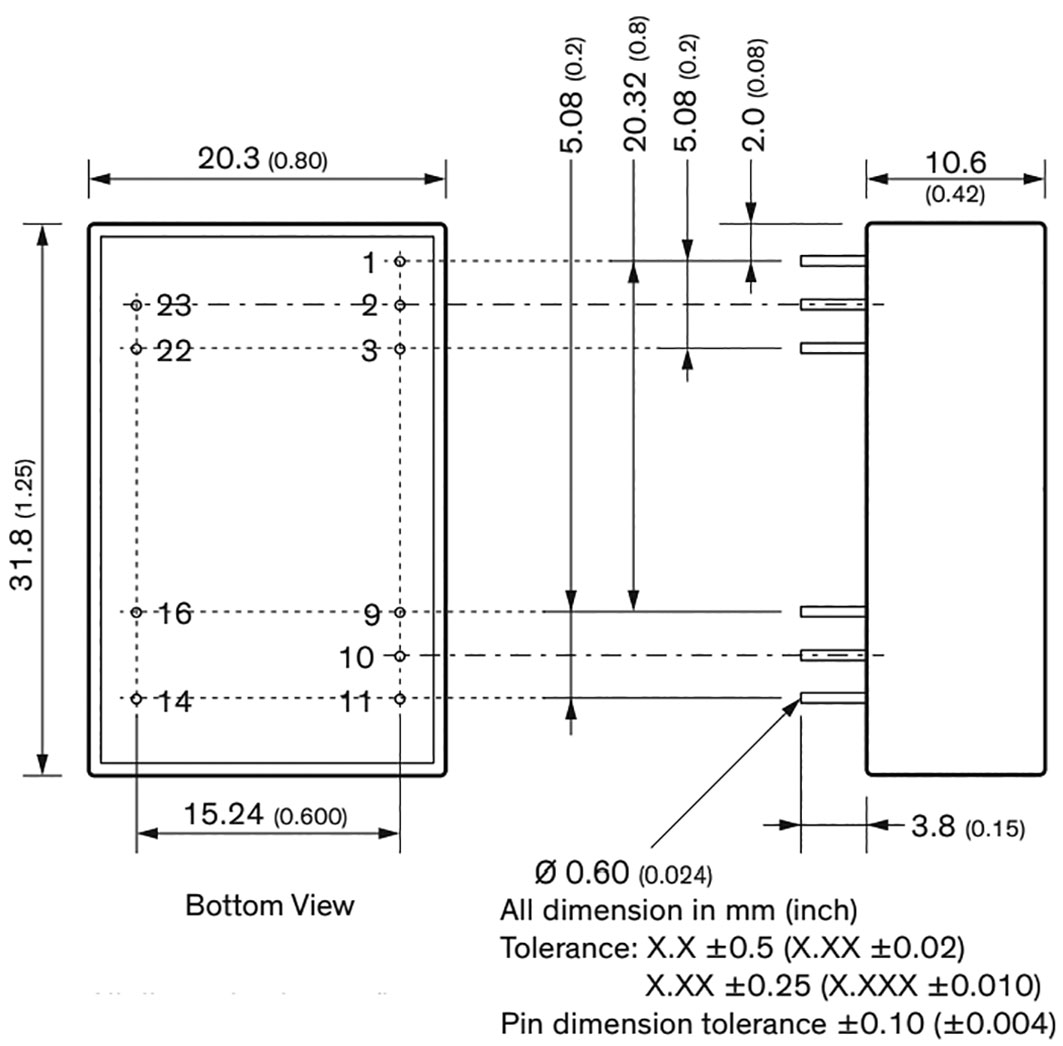

- Diseg.14. (TEN3-110xxWIRH, TEN6-110xxWIRH, TEN10-110xxWIRH)

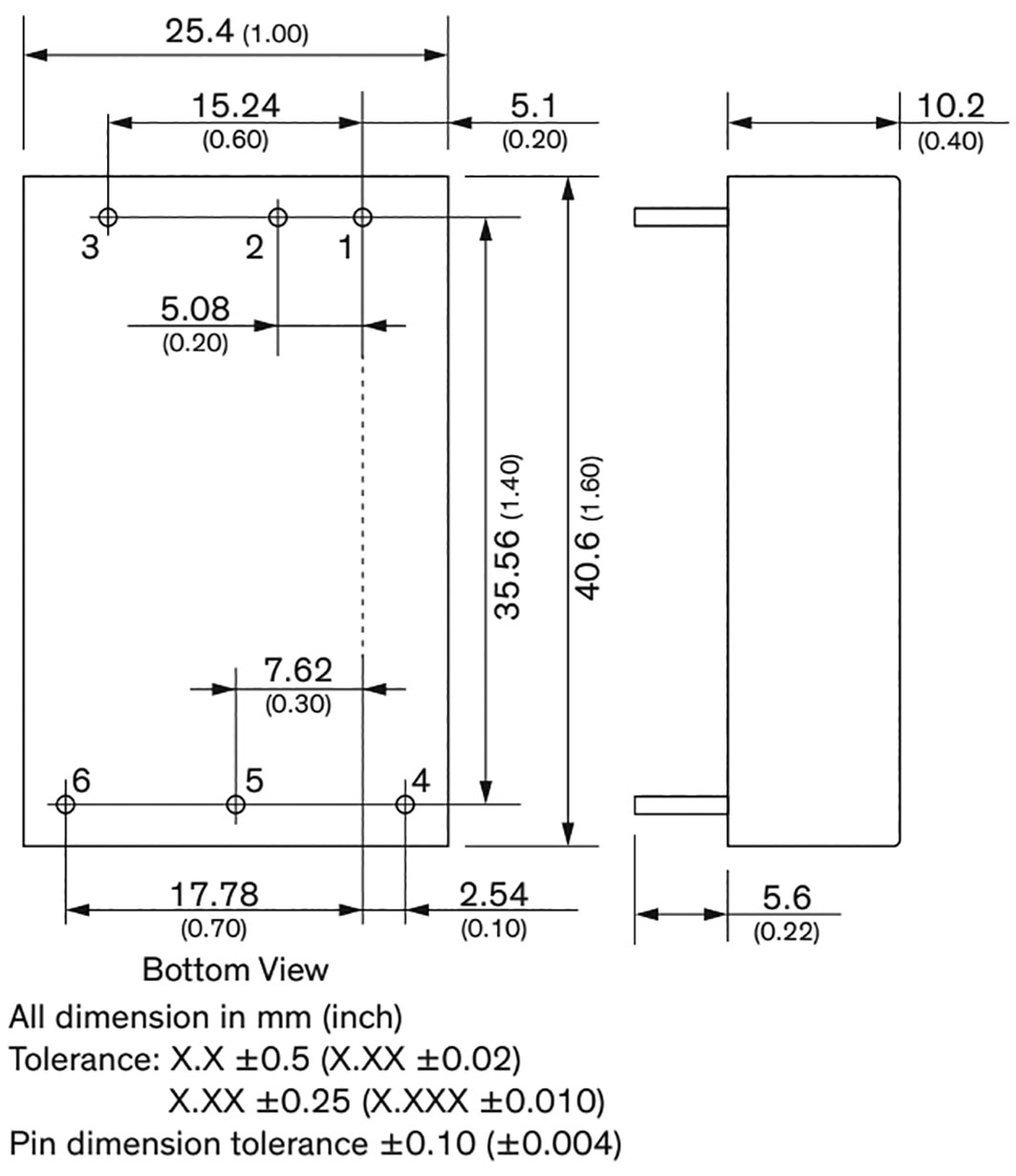

- Diseg.15. (TEN20-110xxWIRH)

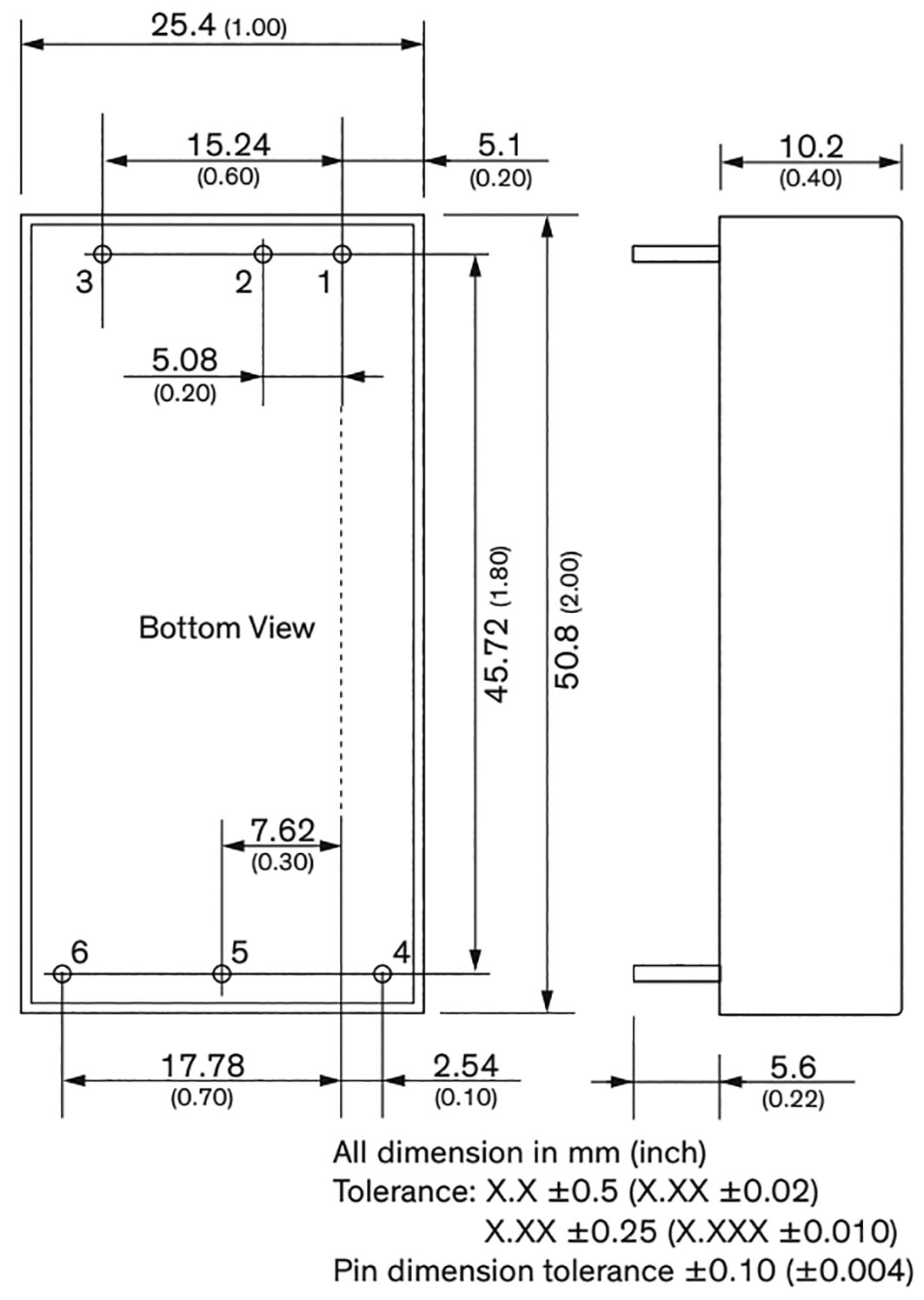

- Diseg.16. (TEN40-110xxWIRH)
Applicazione:
- settore ferroviario (TENxxxWIRH)
Conformita con la norma:
- EN 50155 (TENxxxWIRH)
Montaggio:
- PCB (TEN3-11010WIRH, TEN20-11013WIRH, TEN20-11015WIRH)
- SMT (TEN40-1211)
- THT (TEN3-05xx, TEN3-12xx, TEN3-11011WIRH, TEN3-11012WIRH, TEN3-11013WIRH, TEN3-11015WIRH, TEN3-1102xWIRH, TEN3-24xx, TEN3-48xx, TEN30-12xx, TEN30-24xx, TEN30-4812, TEN30-4813, TEN30-482x, TEN4-2411, TEN40-1210, TEN40-1212, TEN40-1222, TEN40-1223, TEN40-110xxWIRH, TEN40-24xx, TEN40-48xx, TEN5xxx, TEN8-xxx, TEN1xxx, TEN20-12xx, TEN20-11011WIRH, TEN20-11012WIRH, TEN20-1102xWIRH, TEN20-24xx, TEN20-48xx, TEN25-xxx, TEN6xxx)
Dimensioni:
- 2"x1" (TEN10-12xx, TEN10-24xx, TEN10-48xx, TEN12-xxx, TEN15-xxx, TEN20-12xx, TEN20-24xx, TEN20-48xx, TEN30-xxx, TEN50-xxx)
- 2"x1,6" (TEN25-xxx)
- 2"x2" (TEN40-12xx, TEN40-24xx, TEN40-48xx, TEN60-xxx)
- 1,6"x1" (TEN20-110xxWIRH)
