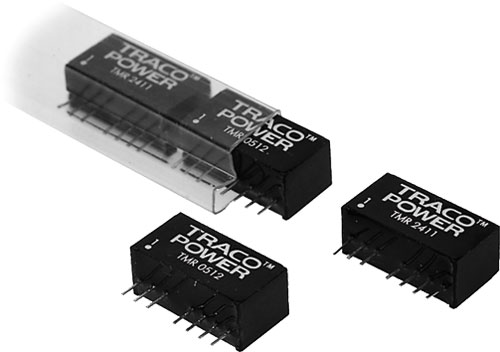

Convertitore: DC/DC; TRACO POWER

Produttore	TRACO POWER
Tipo di convertitore	DC/DC

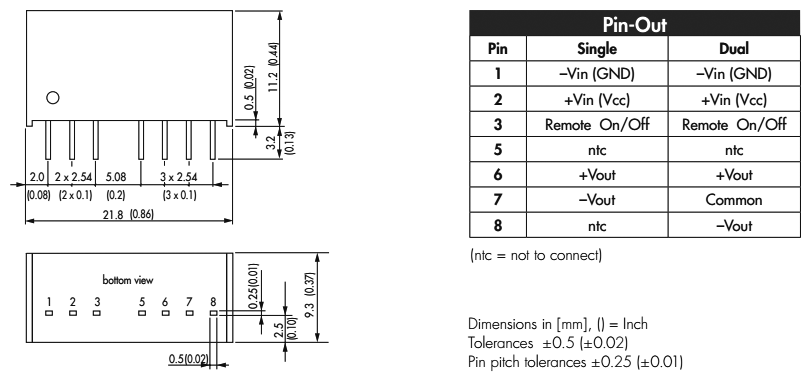

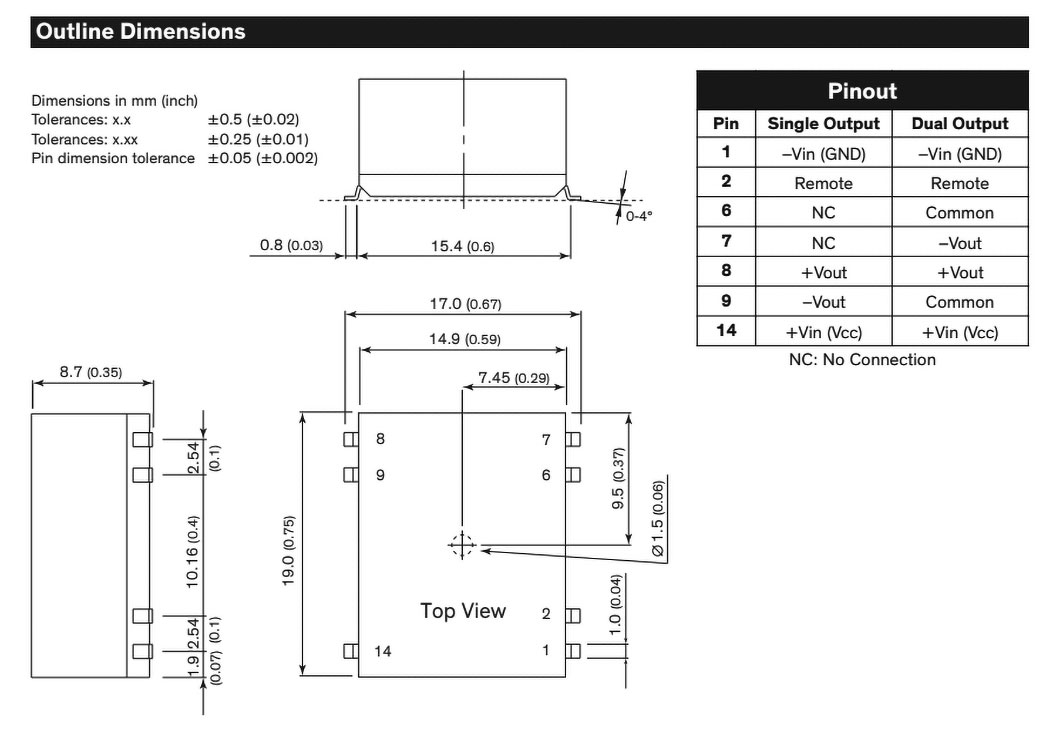

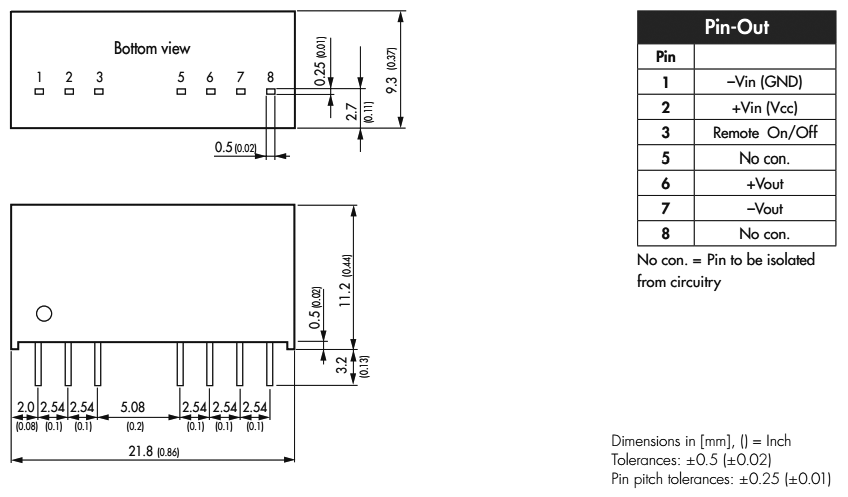

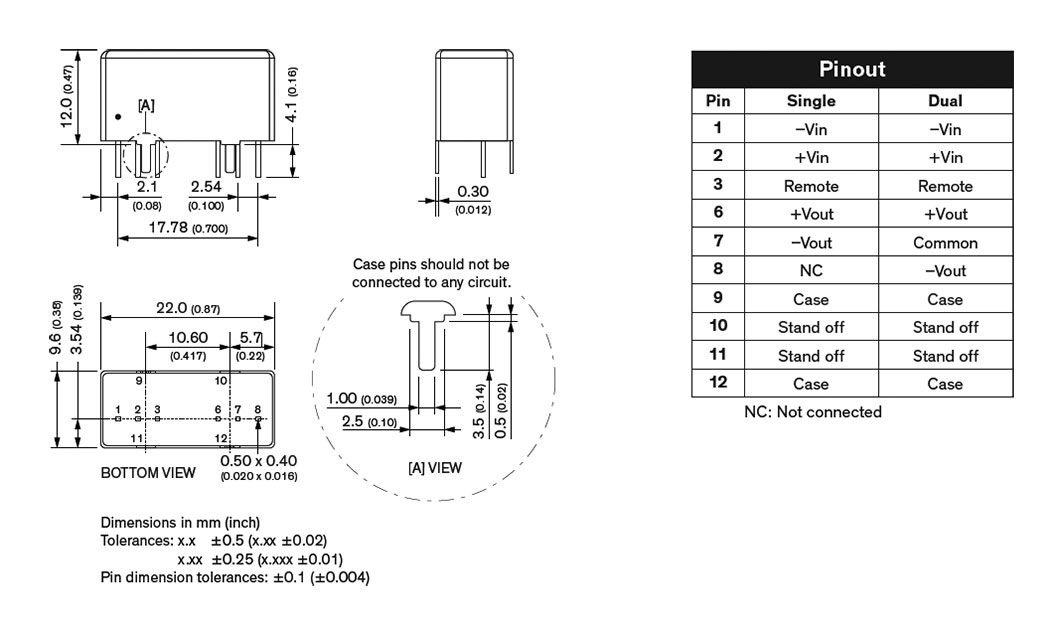

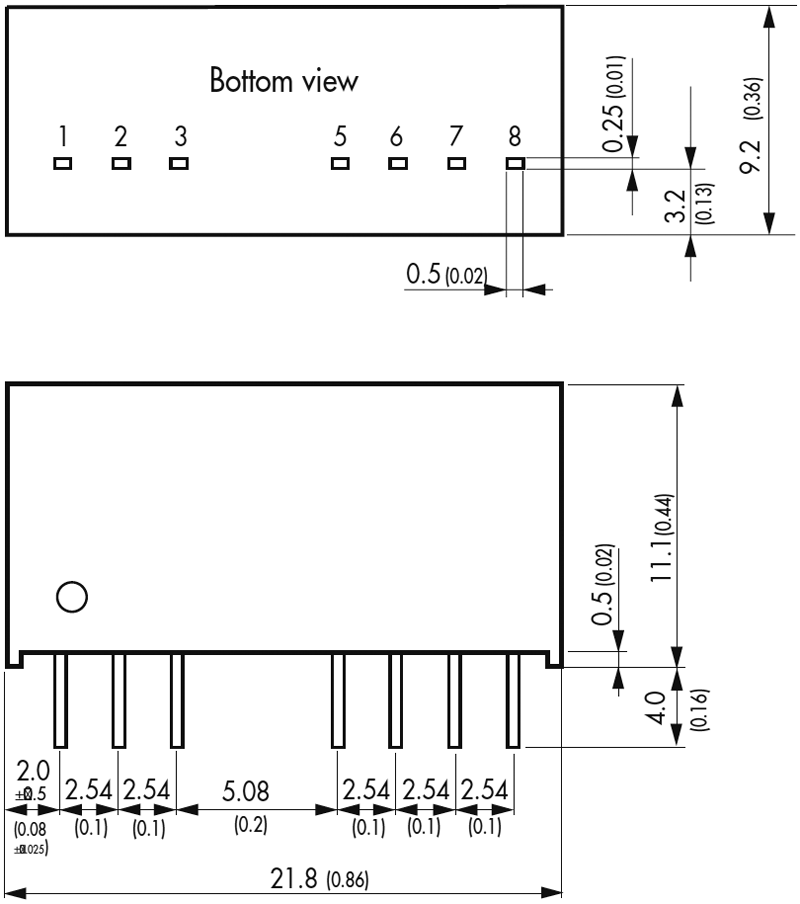

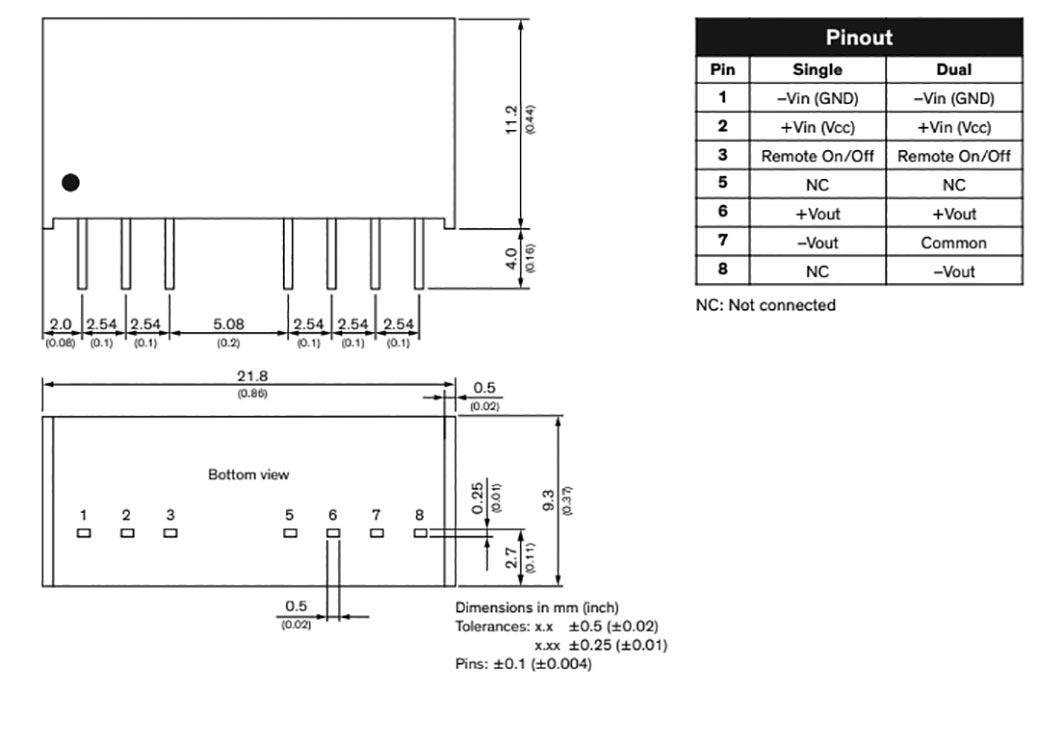

Simbolo	Dimensioni	Potenza	Tens. isolamento	U_isol.	U_d'ingr.	U_d'usc.	I_usc	U_{d'usc. 2}	I_usc2	Efficienza
		[W]	[V]	[kV DC]	[V DC]	[V DC]	[mA]	[V DC]	[mA]	[%]
TMR0510	Diseg.1.	2	1000	-	4,5...9	3,3	500	-	-	64
TMR0511	Diseg.1.	2	1000	-	4,5...9	5	400	-	-	66
TMR0512	Diseg.1.	2	1000	-	4,5...9	12	165	-	-	71
TMR0521	Diseg.1.	2	1000	-	4,5...9	5	200	-5	-200	64
TMR0522	Diseg.1.	2	1000	-	4,5...9	12	85	-12	-85	69
TMR1210	Diseg.2.	2	1000	-	9...18	3,3	500	-	-	70
TMR1211	Diseg.1.	2	1000	-	9...18	5	400	-	-	73
TMR1212	Diseg.1.	2	1000	-	9...18	12	165	-	-	80
TMR1221	Diseg.1.	2	1000	-	9...18	5	200	-5	-200	73
TMR1223	Diseg.1.	2	1000	-	9...18	15	65	-15	-65	78
TMR2410	Diseg.1.	2	1000	-	18...36	3,3	500	-	-	71
TMR2411	Diseg.1.	2	1000	-	18...36	5	400	-	-	74
TMR2412	Diseg.1.	2	1000	-	18...36	12	165	-	-	81
TMR2421	Diseg.1.	2	1000	-	18...36	5	200	-5	-200	74
TMR2422	Diseg.2.	2	1000	-	18...36	12	85	-12	-85	78
TMR2423	Diseg.1.	2	1000	-	18...36	15	65	-15	-65	80
TMR4810	Diseg.1.	2	1000	-	36...75	3,3	500	-	-	70
TMR4811	Diseg.1.	2	1000	-	36...75	5	400	-	-	73
TMR4822	Diseg.1.	2	1000	-	36...75	12	85	-12	-85	77
TMR4823	Diseg.1.	2	1000	-	36...75	15	65	-15	-65	77
TMR2-0510E	Diseg.3.	2	1000	-	4,5...9	3,3	500	-	-	70
TMR2-0511E	Diseg.3.	2	1000	-	4,5...9	5	400	-	-	73
TMR2-0512E	Diseg.3.	2	1000	-	4,5...9	12	167	-	-	75
TMR2-1210E	Diseg.3.	2	1000	-	9...18	3,3	500	-	-	73
TMR2-1211E	Diseg.3.	2	1000	-	9...18	5	400	-	-	77
TMR2-1212E	Diseg.3.	2	1000	-	9...18	12	167	-	-	80
TMR2-2410E	Diseg.3.	2	1000	-	18...36	3,3	500	-	-	72
TMR2-2411E	Diseg.3.	2	1000	-	18...36	5	400	-	-	77
TMR2-2412E	Diseg.3.	2	1000	-	18...36	12	167	-	-	81
TMR2-4810E	Diseg.3.	2	1000	-	36...75	3,3	500	-	-	71
TMR2-4811E	Diseg.3.	2	1000	-	36...75	5	400	-	-	73
TMR2-4812E	Diseg.3.	2	1000	-	36...75	12	167	-	-	79
TMR2-2410WI	Diseg.4.	2	1500	-	9...36	3,3	500	-	-	71
TMR2-2411WI	Diseg.4.	2	1500	-	9...36	5	400	-	-	76
TMR2-2412WI	Diseg.4.	2	1500	-	9...36	12	165	-	-	79
TMR2-2413WI	Diseg.4.	2	1500	-	9...36	15	135	-	-	80
TMR2-2421WI	Diseg.4.	2	1500	-	9...36	5	200	-5	200	73
TMR2-2422WI	Diseg.4.	2	1500	-	9...36	12	85	-12	85	77
TMR2-4810WI	Diseg.4.	2	1500	-	18...75	3,3	500	-	-	70
TMR2-4811WI	Diseg.4.	2	1500	-	18...75	5	400	-	-	72
TMR2-4812WI	Diseg.4.	2	1500	-	18...75	12	165	-	-	78
TMR2-4813WI	Diseg.4.	2	1500	-	18...75	15	134	-	-	78
TMR2-4821WI	Diseg.4.	2	1500	-	18...75	5	200	-5	200	70
TMR2-4822WI	Diseg.4.	2	1500	-	18...75	12	85	-12	85	76
TMR2-4823WI	Diseg.4.	2	1500	-	18...75	15	67	-15	67	76
TMR2-1210WIN	Diseg.5.	2	1500	-	4,5...18	3,3	500	-	-	75
TMR2-1211WIN	Diseg.5.	2	1500	-	4,5...18	5	400	-	-	80
TMR2-1212WIN	Diseg.5.	2	1500	-	4,5...18	12	167	-	-	82
TMR2-1213WIN	Diseg.5.	2	1500	-	4,5...18	15	134	-	-	82
TMR2-1221WIN	Diseg.5.	2	1500	-	4,5...18	5	200	-5	200	80
TMR2-1222WIN	Diseg.5.	2	1500	-	4,5...18	12	83	-12	83	82
TMR2-1223WIN	Diseg.5.	2	1500	-	4,5...18	15	67	-15	67	82
TMR2-2410WIN	Diseg.5.	2	1500	-	9...36	3,3	500	-	-	75
TMR2-2411WIN	Diseg.5.	2	1500	-	9...36	5	400	-	-	80
TMR2-2412WIN	Diseg.5.	2	1500	-	9...36	12	167	-	-	82
TMR2-2413WIN	Diseg.5.	2	1500	-	9...36	15	134	-	-	82
TMR2-2421WIN	Diseg.5.	2	1500	-	9...36	5	200	-5	200	80
TMR2-2422WIN	Diseg.5.	2	1500	-	9...36	12	83	-12	83	82
TMR2-2423WIN	Diseg.5.	2	1500	-	9...36	15	67	-15	67	82
TMR2-4810WIN	Diseg.5.	2	1500	-	18...75	3,3	500	-	-	74
TMR2-4811WIN	Diseg.5.	2	1500	-	18...75	5	400	-	-	80
TMR2-4812WIN	Diseg.5.	2	1500	-	18...75	12	167	-	-	82
TMR2-4813WIN	Diseg.5.	2	1500	-	18...75	15	134	-	-	82
TMR2-4821WIN	Diseg.5.	2	1500	-	18...75	5	200	-5	200	80
TMR2-4822WIN	Diseg.5.	2	1500	-	18...75	12	83	-12	83	82
TMR2-4823WIN	Diseg.5.	2	1500	-	18...75	15	67	-15	67	82
TMR2-0511WISM	Diseg.6.	2	1500	-	4,5...12	5	400	-	-	80
TMR2-0512WISM	Diseg.6.	2	1500	-	4,5...12	12	167	-	-	84
TMR2-0513WISM	Diseg.6.	2	1500	-	4,5...12	15	134	-	-	83
TMR2-0515WISM	Diseg.6.	2	1500	-	4,5...12	24	83	-	-	84
TMR2-0522WISM	Diseg.6.	2	1500	-	4,5...12	12	83	-12	83	83
TMR2-0523WISM	Diseg.6.	2	1500	-	4,5...12	15	67	-15	67	82
TMR2-2411WISM	Diseg.6.	2	1500	-	9...36	5	400	-	-	80
TMR2-2412WISM	Diseg.6.	2	1500	-	9...36	12	167	-	-	84
TMR2-2413WISM	Diseg.6.	2	1500	-	9...36	15	134	-	-	85
TMR2-2415WISM	Diseg.6.	2	1500	-	9...36	24	83	-	-	85
TMR2-2422WISM	Diseg.6.	2	1500	-	9...36	12	83	-12	83	83
TMR2-2423WISM	Diseg.6.	2	1500	-	9...36	15	67	-15	67	83
TMR2-4811WISM	Diseg.6.	2	1500	-	18...75	5	400	-	-	78
TMR2-4812WISM	Diseg.6.	2	1500	-	18...75	12	167	-	-	82
TMR2-4813WISM	Diseg.6.	2	1500	-	18...75	15	134	-	-	83
TMR2-4815WISM	Diseg.6.	2	1500	-	18...75	24	83	-	-	84
TMR2-4822WISM	Diseg.6.	2	1500	-	18...75	12	83	-12	83	82
TMR2-4823WISM	Diseg.6.	2	1500	-	18...75	15	67	-15	67	82
TMR4-2411WI	Diseg.7.	4	1600	-	9...36	5	800	-	-	79
TMR4-2412WI	Diseg.7.	4	1600	-	9...36	12	333	-	-	83
TMR4-2413WI	Diseg.7.	4	1600	-	9...36	15	266	-	-	83
TMR4-2415WI	Diseg.7.	4	1600	-	9...36	24	166	-	-	83
TMR4-2422WI	Diseg.7.	4	1600	-	9...36	12	166	-12	166	83
TMR4-2423WI	Diseg.7.	4	1600	-	9...36	15	133	-15	133	83
TMR4-4811WI	Diseg.7.	4	1600	-	18...75	5	800	-	-	78
TMR4-4812WI	Diseg.7.	4	1600	-	18...75	12	333	-	-	82
TMR4-4813WI	Diseg.7.	4	1600	-	18...75	15	266	-	-	82
TMR4-4815WI	Diseg.7.	4	1600	-	18...75	24	166	-	-	82
TMR4-4822WI	Diseg.7.	4	1600	-	18...75	12	166	-12	166	82
TMR4-4823WI	Diseg.7.	4	1600	-	18...75	15	133	-15	133	82
TMR4-1211	Diseg.7.	4	1600	-	9...18	5	800	-	-	82
TMR4-1212	Diseg.7.	4	1600	-	9...18	12	333	-	-	87
TMR4-1213	Diseg.7.	4	1600	-	9...18	15	266	-	-	86
TMR4-1215	Diseg.7.	4	1600	-	9...18	24	166	-	-	86
TMR4-1222	Diseg.7.	4	1600	-	9...18	12	166	-12	166	85
TMR4-1223	Diseg.7.	4	1600	-	9...18	15	133	-15	133	86
TMR4-2411	Diseg.7.	4	1600	-	18...36	5	800	-	-	81
TMR4-2412	Diseg.7.	4	1600	-	18...36	12	333	-	-	86
TMR4-2413	Diseg.7.	4	1600	-	18...36	15	266	-	-	86
TMR4-2415	Diseg.7.	4	1600	-	18...36	24	166	-	-	86
TMR4-2422	Diseg.7.	4	1600	-	18...36	12	166	-12	166	86
TMR4-2423	Diseg.7.	4	1600	-	18...36	15	133	-15	133	85
TMR4-4812	Diseg.7.	4	1600	-	36...75	12	333	-	-	85
TMR4-4813	Diseg.7.	4	1600	-	36...75	15	266	-	-	83
TMR4-4815	Diseg.7.	4	1600	-	36...75	24	166	-	-	86
TMR12-1210WI	Diseg.8.	12	-	1,6	4,5...18	3,3	3000	-	-	87
TMR12-1211WI	Diseg.8.	12	-	1,6	4,5...18	5,1	2400	-	-	89
TMR12-1212WI	Diseg.8.	12	-	1,6	4,5...18	12	1000	-	-	89
TMR12-1213WI	Diseg.8.	12	-	1,6	4,5...18	15	800	-	-	89
TMR12-1215WI	Diseg.8.	12	-	1,6	4,5...18	24	500	-	-	90
TMR12-1221WI	Diseg.8.	12	-	1,6	4,5...18	5	1200	-5	1200	86
TMR12-1222WI	Diseg.8.	12	-	1,6	4,5...18	12	500	-12	500	89
TMR12-1223WI	Diseg.8.	12	-	1,6	4,5...18	15	400	-15	400	89
TMR12-2410WI	Diseg.8.	12	-	1,6	9...36	3,3	3000	-	-	87
TMR12-2411WI	Diseg.8.	12	-	1,6	9...36	5,1	2400	-	-	89
TMR12-2412WI	Diseg.8.	12	-	1,6	9...36	12	1000	-	-	89
TMR12-2413WI	Diseg.8.	12	-	1,6	9...36	15	800	-	-	89
TMR12-2415WI	Diseg.8.	12	-	1,6	9...36	24	500	-	-	90
TMR12-2421WI	Diseg.8.	12	-	1,6	9...36	5	1200	-5	1200	86
TMR12-2422WI	Diseg.8.	12	-	1,6	9...36	12	500	-12	500	89
TMR12-2423WI	Diseg.8.	12	-	1,6	9...36	15	400	-15	400	89
TMR12-4810WI	Diseg.8.	12	-	1,6	18...75	3,3	3000	-	-	87
TMR12-4811WI	Diseg.8.	12	-	1,6	18...75	5,1	2400	-	-	89
TMR12-4812WI	Diseg.8.	12	-	1,6	18...75	12	1000	-	-	89
TMR12-4813WI	Diseg.8.	12	-	1,6	18...75	15	800	-	-	89
TMR12-4815WI	Diseg.8.	12	-	1,6	18...75	24	500	-	-	90
TMR12-4821WI	Diseg.8.	12	-	1,6	18...75	5	1200	-5	1200	86
TMR12-4822WI	Diseg.8.	12	-	1,6	18...75	12	500	-12	500	89
TMR12-4823WI	Diseg.8.	12	-	1,6	18...75	15	400	-15	400	89

Protezione:

protezione di sovraccarico OPP (TMR2-xxxWISM, TMR4-xxx)
anticortocircuito SCP

Cassa:

SIP8 (TMR05xx, TMR12xxx, TMR24xx, TMR2-051xE, TMR2-12xxx, TMR2-2410E, TMR2-2410WIN, TMR2-2411E, TMR2-2411WIN, TMR2-2412E, TMR2-2412WIN, TMR2-2413WIN, TMR2-242xWIN, TMR2-4810E, TMR2-4810WIN, TMR2-4811E, TMR2-4811WIN, TMR2-4812E, TMR2-4812WIN, TMR2-4813WIN, TMR2-482xWIN, TMR4xxx)
SIP9 (TMR2-xxxWI)

Freq. com.:

650kHz (TMR05xx, TMR121x, TMR1221, TMR1223, TMR24xx, TMR2-051xE, TMR2-121xE, TMR2-2410E, TMR2-2410WI, TMR2-2411E, TMR2-2411WI, TMR2-2412E, TMR2-2412WI, TMR2-2413WI, TMR2-2421WI, TMR2-2422WI, TMR2-4810E, TMR2-4810WI, TMR2-4811E, TMR2-4811WI, TMR2-4812E, TMR2-4812WI, TMR2-4813WI, TMR2-482xWI, TMR48xx)
300kHz (TMR2-xxxWIN)
100kHz (TMR2-xxxWISM, TMR4-xxx)
290kHz (TMR12-xx10WI)
390kHz (TMR12-xx11WI)
460kHz (TMR12-1212WI, TMR12-1213WI, TMR12-1215WI, TMR12-122xWI, TMR12-2412WI, TMR12-2413WI, TMR12-2415WI, TMR12-242xWI, TMR12-4812WI, TMR12-4813WI, TMR12-4815WI, TMR12-482xWI)

Temp. lavoro:

-40...80°C (TMR2-xxxWISM, TMR4-xxxWI)
-40...85°C (TMR05xx, TMR12xxx, TMR24xx, TMR2-051xE, TMR2-121xE, TMR2-2410E, TMR2-2410WI, TMR2-2411E, TMR2-2411WI, TMR2-2412E, TMR2-2412WI, TMR2-2413WI, TMR2-2421WI, TMR2-2422WI, TMR2-4810E, TMR2-4810WI, TMR2-4811E, TMR2-4811WI, TMR2-4812E, TMR2-4812WI, TMR2-4813WI, TMR2-482xWI, TMR48xx, TMR4-12xx, TMR4-2411, TMR4-2412, TMR4-2413, TMR4-2415, TMR4-2422, TMR4-2423, TMR4-4812, TMR4-4813, TMR4-4815)
-40...90°C (TMR2-xxxWIN)

Dim. est.:

19x14,9x8,7mm (TMR2-xxxWISM)
21,8x9,3x11,2mm (TMR4-xxx)
21,8x11,1x9,2mm (TMR05xx, TMR121x, TMR1221, TMR1223, TMR24xx, TMR48xx)
21,8x11,2x9,3mm (TMR2-051xE, TMR2-12xxx, TMR2-2410E, TMR2-2410WIN, TMR2-2411E, TMR2-2411WIN, TMR2-2412E, TMR2-2412WIN, TMR2-2413WIN, TMR2-242xWIN, TMR2-4810E, TMR2-4810WIN, TMR2-4811E, TMR2-4811WIN, TMR2-4812E, TMR2-4812WIN, TMR2-4813WIN, TMR2-482xWIN)
22x9,6x12mm (TMR12-xxxWI)
26x12,5x9,3mm (TMR2-xxxWI)

Serie del produttore:

TMR2 (TMR05xx, TMR121x, TMR1221, TMR1223, TMR24xx, TMR48xx)
TMR 2E (TMR2-xxxE)
TMR 2WI (TMR2-xxxWI)
TMR 2WIN (TMR2-xxxWIN)
TMR 2WISM (TMR2-xxxWISM)
TMR 4WI (TMR4-xxxWI)
TMR 4 (TMR4-12xx, TMR4-2411, TMR4-2412, TMR4-2413, TMR4-2415, TMR4-2422, TMR4-2423, TMR4-4812, TMR4-4813, TMR4-4815)
TMR 12 (TMR12-xxxWI)

Montaggio:

SMT (TMR2-xxxWISM)
THT (TMR05xx, TMR12xxx, TMR24xx, TMR2-051xE, TMR2-12xxx, TMR2-2410xxx, TMR2-2411E, TMR2-2411WI, TMR2-2411WIN, TMR2-2412E, TMR2-2412WI, TMR2-2412WIN, TMR2-2413WI, TMR2-2413WIN, TMR2-2421WI, TMR2-2421WIN, TMR2-2422WI, TMR2-2422WIN, TMR2-2423WIN, TMR2-4810xxx, TMR2-4811E, TMR2-4811WI, TMR2-4811WIN, TMR2-4812E, TMR2-4812WI, TMR2-4812WIN, TMR2-4813WI, TMR2-4813WIN, TMR2-4821WI, TMR2-4821WIN, TMR2-4822WI, TMR2-4822WIN, TMR2-4823WI, TMR2-4823WIN, TMR4xxx)

Numero uscite:

1 (TMR051x, TMR121x, TMR12-121xWI, TMR12-241xWI, TMR12-481xWI, TMR241x, TMR2-051xxx, TMR2-121xxx, TMR2-241xxx, TMR2-481xxx, TMR4810, TMR4811, TMR4-241xxx, TMR4-481xxx, TMR4-121x)
2 (TMR0521, TMR0522, TMR1221, TMR1223, TMR12-122xWI, TMR12-242xWI, TMR12-482xWI, TMR242x, TMR2-242xxx, TMR2-482xxx, TMR2-122xWIN, TMR2-0522WISM, TMR2-0523WISM, TMR4822, TMR4823, TMR4-242xxx, TMR4-4822WI, TMR4-4823WI, TMR4-1222, TMR4-1223)
