Convertitore: DC/DC; XP POWER; PBT02F
| Produttore | XP POWER |
| Tipo di convertitore | DC/DC |
| Serie del produttore | PBT02F |
| Potenza | 2W |
| Montaggio | PCB, SMD |
| Temperatura di lavoro | -40...95°C |
| Freq. com. | 40kHz |
| Protezione | anticortocircuito SCP |
| Simbolo | Numero uscite | Cassa | Ud'ingr. | Iusc | Tensione d'uscita | Iusc2 | Ud'usc. 2 | Efficienza | Uisol. | Dim. est. | Dimensioni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [mA] | [V DC] | [mA] | [V DC] | [%] | [kV DC] | [mm] | ||||

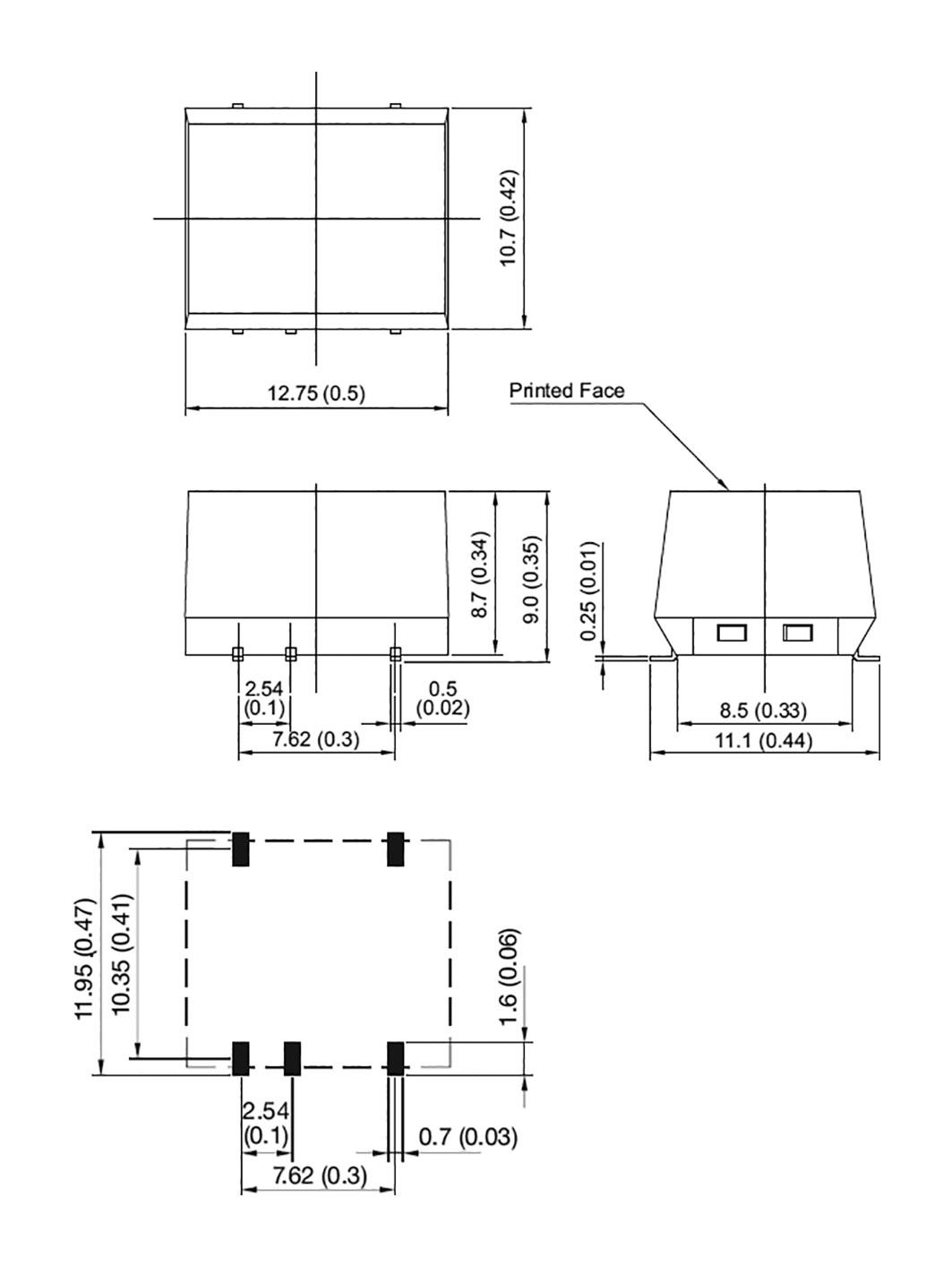

| PBT02F03S3V3 | 1 | SMD8 | 3...3,6 | 606 | 3,3 | - | - | 76,5 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F03S3V3-TR | 1 | SMD8 | 3...3,6 | 606 | 3,3 | - | - | 76,5 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F03S3V3-H3 | 1 | SMD8 | 3...3,6 | 606 | 3,3 | - | - | 76,5 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F03S3V3-H3-TR | 1 | SMD8 | 3...3,6 | 606 | 3,3 | - | - | 76,5 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S3V3 | 1 | SMD8 | 4,5...5,5 | 606 | 3,3 | - | - | 77 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S3V3-TR | 1 | SMD8 | 4,5...5,5 | 606 | 3,3 | - | - | 77 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S3V3-H3 | 1 | SMD8 | 4,5...5,5 | 606 | 3,3 | - | - | 77 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S3V3-H3-TR | 1 | SMD8 | 4,5...5,5 | 606 | 3,3 | - | - | 77 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S05 | 1 | SMD8 | 4,5...5,5 | 400 | 5 | - | - | 79,5 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S05-TR | 1 | SMD8 | 4,5...5,5 | 400 | 5 | - | - | 79,5 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S05-H3 | 1 | SMD8 | 4,5...5,5 | 400 | 5 | - | - | 79,5 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S05-H3-TR | 1 | SMD8 | 4,5...5,5 | 400 | 5 | - | - | 79,5 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S12 | 1 | SMD8 | 4,5...5,5 | 167 | 12 | - | - | 84,5 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S12-TR | 1 | SMD8 | 4,5...5,5 | 167 | 12 | - | - | 84,5 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S12-H3 | 1 | SMD8 | 4,5...5,5 | 167 | 12 | - | - | 84,5 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S12-H3-TR | 1 | SMD8 | 4,5...5,5 | 167 | 12 | - | - | 84,5 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S15 | 1 | SMD8 | 4,5...5,5 | 133 | 15 | - | - | 85 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S15-TR | 1 | SMD8 | 4,5...5,5 | 133 | 15 | - | - | 85 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S15-H3 | 1 | SMD8 | 4,5...5,5 | 133 | 15 | - | - | 85 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F05S15-H3-TR | 1 | SMD8 | 4,5...5,5 | 133 | 15 | - | - | 85 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F12S09 | 1 | SMD8 | 10,8...13,2 | 223 | 9 | - | - | 86 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F12S09-TR | 1 | SMD8 | 10,8...13,2 | 223 | 9 | - | - | 86 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F12S09-H3 | 1 | SMD8 | 10,8...13,2 | 223 | 9 | - | - | 86 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F12S09-H3-TR | 1 | SMD8 | 10,8...13,2 | 223 | 9 | - | - | 86 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F15S15 | 1 | SMD8 | 10,8...13,2 | 133 | 15 | - | - | 85 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F15S15-TR | 1 | SMD8 | 13,5...16,5 | 133 | 15 | - | - | 85 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F15S15-H3 | 1 | SMD8 | 13,5...16,5 | 133 | 15 | - | - | 85 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F15S15-H3-TR | 1 | SMD8 | 13,5...16,5 | 133 | 15 | - | - | 85 | 3 | 12,75x10,7x7 | Diseg.1. |

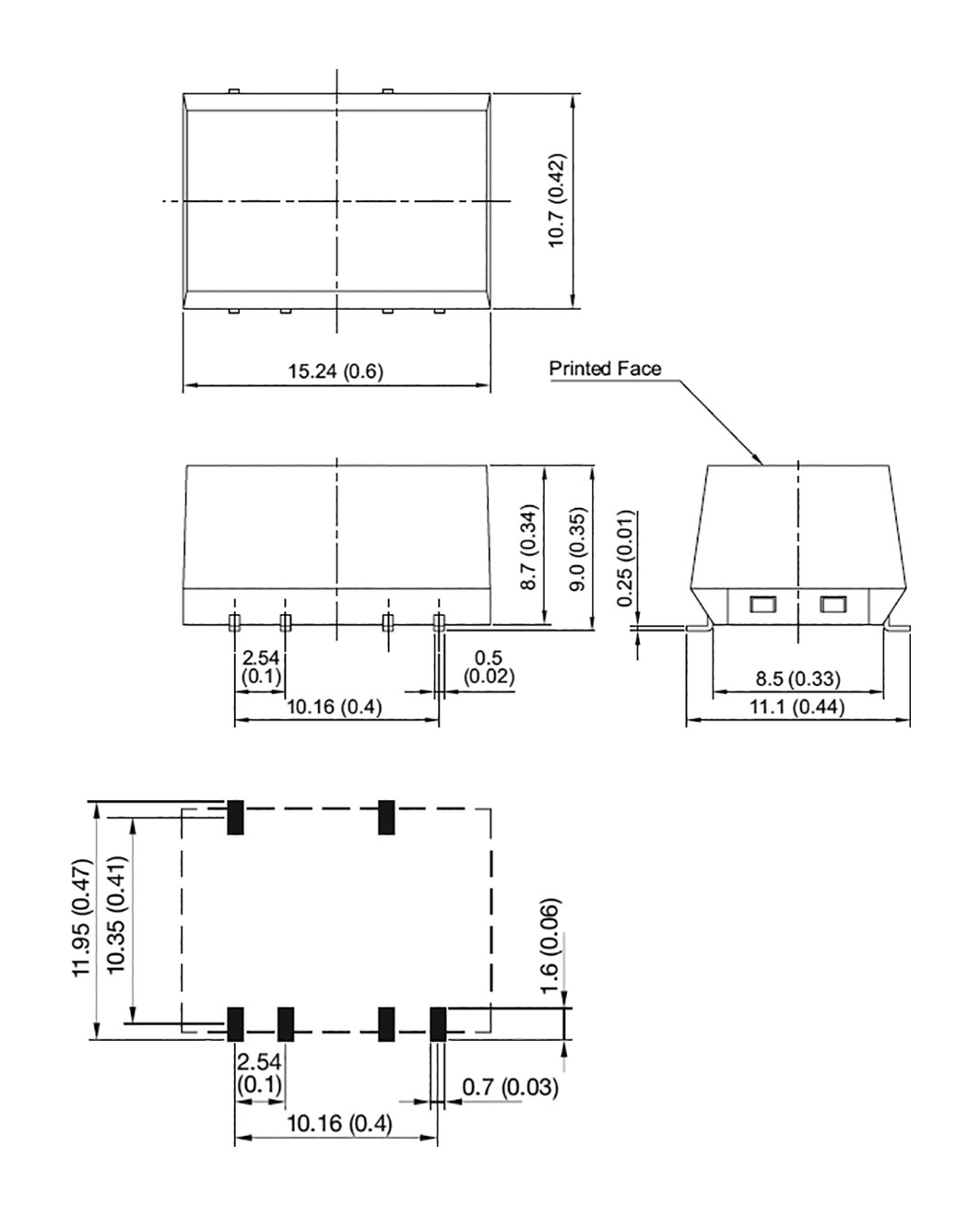

| PBT02F15D15 | 2 | SMD10 | 13,5...16,5 | 67 | 15 | 67 | -15 | 86 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F15D15-TR | 2 | SMD10 | 13,5...16,5 | 67 | 15 | 67 | -15 | 86 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F15D15-H3 | 2 | SMD10 | 13,5...16,5 | 67 | 15 | 67 | -15 | 86 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F15D15-H3-TR | 2 | SMD10 | 13,5...16,5 | 67 | 15 | 67 | -15 | 86 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24S05 | 1 | SMD8 | 21,6...26,4 | 400 | 5 | - | - | 84 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S05-TR | 1 | SMD8 | 21,6...26,4 | 400 | 5 | - | - | 84 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S05-H3 | 1 | SMD8 | 21,6...26,4 | 400 | 5 | - | - | 84 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S05-H3-TR | 1 | SMD8 | 21,6...26,4 | 400 | 5 | - | - | 84 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S12 | 1 | SMD8 | 21,6...26,4 | 167 | 12 | - | - | 88 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S12-TR | 1 | SMD8 | 21,6...26,4 | 167 | 12 | - | - | 88 | 1 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S12-H3 | 1 | SMD8 | 21,6...26,4 | 167 | 12 | - | - | 88 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24S12-H3-TR | 1 | SMD8 | 21,6...26,4 | 167 | 12 | - | - | 88 | 3 | 12,75x10,7x7 | Diseg.1. |
| PBT02F24D09 | 2 | SMD10 | 21,6...26,4 | 112 | 9 | 112 | -9 | 87 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D09-TR | 2 | SMD10 | 21,6...26,4 | 112 | 9 | 112 | -9 | 87 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D09-H3 | 2 | SMD10 | 21,6...26,4 | 112 | 9 | 112 | -9 | 87 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D09-H3-TR | 2 | SMD10 | 21,6...26,4 | 112 | 9 | 112 | -9 | 87 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D12 | 2 | SMD10 | 21,6...26,4 | 84 | 12 | 84 | -12 | 84,5 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D12-TR | 2 | SMD10 | 21,6...26,4 | 84 | 12 | 84 | -12 | 84,5 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D12-H3 | 2 | SMD10 | 21,6...26,4 | 84 | 12 | 84 | -12 | 84,5 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D12-H3-TR | 2 | SMD10 | 21,6...26,4 | 84 | 12 | 84 | -12 | 84,5 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D15 | 2 | SMD10 | 21,6...26,4 | 67 | 15 | 67 | -15 | 85 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D15-TR | 2 | SMD10 | 21,6...26,4 | 67 | 15 | 67 | -15 | 85 | 1 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D15-H3 | 2 | SMD10 | 21,6...26,4 | 67 | 15 | 67 | -15 | 85 | 3 | 15,24x10,7x7 | Diseg.2. |
| PBT02F24D15-H3-TR | 2 | SMD10 | 21,6...26,4 | 67 | 15 | 67 | -15 | 85 | 3 | 15,24x10,7x7 | Diseg.2. |
