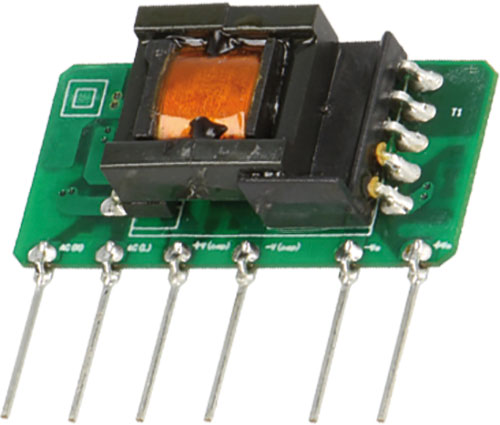

Convertitori AC/DC della serie AMEOF

Convertitori AC/DC della serie AMEOF, AMEOF1-5SJZ, AMEOF1-9SJZ, AMEOF1-12SJZ, AMEOF1-15SJZ |IT|

Produttore	AIMTEC
Attenzione!	parametri nominali ottenuti con il pieno carico

Simbolo	Serie del produttore	Dimensioni	Potenza	Tensione d'uscita	I_usc	U_alim	U_alim	U_isol	Efficienza
			[W]	[V DC]	[A]	[V AC]	[V DC]	[V]	[%]

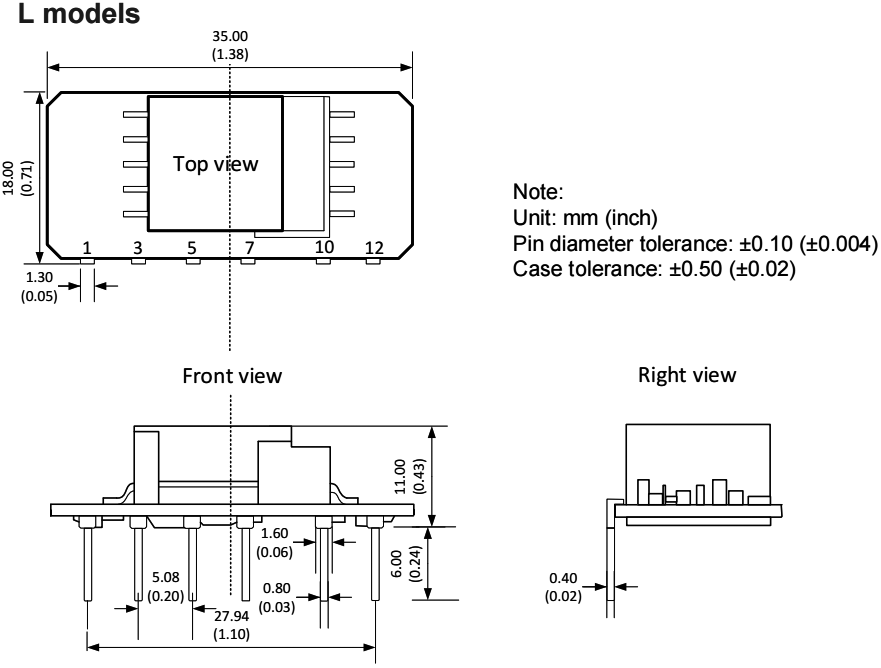

AMEOF3-3.3SLJZ	AMEOF3-JZ	Diseg.1.	3	3,3	0,5	-	-	3000	63
AMEOF3-9SLJZ	AMEOF3-JZ	Diseg.1.	3	9	0,333	-	-	3000	75

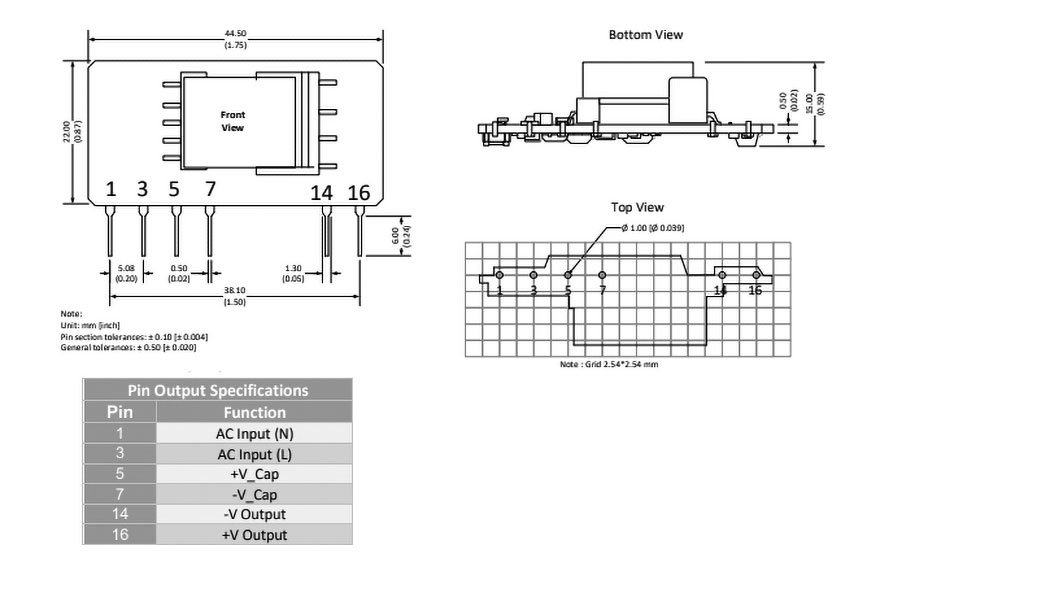

AMEOF3-3.3SBJZ	AMEOF3-BJZ	Diseg.2.	3	3,3	0,5	-	-	4000	63
AMEOFL3-15S277HANZ	AMEOFL3-277HANZ	Diseg.3.	3	15	0,2	-	-	3000	78
AMEOF5-3.3SBJZ	AMEOF5-BJZ	Diseg.4.	5	3,3	0,85	-	-	3000	63
AMEOF5-5SBJZ	AMEOF5-BJZ	Diseg.4.	5	5	0,85	-	-	3000	67
AMEOF5-15SJZ	AMEOF5-JZ	Diseg.5.	5	15	0,34	-	-	3000	77
AMEOF5-15SLJZ	AMEOF5-JZ	Diseg.6.	5	15	0,34	-	-	3000	77
AMEOF5-24SLJZ	AMEOF5-JZ	Diseg.6.	5	24	0,21	-	-	3000	79

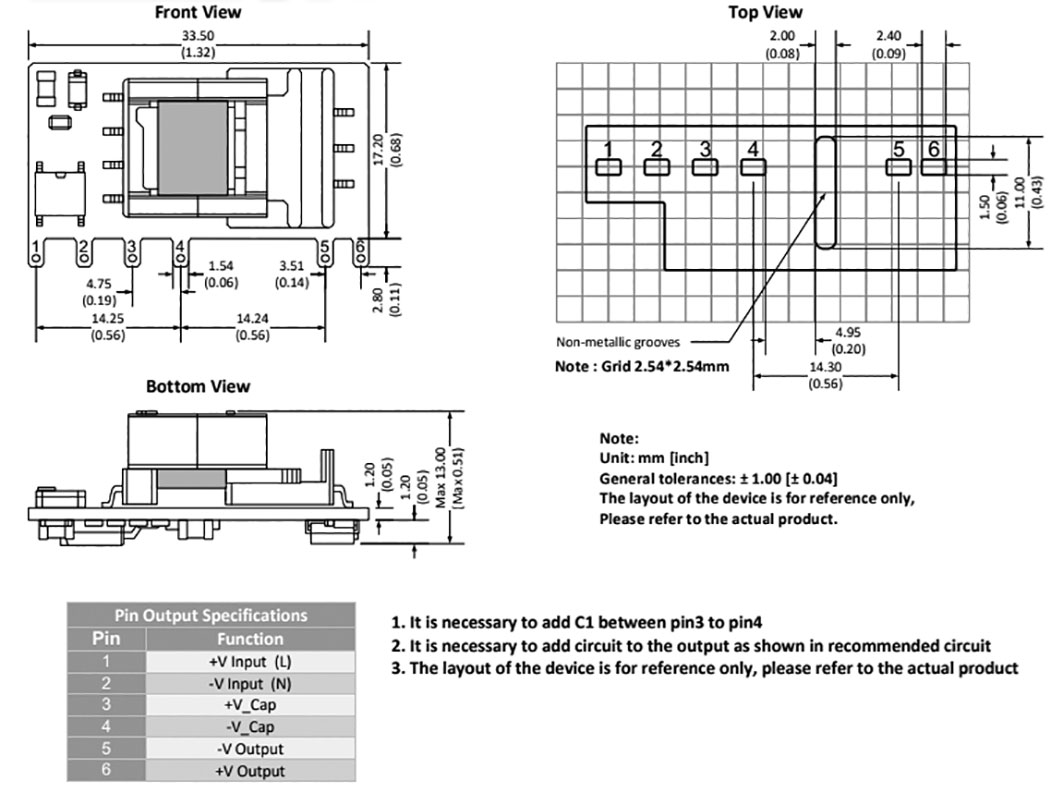

AMEOFL5-3S480HANZB	AMEOFL5-480HANZ	Diseg.7.	3,3	3,3	1	-	-	4000	70
AMEOFL103S480PEVZB	AMEOFL10-480PEVZ	Diseg.8.	6,6	3,3	2	-	-	4000	70
AMEOF10-03S277NZ	AMEOF10-277NZ	Diseg.9.	6,6	3,3	2	-	-	3000	70
AMEOF10-03S277NZ-B	AMEOF10-277NZ	Diseg.9.	6,6	3,3	2	-	-	3000	70
AMEOF10-05S277NZ-B	AMEOF10-277NZ	Diseg.9.	10	5	2	-	-	3000	76
AMEOF10-12S277NZ-B	AMEOF10-277NZ	Diseg.9.	10	12	0,83	-	-	3000	80
AMEOF10-24S277NZ-B	AMEOF10-277NZ	Diseg.9.	10	24	0,42	-	-	3000	82
AMEOF450-48SHAMJZ	AMEOF450-HAMJZ	Diseg.10.	250	48	5,3	-	-	4000	94
AMEOF45048SHAMJZFB	AMEOF450-HAMJZ	Diseg.11.	450	48	9,4	-	-	4000	94
AMEOF550-36SHAMJZ	AMEOF550-HAMJZ	Diseg.12.	320,4	36	0,0089	-	-	4000	94
AMEOF550-48SHAMJZ	AMEOF550-HAMJZ	Diseg.12.	321,6	48	6,7	-	-	4000	94
AMEOF55024SHAMJZFB	AMEOF550-HAMJZ	Diseg.13.	549,6	24	22,9	-	-	4000	93
AMEOF55048SHAMJZFB	AMEOF550-HAMJZ	Diseg.13.	550	48	11,46	-	-	4000	94
AMEOF700-48SHAMJZ	AMEOF700-HAMJZ	-	700	48	8,3...15,6	80...264	127...370	4000	95

Montaggio:

da incasso (AMEOF700-48SHAMJZ)
PCB (AMEOF3-xxxJZ, AMEOFLxxx, AMEOF5xxx, AMEOF10-xxx, AMEOF450-48SHAMJZ, AMEOF45048SHAMJZFB)

Tipo di alimentatore:

impulsi (AMEOF700-48SHAMJZ)

Genere di alimentatore:

da incasso (AMEOF700-48SHAMJZ)

Protezione:

protezione di sovraccarico OPP
protezione di sovracorrente OVP (AMEOF5-15SJZ, AMEOF5-15SLJZ, AMEOF5-24SLJZ, AMEOF550xxx, AMEOF10-xxx, AMEOF450-48SHAMJZ, AMEOF45048SHAMJZFB, AMEOF700-48SHAMJZ)
anticortocircuito SCP

Dim. est.:

26,4x12,58x12mm (AMEOFL3-15S277HANZ)
33,5x17,2x13mm (AMEOFL5-3S480HANZB)
35x18x11mm (AMEOF3-3.3SLJZ, AMEOF3-9SLJZ)
38x20x15,25mm (AMEOFL103S480PEVZB)
42x13,65x20mm (AMEOF5-15SJZ, AMEOF5-15SLJZ, AMEOF5-24SLJZ)
44,5x24x13mm (AMEOF3-3.3SBJZ)
44,5x24x15mm (AMEOF10-xxx)
127x76,2x38,5mm (AMEOF450-48SHAMJZ, AMEOF550-36SHAMJZ, AMEOF550-48SHAMJZ)
127x76,2x43mm (AMEOF700-48SHAMJZ)
160x86x43mm (AMEOFxxxSHAMJZFB)

Temperatura di lavoro:

-40...70°C (AMEOF450-48SHAMJZ, AMEOF45048SHAMJZFB, AMEOF550xxx, AMEOF700-48SHAMJZ)
-40...85°C (AMEOF3-xxxJZ, AMEOFLxxx, AMEOF5-3.3SBJZ, AMEOF5-5SBJZ, AMEOF10-xxx)
-25...85°C (AMEOF5-15SJZ, AMEOF5-15SLJZ, AMEOF5-24SLJZ)

Cassa:

SIP12 (AMEOF3-3.3SLJZ, AMEOF3-9SLJZ)
SIP14 (AMEOF5-15SJZ, AMEOF5-15SLJZ, AMEOF5-24SLJZ)
SIP16 (AMEOF3-3.3SBJZ, AMEOF10-xxx)

Assorbimento di potenza senza carico:

<0,5W (AMEOF3-xxxJZ, AMEOF5xxx, AMEOF450-48SHAMJZ, AMEOF45048SHAMJZFB)
<0,3W (AMEOFL5-3S480HANZB, AMEOFL103S480PEVZB)
<500mW (AMEOF700-48SHAMJZ)

Tensione d'ingresso:

85...264V AC (AMEOF3-3.3SLJZ, AMEOF3-9SLJZ, AMEOF5-15SJZ, AMEOF5-15SLJZ, AMEOF5-24SLJZ, AMEOF450-48SHAMJZ, AMEOF45048SHAMJZFB)
85...305V AC (AMEOFL3-15S277HANZ, AMEOF10-xxx)
90...264V AC (AMEOF550xxx)
90...528V AC (AMEOF3-3.3SBJZ, AMEOF5-3.3SBJZ, AMEOF5-5SBJZ, AMEOFL5-3S480HANZB, AMEOFL103S480PEVZB)
70...400V DC (AMEOF3-3.3SLJZ, AMEOF3-9SLJZ)
70...430V DC (AMEOFL3-15S277HANZ)
100...400V DC (AMEOF5-15SJZ, AMEOF5-15SLJZ, AMEOF5-24SLJZ)
100...430V DC (AMEOF10-xxx)
100...745V DC (AMEOF3-3.3SBJZ, AMEOF5-3.3SBJZ, AMEOF5-5SBJZ, AMEOFL5-3S480HANZB, AMEOFL103S480PEVZB)
127...370V DC (AMEOF450-48SHAMJZ, AMEOF45048SHAMJZFB, AMEOF550xxx)

Numero uscite:

1 (AMEOF700-48SHAMJZ)
