Convertitori DC/DC della serie TMDC
| Produttore | TRACO POWER |
| Collegamento elettrico | morsettiera |
| Simbolo | Potenza | Ud'ingr. | Ud'usc. | Iusc | Ud'usc. 2 | Iusc2 | Efficienza | Dim. est. |
|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [mA] | [V DC] | [mA] | [%] | [mm] | |
| TMDC06-2411 | 6 | 9...36 | 5,1 | 1200 | - | - | 81 | 53x34x26,5 |
| TMDC06-2412 | 6 | 9...36 | 12 | 500 | - | - | 84 | 53x34x26,5 |
| TMDC06-2413 | 6 | 9...36 | 15 | 400 | - | - | 84 | 53x34x26,5 |
| TMDC06-2415 | 6 | 9...36 | 24 | 250 | - | - | 85 | 53x34x26,5 |
| TMDC06-2422 | 6 | 9...36 | 12 | 250 | -12 | 250 | 84 | 53x34x26,5 |
| TMDC06-2423 | 6 | 9...36 | 15 | 200 | -15 | 200 | 85 | 53x34x26,5 |
| TMDC06-4811 | 6 | 18...75 | 5,1 | 1200 | - | - | 80 | 53x34x26,5 |
| TMDC06-4812 | 6 | 18...75 | 12 | 500 | - | - | 84 | 53x34x26,5 |
| TMDC06-4813 | 6 | 18...75 | 15 | 400 | - | - | 84 | 53x34x26,5 |
| TMDC06-4815 | 6 | 18...75 | 24 | 250 | - | - | 85 | 53x34x26,5 |
| TMDC06-4818 | 6 | 18...75 | 48 | 125 | - | - | 83 | 53x34x26,5 |
| TMDC06-4822 | 6 | 18...75 | 12 | 250 | -12 | 250 | 85 | 53x34x26,5 |
| TMDC06-4823 | 6 | 18...75 | 15 | 200 | -15 | 200 | 85 | 53x34x26,5 |
| TMDC06-4825 | 6 | 18...75 | 24 | 125 | -24 | 125 | 84 | 53x34x26,5 |
| TMDC10-2411 | 10 | 9...36 | 5,1 | 2000 | - | - | 84 | 79x34x22 |
| TMDC10-2412 | 10 | 9...36 | 12 | 833 | - | - | 86 | 79x34x22 |
| TMDC10-2413 | 10 | 9...36 | 15 | 666 | - | - | 86 | 79x34x22 |
| TMDC10-2415 | 10 | 9...36 | 24 | 416 | - | - | 86 | 79x34x22 |
| TMDC10-2418 | 10 | 9...36 | 48 | 208 | - | - | 84 | 79x34x22 |
| TMDC10-2422 | 10 | 9...36 | 12 | 416 | -12 | 416 | 86 | 79x34x22 |
| TMDC10-2423 | 10 | 9...36 | 15 | 333 | -15 | 333 | 86 | 79x34x22 |
| TMDC10-2425 | 10 | 9...36 | 24 | 208 | -24 | 208 | 85 | 79x34x22 |
| TMDC10-4811 | 10 | 18...75 | 5,1 | 2000 | - | - | 84 | 79x34x22 |
| TMDC10-4812 | 10 | 18...75 | 12 | 833 | - | - | 86 | 79x34x22 |
| TMDC10-4813 | 10 | 18...75 | 15 | 666 | - | - | 86 | 79x34x22 |
| TMDC10-4815 | 10 | 18...75 | 24 | 416 | - | - | 86 | 79x34x22 |
| TMDC10-4818 | 10 | 18...75 | 48 | 208 | - | - | 84 | 79x34x22 |
| TMDC10-4822 | 10 | 18...75 | 12 | 416 | -12 | 416 | 86 | 79x34x22 |
| TMDC10-4823 | 10 | 18...75 | 15 | 333 | -15 | 333 | 86 | 79x34x22 |
| TMDC10-4825 | 10 | 18...75 | 24 | 208 | -24 | 208 | 85 | 79x34x22 |
| TMDC20-2411 | 20 | 9...36 | 5,1 | 4000 | - | - | 90 | 96x54x23,3 |

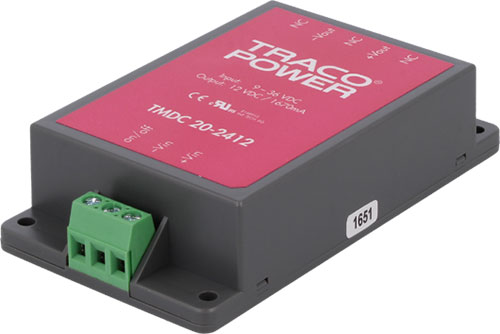

| TMDC20-2412 | 20 | 9...36 | 12 | 1670 | - | - | 91 | 96x54x23,3 |
| TMDC20-2415 | 20 | 9...36 | 24 | 835 | - | - | 91 | 96x54x23,3 |
| TMDC20-2418 | 20 | 9...36 | 48 | 420 | - | - | 89 | 96x54x23,3 |
| TMDC20-4815 | 20 | 18...75 | 24 | 835 | - | - | 91 | 96x54x23,3 |
| TMDC20-4818 | 20 | 18...75 | 48 | 420 | - | - | 89 | 96x54x23,3 |
| TMDC40-2411 | 40 | 9...36 | 5,1 | 8000 | - | - | 90 | 112x63,8x25,6 |
| TMDC40-2412 | 40 | 9...36 | 12 | 3330 | - | - | 90 | 112x63,8x25,6 |
| TMDC40-2415 | 40 | 9...36 | 24 | 1670 | - | - | 90 | 112x63,8x25,6 |
| TMDC40-2418 | 40 | 9...36 | 48 | 835 | - | - | 89 | 112x63,8x25,6 |
| TMDC40-4811 | 40 | 18...75 | 5,1 | 8000 | - | - | 89 | 112x63,8x25,6 |
| TMDC40-4812 | 40 | 18...75 | 12 | 3330 | - | - | 91 | 112x63,8x25,6 |
| TMDC40-4815 | 40 | 18...75 | 24 | 1670 | - | - | 92 | 112x63,8x25,6 |
| TMDC40-4818 | 40 | 18...75 | 48 | 835 | - | - | 90 | 112x63,8x25,6 |
| TMDC60-2411 | 60 | 9...36 | 5,1 | 12000 | - | - | 90 | 112x67,8x38 |
| TMDC60-2412 | 60 | 9...36 | 12 | 5000 | - | - | 91 | 112x67,8x38 |
| TMDC60-2415 | 60 | 9...36 | 24 | 2500 | - | - | 91 | 112x67,8x38 |
| TMDC60-2418 | 60 | 9...36 | 48 | 1250 | - | - | 91 | 112x67,8x38 |
| TMDC60-4811 | 60 | 18...75 | 5,1 | 12000 | - | - | 91 | 112x67,8x38 |
| TMDC60-4812 | 60 | 18...75 | 12 | 5000 | - | - | 92 | 112x67,8x38 |
| TMDC60-4815 | 60 | 18...75 | 24 | 2500 | - | - | 91 | 112x67,8x38 |
| TMDC60-4818 | 60 | 18...75 | 48 | 1250 | - | - | 91 | 112x67,8x38 |
| TMDC06-7211H | 6 | 80...160 | 5,1 | 1200 | - | - | 79 | 53x34x26,5 |
| TMDC06-7212H | 6 | 80...160 | 12 | 500 | - | - | 83 | 53x34x26,5 |
| TMDC06-7213H | 6 | 80...160 | 15 | 400 | - | - | 83 | 53x34x26,5 |
| TMDC06-7215H | 6 | 80...160 | 24 | 250 | - | - | 84 | 53x34x26,5 |
| TMDC06-7218H | 6 | 80...160 | 48 | 125 | - | - | 82 | 53x34x26,5 |
| TMDC06-7222H | 6 | 80...160 | 12 | 250 | -12 | 250 | 84 | 53x34x26,5 |
| TMDC06-7223H | 6 | 80...160 | 15 | 200 | -15 | 200 | 84 | 53x34x26,5 |
| TMDC06-7225H | 6 | 80...160 | 24 | 125 | -24 | 125 | 83 | 53x34x26,5 |
| TMDC10-7211H | 10 | 80...160 | 5,1 | 2000 | - | - | 83 | 79x34x22 |
| TMDC10-7212H | 10 | 80...160 | 12 | 833 | - | - | 85 | 79x34x22 |
| TMDC10-7213H | 10 | 80...160 | 15 | 666 | - | - | 85 | 79x34x22 |
| TMDC10-7215H | 10 | 80...160 | 24 | 416 | - | - | 85 | 79x34x22 |
| TMDC10-7218H | 10 | 80...160 | 48 | 208 | - | - | 83 | 79x34x22 |
| TMDC10-7222H | 10 | 80...160 | 12 | 416 | -12 | 416 | 85 | 79x34x22 |
| TMDC10-7223H | 10 | 80...160 | 15 | 333 | -15 | 333 | 85 | 79x34x22 |
| TMDC10-7225H | 10 | 80...160 | 24 | 208 | -24 | 208 | 84 | 79x34x22 |
| TMDC20-7211H | 20 | 80...160 | 5,1 | 4000 | - | - | 87 | 96x54x23,3 |
| TMDC20-7212H | 20 | 80...160 | 12 | 1670 | - | - | 88 | 96x54x23,3 |
| TMDC20-7213H | 20 | 80...160 | 15 | 1340 | - | - | 88 | 96x54x23,3 |
| TMDC20-7215H | 20 | 80...160 | 24 | 830 | - | - | 88 | 96x54x23,3 |
| TMDC20-7218H | 20 | 80...160 | 48 | 420 | - | - | 86 | 96x54x23,3 |
| TMDC20-7222H | 20 | 80...160 | 12 | 830 | -12 | 830 | 87 | 96x54x23,3 |
| TMDC20-7223H | 20 | 80...160 | 15 | 670 | -15 | 670 | 87 | 96x54x23,3 |
| TMDC20-7225H | 20 | 80...160 | 24 | 420 | -24 | 420 | 87 | 96x54x23,3 |
| TMDC40-7211H | 40 | 80...160 | 5,1 | 8000 | - | - | 87 | 112x63,8x25,6 |
| TMDC40-7212H | 40 | 80...160 | 12 | 3330 | - | - | 89 | 112x63,8x25,6 |
| TMDC40-7213H | 40 | 80...160 | 15 | 2670 | - | - | 89 | 112x63,8x25,6 |
| TMDC40-7215H | 40 | 80...160 | 24 | 1670 | - | - | 89 | 112x63,8x25,6 |
| TMDC40-7218H | 40 | 80...160 | 48 | 840 | - | - | 87 | 112x63,8x25,6 |
| TMDC40-7222H | 40 | 80...160 | 12 | 1670 | -12 | - | 89 | 112x63,8x25,6 |
| TMDC40-7223H | 40 | 80...160 | 15 | 1330 | -15 | - | 89 | 112x63,8x25,6 |
| TMDC40-7225H | 40 | 80...160 | 24 | 830 | -24 | - | 87 | 112x63,8x25,6 |
| TMDC60-7211H | 60 | 80...160 | 5,1 | 12000 | - | - | 88 | 112x67,8x38 |
| TMDC60-7212H | 60 | 80...160 | 12 | 5000 | - | - | 89 | 112x67,8x38 |
| TMDC60-7213H | 60 | 80...160 | 15 | 4000 | - | - | 89 | 112x67,8x38 |
| TMDC60-7215H | 60 | 80...160 | 24 | 2500 | - | - | 88 | 112x67,8x38 |
| TMDC60-7218H | 60 | 80...160 | 48 | 1250 | - | - | 88 | 112x67,8x38 |
| TMDC60-7222H | 60 | 80...160 | 12 | 2500 | -12 | 2500 | 88 | 112x67,8x38 |
| TMDC60-7223H | 60 | 80...160 | 15 | 2000 | -15 | 2000 | 88 | 112x67,8x38 |
| TMDC60-7225H | 60 | 80...160 | 24 | 1250 | -24 | 1250 | 88 | 112x67,8x38 |
Numero uscite:
- 1 (TMDC06-241x, TMDC06-481x, TMDC06-721xH, TMDC10-241x, TMDC10-481x, TMDC10-721xH, TMDC20-241x, TMDC20-4815, TMDC20-4818, TMDC20-721xH, TMDC40-241x, TMDC40-481x, TMDC40-721xH, TMDC60-241x, TMDC60-481x, TMDC60-721xH)
- 2 (TMDC06-2422, TMDC06-2423, TMDC06-482x, TMDC06-722xH, TMDC10-242x, TMDC10-482x, TMDC10-722xH, TMDC20-722xH, TMDC40-722xH, TMDC60-722xH)
Tensione di isolamento:
- 2,5kV (TMDC20-241x, TMDC20-4815, TMDC20-4818, TMDC40-241x, TMDC40-481x, TMDC60-241x, TMDC60-481x)
- 3kV (TMDC06-xxx, TMDC10-xxx, TMDC20-72xxH, TMDC40-72xxH, TMDC60-72xxH)
Protezione:
- sottotensione UVP (TMDCxxxH)
- protezione di sovraccarico OPP
- protezione di sovracorrente OVP (TMDC20-241x, TMDC20-4815, TMDC20-4818, TMDC40-241x, TMDC40-481x, TMDC60-241x, TMDC60-481x)
- anticortocircuito SCP
- abbassamento di tensione BOP (TMDC06-24xx, TMDC06-48xx, TMDC10-24xx, TMDC10-48xx)
Frequenza commutativa:
- 370kHz (TMDC06-24xx, TMDC06-48xx)
- 330kHz (TMDC10-24xx, TMDC10-48xx)
- 285kHz (TMDC20-241x, TMDC20-4815, TMDC20-4818, TMDC40-241x, TMDC40-481x)
- 210kHz (TMDC60-241x, TMDC60-481x, TMDC40-72xxH)
- 250kHz (TMDC06-72xxH)
- 275kHz (TMDC10-72xxH)
- 220kHz (TMDC20-7211H, TMDC60-7212H, TMDC60-7213H, TMDC60-7215H, TMDC60-7218H, TMDC60-722xH)
- 280kHz (TMDC20-7212H, TMDC20-7213H, TMDC20-7215H, TMDC20-7218H, TMDC20-722xH)
- 190kHz (TMDC60-7211H)
Temperatura di lavoro:
- -40...75°C (TMDC40-72xxH, TMDC60-72xxH)
- -40...80°C (TMDC06-24xx, TMDC06-48xx, TMDC10-24xx, TMDC10-48xx)
- -40...85°C (TMDC40-241x, TMDC40-481x, TMDC60-241x, TMDC60-481x)
- -40...87°C (TMDC10-72xxH)
- -40...90°C (TMDC20-241x, TMDC20-4815, TMDC20-4818)
- -40...93°C (TMDC06-72xxH)
- -40...95°C (TMDC20-72xxH)
Serie del produttore:
- TMDC06 (TMDC06-24xx, TMDC06-48xx)
- TMDC10 (TMDC10-24xx, TMDC10-48xx)
- TMDC20 (TMDC20-241x, TMDC20-4815, TMDC20-4818)
- TMDC40 (TMDC40-241x, TMDC40-481x)
- TMDC60 (TMDC60-241x, TMDC60-481x)
- TMDC 06H (TMDC06-72xxH)
- TMDC 10H (TMDC10-72xxH)
- TMDC 20H (TMDC20-72xxH)
- TMDC 40H (TMDC40-72xxH)
- TMDC 60H (TMDC60-72xxH)
Montaggio:
- per guida DIN (TMDC60-4811)
Dimensioni:

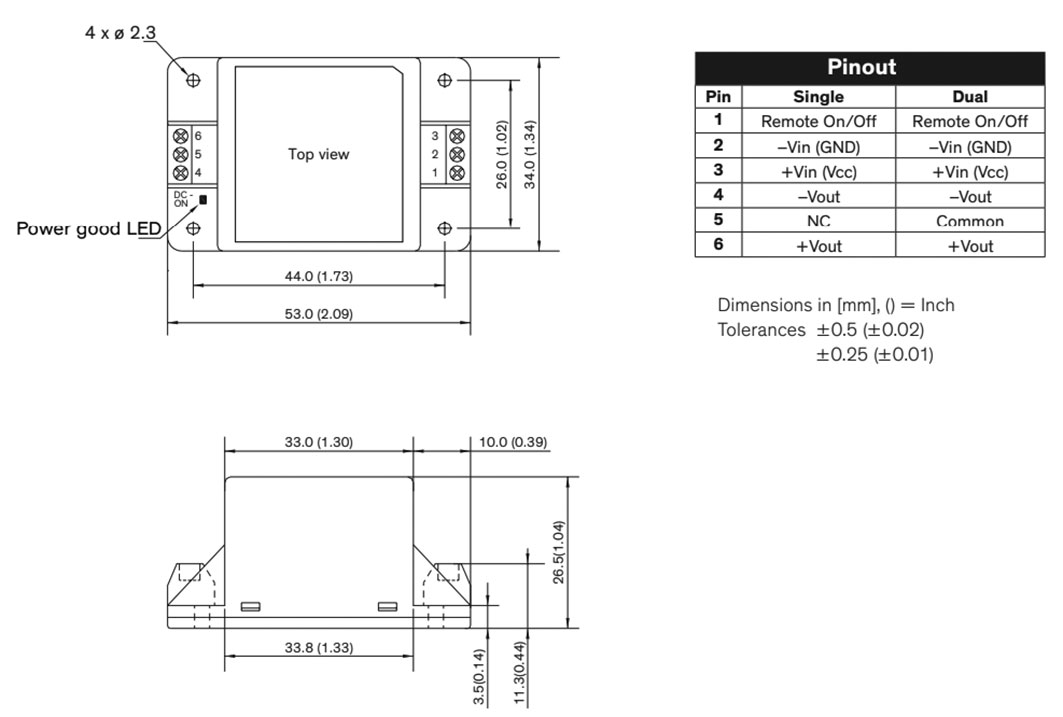

- Diseg.1. (TMDC06-24xx, TMDC06-48xx)

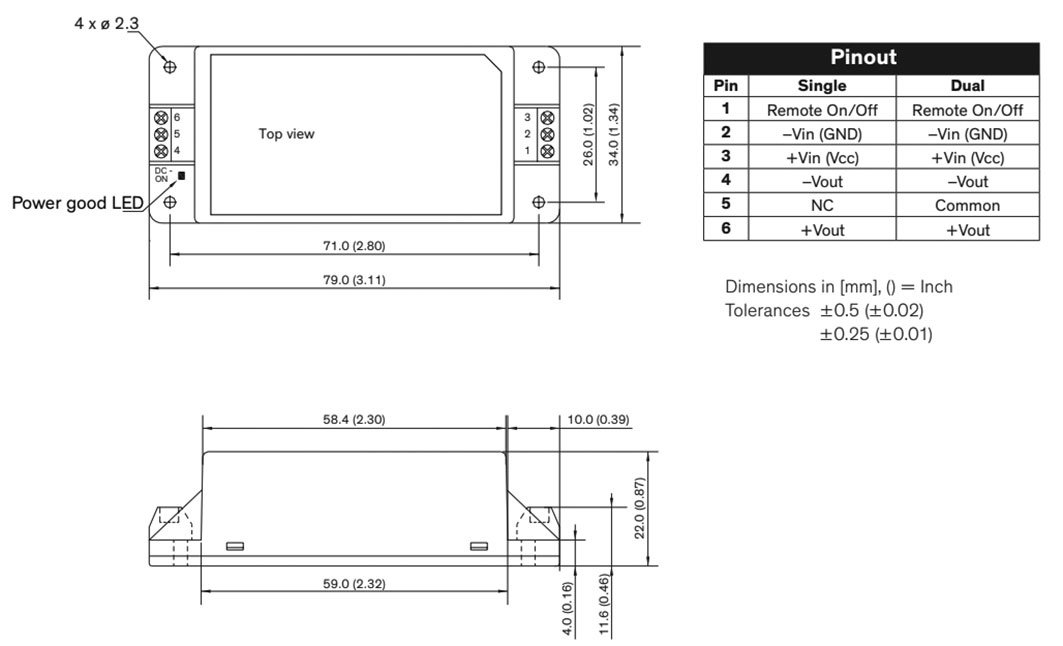

- Diseg.2. (TMDC10-24xx, TMDC10-48xx)

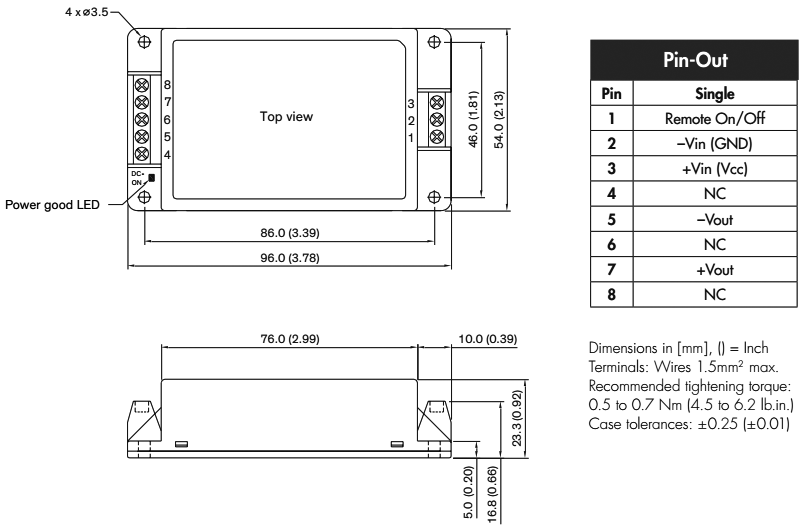

- Diseg.3. (TMDC20-241x, TMDC20-4815, TMDC20-4818)

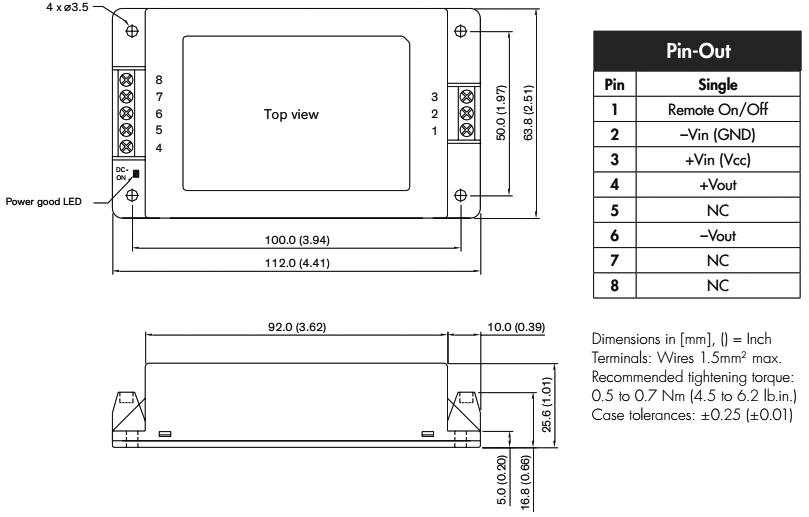

- Diseg.4. (TMDC40-241x, TMDC40-481x)
- Diseg.5. (TMDC60-241x, TMDC60-481x)

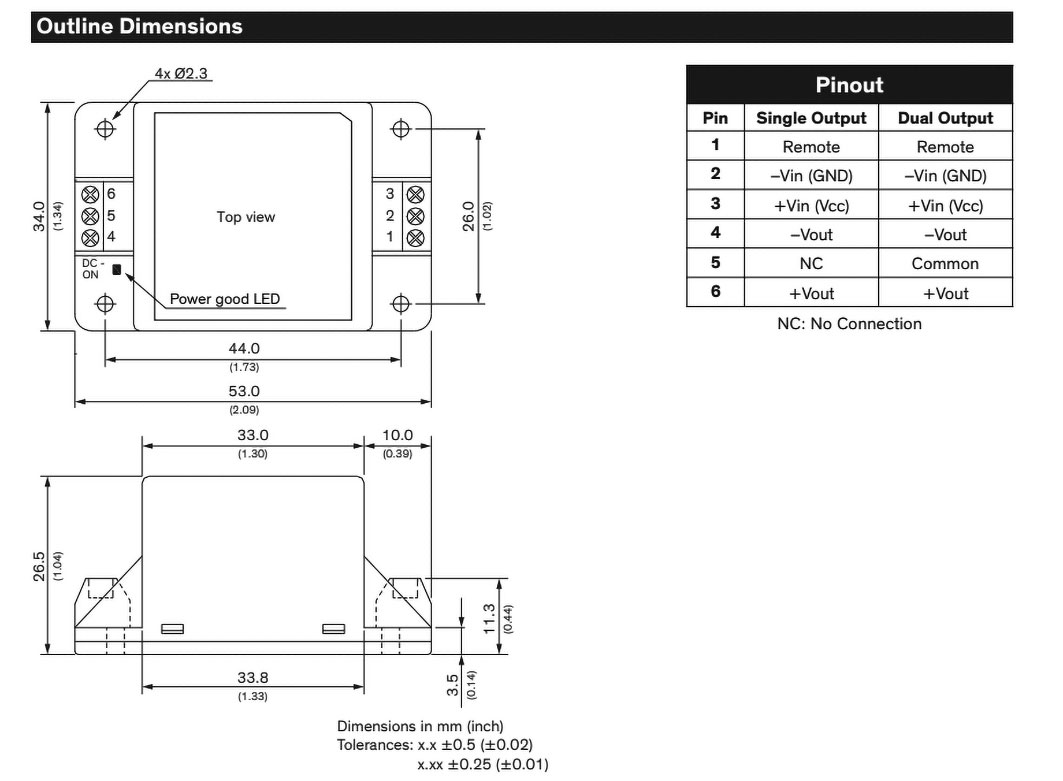

- Diseg.6. (TMDC06-72xxH)
- Diseg.7. (TMDC10-72xxH)

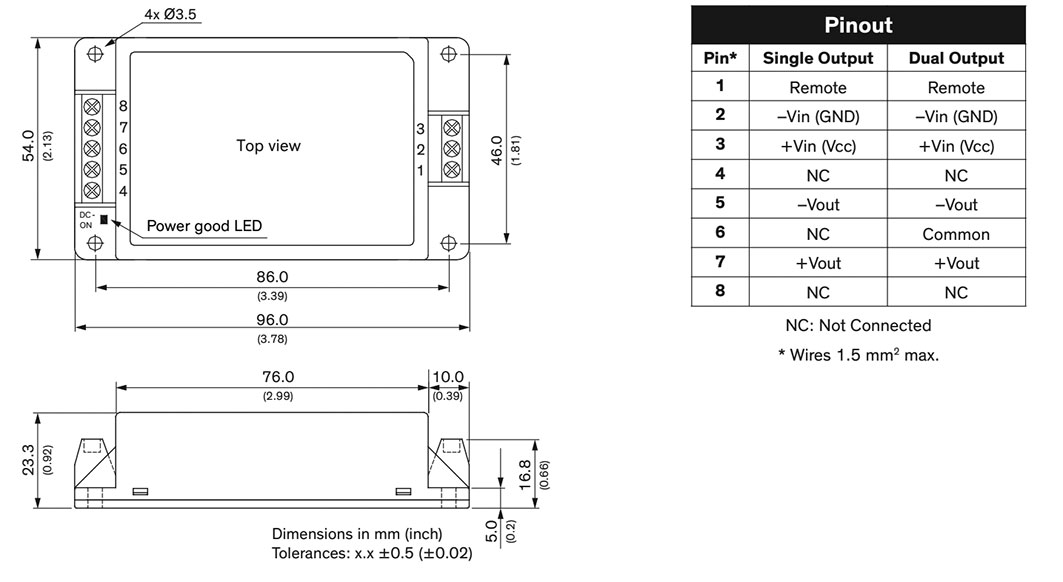

- Diseg.8. (TMDC20-72xxH)
- Diseg.9. (TMDC40-72xxH)

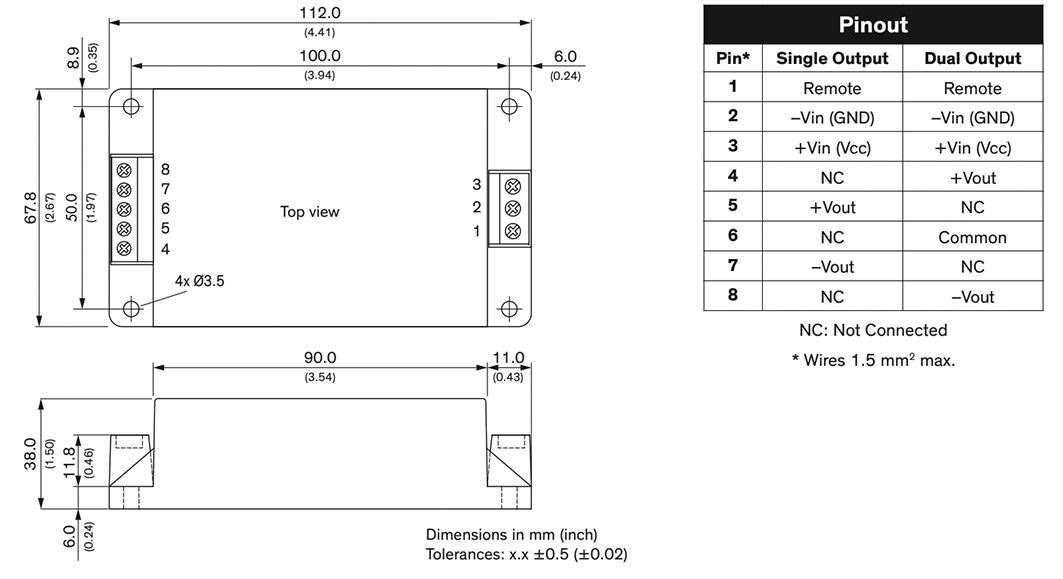

- Diseg.10. (TMDC60-72xxH)
