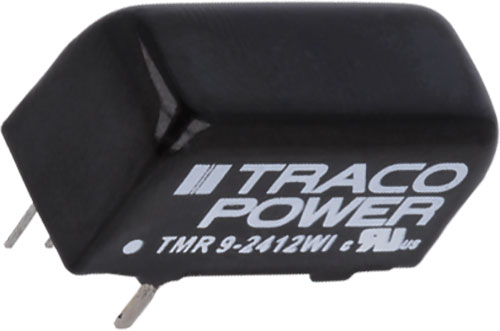

Convertitori DC/DC della serie TMR9
| Produttore | TRACO POWER |
| Cassa | SIP8 |
| Tensione di isolamento | 1600V |
| Protezione | protezione di sovraccarico OPP, anticortocircuito SCP |
| Frequenza commutativa | 400kHz |
| Temperatura di lavoro | -40...85°C |
| Dim. est. | 21,8x11,2x9,6mm |
| Simbolo | Potenza | Ud'ingr. | Iusc | Ud'usc. 2 | Iusc2 | Efficienza |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [mA] | [V DC] | [mA] | [%] | |
| TMR9-1210 | 9 | 9...18 | 2000 | - | - | 81 |
| TMR9-1211 | 9 | 9...18 | 1600 | - | - | 85 |
| TMR9-1219 | 9 | 9...18 | 1000 | - | - | 87 |
| TMR9-1212 | 9 | 9...18 | 750 | - | - | 88 |
| TMR9-1213 | 9 | 9...18 | 600 | - | - | 89 |
| TMR9-1215 | 9 | 9...18 | 375 | - | - | 89 |
| TMR9-1221 | 9 | 9...18 | 800 | -5 | 800 | 85 |
| TMR9-1222 | 9 | 9...18 | 375 | -12 | 375 | 88 |
| TMR9-1223 | 9 | 9...18 | 300 | -15 | 300 | 89 |
| TMR9-2410 | 9 | 18...36 | 2000 | - | - | 82 |
| TMR9-2411 | 9 | 18...36 | 1600 | - | - | 85 |
| TMR9-2419 | 9 | 18...36 | 1000 | - | - | 88 |
| TMR9-2412 | 9 | 18...36 | 750 | - | - | 89 |
| TMR9-2413 | 9 | 18...36 | 600 | - | - | 90 |
| TMR9-2421 | 9 | 18...36 | 800 | -5 | 800 | 86 |
| TMR9-2422 | 9 | 18...36 | 375 | -12 | 375 | 89 |
| TMR9-4810 | 9 | 36...75 | 2000 | - | - | 82 |
| TMR9-4811 | 9 | 36...75 | 1600 | - | - | 85 |
| TMR9-4819 | 9 | 36...75 | 1000 | - | - | 88 |
| TMR9-4812 | 9 | 36...75 | 750 | - | - | 89 |
| TMR9-4813 | 9 | 36...75 | 600 | - | - | 89 |
| TMR9-4815 | 9 | 36...75 | 375 | - | - | 89 |
| TMR9-4821 | 9 | 36...75 | 800 | -5 | 800 | 86 |
| TMR9-4822 | 9 | 36...75 | 375 | -12 | 375 | 87 |
| TMR9-4823 | 9 | 36...75 | 300 | -15 | 300 | 87 |
| TMR9-2410WI | 9 | 9...36 | 2000 | - | - | 82 |
| TMR9-2411WI | 9 | 9...36 | 1600 | - | - | 85 |
| TMR9-2419WI | 9 | 9...36 | 1000 | - | - | 88 |
| TMR9-2413WI | 9 | 9...36 | 600 | - | - | 89 |
| TMR9-2415WI | 9 | 9...36 | 375 | - | - | 89 |
| TMR9-2421WI | 9 | 9...36 | 800 | -5 | 800 | 86 |
| TMR9-2422WI | 9 | 9...36 | 375 | -12 | 375 | 88 |
| TMR9-2423WI | 9 | 9...36 | 300 | -15 | 300 | 88 |
| TMR9-4810WI | 9 | 18...75 | 2000 | - | - | 82 |
| TMR9-4811WI | 9 | 18...75 | 1600 | - | - | 85 |
| TMR9-4819WI | 9 | 18...75 | 1000 | - | - | 89 |
| TMR9-4812WI | 9 | 18...75 | 750 | - | - | 89 |
| TMR9-4813WI | 9 | 18...75 | 600 | - | - | 89 |
| TMR9-4815WI | 9 | 18...75 | 375 | - | - | 89 |
| TMR9-4821WI | 9 | 18...75 | 800 | -5 | 800 | 85 |
| TMR9-4822WI | 9 | 18...75 | 375 | -12 | 375 | 88 |
| Simbolo | Numero uscite | Dimensioni | Serie del produttore | Montaggio | Tensione d'uscita |
|---|---|---|---|---|---|
| [V DC] | |||||

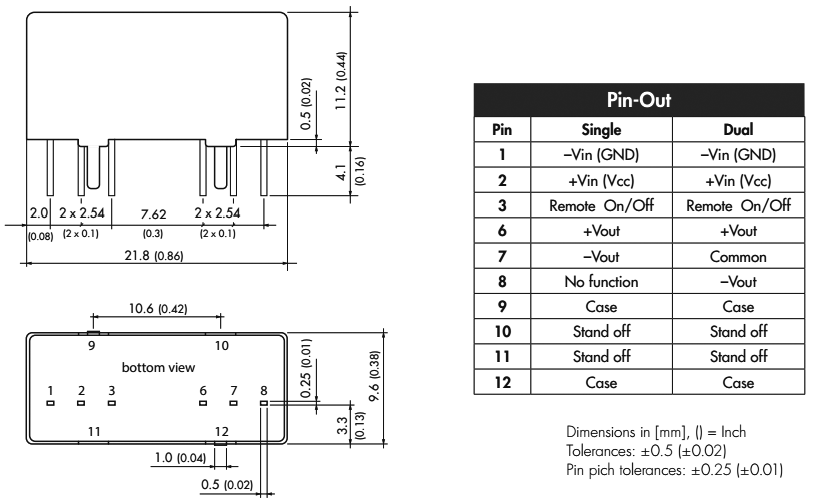

| TMR9-1210 | 1 | Diseg.1. | TMR9 | THT | 3,3 |
| TMR9-1211 | 1 | Diseg.1. | TMR9 | THT | 5 |
| TMR9-1219 | 1 | Diseg.1. | TMR9 | THT | 9 |
| TMR9-1212 | 1 | Diseg.1. | TMR9 | THT | 12 |
| TMR9-1213 | 1 | Diseg.1. | TMR9 | THT | 15 |
| TMR9-1215 | 1 | Diseg.1. | TMR9 | THT | 24 |
| TMR9-1221 | 2 | Diseg.1. | TMR9 | THT | 5 |
| TMR9-1222 | 2 | Diseg.1. | TMR9 | THT | 12 |
| TMR9-1223 | 2 | Diseg.1. | TMR9 | THT | 15 |
| TMR9-2410 | 1 | Diseg.1. | TMR9 | THT | 3,3 |
| TMR9-2411 | 1 | Diseg.1. | TMR9 | THT | 5 |
| TMR9-2419 | 1 | Diseg.1. | TMR9 | THT | 9 |
| TMR9-2412 | 1 | Diseg.1. | TMR9 | THT | 12 |
| TMR9-2413 | 1 | Diseg.1. | TMR9 | THT | 15 |
| TMR9-2421 | 2 | Diseg.1. | TMR9 | THT | 5 |
| TMR9-2422 | 2 | Diseg.1. | TMR9 | THT | 12 |
| TMR9-4810 | 1 | Diseg.1. | TMR9 | THT | 3,3 |
| TMR9-4811 | 1 | Diseg.1. | TMR9 | THT | 5 |
| TMR9-4819 | 1 | Diseg.1. | TMR9 | THT | 9 |
| TMR9-4812 | 1 | Diseg.1. | TMR9 | THT | 12 |
| TMR9-4813 | 1 | Diseg.1. | TMR9 | THT | 15 |
| TMR9-4815 | 1 | Diseg.1. | TMR9 | THT | 24 |
| TMR9-4821 | 2 | Diseg.1. | TMR9 | THT | 5 |
| TMR9-4822 | 2 | Diseg.1. | TMR9 | THT | 12 |
| TMR9-4823 | 2 | Diseg.1. | TMR9 | THT | 15 |
| TMR9-2410WI | 1 | Diseg.2. | TMR 9WI | THT | 3,3 |
| TMR9-2411WI | 1 | Diseg.2. | TMR 9WI | THT | 5 |
| TMR9-2419WI | 1 | Diseg.2. | TMR 9WI | THT | 9 |
| TMR9-2413WI | 1 | Diseg.2. | TMR 9WI | THT | 15 |
| TMR9-2415WI | 1 | Diseg.2. | TMR 9WI | THT | 24 |
| TMR9-2421WI | 2 | Diseg.2. | TMR 9WI | THT | 5 |
| TMR9-2422WI | 2 | Diseg.2. | TMR 9WI | THT | 12 |
| TMR9-2423WI | 2 | Diseg.2. | TMR 9WI | THT | 15 |
| TMR9-4810WI | 1 | Diseg.2. | TMR 9WI | THT | 3,3 |
| TMR9-4811WI | 1 | Diseg.2. | TMR 9WI | THT | 5 |
| TMR9-4819WI | 1 | Diseg.2. | TMR 9WI | THT | 9 |
| TMR9-4812WI | 1 | Diseg.2. | TMR 9WI | THT | 12 |
| TMR9-4813WI | 1 | Diseg.2. | TMR 9WI | THT | 15 |
| TMR9-4815WI | 1 | Diseg.2. | TMR 9WI | THT | 24 |
| TMR9-4821WI | 2 | Diseg.2. | TMR 9WI | THT | 5 |
| TMR9-4822WI | 2 | Diseg.2. | TMR 9WI | THT | 12 |
