Convertitori DC/DC della serie TRN
| Produttore | TRACO POWER |
| Protezione | anticortocircuito SCP |
| Tensione di isolamento | 1600V |
| Frequenza commutativa | 100kHz |
| Simbolo | Potenza | Ud'ingr. | Iusc | Ud'usc. 2 | Iusc2 | Efficienza |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [mA] | [V DC] | [mA] | [%] | |
| TRN1-0510 | 1 | 4,5...13,2 | 300 | - | - | 77 |
| TRN1-0511 | 1 | 4,5...13,2 | 200 | - | - | 79 |
| TRN1-0512 | 1 | 4,5...13,2 | 90 | - | - | 81 |
| TRN1-0515 | 1 | 4,5...13,2 | 45 | - | - | 83 |
| TRN1-0521 | 1 | 4,5...13,2 | 100 | -5 | 100 | 79 |
| TRN1-0522 | 1 | 4,5...13,2 | 45 | -12 | 45 | 83 |
| TRN1-0523 | 1 | 4,5...13,2 | 35 | -15 | 35 | 80 |
| TRN1-1210 | 1 | 9...18 | 300 | - | - | 77 |
| TRN1-1211 | 1 | 9...18 | 200 | - | - | 80 |
| TRN1-1212 | 1 | 9...18 | 90 | - | - | 81 |
| TRN1-1213 | 1 | 9...18 | 70 | - | - | 83 |
| TRN1-1215 | 1 | 9...18 | 45 | - | - | 83 |
| TRN1-1221 | 1 | 9...18 | 100 | -5 | 100 | 79 |
| TRN1-1222 | 1 | 9...18 | 45 | -12 | 45 | 83 |
| TRN1-1223 | 1 | 9...18 | 35 | -15 | 35 | 80 |
| TRN1-2410 | 1 | 18...36 | 300 | - | - | 77 |
| TRN1-2411 | 1 | 18...36 | 200 | - | - | 81 |
| TRN1-2412 | 1 | 18...36 | 90 | - | - | 82 |
| TRN1-2413 | 1 | 18...36 | 70 | - | - | 83 |
| TRN1-2415 | 1 | 18...36 | 45 | - | - | 82 |
| TRN1-2422 | 1 | 18...36 | 45 | -12 | 45 | 82 |
| TRN1-2423 | 1 | 18...36 | 35 | -15 | 35 | 80 |
| TRN1-4810 | 1 | 36...75 | 300 | - | - | 77 |
| TRN1-4811 | 1 | 36...75 | 200 | - | - | 78 |
| TRN1-4812 | 1 | 36...75 | 90 | - | - | 80 |
| TRN1-4813 | 1 | 36...75 | 70 | - | - | 81 |
| TRN1-4815 | 1 | 36...75 | 45 | - | - | 81 |
| TRN1-4821 | 1 | 36...75 | 100 | -5 | 100 | 78 |
| TRN1-4823 | 1 | 36...75 | 35 | -15 | 35 | 79 |
| TRN3-0510 | 3 | 4,5...13,2 | 700 | - | - | 75 |
| TRN3-0511 | 3 | 4,5...13,2 | 600 | - | - | 78 |
| TRN3-0513 | 3 | 4,5...13,2 | 200 | - | - | 80 |
| TRN3-0515 | 3 | 4,5...13,2 | 125 | - | - | 80 |
| TRN3-0521 | 3 | 4,5...13,2 | 300 | -5 | 300 | 77 |
| TRN3-0522 | 3 | 4,5...13,2 | 125 | -12 | 125 | 80 |
| TRN3-0523 | 3 | 4,5...13,2 | 100 | -15 | 100 | 80 |
| TRN3-1210 | 3 | 9...18 | 700 | - | - | 76 |
| TRN3-1211 | 3 | 9...18 | 600 | - | - | 79 |
| TRN3-1212 | 3 | 9...18 | 250 | - | - | 84 |
| TRN3-1213 | 3 | 9...18 | 200 | - | - | 83 |
| TRN3-1215 | 3 | 9...18 | 125 | - | - | 82 |
| TRN3-1221 | 3 | 9...18 | 300 | -5 | 300 | 78 |
| TRN3-1222 | 3 | 9...18 | 125 | -12 | 125 | 82 |
| TRN3-1223 | 3 | 9...18 | 100 | -15 | 100 | 81 |
| TRN3-2410 | 3 | 18...36 | 700 | - | - | 76 |
| TRN3-2411 | 3 | 18...36 | 600 | - | - | 78 |
| TRN3-2412 | 3 | 18...36 | 250 | - | - | 84 |
| TRN3-2413 | 3 | 18...36 | 200 | - | - | 84 |
| TRN3-2415 | 3 | 18...36 | 125 | - | - | 83 |
| TRN3-2421 | 3 | 18...36 | 300 | -5 | 300 | 79 |
| TRN3-2423 | 3 | 18...36 | 100 | -15 | 100 | 82 |
| TRN3-4810 | 3 | 36...75 | 700 | - | - | 75 |
| TRN3-4811 | 3 | 36...75 | 600 | - | - | 79 |
| TRN3-4812 | 3 | 36...75 | 250 | - | - | 83 |
| TRN3-4813 | 3 | 36...75 | 200 | - | - | 83 |
| TRN3-4815 | 3 | 36...75 | 125 | - | - | 82 |
| TRN3-4821 | 3 | 36...75 | 300 | -5 | 300 | 77 |
| TRN3-4822 | 3 | 36...75 | 125 | -12 | 125 | 82 |
| TRN3-4823 | 3 | 36...75 | 100 | -15 | 100 | 80 |
| TRN1-0510SM | 1 | 4,5...13,2 | 300 | - | - | 77 |
| TRN1-0511SM | 1 | 4,5...13,2 | 200 | - | - | 79 |
| TRN1-0512SM | 1 | 4,5...13,2 | 90 | - | - | 81 |
| TRN1-0513SM | 1 | 4,5...13,2 | 70 | - | - | 82 |
| TRN1-0515SM | 1 | 4,5...13,2 | 45 | - | - | 83 |
| TRN1-0521SM | 1 | 4,5...13,2 | 100 | -5 | 100 | 79 |
| TRN1-0522SM | 1 | 4,5...13,2 | 45 | -12 | 45 | 83 |
| TRN1-0523SM | 1 | 4,5...13,2 | 35 | -15 | 35 | 80 |
| TRN1-1210SM | 1 | 9...18 | 300 | - | - | 77 |
| TRN1-1211SM | 1 | 9...18 | 200 | - | - | 80 |
| TRN1-1212SM | 1 | 9...18 | 90 | - | - | 81 |
| TRN1-1213SM | 1 | 9...18 | 70 | - | - | 83 |
| TRN1-1215SM | 1 | 9...18 | 45 | - | - | 83 |
| TRN1-1221SM | 1 | 9...18 | 100 | -5 | 100 | 79 |
| TRN1-1222SM | 1 | 9...18 | 45 | -12 | 45 | 83 |
| TRN1-1223SM | 1 | 9...18 | 35 | -15 | 35 | 80 |
| TRN1-2410SM | 1 | 18...36 | 300 | - | - | 77 |
| TRN1-2411SM | 1 | 18...36 | 200 | - | - | 81 |
| TRN1-2412SM | 1 | 18...36 | 90 | - | - | 82 |
| TRN1-2413SM | 1 | 18...36 | 70 | - | - | 83 |
| TRN1-2415SM | 1 | 18...36 | 45 | - | - | 82 |
| TRN1-2421SM | 1 | 18...36 | 100 | -5 | 100 | 79 |
| TRN1-2422SM | 1 | 18...36 | 45 | -12 | 45 | 82 |
| TRN1-2423SM | 1 | 18...36 | 35 | -15 | 35 | 80 |
| TRN1-4810SM | 1 | 36...75 | 300 | - | - | 77 |
| TRN1-4811SM | 1 | 36...75 | 200 | - | - | 78 |
| TRN1-4812SM | 1 | 36...75 | 90 | - | - | 80 |
| TRN1-4813SM | 1 | 36...75 | 70 | - | - | 81 |
| TRN1-4815SM | 1 | 36...75 | 45 | - | - | 81 |
| TRN1-4821SM | 1 | 36...75 | 100 | -5 | 100 | 78 |
| TRN1-4822SM | 1 | 36...75 | 45 | -12 | 45 | 81 |
| TRN1-4823SM | 1 | 36...75 | 35 | -15 | 35 | 79 |
| TRN3-0510SM | 3 | 4,5...13,2 | 700 | - | - | 75 |
| TRN3-0511SM | 3 | 4,5...13,2 | 600 | - | - | 78 |
| TRN3-0512SM | 3 | 4,5...13,2 | 250 | - | - | 82 |
| TRN3-0513SM | 3 | 4,5...13,2 | 200 | - | - | 80 |
| TRN3-0515SM | 3 | 4,5...13,2 | 125 | - | - | 80 |
| TRN3-0521SM | 3 | 4,5...13,2 | 300 | -5 | 300 | 77 |
| TRN3-0522SM | 3 | 4,5...13,2 | 125 | -12 | 125 | 80 |
| TRN3-0523SM | 3 | 4,5...13,2 | 100 | -15 | 100 | 80 |
| TRN3-1210SM | 3 | 9...18 | 700 | - | - | 76 |
| TRN3-1211SM | 3 | 9...18 | 600 | - | - | 79 |
| TRN3-1212SM | 3 | 9...18 | 250 | - | - | 84 |
| TRN3-1213SM | 3 | 9...18 | 200 | - | - | 83 |
| TRN3-1215SM | 3 | 9...18 | 125 | - | - | 82 |
| TRN3-1221SM | 3 | 9...18 | 300 | -5 | 300 | 78 |
| TRN3-1222SM | 3 | 9...18 | 125 | -12 | 125 | 82 |
| TRN3-1223SM | 3 | 9...18 | 100 | -15 | 100 | 81 |
| TRN3-2410SM | 3 | 18...36 | 700 | - | - | 76 |
| TRN3-2411SM | 3 | 18...36 | 600 | - | - | 78 |
| TRN3-2412SM | 3 | 18...36 | 250 | - | - | 84 |
| TRN3-2413SM | 3 | 18...36 | 200 | - | - | 84 |
| TRN3-2415SM | 3 | 18...36 | 125 | - | - | 83 |
| TRN3-2421SM | 3 | 18...36 | 300 | -5 | 300 | 79 |
| TRN3-2422SM | 3 | 18...36 | 125 | -12 | 125 | 83 |
| TRN3-2423SM | 3 | 18...36 | 100 | -15 | 100 | 82 |
| TRN3-4810SM | 3 | 36...75 | 700 | - | - | 75 |
| TRN3-4811SM | 3 | 36...75 | 600 | - | - | 79 |
| TRN3-4812SM | 3 | 36...75 | 250 | - | - | 83 |
| TRN3-4813SM | 3 | 36...75 | 200 | - | - | 83 |
| TRN3-4815SM | 3 | 36...75 | 125 | - | - | 82 |
| TRN3-4821SM | 3 | 36...75 | 300 | -5 | 300 | 77 |
| TRN3-4822SM | 3 | 36...75 | 125 | -12 | 125 | 82 |
| TRN3-4823SM | 3 | 36...75 | 100 | -15 | 100 | 80 |
Cassa:
- SIP (TRN1-0510, TRN1-0511, TRN1-0512, TRN1-0515, TRN1-0521, TRN1-0522, TRN1-0523, TRN1-1210, TRN1-1211, TRN1-1212, TRN1-1213, TRN1-1215, TRN1-1221, TRN1-1222, TRN1-1223, TRN1-2410, TRN1-2411, TRN1-2412, TRN1-2413, TRN1-2415, TRN1-2422, TRN1-2423, TRN1-4810, TRN1-4811, TRN1-4812, TRN1-4813, TRN1-4815, TRN1-4821, TRN1-4823, TRN3-0510, TRN3-0511, TRN3-0513, TRN3-0515, TRN3-0521, TRN3-0522, TRN3-0523, TRN3-1210, TRN3-1211, TRN3-1212, TRN3-1213, TRN3-1215, TRN3-1221, TRN3-1222, TRN3-1223, TRN3-2410, TRN3-2411, TRN3-2412, TRN3-2413, TRN3-2415, TRN3-2421, TRN3-2423, TRN3-4810, TRN3-4811, TRN3-4812, TRN3-4813, TRN3-4815, TRN3-4821, TRN3-4822, TRN3-4823)
Dim. est.:
- 11,9x11x7,7mm (TRN1-0510, TRN1-0511, TRN1-0512, TRN1-0515, TRN1-0521, TRN1-0522, TRN1-0523, TRN1-1210, TRN1-1211, TRN1-1212, TRN1-1213, TRN1-1215, TRN1-1221, TRN1-1222, TRN1-1223, TRN1-2410, TRN1-2411, TRN1-2412, TRN1-2413, TRN1-2415, TRN1-2422, TRN1-2423, TRN1-4810, TRN1-4811, TRN1-4812, TRN1-4813, TRN1-4815, TRN1-4821, TRN1-4823, TRN3-0510, TRN3-0511, TRN3-0513, TRN3-0515, TRN3-0521, TRN3-0522, TRN3-0523, TRN3-1210, TRN3-1211, TRN3-1212, TRN3-1213, TRN3-1215, TRN3-1221, TRN3-1222, TRN3-1223, TRN3-2410, TRN3-2411, TRN3-2412, TRN3-2413, TRN3-2415, TRN3-2421, TRN3-2423, TRN3-4810, TRN3-4811, TRN3-4812, TRN3-4813, TRN3-4815, TRN3-4821, TRN3-4822, TRN3-4823)
- 11,9x11,3x7,6mm (TRNxxxSM)
Dimensioni:
- Diseg.1. (TRN1-0510, TRN1-0511, TRN1-0512, TRN1-0515, TRN1-0521, TRN1-0522, TRN1-0523, TRN1-1210, TRN1-1211, TRN1-1212, TRN1-1213, TRN1-1215, TRN1-1221, TRN1-1222, TRN1-1223, TRN1-2410, TRN1-2411, TRN1-2412, TRN1-2413, TRN1-2415, TRN1-2422, TRN1-2423, TRN1-4810, TRN1-4811, TRN1-4812, TRN1-4813, TRN1-4815, TRN1-4821, TRN1-4823, TRN3-0510, TRN3-0511, TRN3-0513, TRN3-0515, TRN3-0521, TRN3-0522, TRN3-0523, TRN3-1210, TRN3-1211, TRN3-1212, TRN3-1213, TRN3-1215, TRN3-1221, TRN3-1222, TRN3-1223, TRN3-2410, TRN3-2411, TRN3-2412, TRN3-2413, TRN3-2415, TRN3-2421, TRN3-2423, TRN3-4810, TRN3-4811, TRN3-4812, TRN3-4813, TRN3-4815, TRN3-4821, TRN3-4822, TRN3-4823)

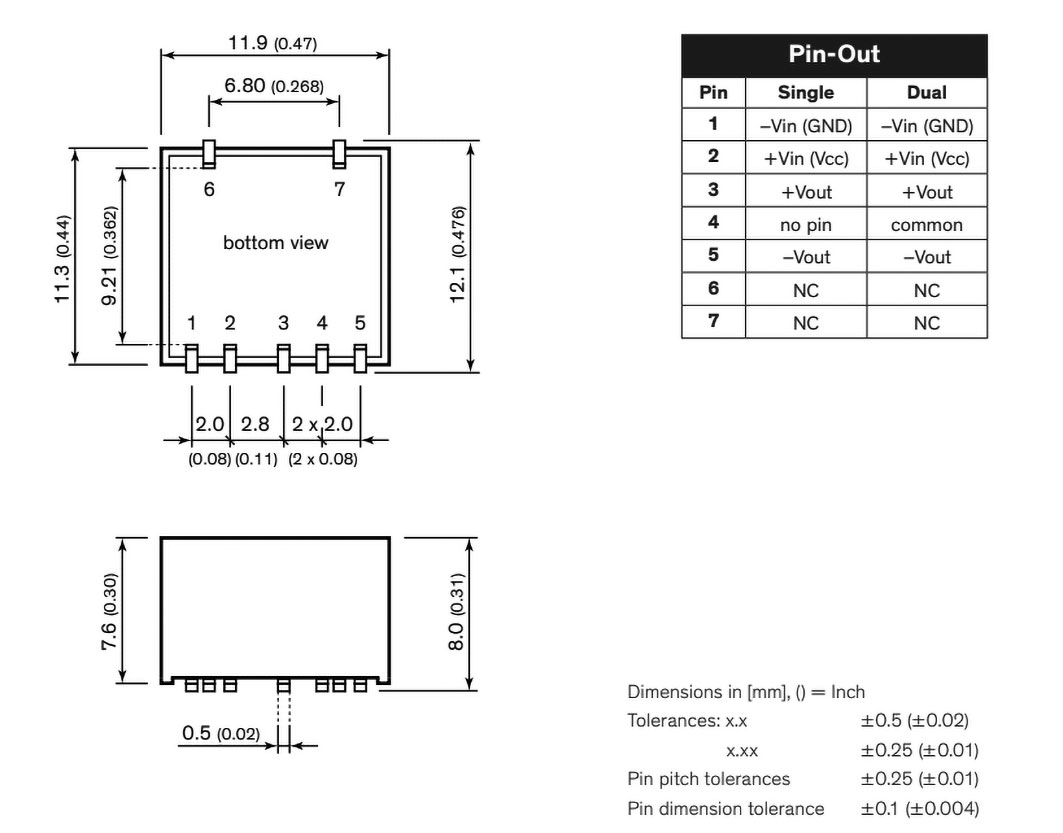

- Diseg.2. (TRN1-xxxSM)
- Diseg.3. (TRN3-xxxSM)
Temperatura di lavoro:
- -40...85°C (TRN3-xxx)
- -40...90°C (TRN1-xxx)
Serie del produttore:
- TRN 1 (TRN1-0510, TRN1-0511, TRN1-0512, TRN1-0515, TRN1-0521, TRN1-0522, TRN1-0523, TRN1-1210, TRN1-1211, TRN1-1212, TRN1-1213, TRN1-1215, TRN1-1221, TRN1-1222, TRN1-1223, TRN1-2410, TRN1-2411, TRN1-2412, TRN1-2413, TRN1-2415, TRN1-2422, TRN1-2423, TRN1-4810, TRN1-4811, TRN1-4812, TRN1-4813, TRN1-4815, TRN1-4821, TRN1-4823)
- TRN 3 (TRN3-0510, TRN3-0511, TRN3-0513, TRN3-0515, TRN3-0521, TRN3-0522, TRN3-0523, TRN3-1210, TRN3-1211, TRN3-1212, TRN3-1213, TRN3-1215, TRN3-1221, TRN3-1222, TRN3-1223, TRN3-2410, TRN3-2411, TRN3-2412, TRN3-2413, TRN3-2415, TRN3-2421, TRN3-2423, TRN3-4810, TRN3-4811, TRN3-4812, TRN3-4813, TRN3-4815, TRN3-4821, TRN3-4822, TRN3-4823)
- TRN 1SM (TRN1-xxxSM)
- TRN 3SM (TRN3-xxxSM)
Numero uscite:
- 1 (TRN1-051xxx, TRN1-121xxx, TRN1-241xxx, TRN1-481xxx, TRN3-051xxx, TRN3-121xxx, TRN3-241xxx, TRN3-481xxx)
- 2 (TRN1-052xxx, TRN1-122xxx, TRN1-242xxx, TRN1-482xxx, TRN3-052xxx, TRN3-122xxx, TRN3-242xxx, TRN3-482xxx)
Montaggio:
- SMT (TRNxxxSM)
- THT (TRN1-0510, TRN1-0511, TRN1-0512, TRN1-0515, TRN1-0521, TRN1-0522, TRN1-0523, TRN1-1210, TRN1-1211, TRN1-1212, TRN1-1213, TRN1-1215, TRN1-1221, TRN1-1222, TRN1-1223, TRN1-2410, TRN1-2411, TRN1-2412, TRN1-2413, TRN1-2415, TRN1-2422, TRN1-2423, TRN1-4810, TRN1-4811, TRN1-4812, TRN1-4813, TRN1-4815, TRN1-4821, TRN1-4823, TRN3-0510, TRN3-0511, TRN3-0513, TRN3-0515, TRN3-0521, TRN3-0522, TRN3-0523, TRN3-1210, TRN3-1211, TRN3-1212, TRN3-1213, TRN3-1215, TRN3-1221, TRN3-1222, TRN3-1223, TRN3-2410, TRN3-2411, TRN3-2412, TRN3-2413, TRN3-2415, TRN3-2421, TRN3-2423, TRN3-4810, TRN3-4811, TRN3-4812, TRN3-4813, TRN3-4815, TRN3-4821, TRN3-4822, TRN3-4823)
Tensione d'uscita:
- 3,3V DC (TRN1-0510, TRN1-0510SM, TRN1-1210, TRN1-1210SM, TRN1-2410, TRN1-2410SM, TRN1-4810, TRN1-4810SM, TRN3-0510, TRN3-0510SM, TRN3-1210, TRN3-1210SM, TRN3-2410, TRN3-2410SM, TRN3-4810, TRN3-4810SM)
- 5V DC (TRN1-0511, TRN1-0511SM, TRN1-0521, TRN1-0521SM, TRN1-1211, TRN1-1211SM, TRN1-1221, TRN1-1221SM, TRN1-2411, TRN1-2411SM, TRN1-2421SM, TRN1-4811, TRN1-4811SM, TRN1-4821, TRN1-4821SM, TRN3-0511, TRN3-0511SM, TRN3-0521, TRN3-0521SM, TRN3-1211, TRN3-1211SM, TRN3-1221, TRN3-1221SM, TRN3-2411, TRN3-2411SM, TRN3-2421, TRN3-2421SM, TRN3-4811, TRN3-4811SM, TRN3-4821, TRN3-4821SM)
- 12V DC (TRN1-0512, TRN1-0512SM, TRN1-0522, TRN1-0522SM, TRN1-1212, TRN1-1212SM, TRN1-1222, TRN1-1222SM, TRN1-2412, TRN1-2412SM, TRN1-2422, TRN1-2422SM, TRN1-4812, TRN1-4812SM, TRN1-4822SM, TRN3-0522, TRN3-0522SM, TRN3-0512SM, TRN3-1212, TRN3-1212SM, TRN3-1222, TRN3-1222SM, TRN3-2412, TRN3-2412SM, TRN3-2422SM, TRN3-4812, TRN3-4812SM, TRN3-4822, TRN3-4822SM)
- 15V DC (TRN1-0523, TRN1-0523SM, TRN1-0513SM, TRN1-1213, TRN1-1213SM, TRN1-1223, TRN1-1223SM, TRN1-2413, TRN1-2413SM, TRN1-2423, TRN1-2423SM, TRN1-4813, TRN1-4813SM, TRN1-4823, TRN1-4823SM, TRN3-0513, TRN3-0513SM, TRN3-0523, TRN3-0523SM, TRN3-1213, TRN3-1213SM, TRN3-1223, TRN3-1223SM, TRN3-2413, TRN3-2413SM, TRN3-2423, TRN3-2423SM, TRN3-4813, TRN3-4813SM, TRN3-4823, TRN3-4823SM)
- 24V DC (TRN1-0515, TRN1-0515SM, TRN1-1215, TRN1-1215SM, TRN1-2415, TRN1-2415SM, TRN1-4815, TRN1-4815SM, TRN3-0515, TRN3-0515SM, TRN3-1215, TRN3-1215SM, TRN3-2415, TRN3-2415SM, TRN3-4815, TRN3-4815SM)
