Convertitori DC/DC serie RDDU
| Produttore | CHINFA ELECTRONICS |
| Temperatura di lavoro | -40...71°C |
| Protezione | protezione di sovraccarico OLP, anticortocircuito SCP |
| Dim. est. | 31,8x20,3x10,2mm |
| Simbolo | Caratteristiche | Ud'ingr. | Potenza | Tensione d'uscita | Iusc | Ud'usc. 2 | Iusc2 | Efficienza | Numero uscite | Dimensioni | Serie del produttore | Uisol. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [W] | [V DC] | [mA] | [V DC] | [mA] | [%] | [kV DC] | |||||

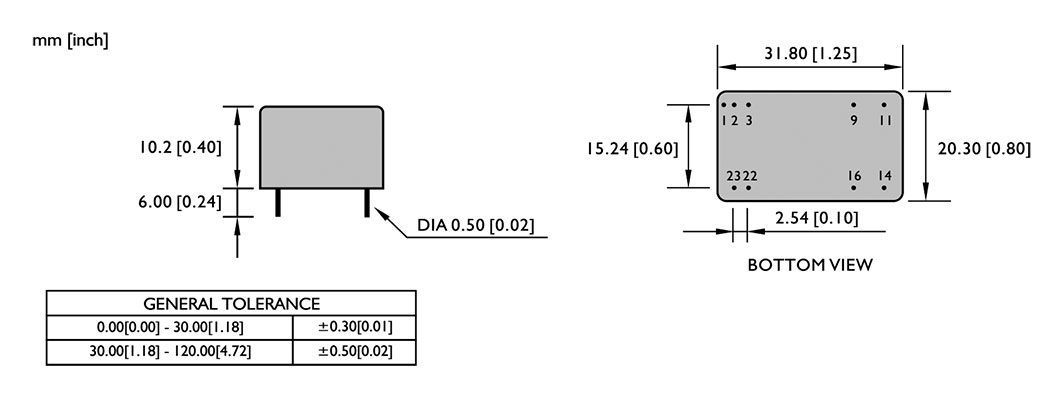

| RDD05-03S1U | - | 9...18 | 5 | 3,3 | 1500 | - | - | 79 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05S1U | - | 9...18 | 5 | 5 | 1000 | - | - | 81 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12S1U | - | 9...18 | 6 | 12 | 500 | - | - | 84 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15S1U | - | 9...18 | 6 | 15 | 400 | - | - | 85 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-03S2U | - | 18...36 | 5 | 3,3 | 1500 | - | - | 79 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05S2U | - | 18...36 | 5 | 5 | 1000 | - | - | 81 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12S2U | - | 18...36 | 6 | 12 | 500 | - | - | 83 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15S2U | - | 18...36 | 6 | 15 | 400 | - | - | 83 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-03S3U | - | 35...75 | 5 | 3,3 | 1500 | - | - | 79 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05S3U | - | 35...75 | 5 | 5 | 1000 | - | - | 81 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12S3U | - | 35...75 | 6 | 12 | 500 | - | - | 82 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15S3U | - | 35...75 | 6 | 15 | 400 | - | - | 83 | 1 | Diseg.1. | RDD05U | 1,5 |

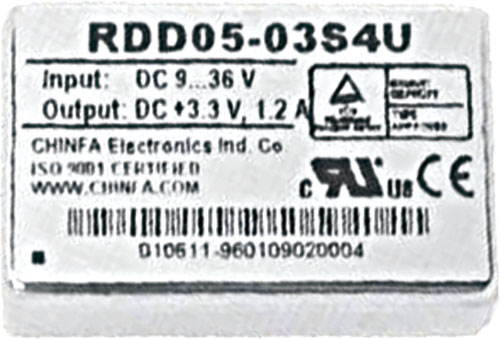

| RDD05-03S4U | - | 9...36 | 4 | 3,3 | 1200 | - | - | 77 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05S4U | - | 9...36 | 5 | 5 | 1000 | - | - | 79 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12S4U | - | 9...36 | 6 | 12 | 500 | - | - | 82 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15S4U | - | 9...36 | 6 | 15 | 400 | - | - | 82 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-03S5U | - | 18...75 | 4 | 3,3 | 1200 | - | - | 77 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05S5U | - | 18...75 | 5 | 5 | 1000 | - | - | 79 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12S5U | - | 18...75 | 6 | 12 | 500 | - | - | 82 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15S5U | - | 18...75 | 6 | 15 | 400 | - | - | 82 | 1 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05D1U | - | 9...18 | 5 | 5 | 500 | -5 | 500 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12D1U | - | 9...18 | 6 | 12 | 250 | -12 | 250 | 84 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15D1U | - | 9...18 | 6 | 15 | 200 | -15 | 200 | 85 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05D2U | - | 18...36 | 5 | 5 | 500 | -5 | 500 | 81 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12D2U | - | 18...36 | 6 | 12 | 250 | -12 | 250 | 83 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15D2U | - | 18...36 | 6 | 15 | 200 | -15 | 200 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05D3U | - | 35...75 | 5 | 5 | 500 | -5 | 500 | 81 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12D3U | - | 35...75 | 6 | 12 | 250 | -12 | 250 | 83 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15D3U | - | 35...75 | 6 | 15 | 200 | -15 | 200 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05D4U | - | 9...36 | 5 | 5 | 500 | -5 | 500 | 79 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12D4U | - | 9...36 | 6 | 12 | 250 | -12 | 250 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15D4U | - | 9...36 | 6 | 15 | 200 | -15 | 200 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-05D5U | - | 18...75 | 5 | 5 | 500 | -5 | 500 | 79 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-12D5U | - | 18...75 | 6 | 12 | 250 | -12 | 250 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |
| RDD05-15D5U | - | 18...75 | 6 | 15 | 200 | -15 | 200 | 82 | 2 | Diseg.1. | RDD05U | 1,5 |

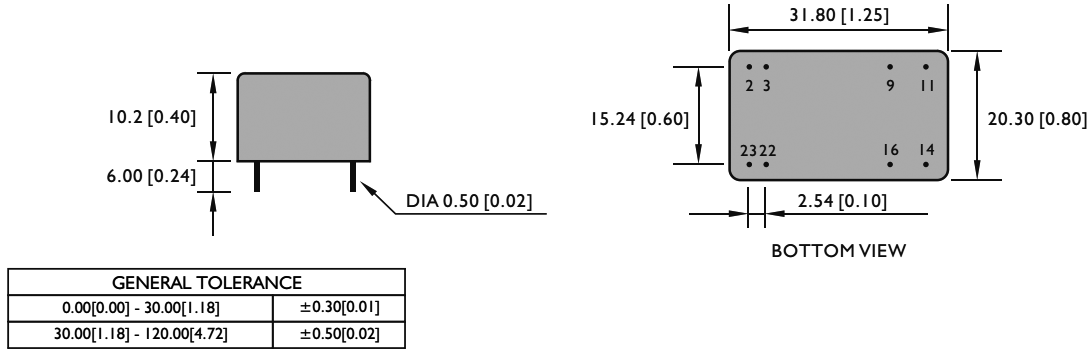

| RDD08-03S1U | Controllo remoto ON/OFF | 9...18 | 6,6 | 3,3 | 2000 | - | - | 80 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-05S1U | Controllo remoto ON/OFF | 9...18 | 7,5 | 5 | 1500 | - | - | 82 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-12S1U | Controllo remoto ON/OFF | 9...18 | 8 | 12 | 670 | - | - | 85 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-15S1U | Controllo remoto ON/OFF | 9...18 | 8 | 15 | 540 | - | - | 85 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-03S2U | Controllo remoto ON/OFF | 18...36 | 6,6 | 3,3 | 2000 | - | - | 80 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-05S2U | Controllo remoto ON/OFF | 18...36 | 7,5 | 5 | 1500 | - | - | 83 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-12S2U | Controllo remoto ON/OFF | 18...36 | 8 | 12 | 670 | - | - | 85 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-15S2U | Controllo remoto ON/OFF | 18...36 | 8 | 15 | 540 | - | - | 85 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-03S3U | Controllo remoto ON/OFF | 35...75 | 6,6 | 3,3 | 2000 | - | - | 80 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-05S3U | Controllo remoto ON/OFF | 35...75 | 7,5 | 5 | 1500 | - | - | 83 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-12S3U | Controllo remoto ON/OFF | 35...75 | 8 | 12 | 670 | - | - | 85 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-15S3U | Controllo remoto ON/OFF | 35...75 | 8 | 15 | 540 | - | - | 85 | 1 | Diseg.2. | RDD08U | 1,5 |
| RDD08-05D1U | Controllo remoto ON/OFF | 9...18 | 8 | 5 | 800 | -5 | 800 | 82 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-12D1U | Controllo remoto ON/OFF | 9...18 | 8 | 12 | 340 | -12 | 340 | 85 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-15D1U | Controllo remoto ON/OFF | 9...18 | 8 | 15 | 270 | -15 | 270 | 85 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-05D2U | Controllo remoto ON/OFF | 18...36 | 8 | 5 | 800 | -5 | 800 | 83 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-12D2U | Controllo remoto ON/OFF | 18...36 | 8 | 12 | 340 | -12 | 340 | 85 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-15D2U | Controllo remoto ON/OFF | 18...36 | 8 | 15 | 270 | -15 | 270 | 85 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-05D3U | Controllo remoto ON/OFF | 35...75 | 8 | 5 | 800 | -5 | 800 | 83 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-12D3U | Controllo remoto ON/OFF | 35...75 | 8 | 12 | 340 | -12 | 340 | 85 | 2 | Diseg.2. | RDD08U | 1,5 |
| RDD08-15D3U | Controllo remoto ON/OFF | 35...75 | 8 | 15 | 270 | -15 | 270 | 85 | 2 | Diseg.2. | RDD08U | 1,5 |
