Convertitori DC/DC serie TDL
| Produttore | TRACO POWER |
| Protezione | anticortocircuito SCP |
| Freq. com. | 100kHz |
| Cassa | DIP8 |
| Tensione di isolamento | 1,5kV |
| Dim. est. | 14x14x8mm |
| Temperatura di lavoro | -40...70°C |
| Montaggio | THT |
| Simbolo | Potenza | Ud'ingr. | Ud'usc. | Iusc | Ud'usc. 2 | Iusc2 | Efficienza | Numero uscite | Serie del produttore | Dimensioni |
|---|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [mA] | [V DC] | [mA] | [%] | ||||

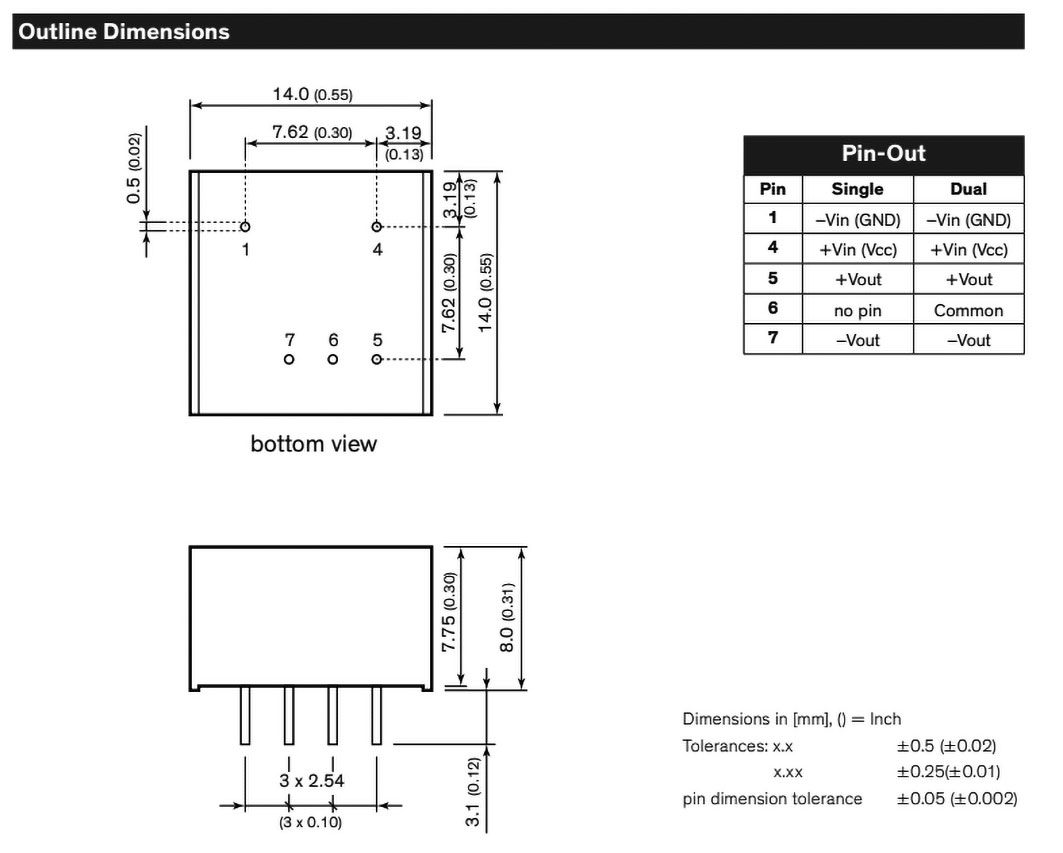

| TDL2-0510 | 2 | 4,5...10 | 3,3 | 400 | - | - | 79 | 1 | TDL 2 | Diseg.1. |
| TDL2-0511 | 2 | 4,5...10 | 5 | 400 | - | - | 81 | 1 | TDL 2 | Diseg.1. |
| TDL2-0512 | 2 | 4,5...10 | 12 | 167 | - | - | 85 | 1 | TDL 2 | Diseg.1. |
| TDL2-0513 | 2 | 4,5...10 | 15 | 134 | - | - | 87 | 1 | TDL 2 | Diseg.1. |
| TDL2-0521 | 2 | 4,5...10 | 5 | 200 | -5 | 200 | 83 | 2 | TDL 2 | Diseg.1. |
| TDL2-0522 | 2 | 4,5...10 | 12 | 83 | -12 | 83 | 85 | 2 | TDL 2 | Diseg.1. |
| TDL2-0523 | 2 | 4,5...10 | 15 | 67 | -15 | 67 | 85 | 2 | TDL 2 | Diseg.1. |
| TDL2-1210 | 2 | 9...18 | 3,3 | 400 | - | - | 80 | 1 | TDL 2 | Diseg.1. |
| TDL2-1211 | 2 | 9...18 | 5 | 400 | - | - | 83 | 1 | TDL 2 | Diseg.1. |
| TDL2-1212 | 2 | 9...18 | 12 | 167 | - | - | 87 | 1 | TDL 2 | Diseg.1. |
| TDL2-1213 | 2 | 9...18 | 15 | 134 | - | - | 87 | 1 | TDL 2 | Diseg.1. |
| TDL2-1221 | 2 | 9...18 | 5 | 200 | -5 | 200 | 84 | 2 | TDL 2 | Diseg.1. |
| TDL2-1222 | 2 | 9...18 | 12 | 83 | -12 | 83 | 86 | 2 | TDL 2 | Diseg.1. |
| TDL2-1223 | 2 | 9...18 | 15 | 67 | -15 | 67 | 86 | 2 | TDL 2 | Diseg.1. |
| TDL2-2410 | 2 | 18...36 | 3,3 | 400 | - | - | 79 | 1 | TDL 2 | Diseg.1. |
| TDL2-2411 | 2 | 18...36 | 5 | 400 | - | - | 84 | 1 | TDL 2 | Diseg.1. |
| TDL2-2412 | 2 | 18...36 | 12 | 167 | - | - | 86 | 1 | TDL 2 | Diseg.1. |
| TDL2-2413 | 2 | 18...36 | 15 | 134 | - | - | 87 | 1 | TDL 2 | Diseg.1. |
| TDL2-2421 | 2 | 18...36 | 5 | 200 | -5 | 200 | 84 | 2 | TDL 2 | Diseg.1. |
| TDL2-2422 | 2 | 18...36 | 12 | 83 | -12 | 83 | 86 | 2 | TDL 2 | Diseg.1. |
| TDL2-2423 | 2 | 18...36 | 15 | 67 | -15 | 67 | 86 | 2 | TDL 2 | Diseg.1. |
| TDL2-4810 | 2 | 36...75 | 3,3 | 400 | - | - | 79 | 1 | TDL 2 | Diseg.1. |
| TDL2-4811 | 2 | 36...75 | 5 | 400 | - | - | 83 | 1 | TDL 2 | Diseg.1. |
| TDL2-4812 | 2 | 36...75 | 12 | 167 | - | - | 85 | 1 | TDL 2 | Diseg.1. |
| TDL2-4813 | 2 | 36...75 | 15 | 134 | - | - | 86 | 1 | TDL 2 | Diseg.1. |
| TDL2-4821 | 2 | 36...75 | 5 | 200 | -5 | 200 | 82 | 2 | TDL 2 | Diseg.1. |
| TDL2-4822 | 2 | 36...75 | 12 | 83 | -12 | 83 | 84 | 2 | TDL 2 | Diseg.1. |
| TDL2-4823 | 2 | 36...75 | 15 | 67 | -15 | 67 | 84 | 2 | TDL 2 | Diseg.1. |

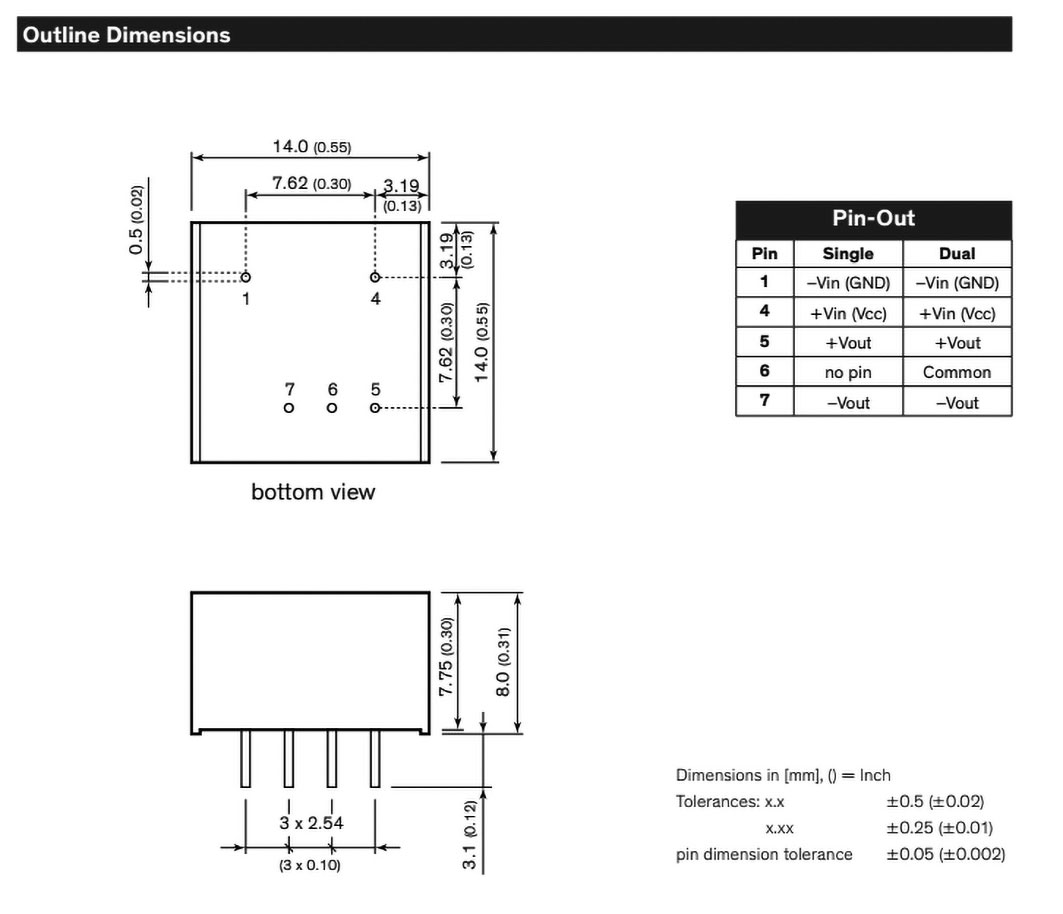

| TDL3-0510 | 3 | 4,5...10 | 3,3 | 600 | - | - | 79 | 1 | TDL 3 | Diseg.2. |
| TDL3-0511 | 3 | 4,5...10 | 5 | 600 | - | - | 81 | 1 | TDL 3 | Diseg.2. |
| TDL3-0512 | 3 | 4,5...10 | 12 | 250 | - | - | 85 | 1 | TDL 3 | Diseg.2. |
| TDL3-0513 | 3 | 4,5...10 | 15 | 200 | - | - | 85 | 1 | TDL 3 | Diseg.2. |
| TDL3-0521 | 3 | 4,5...10 | 5 | 300 | -5 | 300 | 82 | 2 | TDL 3 | Diseg.2. |
| TDL3-0522 | 3 | 4,5...10 | 12 | 125 | -12 | 125 | 84 | 2 | TDL 3 | Diseg.2. |
| TDL3-0523 | 3 | 4,5...10 | 15 | 100 | -12 | 100 | 85 | 2 | TDL 3 | Diseg.2. |
| TDL3-1210 | 3 | 9...18 | 3,3 | 600 | - | - | 80 | 1 | TDL 3 | Diseg.2. |
| TDL3-1211 | 3 | 9...18 | 5 | 600 | - | - | 83 | 1 | TDL 3 | Diseg.2. |
| TDL3-1212 | 3 | 9...18 | 12 | 250 | - | - | 87 | 1 | TDL 3 | Diseg.2. |
| TDL3-1213 | 3 | 9...18 | 15 | 200 | - | - | 87 | 1 | TDL 3 | Diseg.2. |
| TDL3-1221 | 3 | 9...18 | 5 | 300 | -5 | 300 | 84 | 2 | TDL 3 | Diseg.2. |
| TDL3-1222 | 3 | 9...18 | 12 | 125 | -12 | 125 | 86 | 2 | TDL 3 | Diseg.2. |
| TDL3-1223 | 3 | 9...18 | 15 | 100 | -15 | 100 | 87 | 2 | TDL 3 | Diseg.2. |
| TDL3-2410 | 3 | 18...36 | 3,3 | 600 | - | - | 80 | 1 | TDL 3 | Diseg.2. |
| TDL3-2411 | 3 | 18...36 | 5 | 600 | - | - | 83 | 1 | TDL 3 | Diseg.2. |
| TDL3-2412 | 3 | 18...36 | 12 | 250 | - | - | 87 | 1 | TDL 3 | Diseg.2. |
| TDL3-2413 | 3 | 18...36 | 15 | 200 | - | - | 87 | 1 | TDL 3 | Diseg.2. |
| TDL3-2421 | 3 | 18...36 | 5 | 300 | -5 | 300 | 84 | 2 | TDL 3 | Diseg.2. |
| TDL3-2422 | 3 | 18...36 | 12 | 125 | -12 | 125 | 86 | 2 | TDL 3 | Diseg.2. |
| TDL3-2423 | 3 | 18...36 | 15 | 100 | -15 | 100 | 87 | 2 | TDL 3 | Diseg.2. |
| TDL3-4810 | 3 | 36...75 | 3,3 | 600 | - | - | 79 | 1 | TDL 3 | Diseg.2. |
| TDL3-4811 | 3 | 36...75 | 5 | 600 | - | - | 82 | 1 | TDL 3 | Diseg.2. |
| TDL3-4812 | 3 | 36...75 | 12 | 250 | - | - | 86 | 1 | TDL 3 | Diseg.2. |
| TDL3-4813 | 3 | 36...75 | 15 | 200 | - | - | 86 | 1 | TDL 3 | Diseg.2. |
| TDL3-4821 | 3 | 36...75 | 5 | 300 | -5 | 300 | 82 | 2 | TDL 3 | Diseg.2. |
| TDL3-4822 | 3 | 36...75 | 12 | 125 | -12 | 125 | 85 | 2 | TDL 3 | Diseg.2. |
| TDL3-4823 | 3 | 36...75 | 15 | 100 | -15 | 100 | 85 | 2 | TDL 3 | Diseg.2. |
